H15MGWZ4-32S2NF: DescriptionBoard Euro Connector, 13 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size111KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

H15MGWZ4-32S2NF Overview

Board Euro Connector, 13 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

H15MGWZ4-32S2NF Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
Other features	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	TIN
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	H15
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	10.16 mm
Termination type	SOLDER
Total number of contacts	13
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

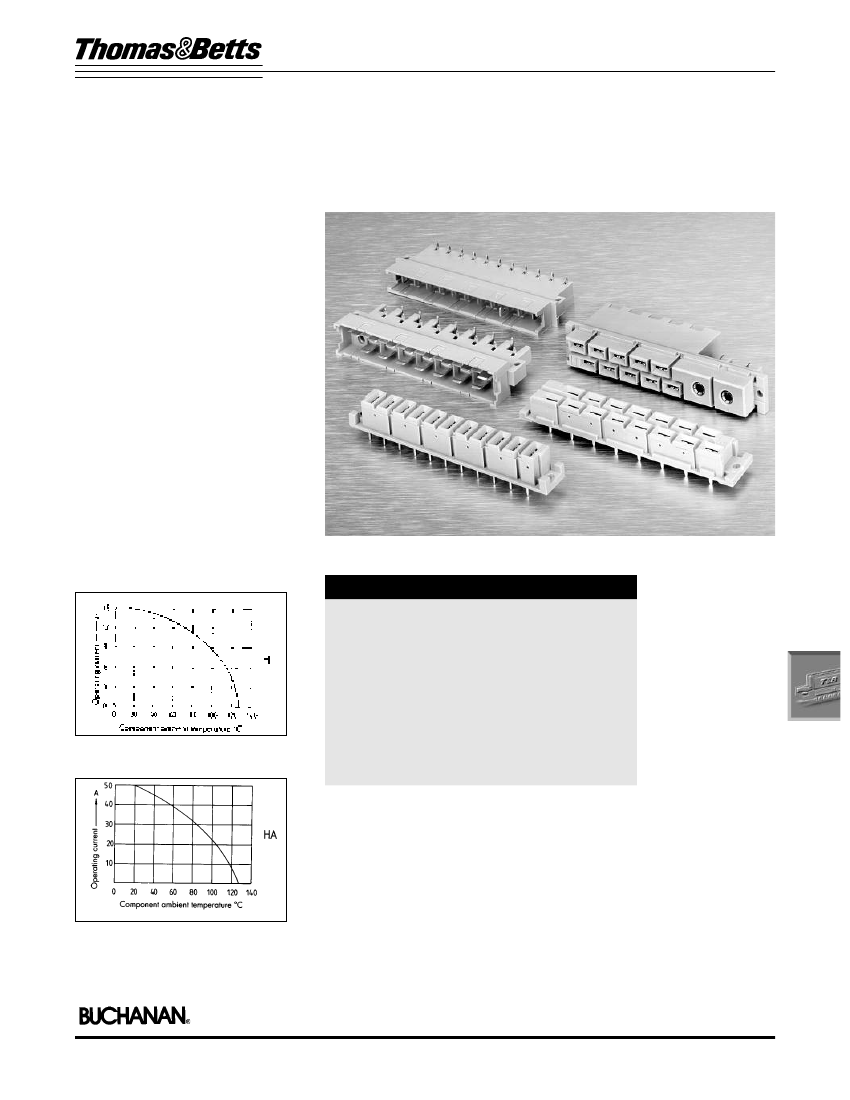

Power DIN

Type H

D

ESCRIPTION

/A

PPLICATION

The Buchanan

®

Type H connector

complies with the application

requirements of DIN 41612 sections

1 and 4. A variety of styles and

designs makes the Type H connector

suitable for a wide range of power

supply sub-assembly needs.

TYPE H

POWER DIN CONNECTORS

D

ESIGN

A

DVANTAGES

• Sturdy mechanical coding keys are

integrated into the connectors. This

allows field coding of the connector

with little additional work.

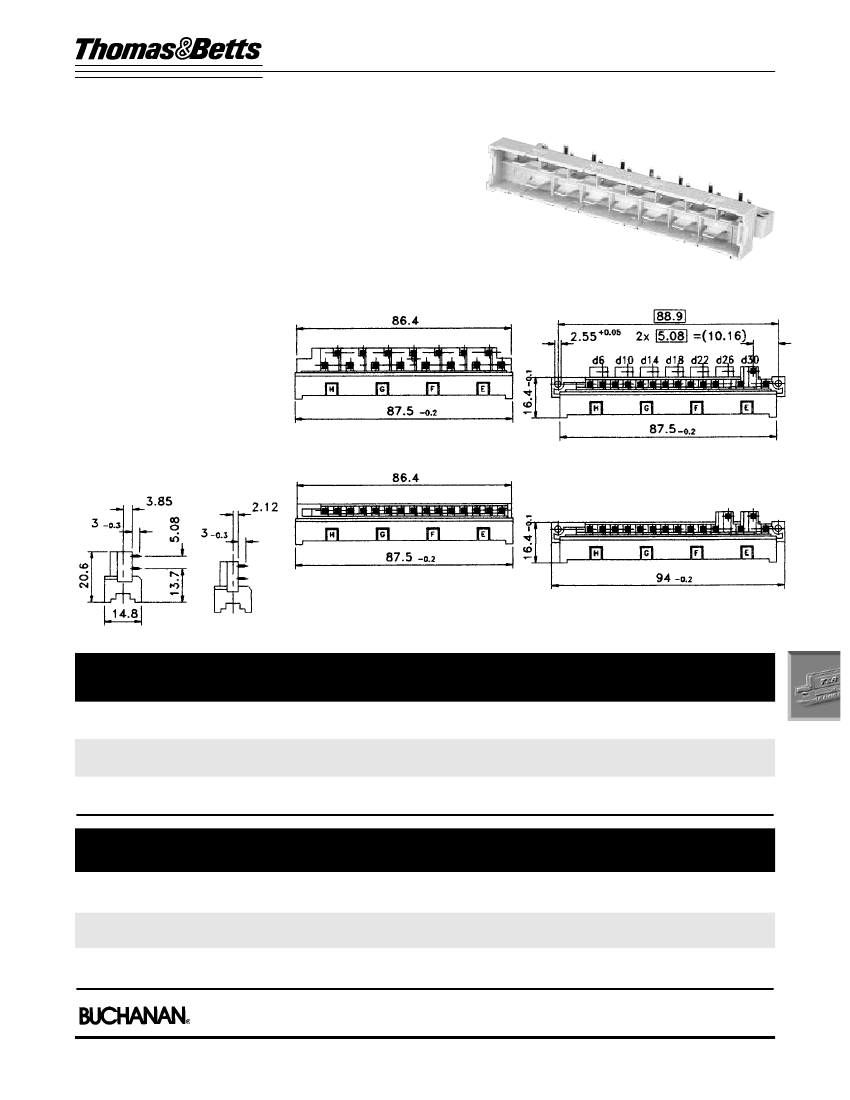

• The H15 male slimline connectors

with one and two rows of contacts

provide space saving on the PCB of

up to approx. 700mm

2

.

• Male connector versions with fully

shrouded contacts provide a

closed insulator on termination side

of the PCB.

D

ERATING

C

URVES

CONNECTOR INDEX

H15 Double Row Male ..........................................................120

H15 Slimline Male ..................................................................121

H15 Double Row Female ..............................................122-123

H15/HA Male ........................................................................124

H15/HA Female......................................................................125

H11 Single Row Male ............................................................126

H11 Single Row Female ........................................................127

H11 Single Row, Half Size Male ............................................128

H11 Single Row, Half Size Female ........................................129

Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312

119
