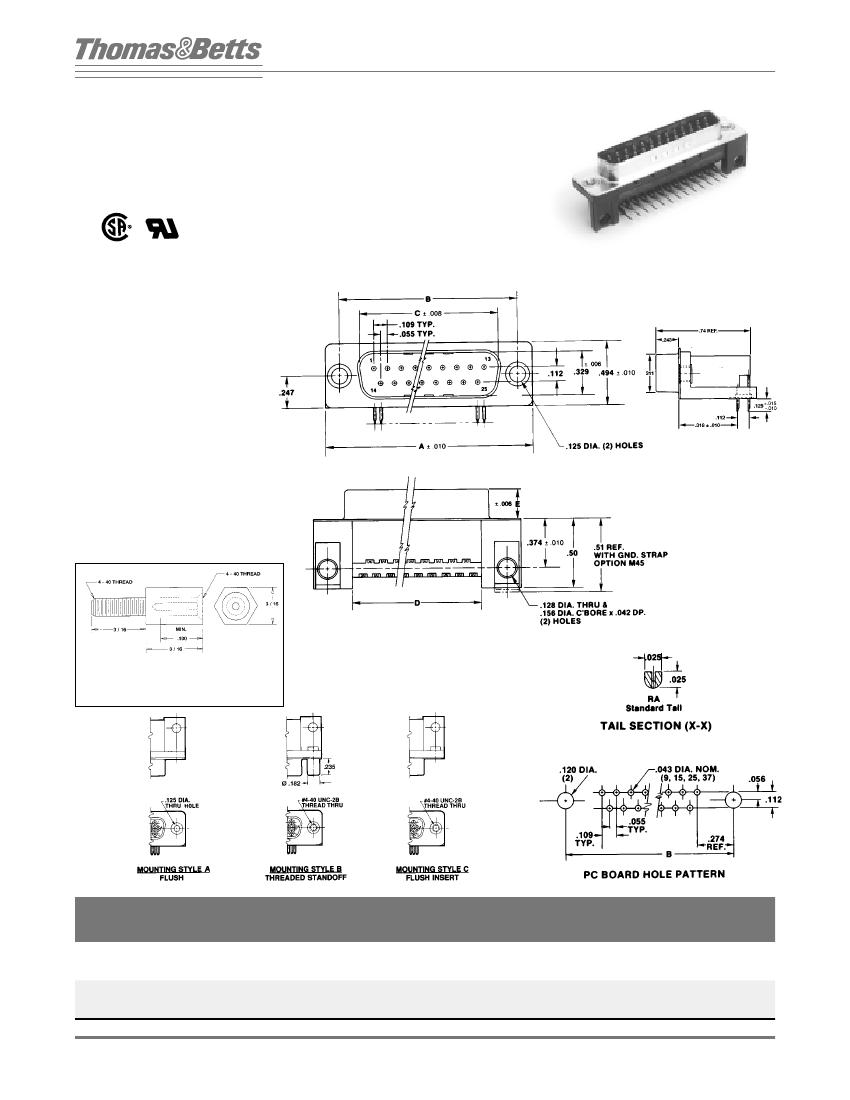

D-Subminiature
Connectors
METAL SHELL
RIGHT ANGLE MALE PINS
LOW COST GOLD FLASH
LR49571
E60980
P
HYSICAL
P
ROPERTIES
I
NSULATION
M
ATERIAL
:
Glass filled thermoplastic
rated UL 94V-0
C
OLOR
:
Black
C
ONTACTS
:
High strength copper alloy
M
ETAL
S
HELL
:
Steel, bright tin plate
D
URABILITY
:
Up to 50 insertions and withdrawals
without degradation of performance, dependent
upon contact plating thickness selected
E
LECTRICAL
P
ROPERTIES
O
PERATING
V
OLTAGE
:
600 VDC (sea level)
C
URRENT
R
ATING
:
5 Amperes
C
ONTACT
R
ESISTANCE
:
10 milliohms max.
@ rated current
I
NSULATION
R
ESISTANCE
:
5000 megohms minimum
D
IELECTRIC
W
ITHSTANDING
V
OLTAGE
:
1000 VAC minimum
E
NVIRONMENTAL
P
ROPERTIES
T
EMPERATURE
R
ATING
:
-55˚C TO 125°C
M
OUNTING
H
ARDWARE
Passivated stainless steel
P
ART
N
UMBER
: 187500110002
Included In Assembly: (2) #4 Flat Washers
(1) #4 Lock Washers
(1) #4-40 Nut
Connector Sold Separately
Ordering Information
NUMBER
CATALOG NUMBER BY MOUNTING STYLE
OF
BASIC CONNECTOR
ROUND STANDOFF
FLUSH INSERT
CONTACTS
W/THRU HOLES
4-40 THREAD
4-40 THREAD
9
15
25
37
H5M09RA24A*
H5M15RA24A*
H5M25RA24A*
H5M37RA24A*
H5M09RA24B*
H5M15RA24B*
H5M25RA24B*
H5M37RA24B*
H5M09RA24C*
H5M15RA24C*
H5M25RA24C*
H5M37RA24C*
DIMENSIONS
A
1.224
1.552
2.092
2.740
B
.984
1.312
1.852
2.500
C
.666
.994
1.534
2.183
D
.624
.952
1.492
2.140
E
.235
.235
.230
.230
*Insert S for metal PC board snap latches and P for plastic PC board latches.
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters (inches).
