H5M25RA29JS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> H5M25RA29JS

H5M25RA29JS: DescriptionD Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

H5M25RA29JS Overview

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

H5M25RA29JS Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LATCHED
body width	0.494 inch
subject depth	0.5 inch
body length	2.092 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	PLASTIC
MIL compliance	NO
Manufacturer's serial number	H5M
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	CABLE LATCH
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal length	0.087 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

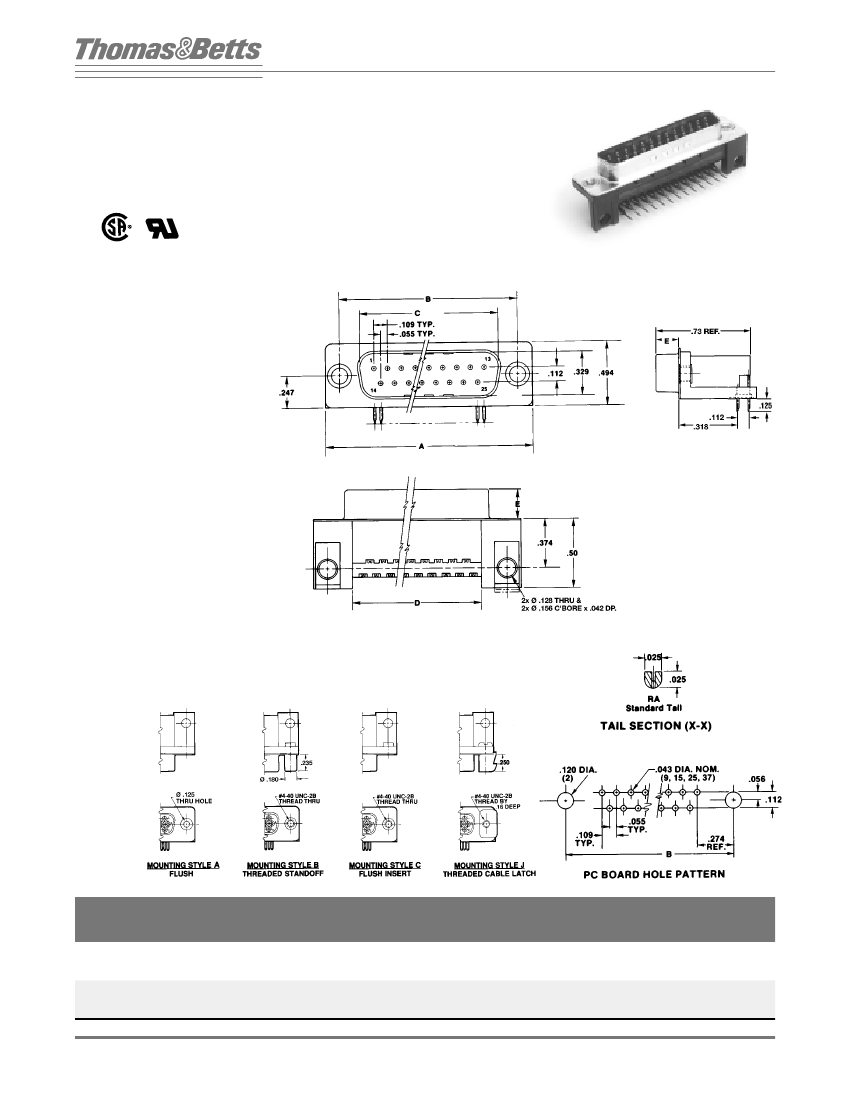

D-Subminiature

.318 Footprint PCB Mount

METAL SHELL

RIGHT ANGLE MALE PINS

FOR PCB MOUNTING

LR49571

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass filled thermoplastic

rated UL 94V-0

OLOR

Black

ONTACTS

High strength copper alloy

ETAL

HELL

Steel, bright tin plate

URABILITY

Up to 500 insertions and withdrawals

without degradation of performance, dependent

upon contact plating thickness selected

LECTRICAL

ROPERTIES

PERATING

OLTAGE

600 VDC (sea level)

URRENT

ATING

5 Amperes

ONTACT

ESISTANCE

10 milliohms max.

@ rated current

NSULATION

ESISTANCE

5000 megohms minimum

IELECTRIC

ITHSTANDING

OLTAGE

1000 VAC minimum

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55˚C TO 125°C

Ordering Information

NUMBER

CATALOG NUMBER BY MOUNTING STYLE

BASIC CONNECTOR

ROUND STANDOFF

FLUSH INSERT

CONTACTS

W/THRU HOLES

4-40 THREAD

H5M09RA29A

H5M15RA29A

H5M25RA29A

H5M37RA29A

H5M09RA29B

H5M15RA29B

H5M25RA29B

H5M37RA29B

H5M09RA29C

H5M15RA29C

H5M25RA29C

H5M37RA29C

DIMENSIONS

LATCH W/STANDOFF

& 4-40 THREADED INSERT

H5M09RA29J

H5M15RA29J

H5M25RA29J

H5M37RA29J

1.224

1.552

2.092

2.740

.984

1.312

1.852

2.500

.666

.994

1.534

2.183

.624

.952

1.492

2.140

.235

.230

Add suffix S for metal snap latches and P for plastic. See page 416 for descriptions. Not available on basic connector.

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).
