Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2011
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
824-IF70.0M-WA
70 MHz IF SAW Filter 0.33MHz Bandwidth
Specification Contents
o
o
o
o
o
Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification
Frequency Response
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
824-IF70.0M-WA
January 2011 Rev A
70 MHz IF SAW Filter 0.33MHz Bandwidth

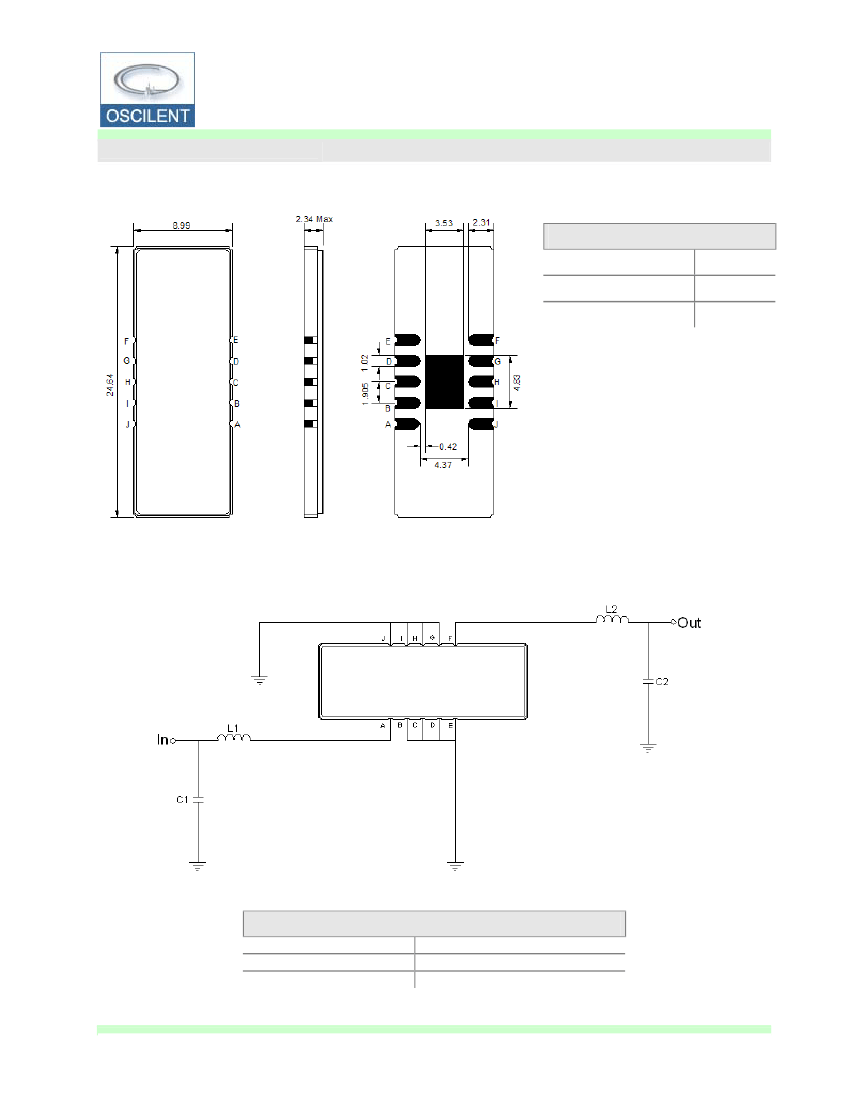

Mechanical Dimensions
(mm)
Pin Description
B, C, D, E, G, H, I, J Ground
A Input
F Output
Test Circuit
Test Fixture & Values
Input L1=200nH Q > 40, C1=100pF
Output L2=180nH Q > 40, C2=51pF
Source/Load Impedance 50
Ω
Product Specification
P. 1
www.oscilent.com
Oscilent Part Number
824-IF70.0M-WA
January 2011 Rev A
70 MHz IF SAW Filter 0.33MHz Bandwidth
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (single ended)
(1)
Load Impedance (single ended)
(1)
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-30
-40
-
-
-
-
Typical
-
-
-
-
50
50
Maximum
80
85
10
10
-
-
Notes: With Matching Network (Ref. Testing Environment Circuit as shown above).
Those impedances could be modified with different impedance values and/or structures, if necessary.
Electrical Specification
Parameters Description
Center Frequency (Fo)
Insertion Loss at Fo
Amplitude Ripple Variation at Fo ±50.0 KHz
Absolute Delay at Fo
IN/OUT Return Loss at Fo
Temperature Coefficient
Bandwidth at –3.0 dB
Bandwidth at –50.0 dB
Relative Attenuation:
10.0 ~ 69.2 MHz
70.8 ~ 110.0 MHz
dB
dB
50
50
57
57
-
-
Unit
MHz
dB
dB
p-p
µsec
dB
ppm/°C
MHz
MHz
Minimum
-
-
-
-
-
-
0.25
-
Typical
70.0
8.5
0.4
3.22
-
-0.03
0.33
0.98
Maximum
-
12.0
1.0
-
-
-
-
1.1
Product Specification
P. 2
www.oscilent.com
Oscilent Part Number
824-IF70.0M-WA
January 2011 Rev A
70 MHz IF SAW Filter 0.33MHz Bandwidth

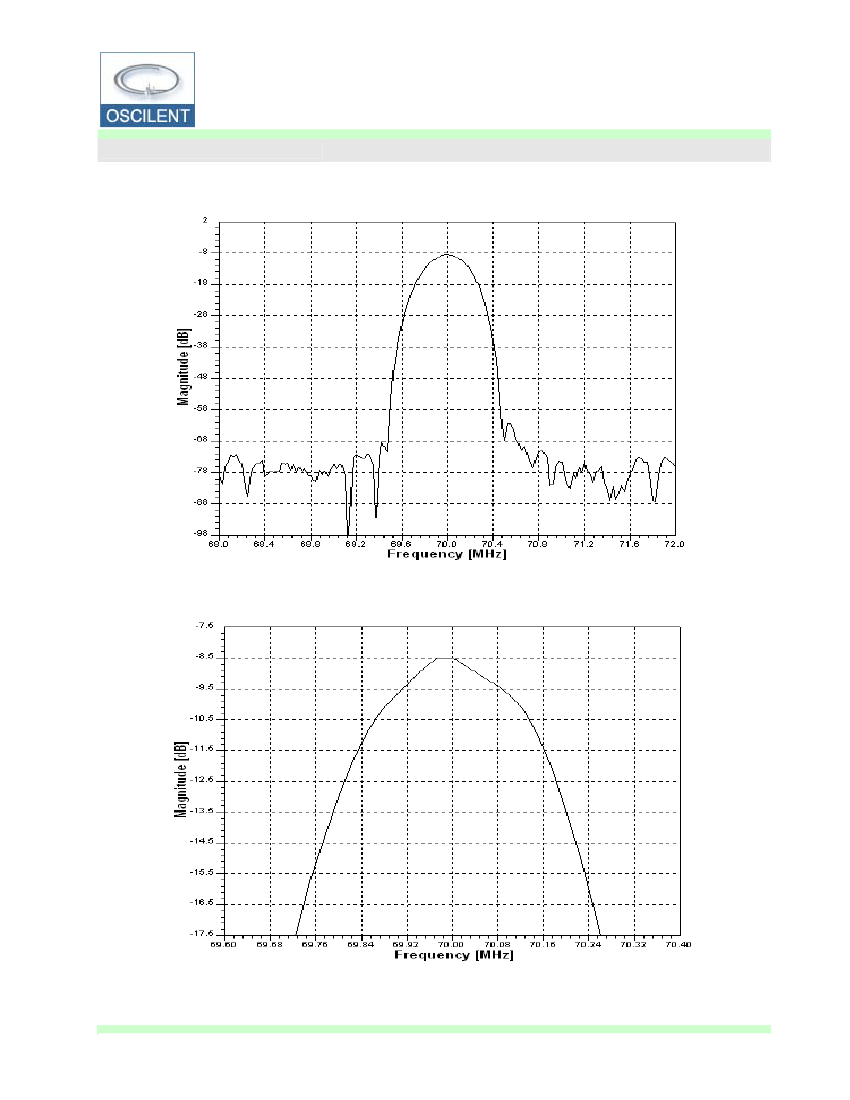

Frequency Response
Product Specification
P. 3
www.oscilent.com
