A25-1 / SMA25-1
Cascadable Amplifier
2 to 1500 MHz
Features
Low Noise: <3.4 dB
Medium Power Out: +9.0 dBm
Low VSWR: <1.7:1
Wide Power Supply Range: +5 to +15 Volts
Rev. V4

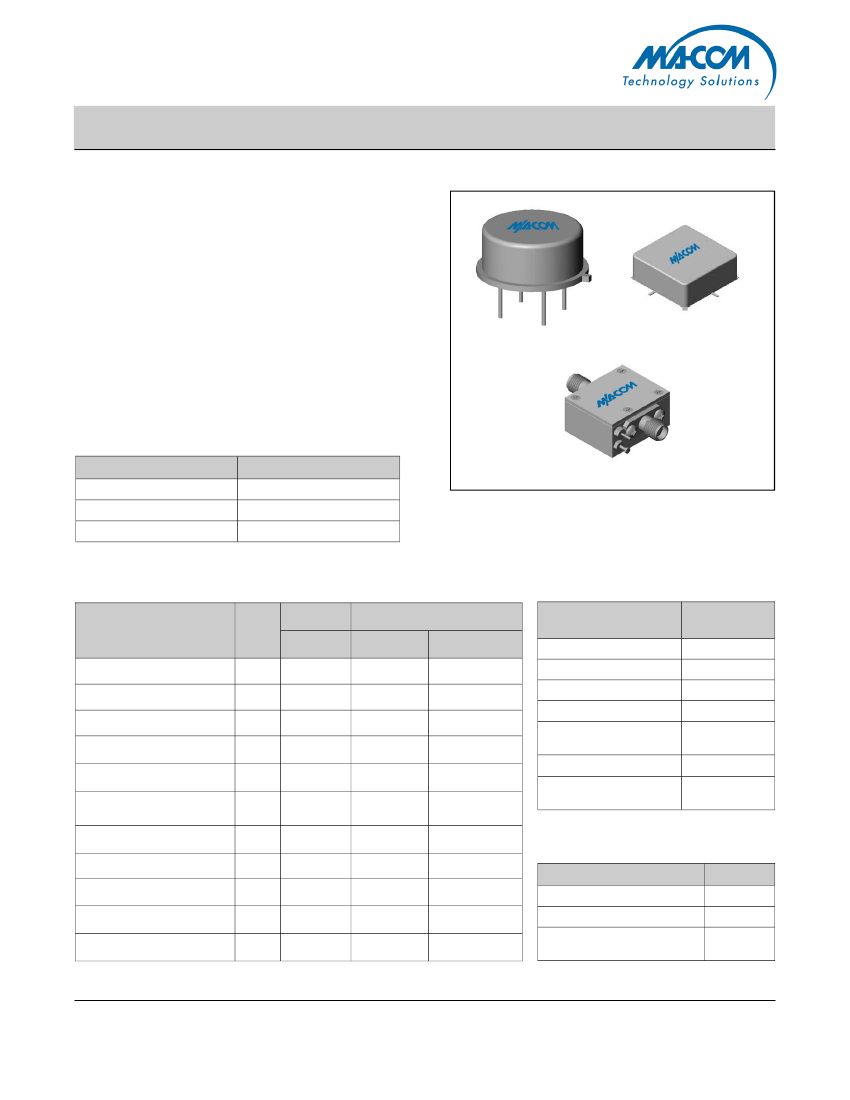

Product Image
Description
The A25-1 RF amplifier is a discrete hybrid design, which
uses thin film manufacturing processes for accurate per-
formance and high reliability.
This single stage bipolar transistor feedback amplifier de-
sign displays impressive performance over a broadband
frequency range. Both TO-8 and Surface Mount packages
are hermetically sealed, and MIL-STD-883 environmental
screening is available
.
Ordering Information
Part Number
A25-1
SMA25-1
CA25-1
Package
TO-8
Surface Mount
SMA Connectorized **
** The connectorized version is not RoHs compliant.
Electrical Specifications: Z
0
= 50
,
V
CC
= +15 V
DC
Typical
Parameter
Frequency
Small Signal Gain (min)
Gain Flatness (max)
Reverse Isolation
Noise Figure (max)
Power Output
@ 1 dB comp. (min)
IP3
IP2
Second Order Harmonic IP
VSWR Input / Output (max)
DC Current @ 15 Volts (max)
mA
Absolute Maximum Ratings
Parameter
Storage Temperature
Case Temperature
DC Voltage
Continuous Input Power
Short Term Input power
(1 minute max.)
Peak Power (3 µsec max.)
“S” Series Burn-In
Temperature (case)
Guaranteed
0º to 50ºC
2-1500
13.0
±0.5
—
3.5
8.0
—
—
—
1.9:1 / 1.9:1
27
Units
25ºC
MHz
dB
dB
dB
dB
dBm
dBm
dBm
dBm
1-1600
13.5
±0.4
18
3.0
9.0
+22
+30
+36
1.7:1 / 1.2:1
24
Absolute
Maximum
-62ºC to +125ºC
+125ºC
+18 V
+13 dBm
50 mW
0.5 W
+125ºC
-54º to +85ºC*
2-1500
12.5
±0.7
—
4.0
7.5
—
—
—
2.0:1 / 2.3:1
28
Thermal Data: V
CC
= +15 V
DC
Parameter
Thermal Resistance
θ
jc
Transistor Power Dissipation P
d
Junction Temperature Rise
Above Case T
jc
Rating
185ºC/W
0.186 W
+34ºC
* Over temperature performance limits for part number CA25-1, guaranteed from 0
o
C to +50
o
C only.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
A25-1 / SMA25-1
Cascadable Amplifier
2 to 1500 MHz

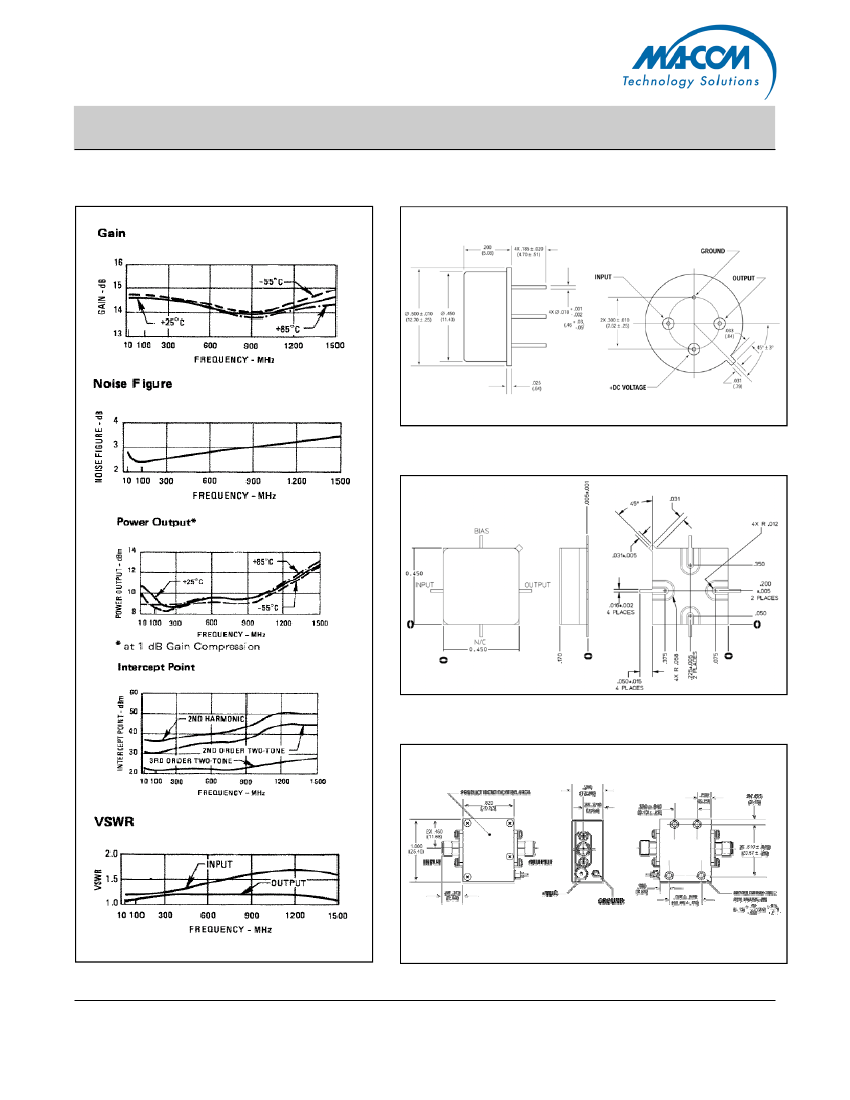

Typical Performance Curves at +25°C
Outline Drawing: TO-8
*
Rev. V4
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: Surface Mount
*
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: SMA Connectorized
*
WEIGHT: 19 grams (0.67 oz.) max
2
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
