REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
D
2.25
3.50
#
0.05
TYP
5
NOTES:
0.02
0.80
#
TYP
A
PARTS RLEEASED FOR PRODUCTION
10JAN2019
RK
PS
2:1
2:1
1. MATERIAL AND FINISH:
HOUSING : HIGH TEMPERATURE POLYAMIDE, UL94V-0
COLOR BLACK.
TERMINAL : COPPER ALLOY, TIN PLATED.
2. MECHANICAL
PLUG MAX. INSERTION FORCE PER POLE
PLUG MIN. WITHDRAWAL FORCE PER POLE
MIN. PC BOARD HOLES DIAMETER
MAX. PC BOARD THICKNESS
3. ELECTRICAL
MAX. VOLTAGE
MAX CURRENT
CONTACT RESISTANCE
INSULATION RESISTANCE
:
:
:
:
:
:
:
:
3.0
1.5
1.3
1.6
N
N
mm
mm
D
9.2
#
0.2
C
300 V
11 A
<15 m Ohm
>1000 M Ohm (500V DC)
C
DIM A
3.0
#
0.1
0.2
1.9
#
TYP
7.25
#
0.15
4. OPERATING TEMPERATURE RANGE : -40 $ C TO +105 $ C
5
NOT CUMULATIVE TOLERANCE.
88.5
85.0
81.5
78.0
74.5
71.0
67.5
64.0
60.5
57.0
53.5
50.0
46.5
43.0
39.5
36.0
32.5
29.0
25.5
22.0
18.5
15.0
11.5
8.0
DIM A
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
NO. OF POS
2-2342071-5
2-2342071-4
2-2342071-3
2-2342071-2
2-2342071-1
2-2342071-0
1-2342071-9
1-2342071-8
1-2342071-7
1-2342071-6
1-2342071-5
1-2342071-4
1-2342071-3
1-2342071-2
1-2342071-1
1-2342071-0
2342071-9
2342071-8
2342071-7
2342071-6
2342071-5
2342071-4
2342071-3
2342071-2
PART NUMBER
6. PARTS ARE PACKED IN BOX.
B
B
3.5
1.
3
+0
.1
0
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
A
RECOMMENDED PC BOARD LAYOUT
MATERIAL
0
1
2
3
4
ANGLES
PLC
PLC
PLC
PLC
PLC
-
0.3
0.25
-
-
14DEC2018
RAGHAVENDRA.K
CHK
19DEC2018
KARTHIK.JK
APVD
19DEC2018
PRASHANTH.S
DWN
PRODUCT SPEC
APPLICATION SPEC
TE Connectivity
NAME
-
SEE NOTES
FINISH
2°
SEE NOTES
WEIGHT
-
-
CUSTOMER DRAWING
A3
00779
SIZE

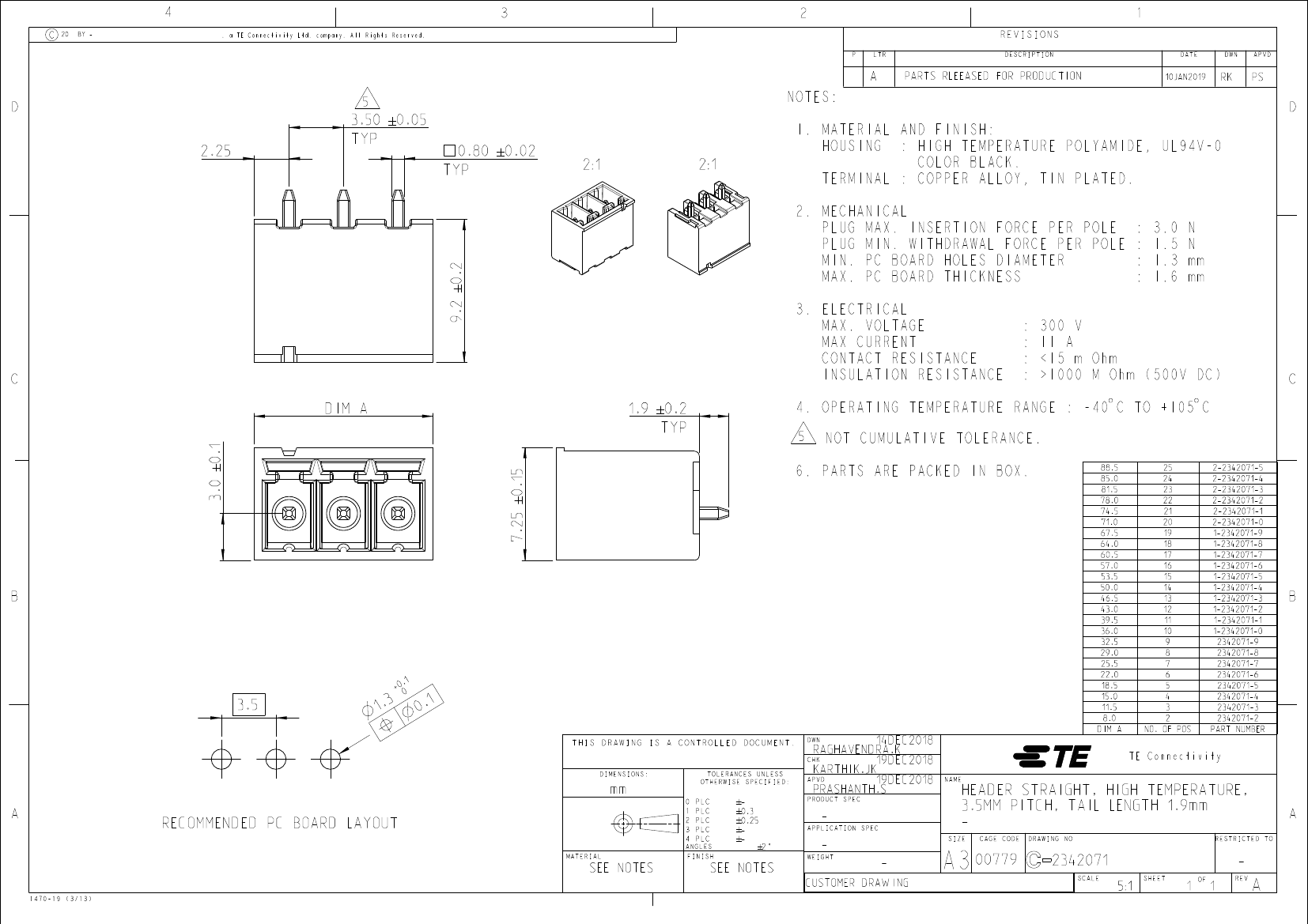

HEADER STRAIGHT, HIGH TEMPERATURE,
3.5MM PITCH, TAIL LENGTH 1.9mm
-
CAGE CODE
DRAWING NO
A
RESTRICTED TO
2342071
SCALE
1470-19 (3/13)
5:1
SHEET
1
OF
1
REV
-
A
