Bridge Rectifier
W00 THRU W10
1.5A Silicon Passivated Single-Phase
Bridge Rectifiers-50-1000V
Features
•
Surge overload rating 50 amperes peak
•
Ideal for printed circuit board
•
Reliable low cost construction utilizing molded plastic
•
•
technique results in expensive product
Lead-free parts for green partner, meet RoHS
requirements
Suffix "-H" indicates Halogen-free parts, ex. W00-H.
Formosa MS
Package outline
Round Bridge (WOB)
.366(9.3)
.350(8.9)
.220(5.6)
.200(5.1)
1.083(27.5)
Min.
.921(23.4)
Min.
Mechanical data
•
Case: Potted plastic round body
•
Epoxy: UL94-V0 rated flame retardant
•
Terminals: Solderable per MIL-STD-750
•
Polarity: As marked
•
Mounting Position: Any
.220(5.6)
.180(4.6)
.032(0.81)
.028(0.71)
Method 2026
.220(5.6)
.180(4.6)
Dimensions in inches and (millimeters)
Maximum ratings and Electrical Characteristics
(AT
PARAMETER
Forward rectified current
Forward surge current
See Fig.1
CONDITIONS
T
A
=25
o
C unless otherwise noted)
Symbol
I
O
I
FSM
I
R
I
2
t
T
STG
-65
10
+150
MIN.
TYP.
MAX.
1.5
50
10.0
1000
UNIT
A
A
8.3ms single half sine-wave superimposed on
rate load (JEDEC methode)
V
R
= V
RRM
T
J
= 25
O
C
V
R
= V
RRM
T
J
= 100 C
t < 8.3 ms
O
Reverse current
I
2
t Rating for fusing
Storage temperature
uA
A
2
s
O
C
SYMBOLS
W00
W01
W02
W04
W06
W08
W10
*1
V
RRM
(V)
50
100
200
400
600
800
1000
V
RMS
*2
(V)
35
70
140
280
420
560
700
*3
V
R
(V)
50
100
200
400
600
800
1000
*4
V
F
(V)
Operating
temperature
T
J
, (
O
C)
*1 Repetitive peak reverse voltage
*2 RMS voltage
*3 Continuous reverse voltage
1.10
-55 to +125
*4 Maximum forward voltage per element
@I
F
=1.5A
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2012/01/31
Revision
C
Page.
6
Page 2
DS-242115

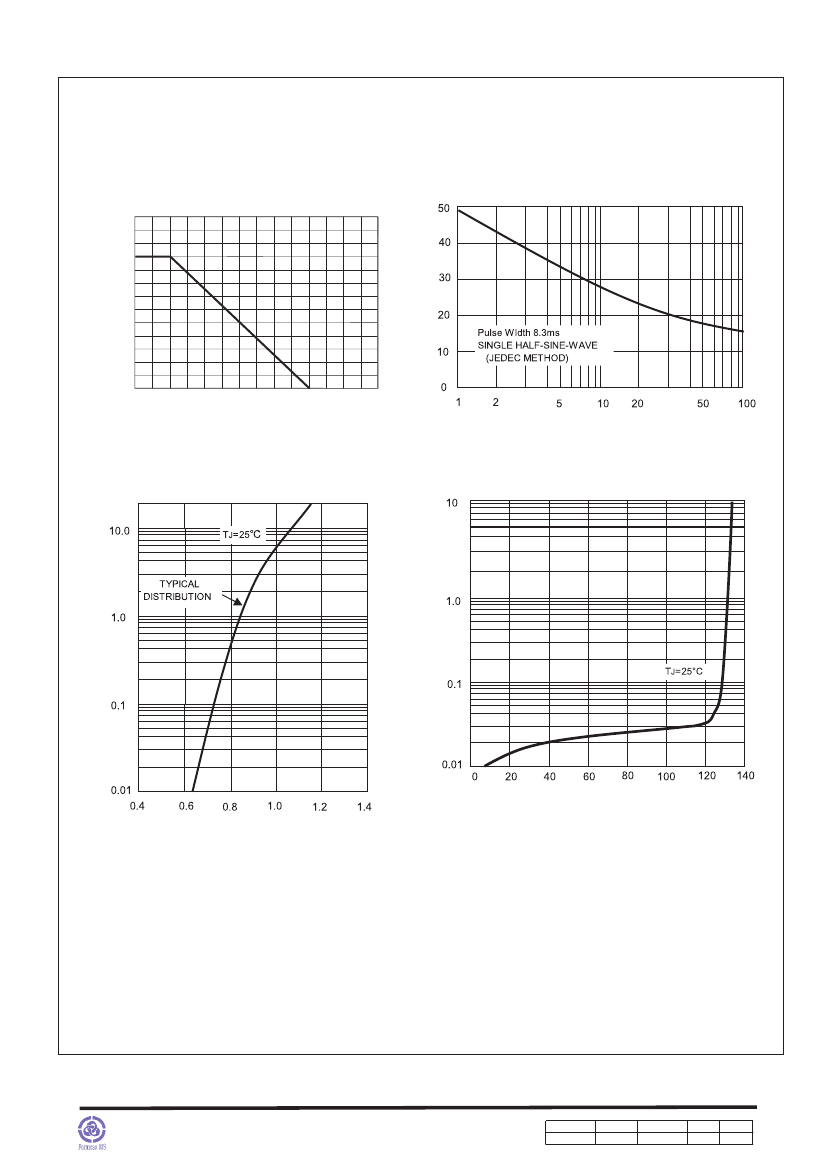

Rating and characteristic curves (W00 THRU W10)
Fig. 2 - Maximum Non-Repetitive Peak
Forward Surge Current
Peak Forward Surge Current (A)
Fig.1 - Forward Current Derating Curve
Average Forward Current (A)
1.8
1.5
1.2
0.9
0.6
0.3
0
0
25
50
75
100 125
150
175
Number of Cycles at 60 Hz
Ambient Temperature ( °C)
Fig. 3 - Typical Instantaneour Forward
Characteristics
Fig. 4 - Typical Reverse Characteristics
Instantaneous Forward Current (A)
Instantaneous Reverse Current (uA)
Instantaneous Forward Voltage (Volts)
Percent of Rated Peak Reverse Voltage ( %)
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2012/01/31
Revision
C
Page.
6
Page 3
DS-242115
Bridge Rectifier
W00 THRU W10
Pinning information
Simplified outline
Symbol
+
~
-
~
Formosa MS
Marking
Type number
W00
W01
W02
W04
W06
W08
W10
Marking code
W00
W01
W02
W04
W06
W08
W10
Bulk packing
PACKAGE
BOX
(pcs)
1000
INNER
BOX
(m/m)
230*230*54
CARTON
SIZE
(m/m)
490*240*310
CARTON
(pcs)
10,000
APPROX.
GROSS WEIGHT
(kg)
14.0
WOB
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2012/01/31
Revision
C
Page.
6
Page 4
DS-242115
Bridge Rectifier
W00 THRU W10
Formosa MS
Suggested thermal profiles for soldering processes
1.Lead free temperature profile wave-soldering
280
260
240
220
200
Temperature(°C)
Peak soldering temperature not
to exceed 260ºC
180
160
140
120
100
80
60
40
20
0
0
20
Preheat
Max gradient 2ºC/s
Peak
Max well
time 5 Max
Cool Down
Max gradient-4ºC/s
Suggested gradient - 2ºC/s or
less
40
60
80
100 120 140 160 180 200 220 240
Time(Sec)
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2012/01/31
Revision
C
Page.
6
Page 5
DS-242115
