PC board connectors, rising cage clamp system
Spacing: 7.50/7.62 mm
PCB
Rated cross section:
2.5 mm
2
Rated current:
16 A
Connection range:
0.14 – 4.0 mm
2
solid/
0.14 – 2.5 mm
2
fine stranded
400 V/6 kV/3 – Overvoltage category III
1000 V/6 kV/2 – Overvoltage category II
1000 V/6 kV/1 – Overvoltage category I
without
insulating plate
with
insulating plate,
without
fixing bolts
M3
6.5
Solder pin 0.9 x 0.9 mm
Bore hole Ø 1.3 mm

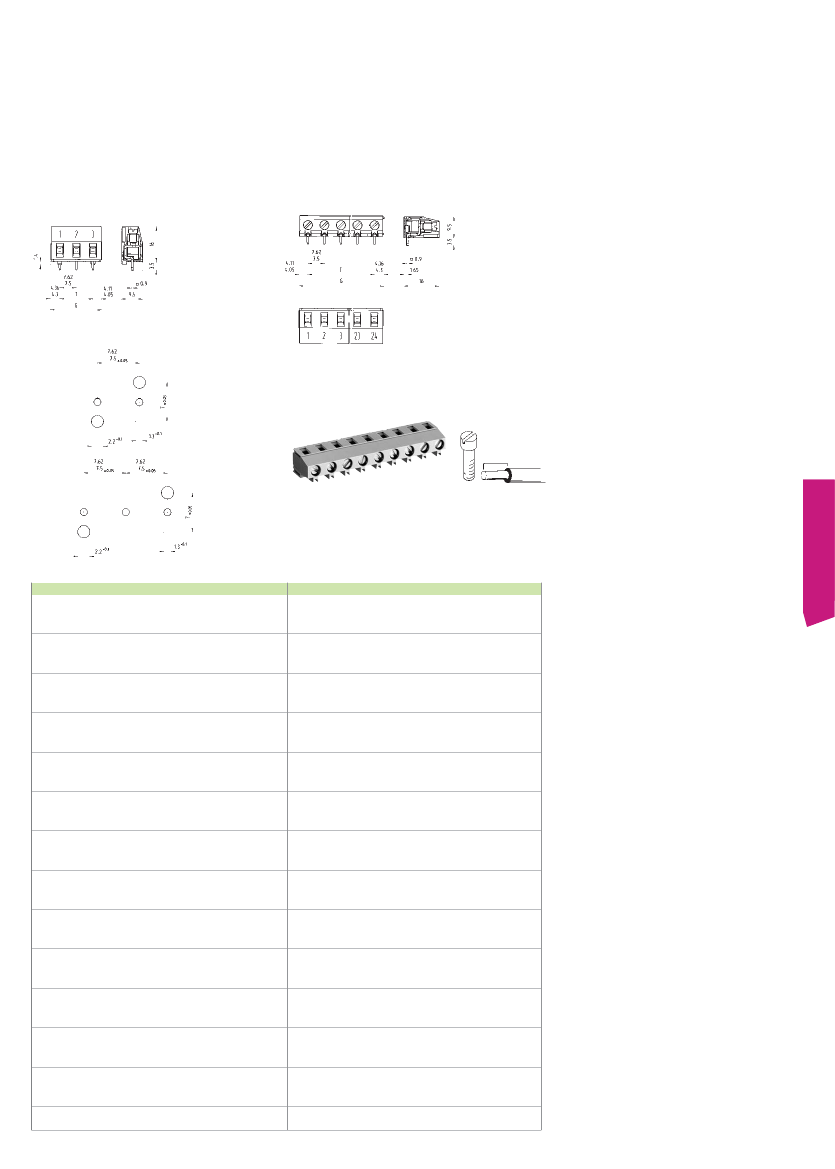

Type 8391/8491
wire horizontal to PC board
Rated voltages VDE 0110
UL ratings
CSA ratings
Approvals
Std. pack
G
T
Poles
No. 22 – 12 AWG
No. 22 – 12 AWG
Part no.
300 V
300 V
Part no.
20/30 A
25 A
Material
Insulating housing:
PA 66/6 gray, UL 94-V0
Clamping body: nickel-plated brass
Contact clip with solder pin:
tin-plated E copper
Clamping screw: zinc-plated steel
Brass Nickel-plated
available upon request
Part no.
Part no.
üizqwd
unmarked
without insulating plate
Spacing: 7.50 mm
100
100
15.85
23.35
7.5
15.0
2
3
25.165.0253.0
25.165.0353.0
unmarked
with insulating plate
without fixing bolts
25.165.3253.0
25.165.3353.0
unmarked
with insulating plate
with fixing bolts
25.175.0253.0
25.175.0353.0
marked
without insulating
plate
25.164.0253.0
25.164.0353.0
4 to 24pole upon request
unmarked
without insulating plate
Spacing: 7.62 mm
100
100
16.09
23.71
7.62
15.24
2
3
25.167.0253.0
25.167.0353.0
unmarked
with insulating plate
without fixing bolts
25.167.3253.0
25.167.3353.0
unmarked
with insulating plate
with fixing bolts
25.177.0253.0
25.177.0353.0
marked
without insulating
plate
25.166.0253.0
25.166.0353.0
4 to 24pole upon request
346
wiecon
wiecon
PCB
Rated cross section:
1.5 mm
2
Rated current:
16 A
(related to an ambient temperature of 20 °C,
the rated cross section and max. number of poles)
G
18,5
G
22,5
22,5
Connection range:
0.50 – 2.5 mm
2
solid/
0.50 – 1.5 mm
2
fine stranded
250 V/4 kV/3 – Overvoltage category III
T
Solder pin 0.8 x 0.4 mm
Bore hole Ø 1.3 mm
3,5
5,04
5,04
5,04
T
Solder pin 0.8 x 0.4 mm
Bore hole Ø 1.3 mm
12
10

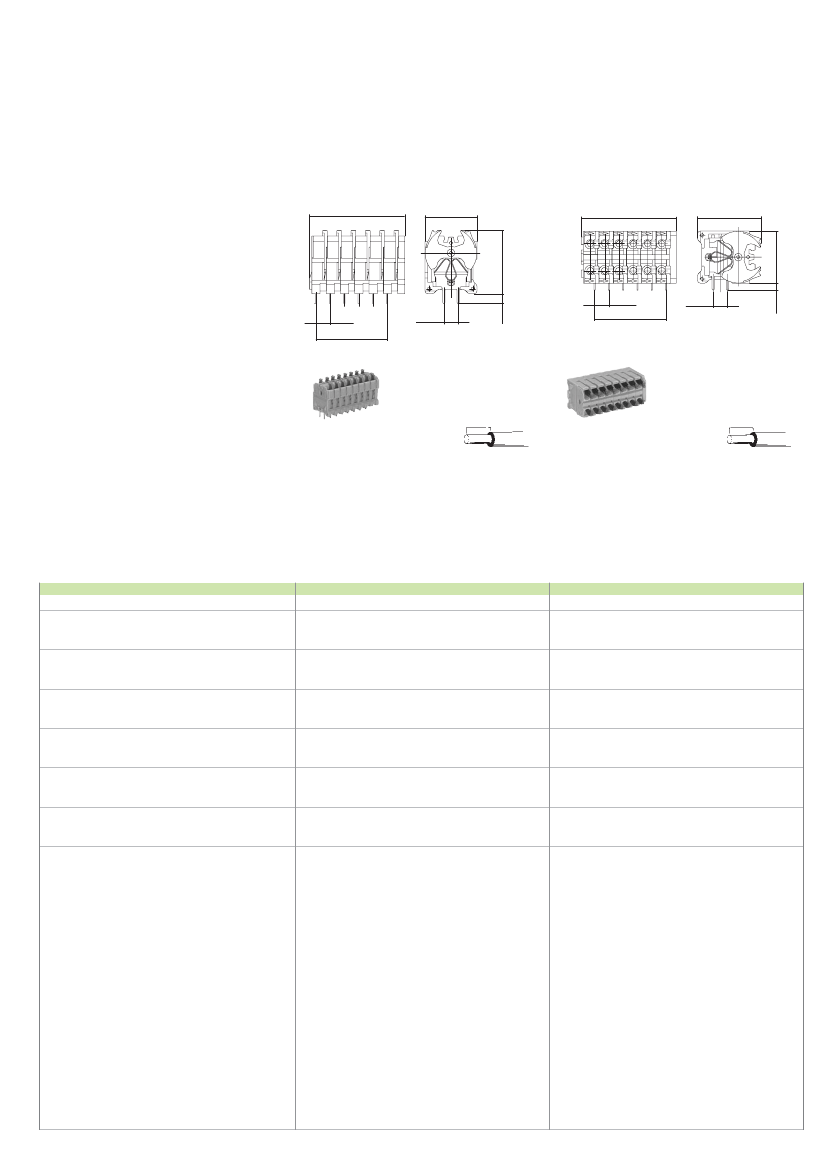

Type 8152 TOP V
Rated voltages VDE 0110
UL ratings
CSA ratings
Approvals
Std. pack
G
Type 8152 TOP H
300 V
300 V
10 A
10 A
No. 26 – 14 AWG
No. 22 – 14 AWG
Part no.
field wiring
No. 26 – 14 AWG
No. 22 – 14 AWG
Part no.
300 V
300 V
T
Poles
qw
qw
Spacing: 5.00 mm
100
100
100
50
50
50
50
50
50
50
8.34
13.38
18.42
23.46
28.50
33.54
38.58
43.62
48.66
53.70
5.04
10.08
15.12
20.16
25.20
30.24
35.28
40.32
45.30
50.40
1
2
3
4
5
6
7
8
9
10
27.720.0153.0
27.720.0253.0
27.720.0353.0
27.720.0453.0
27.720.0553.0
27.720.0653.0
27.720.0753.0
27.720.0853.0
27.720.0953.0
27.720.1053.0
27.730.0153.0
27.730.0253.0
27.730.0353.0
27.730.0453.0
27.730.0553.0
27.730.0653.0
27.730.0753.0
27.730.0853.0
27.730.0953.0
27.730.1053.0
348
2,5
5,04
18,5
10 A
10 A
