KS82C37A-8IP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> KS82C37A-8IP

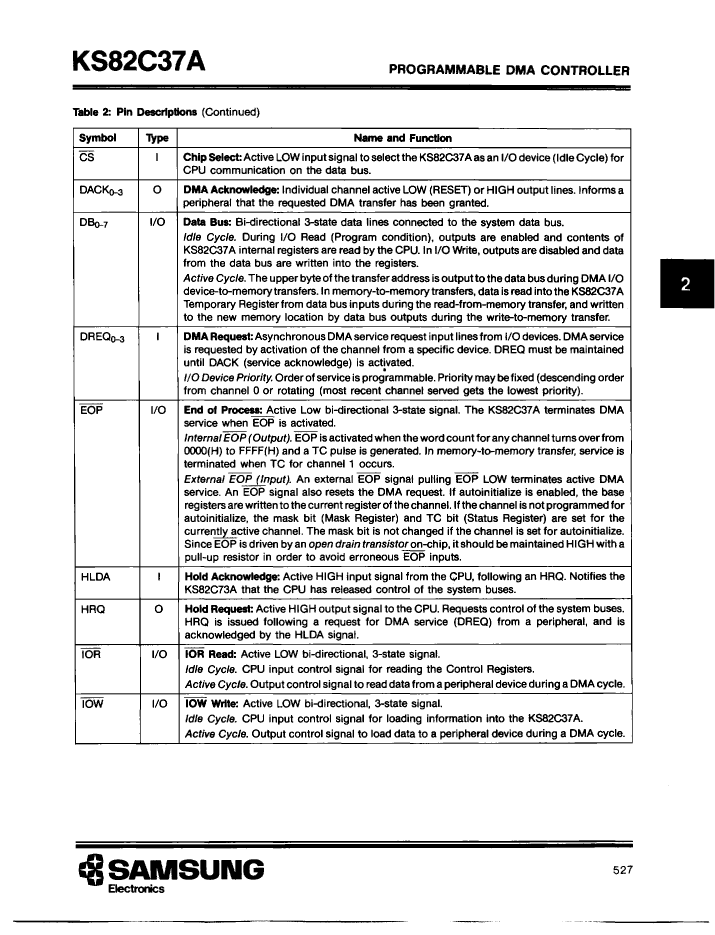

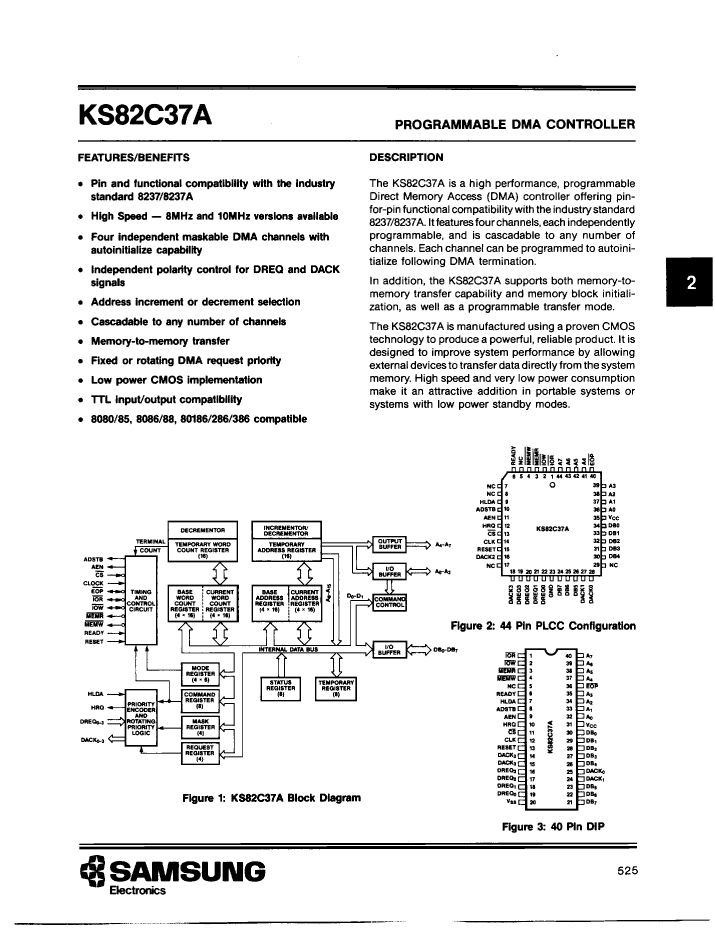

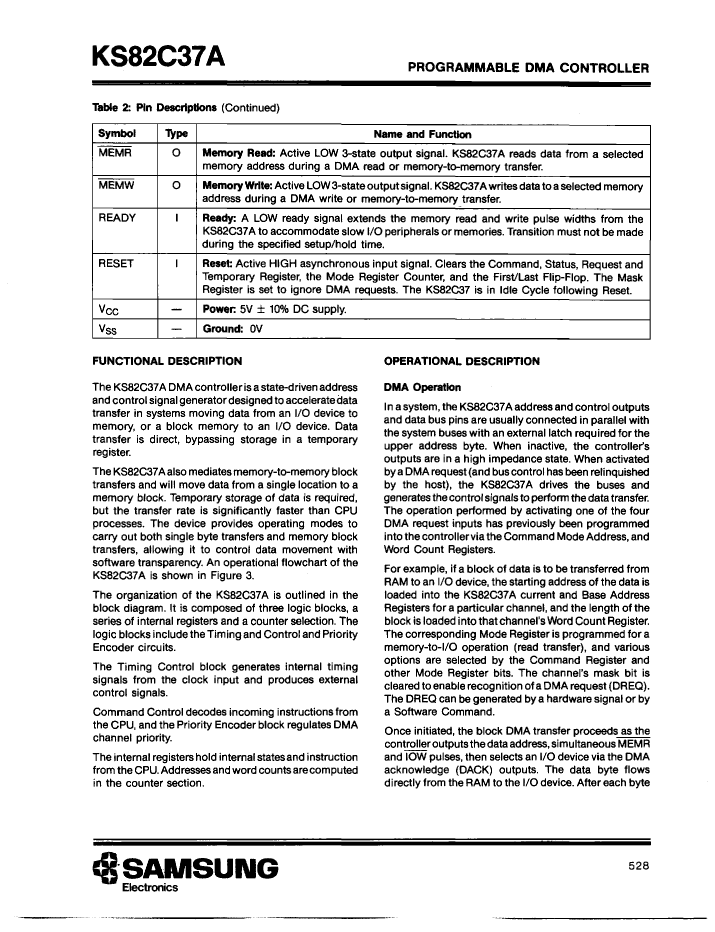

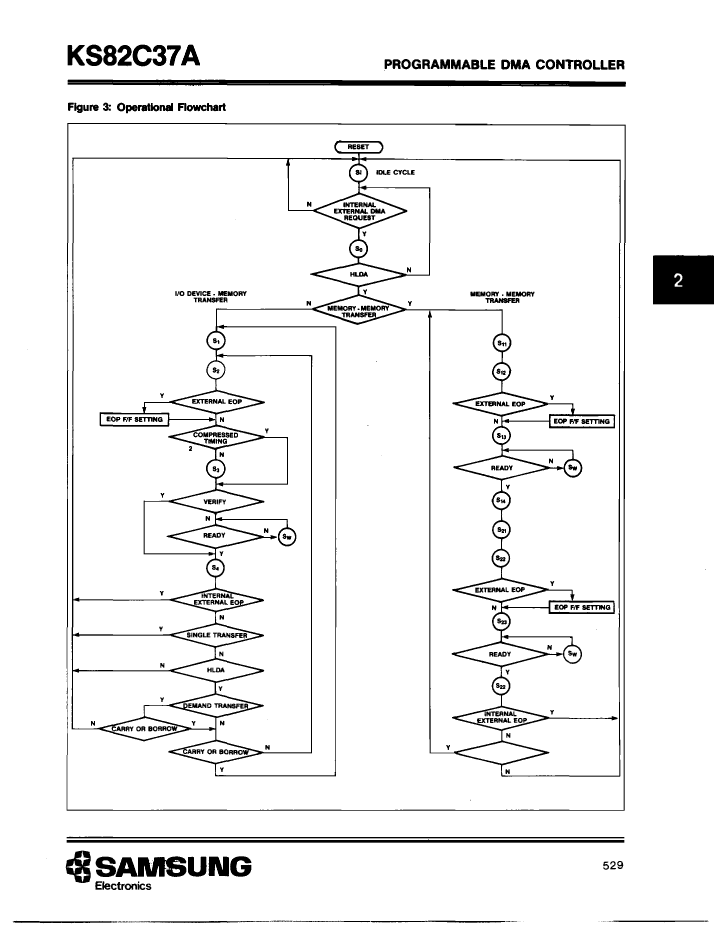

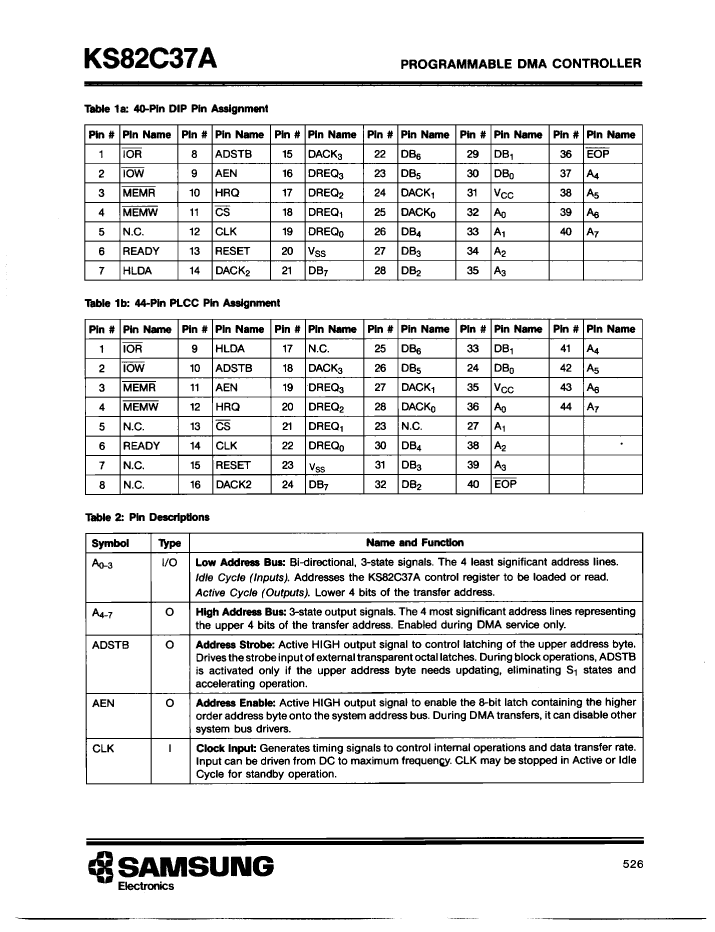

KS82C37A-8IP: DescriptionDMA Controller, 4 Channel(s), 8MHz, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size919KB，22 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KS82C37A-8IP Overview

DMA Controller, 4 Channel(s), 8MHz, CMOS, PDIP40, PLASTIC, DIP-40

KS82C37A-8IP Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	compliant
Address bus width	8
Bus compatibility	8080; 8085; 8086; 8088; 80186; 80286; 80386
maximum clock frequency	8 MHz
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.197 mm
Number of DMA channels	4
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	16 mA
Maximum supply voltage	6 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	DMA CONTROLLER

Preview

Download Datasheet

View All

KS82C37A-8IP Related Products

	KS82C37A-8IP	KS82C37A-8IL	KS82C37A-10CP	KS82C37A-10IL	KS82C37A-10CL	KS82C37A-8CP	KS82C37A-8CL	KS82C37A-10IP
Description	DMA Controller, 4 Channel(s), 8MHz, CMOS, PDIP40, PLASTIC, DIP-40	DMA Controller, 4 Channel(s), 8MHz, CMOS, PQCC44, PLASTIC, LCC-44	DMA Controller, 4 Channel(s), 10MHz, CMOS, PDIP40, PLASTIC, DIP-40	DMA Controller, 4 Channel(s), 10MHz, CMOS, PQCC44, PLASTIC, LCC-44	DMA Controller, 4 Channel(s), 10MHz, CMOS, PQCC44, PLASTIC, LCC-44	DMA Controller, 4 Channel(s), 8MHz, CMOS, PDIP40, PLASTIC, DIP-40	DMA Controller, 4 Channel(s), 8MHz, CMOS, PQCC44, PLASTIC, LCC-44	DMA Controller, 4 Channel(s), 10MHz, CMOS, PDIP40, PLASTIC, DIP-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	DIP	LCC	DIP	LCC	LCC	DIP	LCC	DIP
package instruction	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6
Contacts	40	44	40	44	44	40	44	40
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Address bus width	8	8	8	8	8	8	8	8
Bus compatibility	8080; 8085; 8086; 8088; 80186; 80286; 80386	8080; 8085; 8086; 8088; 80186; 80286; 80386	8080; 8085; 8086; 8088; 80186; 80286; 80386	8080; 8085; 8086; 8088; 80186; 80286; 80386	8080; 8085; 8086; 8088; 80186; 80286; 80386	8080; 8085; 8086; 8088; 80186; 80286; 80386	8080; 8085; 8086; 8088; 80186; 80286; 80386	8080; 8085; 8086; 8088; 80186; 80286; 80386
maximum clock frequency	8 MHz	8 MHz	10 MHz	10 MHz	10 MHz	8 MHz	8 MHz	10 MHz
External data bus width	8	8	8	8	8	8	8	8
JESD-30 code	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	52.197 mm	16.5862 mm	52.197 mm	16.5862 mm	16.5862 mm	52.197 mm	16.5862 mm	52.197 mm
Number of DMA channels	4	4	4	4	4	4	4	4
Number of terminals	40	44	40	44	44	40	44	40
Maximum operating temperature	85 °C	85 °C	70 °C	85 °C	70 °C	70 °C	70 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	DIP	QCCJ	QCCJ	DIP	QCCJ	DIP
Encapsulate equivalent code	DIP40,.6	LDCC44,.7SQ	DIP40,.6	LDCC44,.7SQ	LDCC44,.7SQ	DIP40,.6	LDCC44,.7SQ	DIP40,.6
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	4.57 mm	5.08 mm	4.57 mm	4.57 mm	5.08 mm	4.57 mm	5.08 mm
Maximum slew rate	16 mA	16 mA	20 mA	20 mA	20 mA	16 mA	16 mA	20 mA
Maximum supply voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage	4 V	4 V	4 V	4 V	4 V	4 V	4 V	4 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	QUAD	QUAD	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	16.5862 mm	15.24 mm	16.5862 mm	16.5862 mm	15.24 mm	16.5862 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead	Contains lead
