3500R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> 3500R

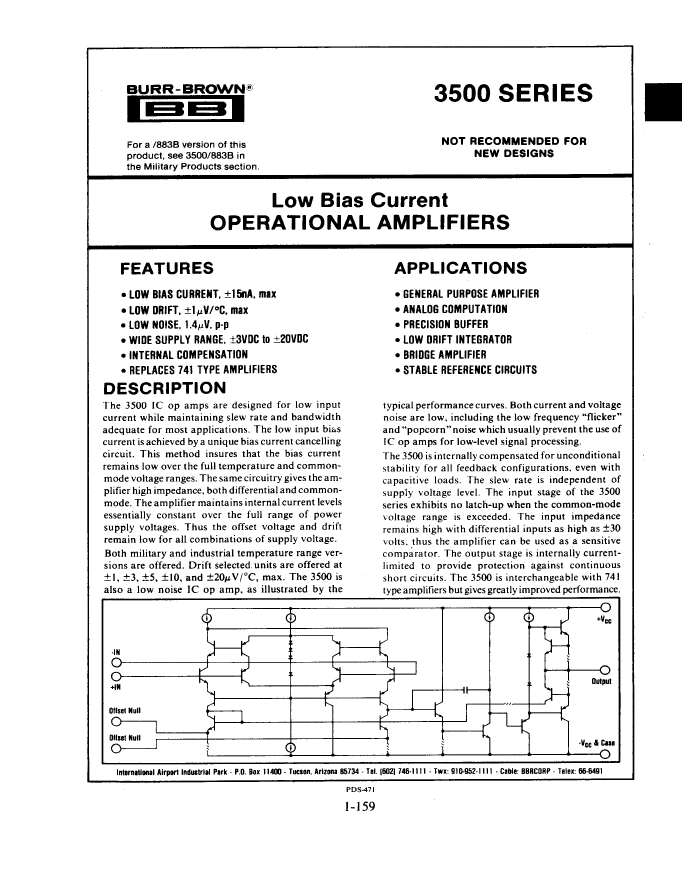

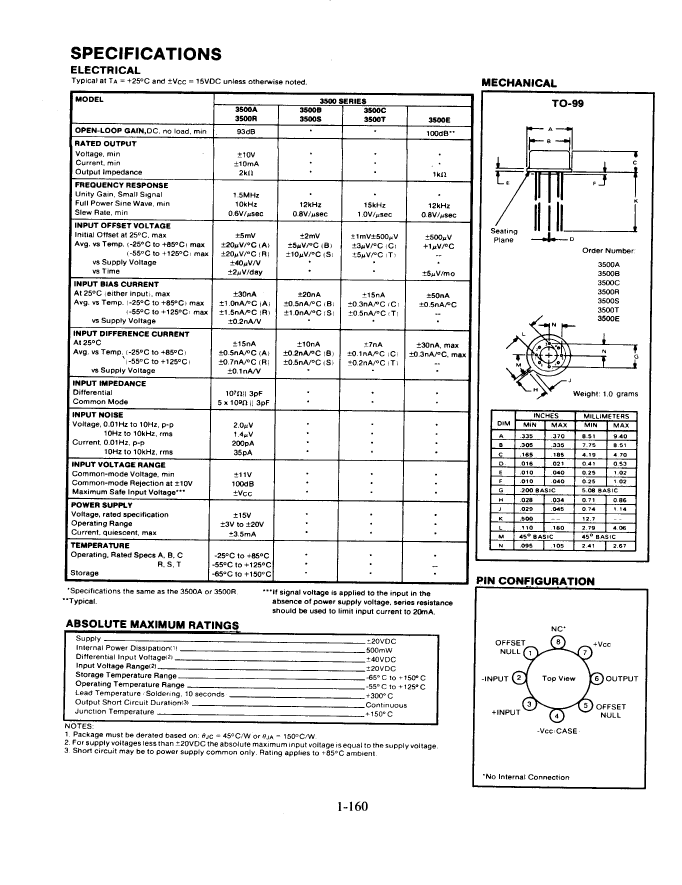

3500R: DescriptionOperational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, MBCY8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size90KB，2 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

3500R Overview

Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, MBCY8,

3500R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.03 µA
frequency compensation	YES
Maximum input offset voltage	5000 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	0.6 V/us
Maximum slew rate	7 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Minimum voltage gain	45000

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

3500R Related Products

	3500R	3500C	3500A	3500B	3500S	3500E	3500T
Description	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 1500uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 560uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 1500uV Offset-Max, BIPolar, MBCY8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.03 µA	0.015 µA	0.03 µA	0.02 µA	0.02 µA	0.05 µA	0.015 µA
frequency compensation	YES	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	5000 µV	1500 µV	5000 µV	2000 µV	2000 µV	560 µV	1500 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO	NO	YES	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8
Maximum operating temperature	125 °C	85 °C	85 °C	85 °C	125 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-25 °C	-25 °C	-25 °C	-55 °C	-25 °C	-55 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Encapsulate equivalent code	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	0.6 V/us	1 V/us	0.6 V/us	0.8 V/us	0.8 V/us	0.8 V/us	1 V/us
Maximum slew rate	7 mA	7 mA	7 mA	7 mA	7 mA	3.5 mA	7 mA
Supply voltage upper limit	20 V	20 V	20 V	20 V	20 V	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	OTHER	OTHER	OTHER	MILITARY	OTHER	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Minimum voltage gain	45000	45000	45000	45000	45000	-	45000
