3510CM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> 3510CM

3510CM: DescriptionOperational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, MBCY8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size65KB，2 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

3510CM Overview

Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, MBCY8,

3510CM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
package instruction	, CAN8,.2
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.015 µA
frequency compensation	YES
Maximum input offset voltage	60 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-dissonance	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	0.5 V/us
Maximum slew rate	7 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Minimum voltage gain	1000000

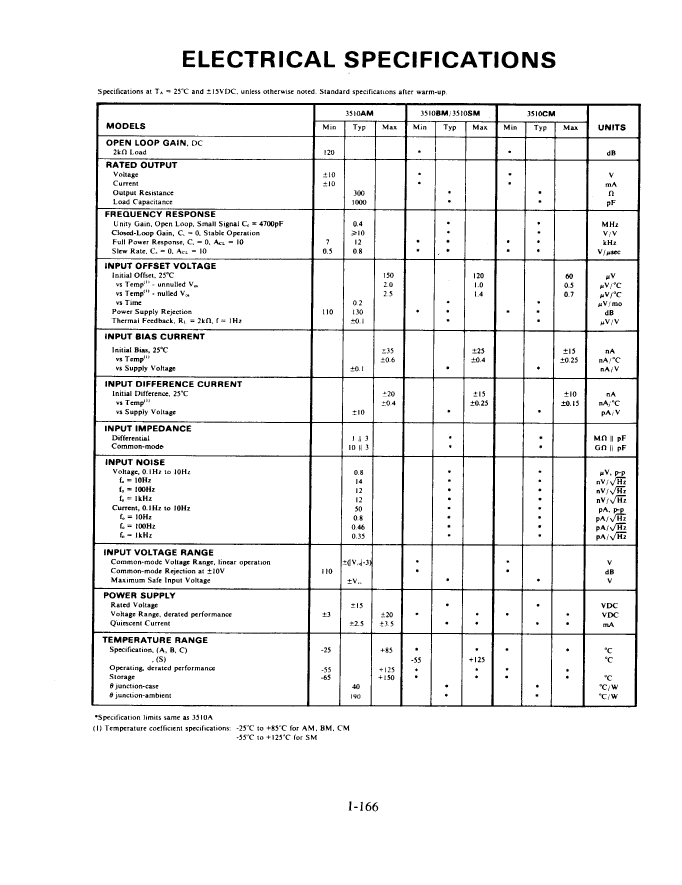

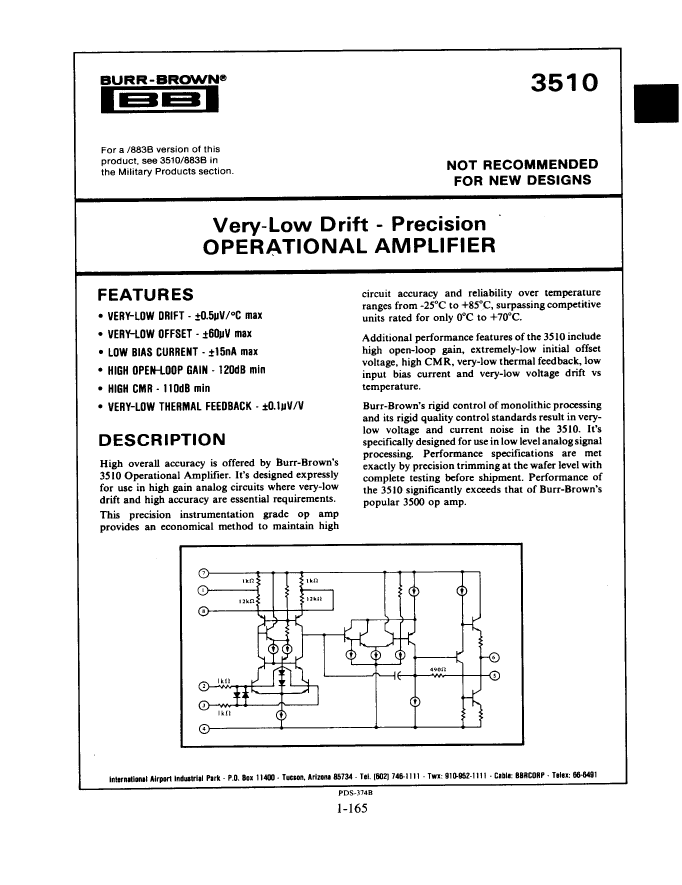

3510CM Preview

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

3510CM Related Products

	3510CM	3510BM	3510SM	3510AM
Description	Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 120uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 120uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 150uV Offset-Max, BIPolar, MBCY8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown
package instruction	, CAN8,.2	, CAN8,.2	, CAN8,.2	, CAN8,.2
Reach Compliance Code	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.015 µA	0.025 µA	0.025 µA	0.035 µA
frequency compensation	YES	YES	YES	YES
Maximum input offset voltage	60 µV	120 µV	120 µV	150 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0
low-dissonance	YES	YES	YES	YES
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	85 °C	85 °C	125 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-55 °C	-25 °C
Package body material	METAL	METAL	METAL	METAL
Encapsulate equivalent code	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	0.5 V/us	0.5 V/us	0.5 V/us	0.5 V/us
Maximum slew rate	7 mA	7 mA	7 mA	7 mA
Supply voltage upper limit	20 V	20 V	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	MILITARY	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Minimum voltage gain	1000000	1000000	1000000	1000000
