3522S datasheet, PDF - EEWORLD Datasheet

3522S: DescriptionOperational Amplifier, 1 Func, 3000uV Offset-Max, MBCY8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size675KB，6 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

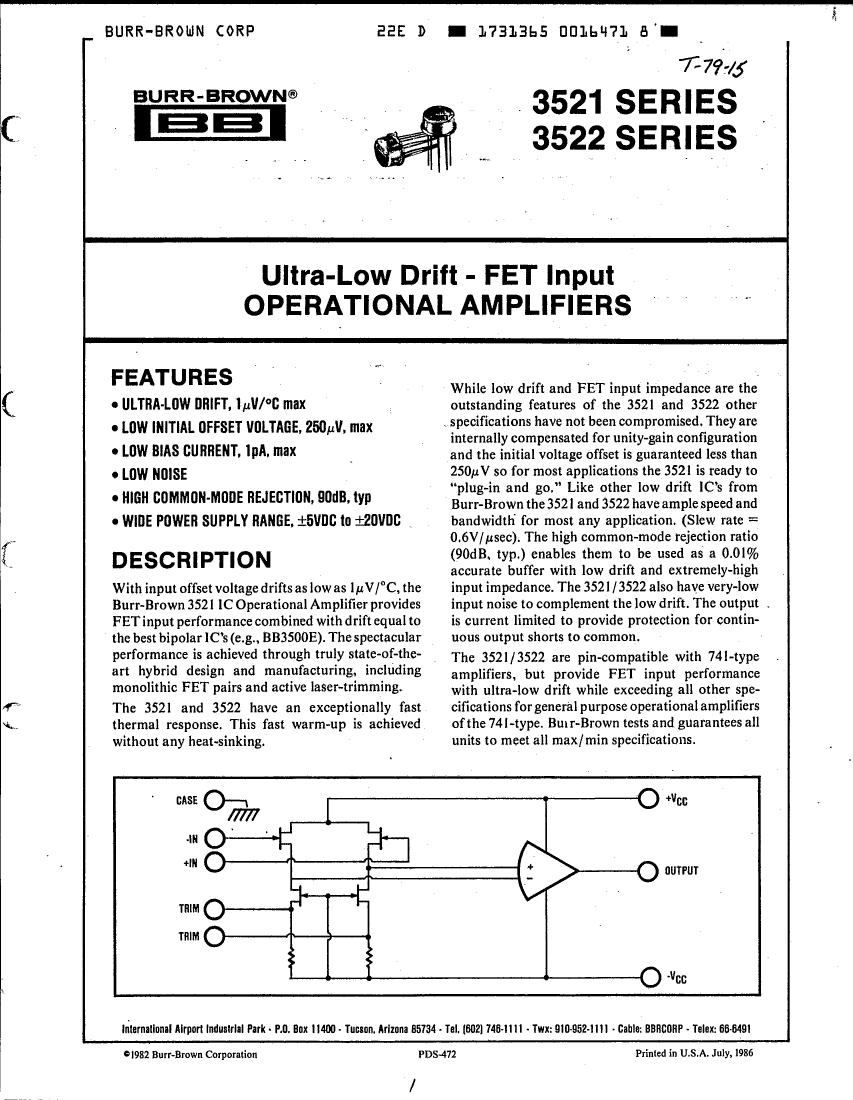

3522S Overview

Operational Amplifier, 1 Func, 3000uV Offset-Max, MBCY8,

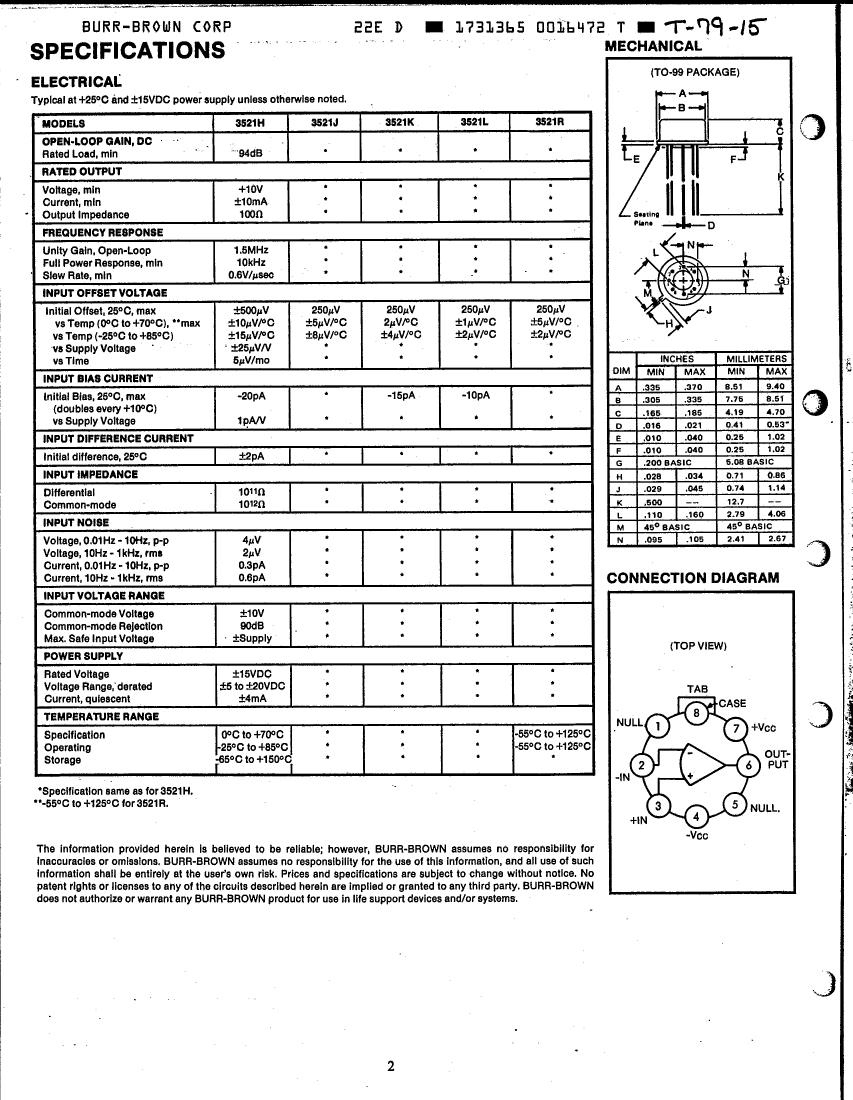

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.000005 µA
frequency compensation	YES
Maximum input offset voltage	3000 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	0.6 V/us
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Minimum voltage gain	50000

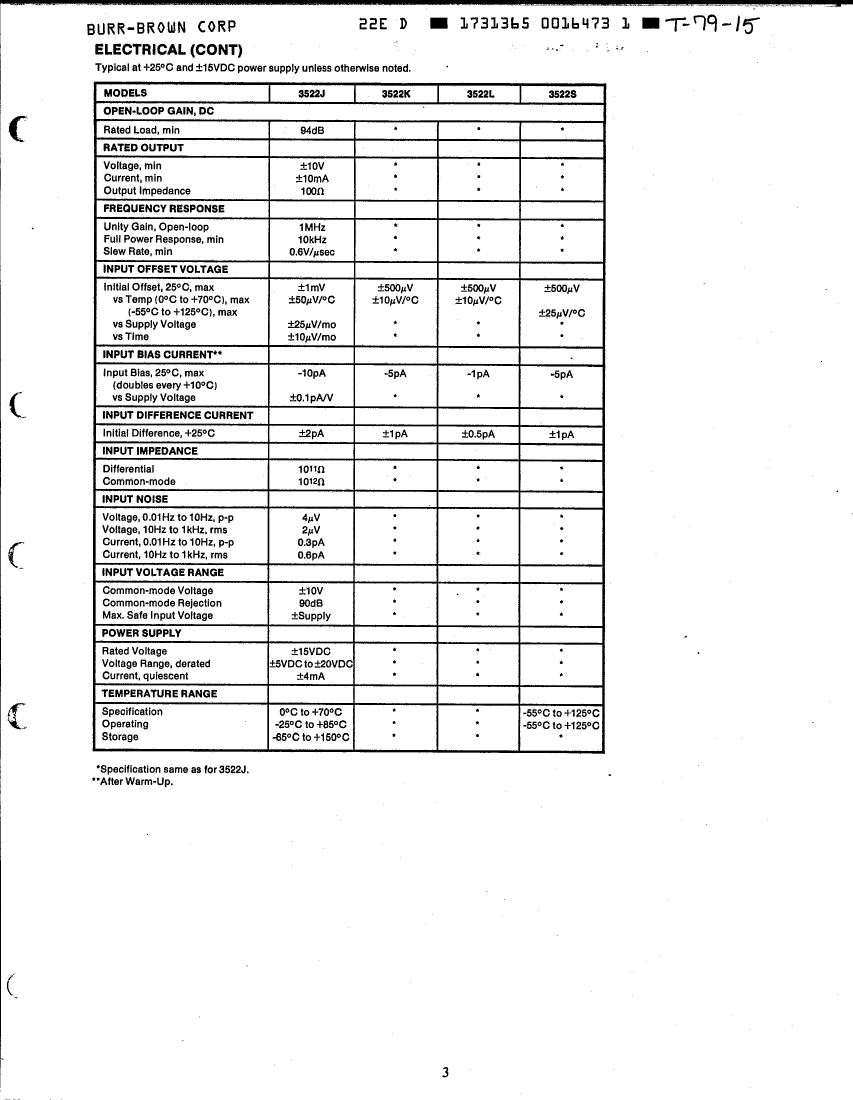

	3522S	3522J
Description	Operational Amplifier, 1 Func, 3000uV Offset-Max, MBCY8,	Operational Amplifier, 1 Func, 3250uV Offset-Max, MBCY8,
Is it Rohs certified?	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.000005 µA	0.00001 µA
frequency compensation	YES	YES
Maximum input offset voltage	3000 µV	3250 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0
low-bias	YES	YES
low-dissonance	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	125 °C	70 °C
Package body material	METAL	METAL
Encapsulate equivalent code	CAN8,.2	CAN8,.2
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
minimum slew rate	0.6 V/us	0.6 V/us
Supply voltage upper limit	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V
Temperature level	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM
Minimum voltage gain	50000	50000
