3521H datasheet, PDF - EEWORLD Datasheet

3521H: DescriptionOperational Amplifier, 1 Func, 500uV Offset-Max, MBCY8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size92KB，3 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

3521H Overview

Operational Amplifier, 1 Func, 500uV Offset-Max, MBCY8,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
package instruction	, CAN8,.2
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.00002 µA
frequency compensation	YES
Maximum input offset voltage	500 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-bias	YES
low-dissonance	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	0.6 V/us
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Minimum voltage gain	50000

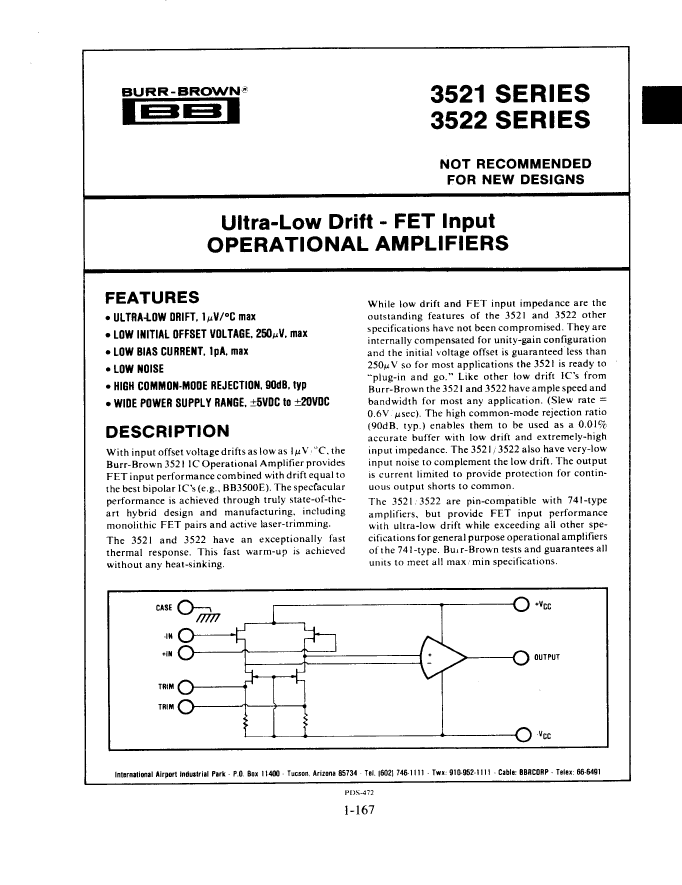

This Material Copyrighted By Its Respective Manufacturer

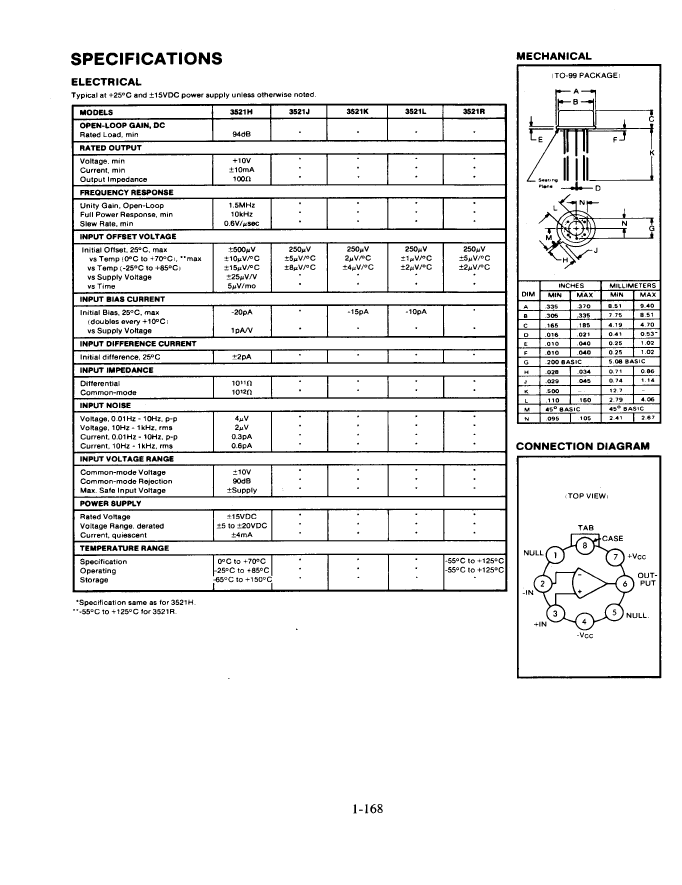

This Material Copyrighted By Its Respective Manufacturer

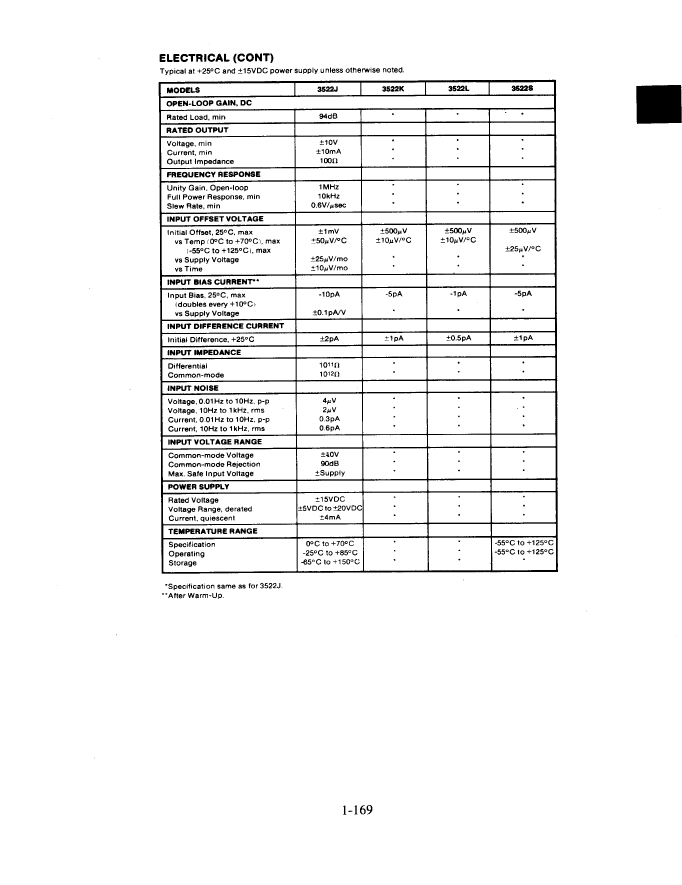

This Material Copyrighted By Its Respective Manufacturer

	3521H	3521J
Description	Operational Amplifier, 1 Func, 500uV Offset-Max, MBCY8,	Operational Amplifier, 1 Func, 250uV Offset-Max, MBCY8,
Is it Rohs certified?	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown
package instruction	, CAN8,.2	, CAN8,.2
Reach Compliance Code	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.00002 µA	0.00002 µA
frequency compensation	YES	YES
Maximum input offset voltage	500 µV	250 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0
low-bias	YES	YES
low-dissonance	YES	YES
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	70 °C	70 °C
Package body material	METAL	METAL
Encapsulate equivalent code	CAN8,.2	CAN8,.2
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
minimum slew rate	0.6 V/us	0.6 V/us
Supply voltage upper limit	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM
Minimum voltage gain	50000	50000
