3501BQ: DescriptionOperational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, MBCY8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size279KB，4 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

3501BQ Overview

Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, MBCY8,

3501BQ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
package instruction	, CAN8,.2
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.007 µA
frequency compensation	YES
Maximum input offset voltage	2000 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
minimum slew rate	0.1 V/us
Maximum slew rate	3 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Minimum voltage gain	45000

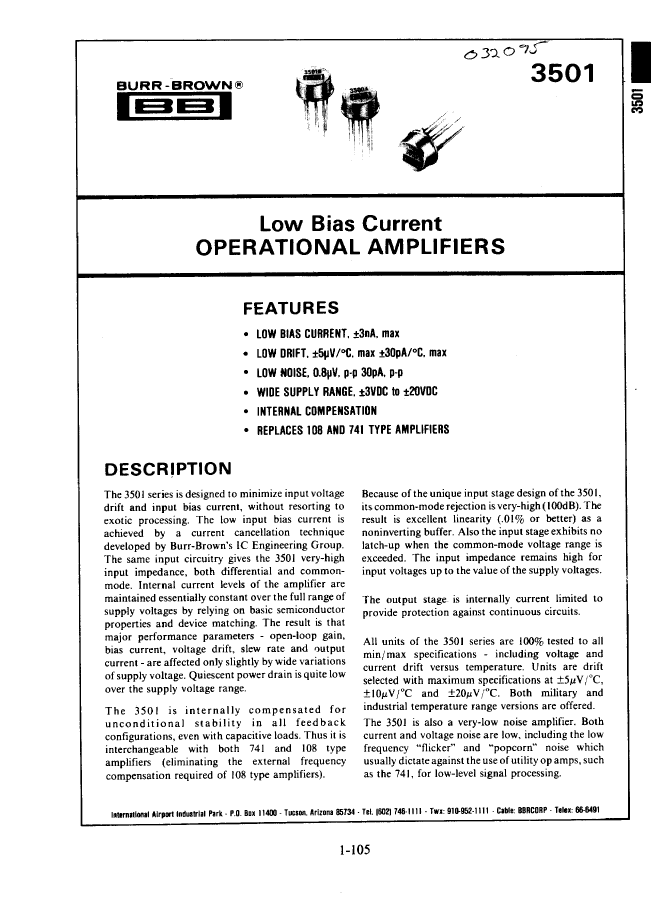

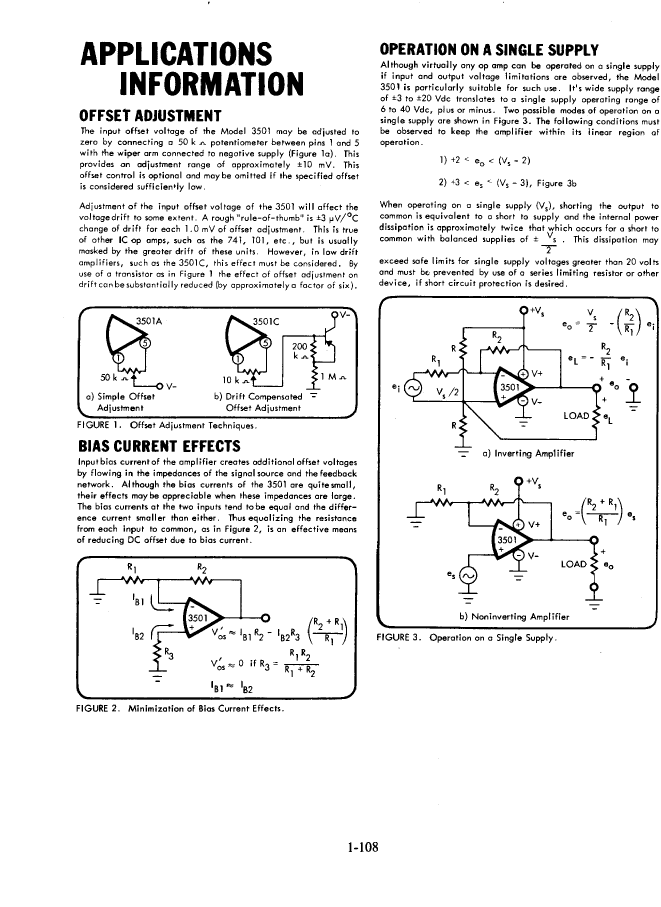

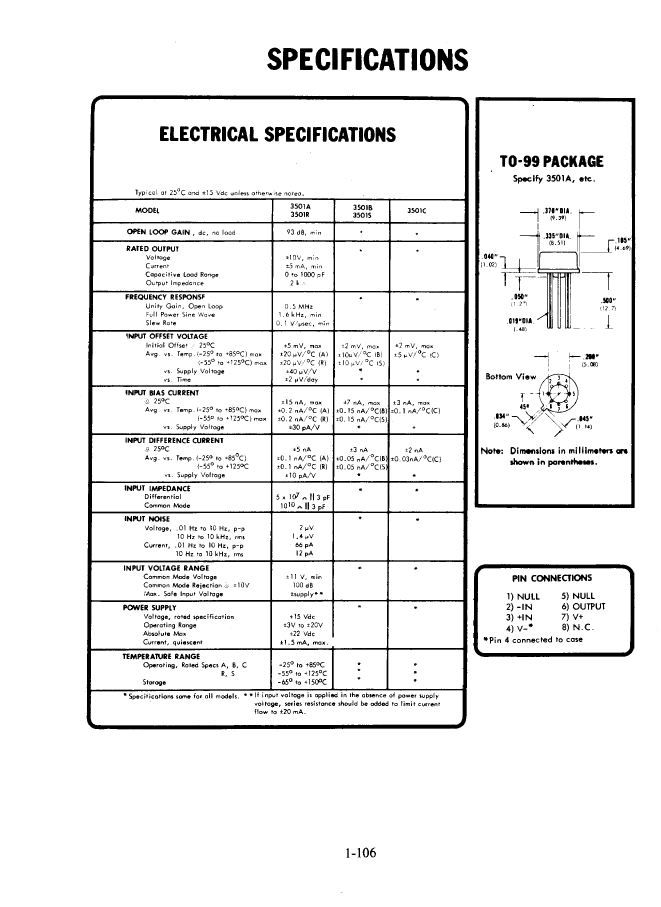

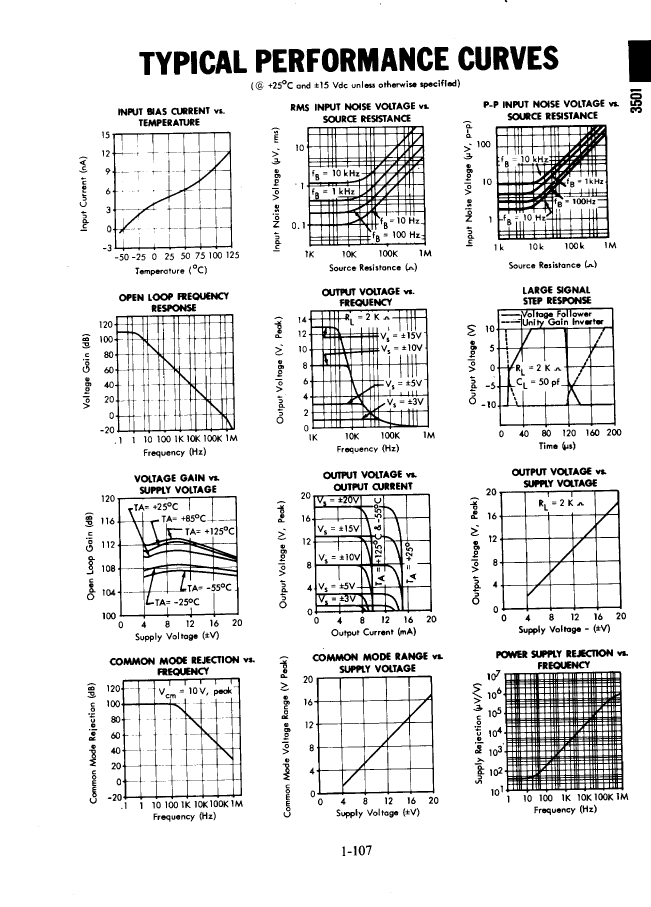

3501BQ Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

3501BQ Related Products

	3501BQ	3501C	3501CQ	3501AQ
Description	Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, MBCY8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown
package instruction	, CAN8,.2	, CAN8,.2	, CAN8,.2	, CAN8,.2
Reach Compliance Code	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.007 µA	0.003 µA	0.003 µA	0.015 µA
frequency compensation	YES	YES	YES	YES
Maximum input offset voltage	2000 µV	2000 µV	2000 µV	5000 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Package body material	METAL	METAL	METAL	METAL
Encapsulate equivalent code	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
power supply	+-15 V	+-15 V	+-15 V	+-15 V
minimum slew rate	0.1 V/us	0.1 V/us	0.1 V/us	0.1 V/us
Maximum slew rate	3 mA	3 mA	3 mA	3 mA
Supply voltage upper limit	22 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Minimum voltage gain	45000	45000	45000	45000
