LN48YCPP

Description
Single Color LED, Amber, Clear, T-1, 3mm,
CategoryLED optoelectronic/LED    photoelectric
File Size41KB,2 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Download Datasheet Parametric View All

LN48YCPP Overview

Single Color LED, Amber, Clear, T-1, 3mm,

LN48YCPP Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerPanasonic
Reach Compliance Codeunknown
colorAMBER
color@wavelengthAmber
ConfigurationSINGLE
Maximum forward current0.03 A
Maximum forward voltage2.8 V
JESD-609 codee0
Lens typeCLEAR
Nominal luminous intensity6.0 mcd
Installation featuresRADIAL MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Optoelectronic device typesSINGLE COLOR LED
total height5 mm
method of packingBULK
peak wavelength590 nm
Maximum reverse voltage4 V
shapeROUND
size3 mm
surface mountNO
T codeT-1
Terminal surfaceTin/Lead (Sn/Pb)
Terminal pitch2.54 mm
perspective25 deg

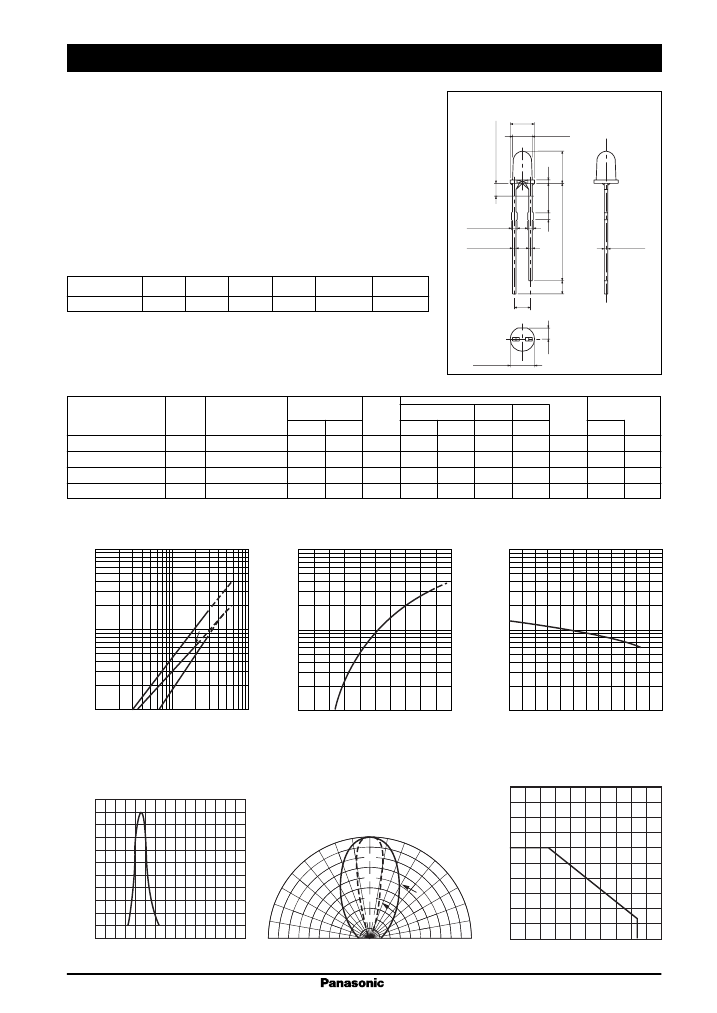

LN48YCPP Preview

Round Type
2.0 Max. NOT SOLDERED
φ
3.0 mm Series
Conventional Part No.
Global Prat No.
Lighting Color
Unit: mm
φ
3.8
±
0.2
φ
3.8
±
0.2
5.0
±
0.2
15.0
±
1.0
LN48YCPP ··············· LNG408NBX ············ Amber
LN48CPP ·················· LNG408CBX ············ Amber
s
Absolute Maximum Ratings (T
a
=
25°C)
Lighting Color P
D
(mW) I
F
(mA) I
FP
(mA)
V
R
(V) T
opr
(°C) T
stg
(°C)
Amber
90
150
30
4
−25 ∼ +85 −30 ∼ +100
Pulse width 1 msec. The condition of I
FP
is duty 10%, Pulse width 1 msec
2.54
1
2
2
0.8 Max
2
0.5
±
0.1
1.0
4.5
±
0.3
LN48YPP ·················· LNG408YBX ············ Amber
0.6
0.5
±
0.1
1.7
1.5
φ
3.8
±
0.2
1: Anode
2: Cathode
s
Electro−Optical Characteristics (T
a
=
25°C)
Conventional
Part No.
LN48YPP
LN48YCPP
LN48CPP
Unit
Lighting
Lens Color
Color
Amber Amber Diffused
Amber Amber Clear
Amber Clear
I
O
Typ
5.0
6.0
10.0
mcd
Min
1.7
3.0
4.0
mcd
I
F
20
20
20
mA
Typ
2.2
2.2
2.2
V
V
F
Max
2.8
2.8
2.8
V
λ
P
Typ
590
590
590
nm
∆λ
Typ
30
30
30
nm
I
R
I
F
20
20
20
mA
Max
10
10
10
µA
V
R
4
4
4
V
I
O
I
F
100
50
100
50
I
F
V
F
Relative Luminous Intensity
500
300
I
O
T
a
Luminous Intensity
Forward Current
30
LN
48Y
CP
P
30
10
P
48
CP
10
5
3
100
50
30
5
3
LN
1
1
LN
48Y
PP
3
5
10
30
50
100
1
1.6
1.8
2.0
2.2
2.4
10
−20
0
20
40
60
80
100
Forward Current
Forward Voltage
Ambient Temperature
Relative Luminous Intensity
Wavelength Characteristics
Relative Luminous Intensity
100
80
30°
40°
60
40
20
0
500
50°
60°
60°
70°
80°
600
700
800
90°
100
80
60
40
20
40°
20°
0
20
LN48YPP
LN48YCPP
LN48CPP
40
60
80
60°
70°
80°
90°
100
80°
I
F
T
a
50
Directive Characteristics
20° 10°
10° 20°
30°
40°
50°
Forward Current
40
30
20
10
0
0
20
40
60
80
100
Wavelength
Relative Luminous Intensity
Ambient Temperature
155
Caution for Safety
Gallium arsenide material (GaAs) is used
in this product.
DANGER
Therefore, do not burn, destroy, cut, crush, or chemi-
cally decompose the product, since gallium arsenide
material in powder or vapor form is harmful to human
health.
Observe the relevant laws and regulations when dispos-
ing of the products. Do not mix them with ordinary in-
dustrial waste or household refuse when disposing of
GaAs-containing products.
Request for your special attention and precautions in using the technical information
and semiconductors described in this material
(1) An export permit needs to be obtained from the competent authorities of the Japanese Government if any of the
products or technologies described in this material and controlled under the "Foreign Exchange and Foreign
Trade Law" is to be exported or taken out of Japan.
(2) The technical information described in this material is limited to showing representative characteristics and
applied circuit examples of the products. It does not constitute the warranting of industrial property, the granting
of relative rights, or the granting of any license.
(3) The products described in this material are intended to be used for standard applications or general electronic
equipment (such as office equipment, communications equipment, measuring instruments and household ap-
pliances).
Consult our sales staff in advance for information on the following applications:
Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment, combustion
equipment, life support systems and safety devices) in which exceptional quality and reliability are required,
or if the failure or malfunction of the products may directly jeopardize life or harm the human body.
Any applications other than the standard applications intended.
(4) The products and product specifications described in this material are subject to change without notice for
reasons of modification and/or improvement. At the final stage of your design, purchasing, or use of the prod-
ucts, therefore, ask for the most up-to-date Product Standards in advance to make sure that the latest specifi-
cations satisfy your requirements.
(5) When designing your equipment, comply with the guaranteed values, in particular those of maximum rating, the
range of operating power supply voltage and heat radiation characteristics. Otherwise, we will not be liable for
any defect which may arise later in your equipment.
Even when the products are used within the guaranteed values, redundant design is recommended, so that
such equipment may not violate relevant laws or regulations because of the function of our products.
(6) When using products for which dry packing is required, observe the conditions (including shelf life and after-
unpacking standby time) agreed upon when specification sheets are individually exchanged.
(7) No part of this material may be reprinted or reproduced by any means without written permission from our
company.
Please read the following notes before using the datasheets
A. These materials are intended as a reference to assist customers with the selection of Panasonic semiconduc-
tor products best suited to their applications.
Due to modification or other reasons, any information contained in this material, such as available product
types, technical data, and so on, is subject to change without notice.
Customers are advised to contact our semiconductor sales office and obtain the latest information before
starting precise technical research and/or purchasing activities.
B. Panasonic is endeavoring to continually improve the quality and reliability of these materials but there is always
the possibility that further rectifications will be required in the future. Therefore, Panasonic will not assume any
liability for any damages arising from any errors etc. that may appear in this material.
C. These materials are solely intended for a customer's individual use.
Therefore, without the prior written approval of Panasonic, any other use such as reproducing, selling, or
distributing this material to a third party, via the Internet or in any other way, is prohibited.
2001 MAR
