LF43881GM50: DescriptionDigital Filter, 8-Bit, CMOS, CPGA84, CERAMIC, PGA-84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size495KB，11 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

LF43881GM50 Overview

Digital Filter, 8-Bit, CMOS, CPGA84, CERAMIC, PGA-84

LF43881GM50 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	PGA
package instruction	PGA, PGA84M,11X11
Contacts	84
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	DATA FORMAT CONTROL PIN AVAILABLE
boundary scan	NO
maximum clock frequency	20 MHz
External data bus width	8
JESD-30 code	S-CPGA-P84
JESD-609 code	e0
length	28.0416 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	84
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	26
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA84M,11X11
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.445 mm
Maximum slew rate	160 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
width	28.0416 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER

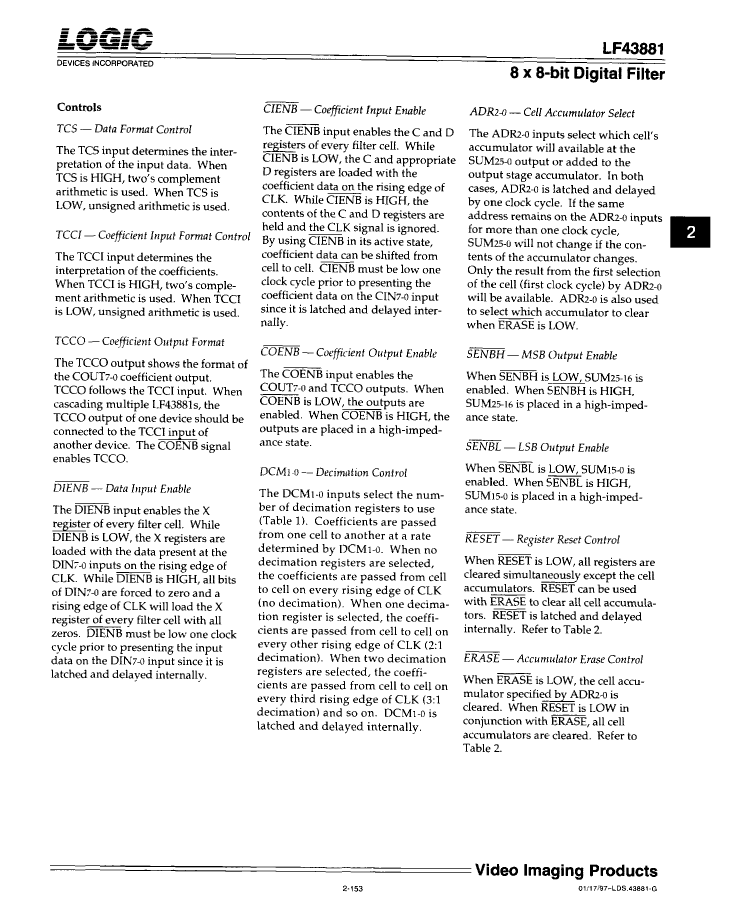

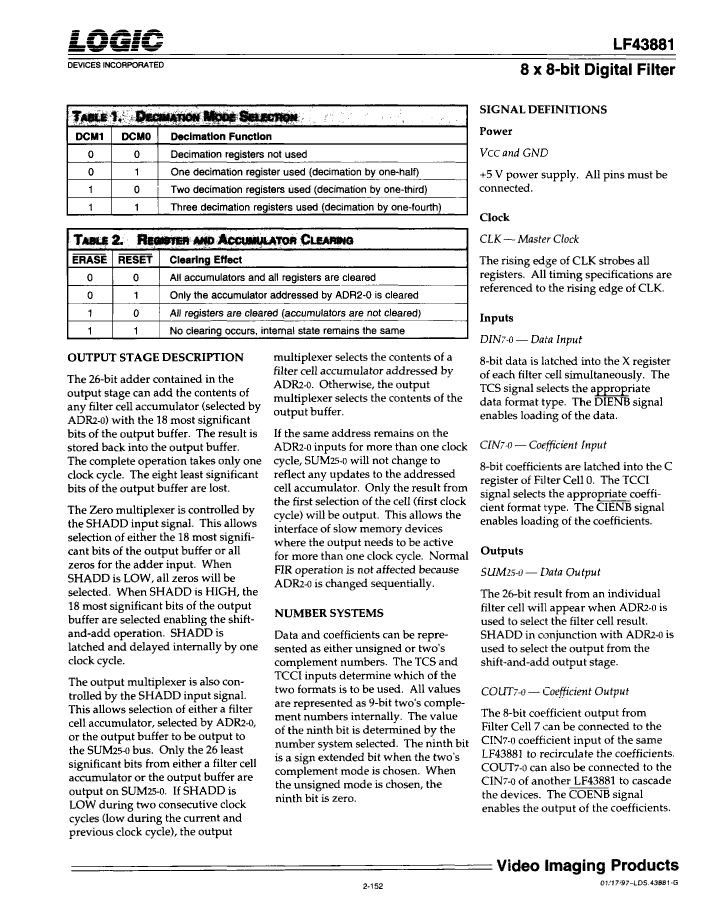

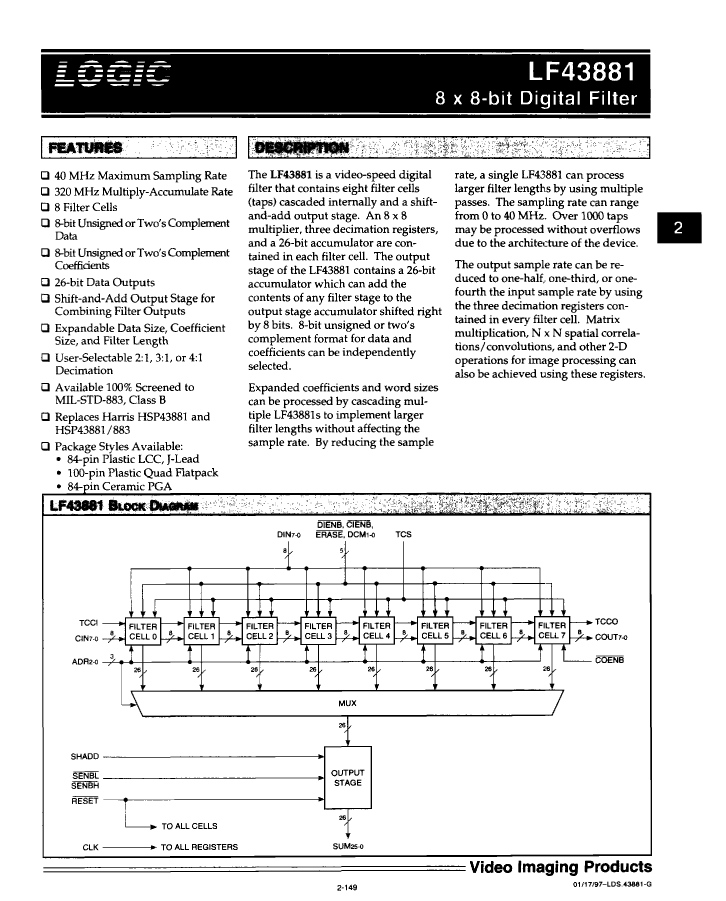

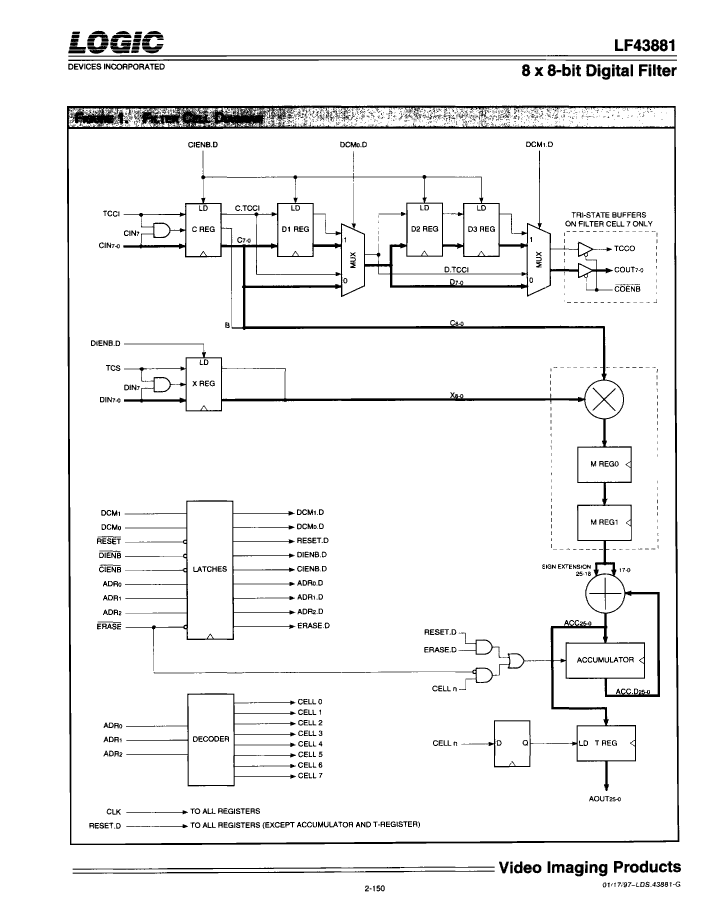

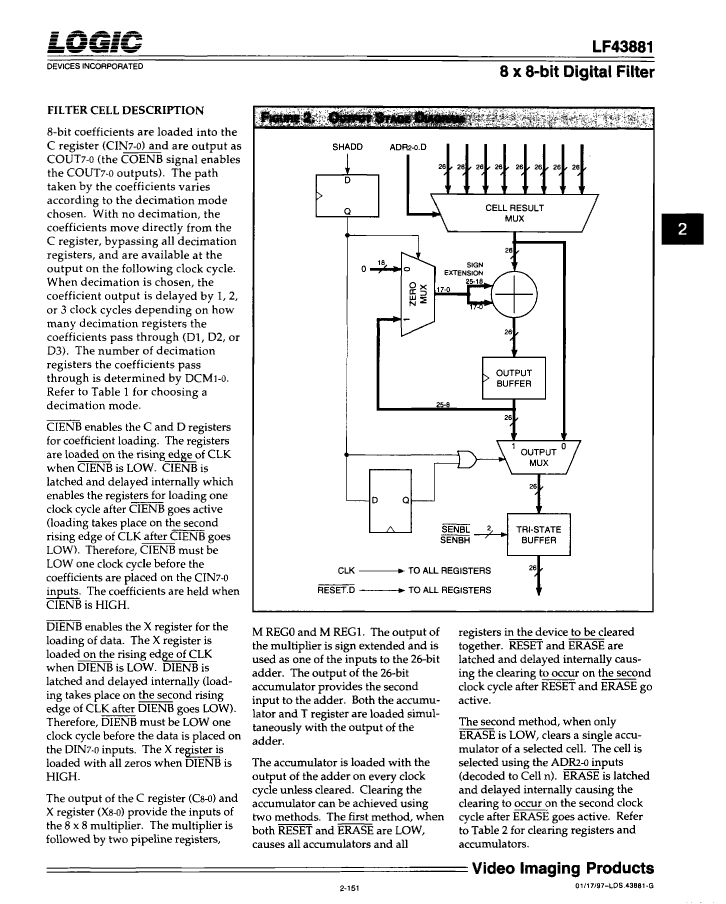

LF43881GM50 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LF43881GM50 Related Products

	LF43881GM50	LF43881GM40	LF43881GM33
Description	Digital Filter, 8-Bit, CMOS, CPGA84, CERAMIC, PGA-84	Digital Filter, 8-Bit, CMOS, CPGA84, CERAMIC, PGA-84	Digital Filter, 8-Bit, CMOS, CPGA84, CERAMIC, PGA-84
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	LOGIC Devices	LOGIC Devices	LOGIC Devices
Parts packaging code	PGA	PGA	PGA
package instruction	PGA, PGA84M,11X11	PGA, PGA84M,11X11	PGA, PGA84M,11X11
Contacts	84	84	84
Reach Compliance Code	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	DATA FORMAT CONTROL PIN AVAILABLE	DATA FORMAT CONTROL PIN AVAILABLE; ICC SPECIFIED @ 20MHZ	DATA FORMAT CONTROL PIN AVAILABLE; ICC SPECIFIED @ 20MHZ
boundary scan	NO	NO	NO
maximum clock frequency	20 MHz	25 MHz	30.3 MHz
External data bus width	8	8	8
JESD-30 code	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84
JESD-609 code	e0	e0	e0
length	28.0416 mm	28.0416 mm	28.0416 mm
low power mode	NO	NO	NO
Humidity sensitivity level	3	3	3
Number of terminals	84	84	84
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output data bus width	26	26	26
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA	PGA
Encapsulate equivalent code	PGA84M,11X11	PGA84M,11X11	PGA84M,11X11
Package shape	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY
Peak Reflow Temperature (Celsius)	225	225	225
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.445 mm	4.445 mm	4.445 mm
Maximum slew rate	160 mA	160 mA	160 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	28.0416 mm	28.0416 mm	28.0416 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER
