LF48908JC31: DescriptionConvolver, 8-Bit, CMOS, PQCC84, PLASTIC, LCC-84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size354KB，16 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

LF48908JC31 Overview

Convolver, 8-Bit, CMOS, PQCC84, PLASTIC, LCC-84

LF48908JC31 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	LCC
package instruction	QCCJ, LDCC84,1.2SQ
Contacts	84
Reach Compliance Code	compliant
ECCN code	3A991.A.2
Other features	16 BIT CASCADE DATA INPUT AND OUTPUT PORT; ICC SPECIFIED @ 20MHZ
boundary scan	NO
maximum clock frequency	32.3 MHz
External data bus width	8
JESD-30 code	S-PQCC-J84
JESD-609 code	e0
length	29.3116 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	84
Maximum operating temperature	70 °C
Minimum operating temperature
Output data bus width	20
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC84,1.2SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	110 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	29.3116 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CONVOLVER

LF48908JC31 Preview

LF48908

DEVICES INCORPORATED

Two Dimensional Convolver

LF48908

DEVICES INCORPORATED

Two Dimensional Convolver

DESCRIPTION

The

LF48908

is a high-speed two

dimensional convolver that imple-

ments a 3 x 3 kernel convolution at

real-time video rates. Programmable

row buffers are located on-chip,

eliminating the need for external data

storage. Each row buffer can store up

to 1024 pixels. Two internal register

banks are provided allowing two

separate sets of filter coefficients to be

stored simultaneously. Adaptive filter

operations are possible when both

ALU is provided, allowing real-time

arithmetic and logical pixel point

operations to be performed on the

image data.

The 3 x 3 convolver

comprises nine 8 x 8-bit multipliers,

various pipeline registers, and sum-

mers. A complete sum-of-products

operation is performed every clock

cycle. The FRAME signal resets all

data registers without affecting the

control and coefficient registers.

Pixel and coefficient input data are

both 8-bits and can be either signed or

unsigned integers. Image data should

be in a raster scan non-interlaced

format. The LF48908 can internally

store images as wide as 1024 pixels for

the 3 x 3 convolution. By using

external row buffers and multiple

LF48908s, longer pixel rows can be

used and convolutions with larger

kernel sizes can be performed. Out-

put data is 20-bits and this guarantees

no overflow for kernel sizes up to 4 x 4.

A separate cascade input is used as

the data input for summing results

from multiple LF48908s. It can also

function as the data input path when

external line buffers are used.

FEATURES

40 MHz Data and Computation

Rate

Nine Multiplier Array with 8-bit

Data and 8-bit Coefficient Inputs

Separate Cascade Input and Output

Ports

On-board Programmable Row

Buffers

Two Coefficient Mask Registers

On-board 8-bit ALU

Two’s Complement or Unsigned

Operands

Replaces Harris HSP48908

DECC SMD No. 5962-93007

Package Styles Available:

• 84-pin Plastic LCC, J-Lead

• 100-pin Plastic Quad Flatpack

IGURE

1. LF48908 B

LOCK

IAGRAM

CASI

15-0

DIN

7-0

CIN

9-0

ALU

ROW

BUFFERS

2-0

3x3

CONVOLVER

DOUT

19-0

CASO

7-0

CLK

HOLD

EALU

RESET

FRAME

CONTROL

LOGIC

Video Imaging Products

08/9/2000–LDS.48908-J

LF48908

DEVICES INCORPORATED

Two Dimensional Convolver

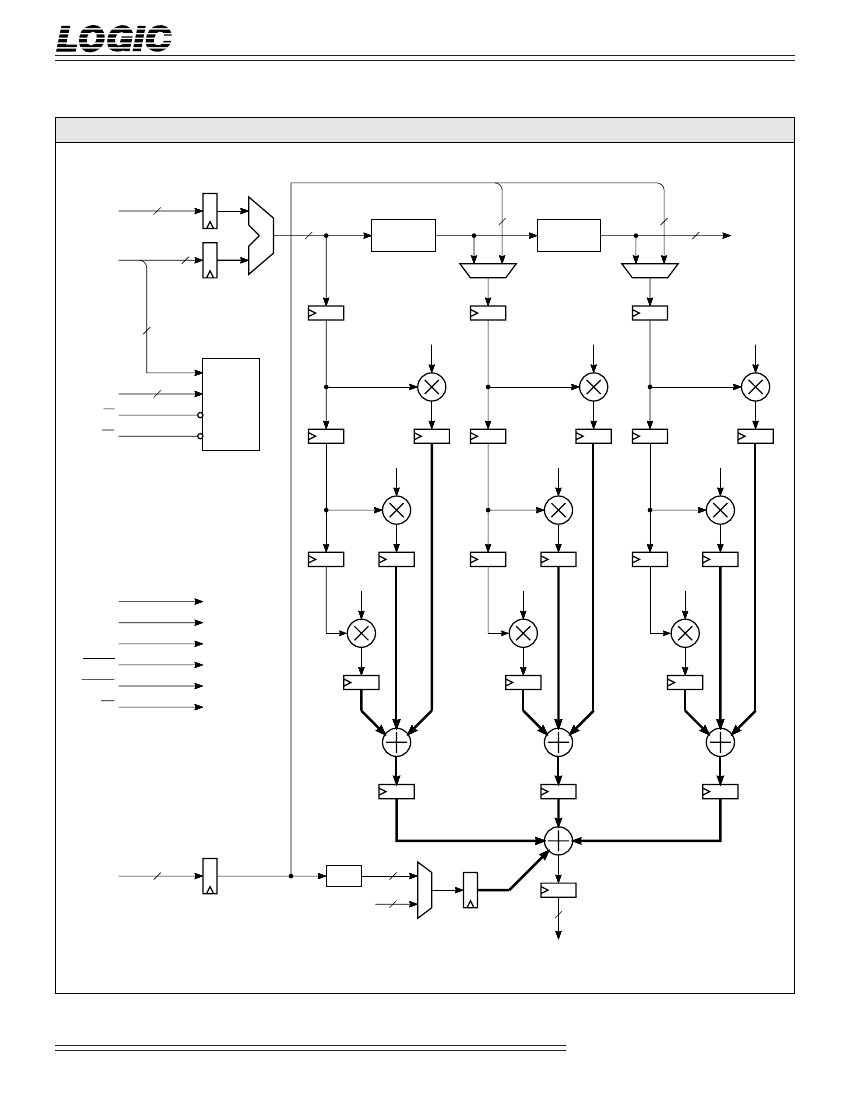

IGURE

2. LF48908 F

UNCTIONAL

LOCK

IAGRAM

ALU

DIN

7-0

1-4

7-0

ROW

BUFFER

ROW

BUFFER

15-8

CASO

7-0

CIN

9-0

7-0

2:1

ALU

2:1

2-0

CONTROL

LOGIC

CLK

HOLD

EALU

RESET

FRAME

CASI

15-0

SHIFT

DOUT

19-0

NOTE: NUMBERS IN REGISTER INDICATE

NUMBER OF PIPELINE DELAYS.

2:1

Video Imaging Products

08/9/2000–LDS.48908-J

LF48908

DEVICES INCORPORATED

Two Dimensional Convolver

CASO

7-0

— Cascade Output

The data presented on CASO

7-0

is the

internal ALU output delayed by twice

the programmed internal row buffer

length.

Controls

2-0

— Control Logic Address Lines

2-0

determines which Control Logic

9-0

data.

CS — Chip Select

When CS is LOW, data can be loaded

into the Control Logic Registers.

When CS is HIGH, data can not be

loaded and the register contents will

not be changed.

LD — Load Strobe

If CS and LD are LOW, the data

present on CIN

9-0

will be latched into

the Control Logic Register addressed

by A

2-0

on the rising edge of LD.

FUNCTIONAL DESCRIPTION

The LF48908, a two-dimensional

convolver, executes convolutions using

internal row buffers to reduce design

complexity and board space require-

ments. 8-bit image data, in raster scan,

non-interlace format, is convolved with

one of two internal, 3 x 3 user-

programable filter kernels. Two 1024 x 8-

bit row buffers provide the data delay

needed to perform two-dimensional

convolutions on a single chip. The result

output of 20-bits allows for word growth

during the convolution operation.

The input data path (DIN

7-0

) provides

access to an 8-bit ALU. This allows

point operations to be performed on

the incoming data stream before

reaching the row buffers and the

convolver. The length of these buffers

is programmable for use in various

video formats without the need for

additional external delay.

This device is configured by loading

the coefficent data (filter kernels) and

row buffer length through the

coefficent data path (CIN

7-0

). Internal

registers are addressed using the A

2-0

address lines. Chip Select (CS) and

Load Strobe (LD) complete the

configuration interface which may be

controlled by standard microproces-

sors without additional external logic.

SIGNAL DEFINITIONS

Power

and GND

+5 V power supply. All pins must be

connected.

Clock

CLK — Master Clock

The rising edge of CLK strobes all

enabled registers except for the

Control Logic Registers.

Inputs

DIN

7-0

— Pixel Data Input

DIN

7-0

is the 8-bit registered pixel

data input port. Data is latched on the

rising edge of CLK.

CIN

9-0

— Coefficient and Control Logic

CIN

7-0

is used to load the Coefficient

Registers or can be used to provide a

second operand input to the ALU.

CIN

8-0

is used to load the Initializa-

tion Register. CIN

9-0

is used to load

the ALU Microcode and Row Buffer

Length Registers. The Control Regis-

ter Address Lines, A

2-0

, determine

which register will receive the CIN

data. The CIN data is loaded into the

addressed register by using the CS

and LD control inputs.

CASI

15-0

— Cascade Input

The cascade input is used when

multiple LF48908s are cascaded

together or when external row buffers

are needed. This allows convolutions

of larger kernels or longer row sizes.

Outputs

DOUT

19-0

— Data Output

DOUT

19-0

is the 20-bit registered data

output port.

RESET — Reset Control

When RESET is LOW, all internal

circuitry is reset, all outputs are forced

LOW, all Control Logic Registers are

loaded with their default values

(which is 0 for each one except the

ALU Microcode Register which has a

default value of “0000011000”), and all

other internal registers are loaded

with a “0”.

FRAME — New Frame Input Control

When asserted, FRAME signals the

start of a new frame. When FRAME is

LOW, all internal circuitry is reset

except for the ALU Microcode, Row

Length, Initialization, Coefficient, and

ALU Registers.

EALU — Enable ALU Register Input

When HIGH, data on CIN

7-0

is latched

into the ALU Register on the next

rising edge of CLK. When LOW, data

on CIN

7-0

will not be latched into the

ALU Register and the register con-

tents will not be changed.

HOLD — Hold Control

The HOLD input is used to disable

CLK from all of the internal circuitry.

HOLD is latched on the rising edge of

CLK and takes effect on the next rising

edge of CLK. When HOLD is HIGH,

CLK will have no effect on the

LF48908 and all internal data will

remain unchanged.

OE — Output Enable

When OE is LOW, DOUT

19-0

enabled for output. When OE is

HIGH, DOUT

19-0

is placed in a high-

impedance state.

Video Imaging Products

08/9/2000–LDS.48908-J

LF48908

DEVICES INCORPORATED

Two Dimensional Convolver

data path, while the “B” operand is

taken from the ALU Register. The

ALU Register is loaded using CIN

7-0

and EALU. With EALU HIGH, data

from CIN

7-0

is loaded into the ALU

With EALU LOW, the data is held in

the ALU Register. Since CIN

7-0

is also

used to load the Control Logic Regis-

ters, it is possible to overwrite data in

those registers if CS and LD are active

when loading the ALU Register.

Therefore, special care must be taken

to ensure that CS and LD are not

active when writing to the ALU

Programmable Row Buffers

The two internal row buffers provide

the delay needed to perform the two-

dimensional convolution. The row

buffers function like 8-bit serial shift

registers with a user-programmable

delay from 1 to 1024 stages (it is

possible to select delay stages of 1 or

2, but this leads to meaningless results

for a 3 x 3 kernel convolution). The

row buffer length is set via the Row

Length Register (see Row Length

connected in series to provide the

proper pixel information to the

multiplier array. The Cascade Output

(CASO

7-0

) provides a 2X row delay of

the input data allowing for cascading

of LF48908s to handle larger frames

and/or kernel sizes. If more than 1024

delay stages are needed, it is possible

to use external row buffers and bypass

the internal row buffers. Bit 0 of the

Initialization Register determines if

internal or external row buffers are

used. If Bit 0 is a “0”, the internal row

buffers are used. If Bit 0 is a “1”, the

internal row buffers are bypassed and

external row buffers may be used.

3 x 3 Multiplier Array

The multiplier array comprises nine

8 x 8-bit multipliers. The active

Coefficient Register supplies the

coefficents to each of the multipliers,

while the pixel data comes from the

data input path and row buffers. The

array forms a sum-of-products result

as defined by the equation listed in

Figure 3.

CONTROL LOGIC

Four sets of registers, the ALU Micro-

code, Row Length, Initialization, and

Coefficient, define the Control Logic

section. These registers are updated

The filtered image data is output on

the Data Output bus (DOUT

19-0

). This

bus is registered with three-state

drivers to facilatate use on a standard

microprocessor system bus.

Data Input

Image data is input to the 3 x 3

convolver using DIN

7-0

. Data present

on DIN

7-0

is latched into a program-

mable pipeline delay on the rising

edge of CLK. The programmable

pipeline delay (1 to 4 clock cycles)

allows for synchronization of input

data when multiple LF48908s are

cascaded together to perform larger

convolutions. This delay is pro-

gramed via the Initialization Register

(see Table 3). The image data format,

unsigned or two’s complement, is also

controlled by this register.

Coefficient data is input to the 3 x 3

convolver using either of two Coef-

ficient Registers (CREG

or CREG

The Coefficient Registers are loaded

through CIN

7-0

using the A

2-0

, CS, and

LD controls. The coefficient data

format, unsigned or two’s comple-

ment, is determined by the Initializa-

tion Register.

Arithmetic Logic Unit

The input data path ALU with shifter

allows pixel point operations to be

performed on the incoming image.

These operations include arithmetic

functions, logical masking, and left/

right shifts. The 10-bit ALU Micro-

code Register controls the various

operations. The three upper bits

control the shift amount and direction

while the seven lower bits determine

the arithmetic or logical operation.

The shift operation is performed on

the output of the ALU. This shift

operation is independent of the

arithmetic or logical operation of the

ALU.

Tables 1 and 2 show the operations of

the ALU Microcode Register. The “A”

operand comes from the DIN input

IGURE

ULTIPLIER

RRAY

UTPUT

FILTER KERNEL

PIXEL INPUT DATA

MULTIPLIER ARRAY OUTPUT = A(P1) + B(P2) + C(P3)

+ D(P4) + E(P5) + F(P6)

+ G(P7) + H(P8) + I(P9)

Video Imaging Products

08/9/2000–LDS.48908-J

LF48908

DEVICES INCORPORATED

Two Dimensional Convolver

IGURE

4. LF48908 C

ONTROL

OGIC

LOCK

IAGRAM

ENCR

2-0

ADDRESS

DECODE

ENCR

CAS

LMC

EOR

ALU MICROCODE

CIN

9-0

LMC

ALU MICROCODE REGISTER

EOR

INITIALIZATION REGISTER

ROW LENGTH REGISTER

ROW LENGTH

8-0

CAS

INITIALIZATION DATA

COEFFICIENT REGISTER 0

7-0

ENCR

S Q

R Q

7-0

COEFFICIENT REGISTER 1

through the CIN bus using A

2-0

, CS,

and LD (see Figure 4). All the Control

Logic Registers are set to their default

values when RESET is active. FRAME

does not affect the values in these

registers.

ALU Microcode Register

Operation of the ALU and shifter are

determined by the value stored in the

ALU Microcode Register. This 10-bit

instruction word is divided into two

fields. The lower seven bits define the

arithmetic and logical operations of the

ALU. The upper three bits specify shift

distance and direction. Tables 1 and 2

detail the various instruction words.

This register is loaded through CIN

9-0

using the A

2-0

, CS, and LD controls.

Also see Arithmetic Logic Unit section.

Row Length Register

The value stored in the Row Length

delay stages for each row buffer. The

number of delay stages should be set

equal to the row length of the input

image. The Row Length Register may

be loaded with the values 0 through

1023 (0 represents 1024 delay stages).

It is possible to program the row

buffers to have 1 or 2 delay stages, but

this will lead to meaningless results

for a 3 x 3 convolution. This register is

loaded through CIN

9-0

using the A

2-0

CS, and LD controls. Once the Row

Length Register has been loaded, a

new value can not be loaded until the

LF48908 has been reset. This is done

by asserting RESET. After RESET goes

HIGH, the Row Length Register must

be loaded within 1024 CLK cycles. If

the Row Length Register is not loaded

within 1024 CLK cycles, the register

will automatically be loaded with a “0”.

Initialization Register

The Initialization Register configures

various functions of the device

including: input data delay, input

data format, coefficent data format,

output rounding, cascade mode, and

cascade input shift (see Table 3). This

8-0

using the A

2-0

, CS, and LD controls.

Coefficient Registers - CREG

, CREG

The Coefficient Registers are used to

store the filter coefficients for the

multiplier array. Each Coefficient

Video Imaging Products

08/9/2000–LDS.48908-J

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LF48908JC31 Related Products

	LF48908JC31	LF48908JC25	LF48908JC50
Description	Convolver, 8-Bit, CMOS, PQCC84, PLASTIC, LCC-84	Convolver, 8-Bit, CMOS, PQCC84, PLASTIC, LCC-84	Convolver, 8-Bit, CMOS, PQCC84, PLASTIC, LCC-84
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	LOGIC Devices	LOGIC Devices	LOGIC Devices
Parts packaging code	LCC	LCC	LCC
package instruction	QCCJ, LDCC84,1.2SQ	QCCJ, LDCC84,1.2SQ	QCCJ, LDCC84,1.2SQ
Contacts	84	84	84
Reach Compliance Code	compliant	compliant	compliant
Other features	16 BIT CASCADE DATA INPUT AND OUTPUT PORT; ICC SPECIFIED @ 20MHZ	16 BIT CASCADE DATA INPUT AND OUTPUT PORT; ICC SPECIFIED @ 20MHZ	16 BIT CASCADE DATA INPUT AND OUTPUT PORT
boundary scan	NO	NO	NO
maximum clock frequency	32.3 MHz	40 MHz	20 MHz
External data bus width	8	8	8
JESD-30 code	S-PQCC-J84	S-PQCC-J84	S-PQCC-J84
JESD-609 code	e0	e0	e0
length	29.3116 mm	29.3116 mm	29.3116 mm
low power mode	NO	NO	NO
Humidity sensitivity level	3	3	3
Number of terminals	84	84	84
Maximum operating temperature	70 °C	70 °C	70 °C
Output data bus width	20	20	20
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ
Encapsulate equivalent code	LDCC84,1.2SQ	LDCC84,1.2SQ	LDCC84,1.2SQ
Package shape	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
Maximum slew rate	110 mA	110 mA	110 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	29.3116 mm	29.3116 mm	29.3116 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CONVOLVER	DSP PERIPHERAL, CONVOLVER	DSP PERIPHERAL, CONVOLVER
ECCN code	3A991.A.2	3A991.A.2	-

Recommended Resources

Special driving drag control system

Dynamically biased high-fidelity power amplifier circuit (b)

μPC1318AV audio IC circuit diagram

Analog karaoke 0K accompaniment amplifier circuit

The circuit simulation given in the AD603 manual was unsuccessful and distortion occurred. I would like to ask how to modify it.: AGC is needed in laser ranging, and I built it using the circuit given on the AD603 datesheet.The red circle is not drawn by me, it is like this in the Baidu Library manual.The above picture is a simu...; 魔双月壁 Analog electronics

Teacher Xia Yuwen talks about FPGA learning summary: 1. You must know whether you are suitable to be an engineer or not. Check your personality and see if you are quiet and can stand loneliness. Because FPGA engineers have a very hard job. They need to ...; CMika FPGA/CPLD

PIC18 K40 series serial port cannot send out....Please help: I have worked on PIC16 serial port before, and also seen the DEMO software of PIC18K20. Then I think it shouldn’t be too difficult on K40. Does anyone know,,, it’s the first time I use PIC18F67K40, wi...; wzy8430121 Microchip MCU

250V voltmeter made with PIC16C72A: A DC 250V voltmeter made with PIC16C72A, with HEX file and simulation....; hschengyg Microchip MCU

How to design this timing circuit?: I would like to ask you, how to design this time control circuit? If you know, please explain it in detail, thank you! [[i] This post was last edited by twtsh on 2010-1-4 22:48 [/i]]...; twtsh Analog electronics

8501 IO port problem: Each IO port has a data buffer and a latch. I saw the latch, but I didn't find the buffer. Could it be the pin? Another question is, reading the port can be divided into reading the latch and reading ...; zzc6312833 Embedded System

Shortcut: S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components
