594613: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size185KB，3 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

594613 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

594613 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	594613
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

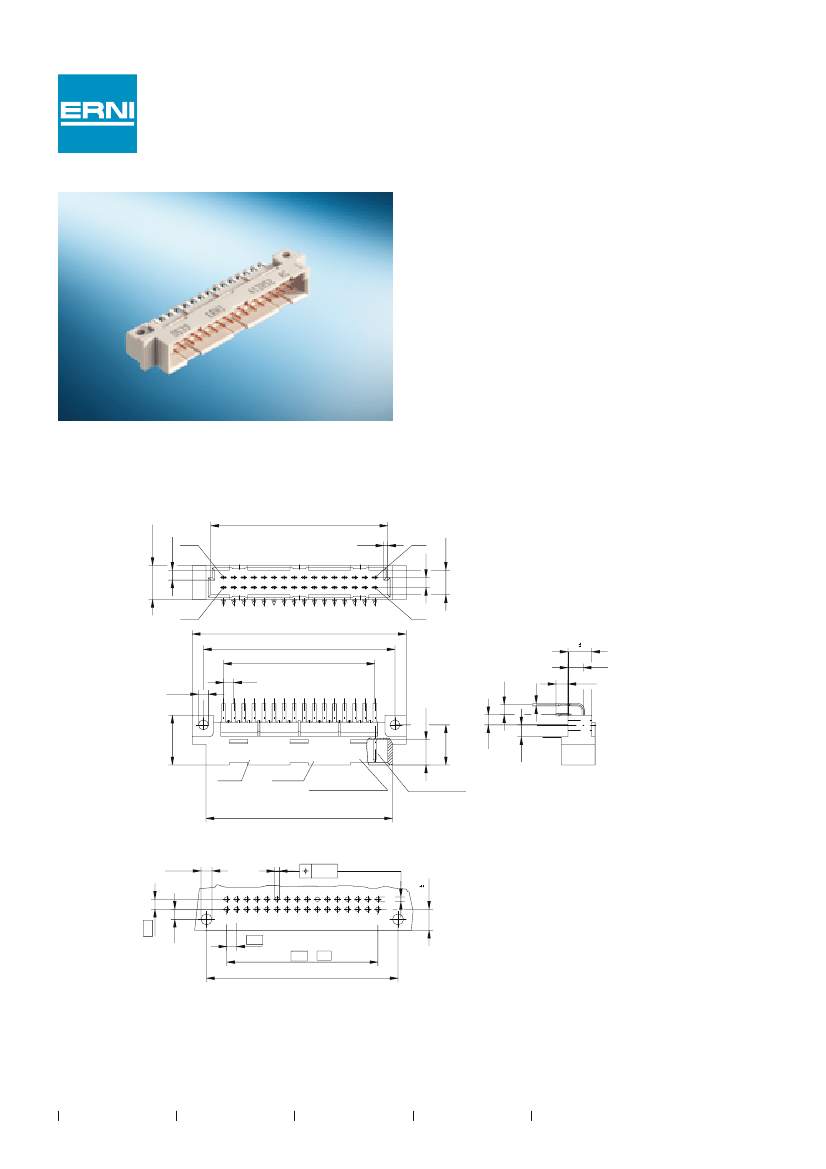

DIN 41612 / IEC 60603-2 Connectors

Type B/2 Male

Dimensional Drawing Pressfit

+0,2

44,6

8,6 max.

b 16

b1

2,5

+0,1

-0,2

1

-0,1

a 16

53,9 max.

48,26

15 x 2,54 = 38,1

2,54

a1

2,54

6,2

6

0,1

3,85

2,54

2,5

-0,1

12,5

6,4

10,2

-0,2

2,54

0,6

+0,1

3

-0,4

a

+0,1

b

Datum

date

Id.-Nr.

Anforderungsstufe

class

47

Stecklänge

mating length

Leiterplatten-Lochbild /

+0,1

PCB drillhole pattern

alle Löcher/

0,05

0,1

+ 0,09

2,8

1)

all holes

b

a

1)

ø 1,0

- 0,06

Durchmesser des metallisierten Loches

ø 1,0

- 0,06

Diameter of finished plated-through hole

ø 1,15

±

0,025

Bohrungsdurchmesser des Loches

ø 1,15

±

0,025

Diameter of drilled hole

+ 0,09

2,54

16 15 14 13 12 11 10 9

8

7

6

5

4

3

2

1

2,54

15 x 2,54 = 38,1

48,26

Catalog E 074558

03/06

Edition 1

5,3

www.erni.com

3

XXXX

ERNI

XXXXXX

X

25

594613 Related Products

	594613	594614	594056	413852	413853	013135
Description	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	ERNI	ERNI	ERNI	ERNI	ERNI	ERNI
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	TIN	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	594613	594614	594056	413852	413853	013135
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	PRESS FIT
Total number of contacts	32	32	32	32	32	32
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	-	EAR99	-	EAR99	EAR99
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
