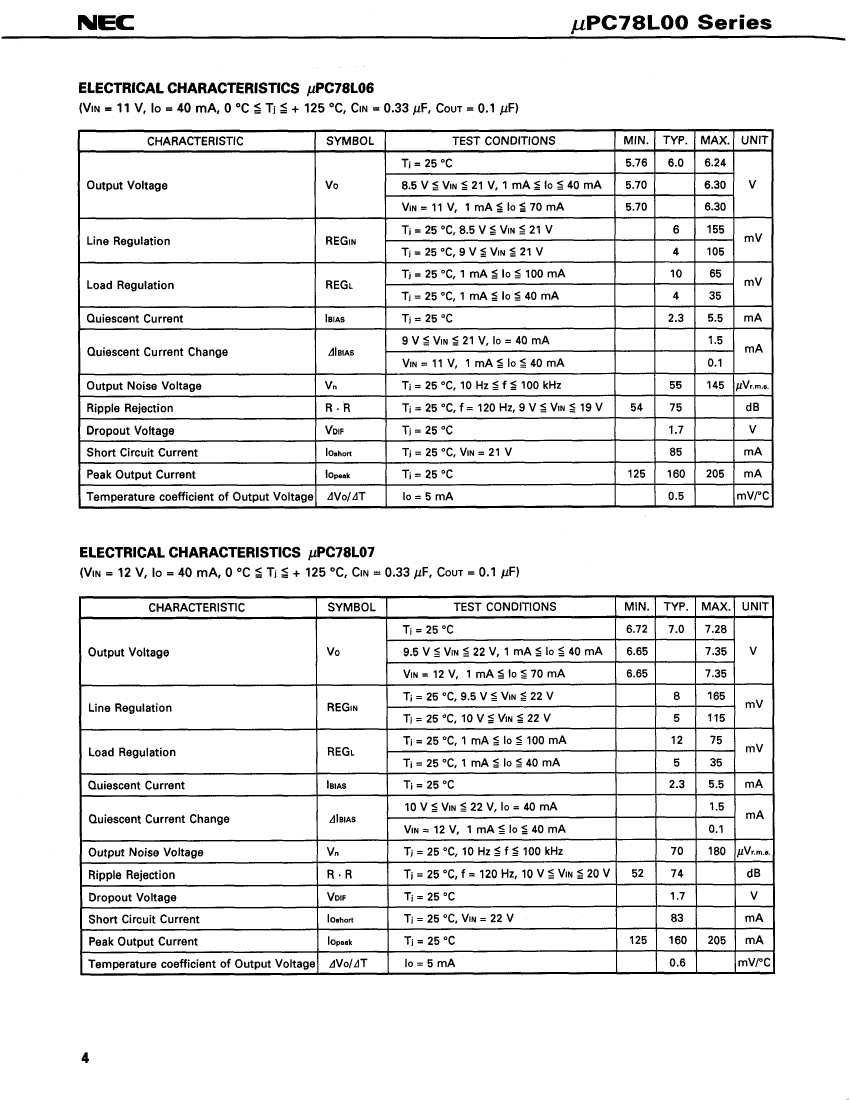

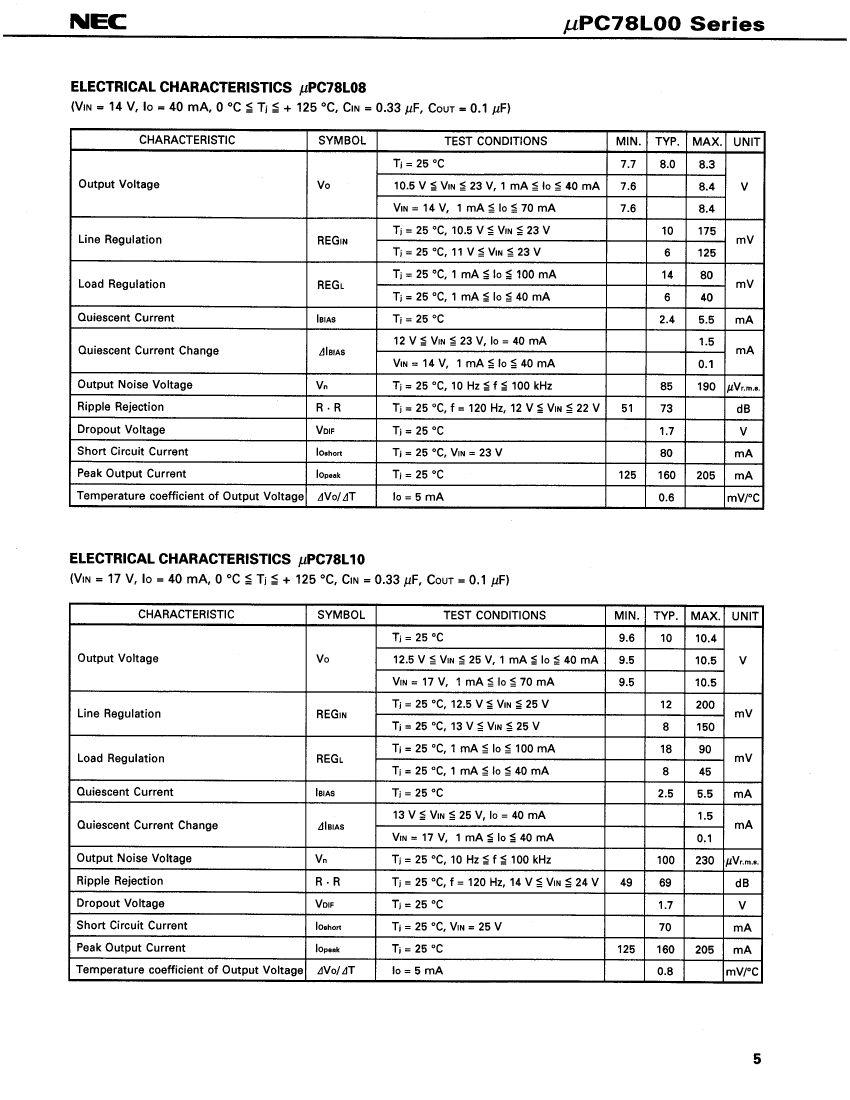

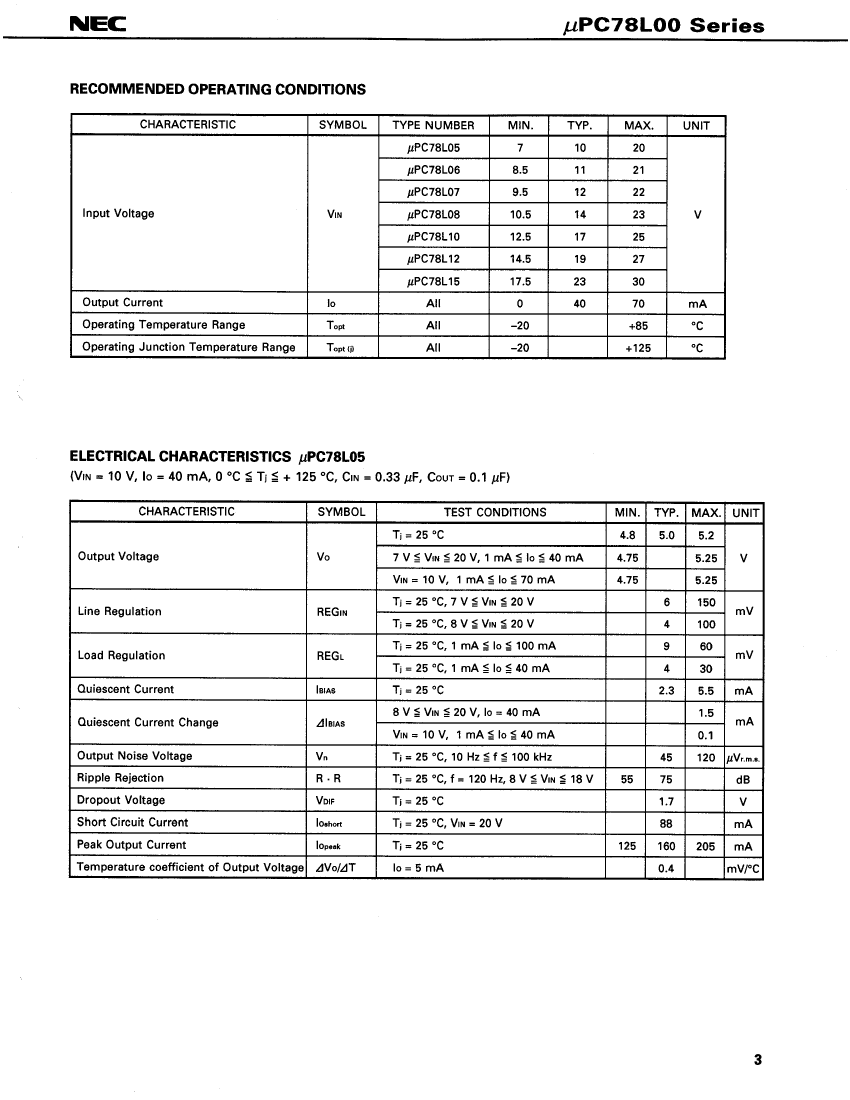

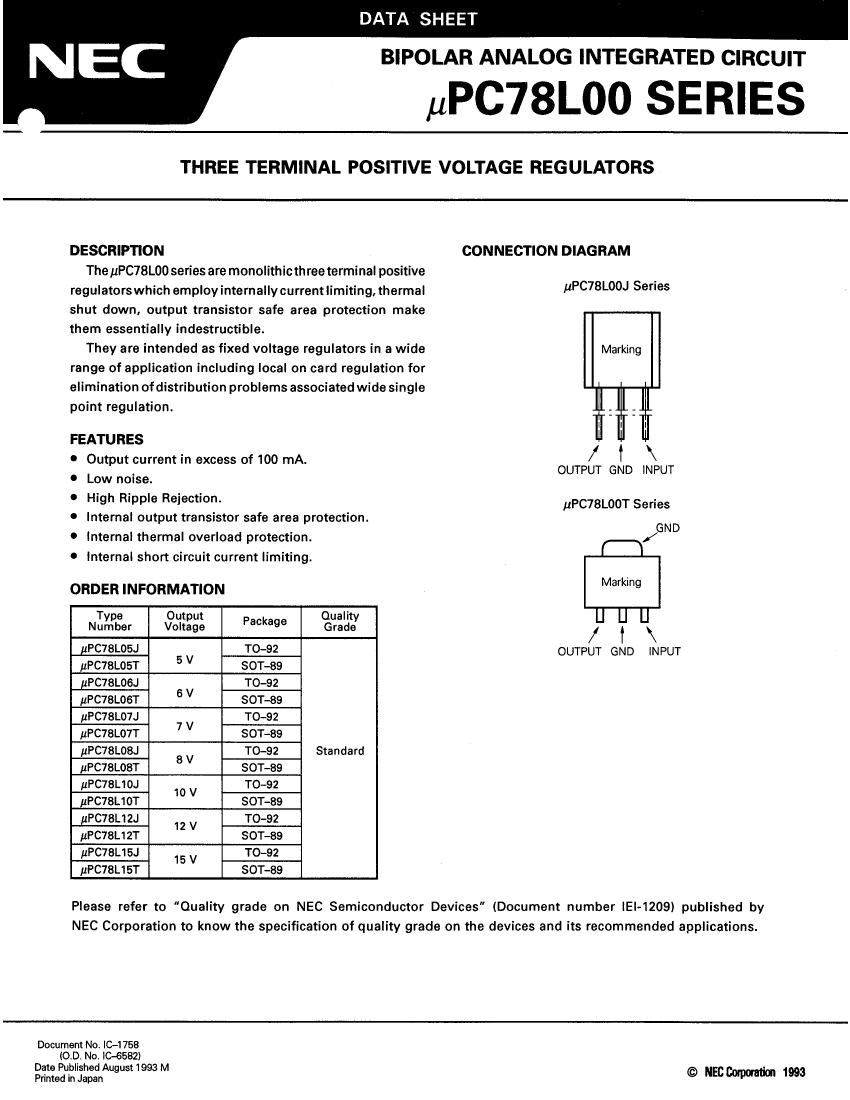

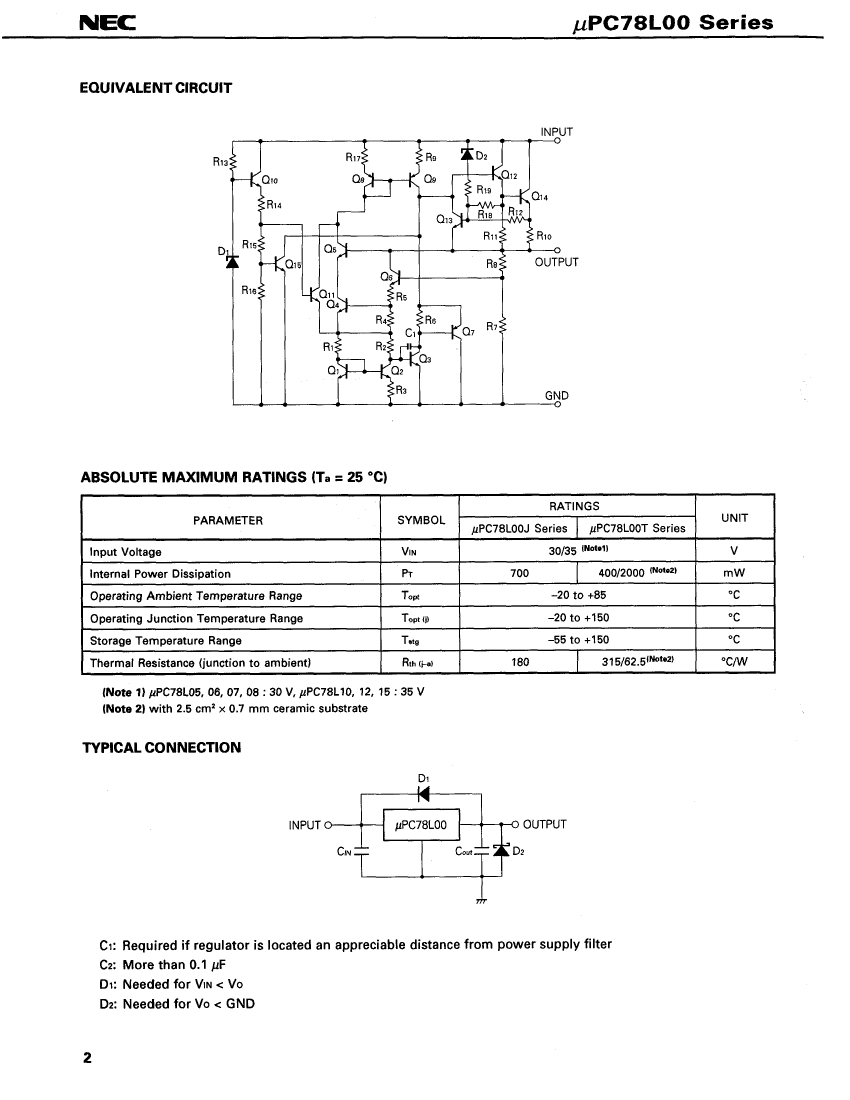

Fixed Positive Standard Regulator, 5VBIPolar, PSSO3, SOT-89, 3 PIN
| Parameter Name | Attribute value |
| Maker | NEC Electronics |
| Parts packaging code | SOT-89 |
| package instruction | SOT-89, 3 PIN |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Maximum input voltage | 20 V |
| Minimum input voltage | 7 V |
| JESD-30 code | R-PSSO-F3 |
| length | 4.5 mm |
| Number of functions | 1 |
| Number of terminals | 3 |
| Working temperatureTJ-Max | 125 °C |
| Working temperature TJ-Min | |
| Maximum output current 1 | 0.1 A |
| Maximum output voltage 1 | 5.25 V |
| Minimum output voltage 1 | 4.75 V |
| Nominal output voltage 1 | 5 V |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Regulator type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR |
| Maximum seat height | 1.6 mm |
| surface mount | YES |
| technology | BIPOLAR |
| Terminal form | FLAT |
| Terminal pitch | 1.5 mm |
| Terminal location | SINGLE |
| width | 2.5 mm |
| UPC78L05T | UPC78L05J | UPC78L08T | UPC78L12T | UPC78L07J | UPC78L07T | UPC78L10J | UPC78L06T | |
|---|---|---|---|---|---|---|---|---|
| Description | Fixed Positive Standard Regulator, 5VBIPolar, PSSO3, SOT-89, 3 PIN | Fixed Positive Standard Regulator, 5VBIPolar, PBCY3, PLASTIC, TO-92, SIP-3 | Fixed Positive Standard Regulator, 8VBIPolar, PSSO3, SOT-89, 3 PIN | Fixed Positive Standard Regulator, 12VBIPolar, PSSO3, SOT-89, 3 PIN | Fixed Positive Standard Regulator, 7VBIPolar, PBCY3, PLASTIC, TO-92, SIP-3 | Fixed Positive Standard Regulator, 7VBIPolar, PSSO3, SOT-89, 3 PIN | Fixed Positive Standard Regulator, 10VBIPolar, PBCY3, PLASTIC, TO-92, SIP-3 | Fixed Positive Standard Regulator, 6VBIPolar, PSSO3, SOT-89, 3 PIN |
| Maker | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics |
| Parts packaging code | SOT-89 | TO-92 | SOT-89 | SOT-89 | TO-92 | SOT-89 | TO-92 | SOT-89 |
| Contacts | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | compliant | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum input voltage | 20 V | 20 V | 23 V | 27 V | 22 V | 22 V | 25 V | 21 V |
| Minimum input voltage | 7 V | 7 V | 10.5 V | 14 V | 9.5 V | 9.5 V | 12.5 V | 8.5 V |
| JESD-30 code | R-PSSO-F3 | O-PBCY-T3 | R-PSSO-F3 | R-PSSO-F3 | O-PBCY-T3 | R-PSSO-F3 | O-PBCY-T3 | R-PSSO-F3 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Working temperatureTJ-Max | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Maximum output current 1 | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A |
| Maximum output voltage 1 | 5.25 V | 5.25 V | 8.4 V | 12.6 V | 7.35 V | 7.35 V | 10.5 V | 6.3 V |
| Minimum output voltage 1 | 4.75 V | 4.75 V | 7.6 V | 11.4 V | 6.65 V | 6.65 V | 9.5 V | 5.7 V |
| Nominal output voltage 1 | 5 V | 5 V | 8 V | 12 V | 7 V | 7 V | 10 V | 6 V |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | ROUND | RECTANGULAR | RECTANGULAR | ROUND | RECTANGULAR | ROUND | RECTANGULAR |
| Package form | SMALL OUTLINE | CYLINDRICAL | SMALL OUTLINE | SMALL OUTLINE | CYLINDRICAL | SMALL OUTLINE | CYLINDRICAL | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Regulator type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR |
| surface mount | YES | NO | YES | YES | NO | YES | NO | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Terminal form | FLAT | THROUGH-HOLE | FLAT | FLAT | THROUGH-HOLE | FLAT | THROUGH-HOLE | FLAT |
| Terminal location | SINGLE | BOTTOM | SINGLE | SINGLE | BOTTOM | SINGLE | BOTTOM | SINGLE |
| length | 4.5 mm | - | 4.5 mm | 4.5 mm | - | 4.5 mm | - | 4.5 mm |
| Maximum seat height | 1.6 mm | - | 1.6 mm | 1.6 mm | - | 1.6 mm | - | 1.6 mm |
| Terminal pitch | 1.5 mm | - | 1.5 mm | 1.5 mm | - | 1.5 mm | - | 1.5 mm |
| width | 2.5 mm | - | 2.5 mm | 2.5 mm | - | 2.5 mm | - | 2.5 mm |
