LF9501JI40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LF9501JI40

LF9501JI40: DescriptionPipeline Register, 10-Bit, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size338KB，7 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

LF9501JI40 Overview

Pipeline Register, 10-Bit, CMOS, PQCC44, PLASTIC, LCC-44

LF9501JI40 Parametric

Parameter Name	Attribute value
Maker	LOGIC Devices
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	44
Reach Compliance Code	unknown
boundary scan	NO
maximum clock frequency	25 MHz
External data bus width	10
JESD-30 code	S-PQCC-J44
length	16.5862 mm
low power mode	NO
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output data bus width	10
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER

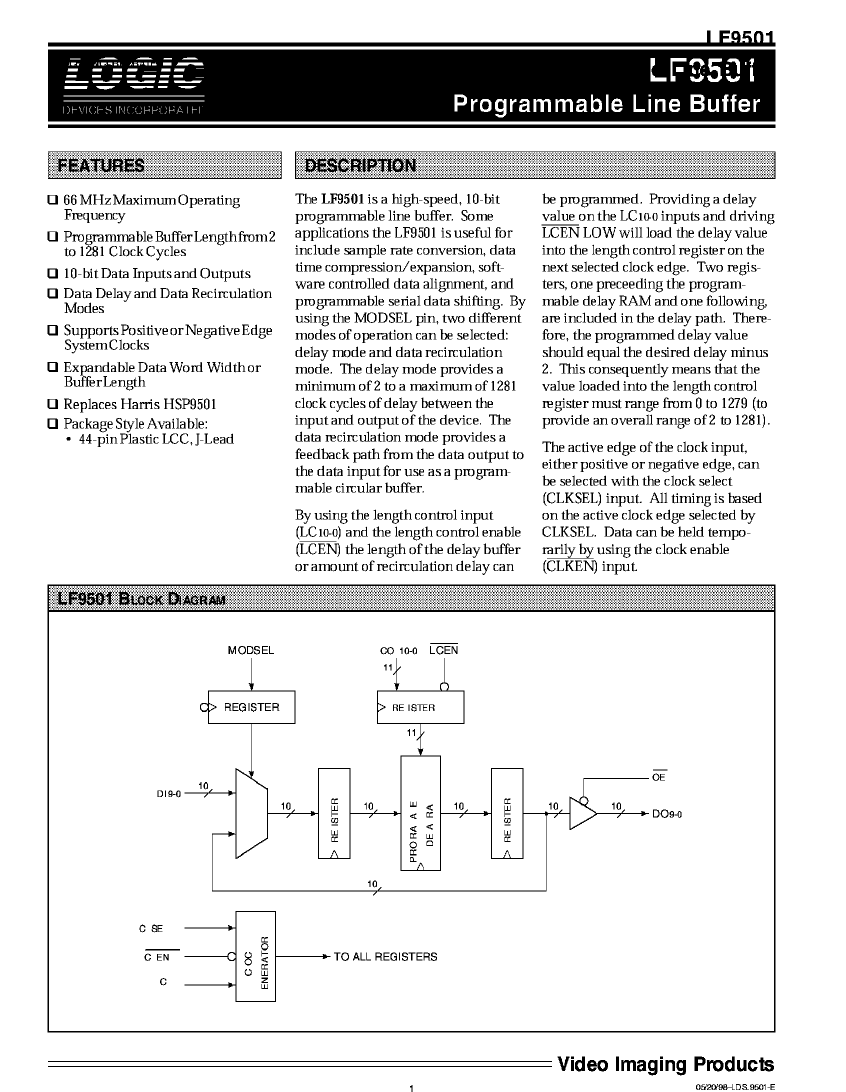

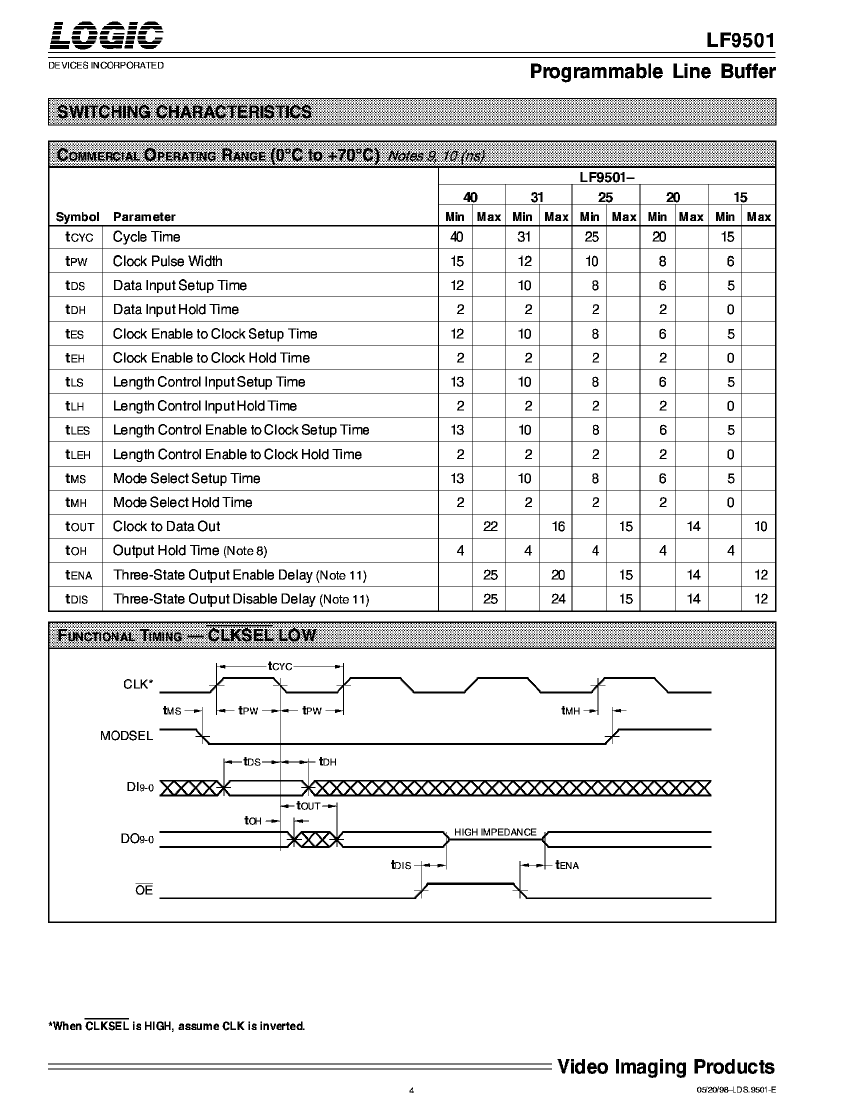

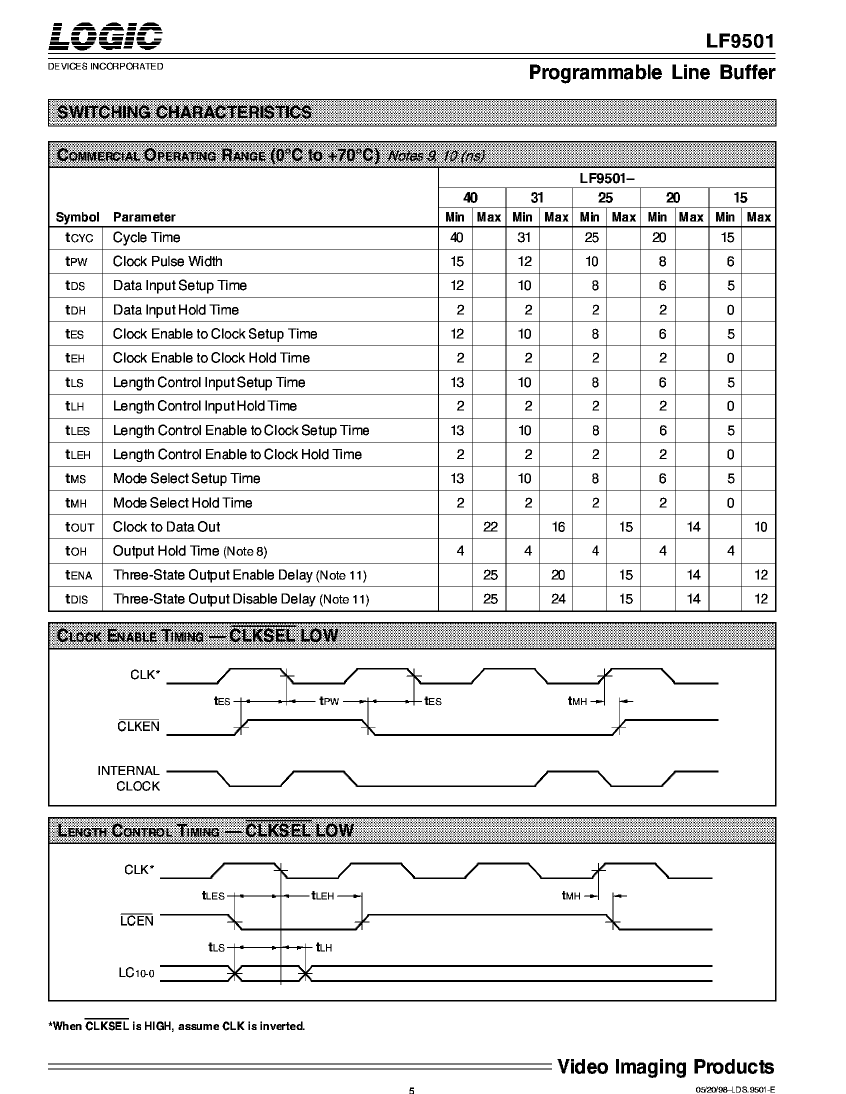

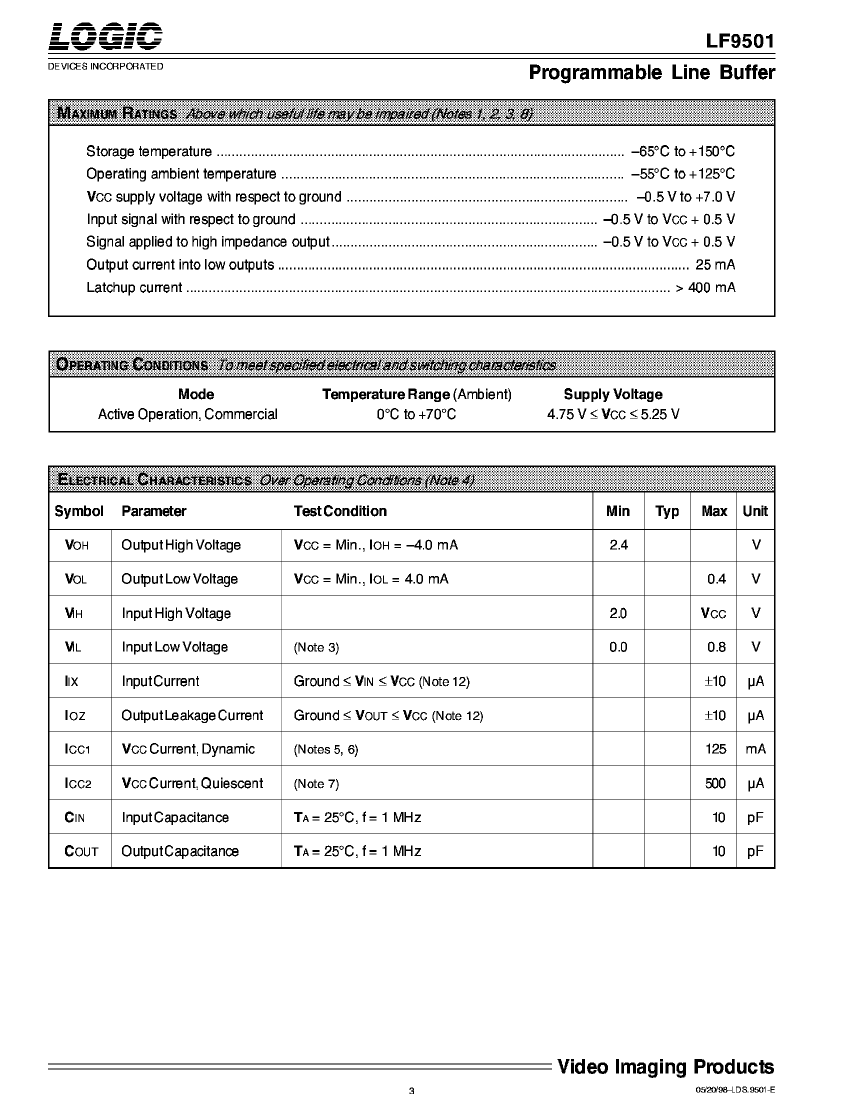

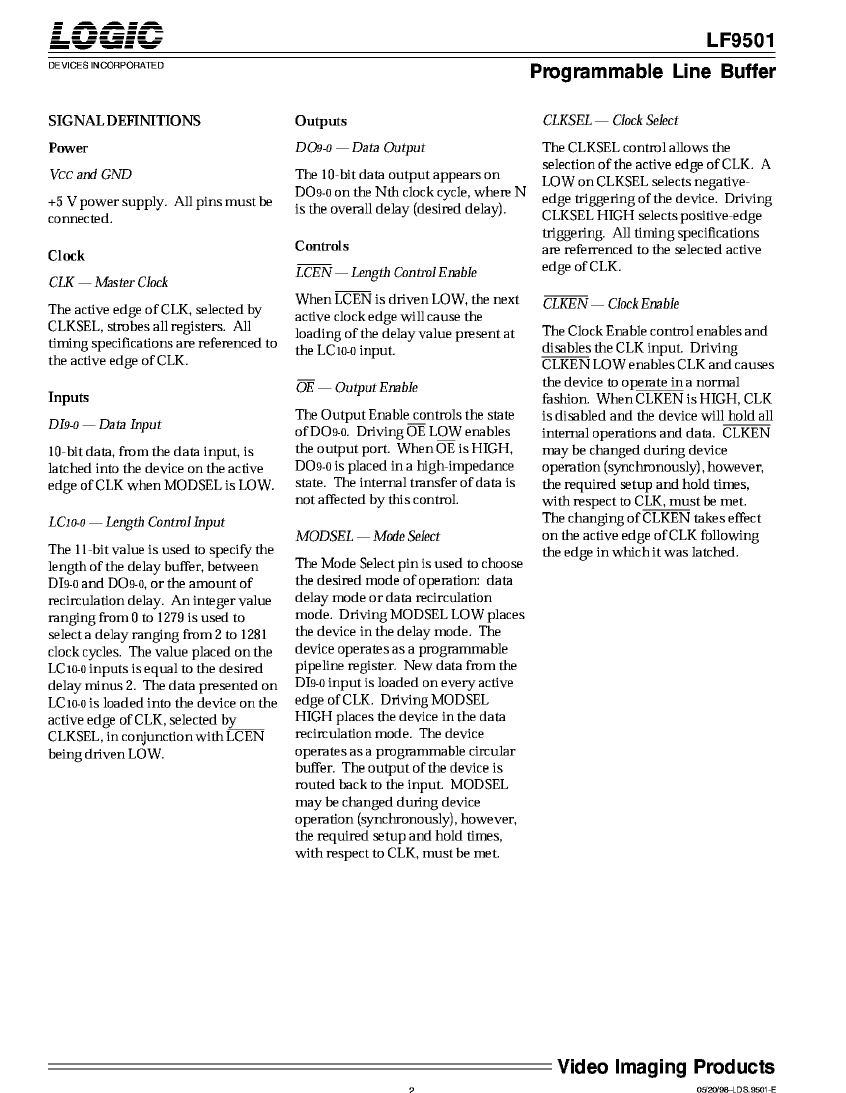

Preview

Download Datasheet

View All

LF9501JI40 Related Products

	LF9501JI40	LF9501JI20	LF9501JI15	LF9501JC15	LF9501JC40	LF9501JI25	LF9501JI31	LF9501JC31
Description	Pipeline Register, 10-Bit, CMOS, PQCC44, PLASTIC, LCC-44	Pipeline Register, 10-Bit, CMOS, PQCC44, PLASTIC, LCC-44	Pipeline Register, 10-Bit, CMOS, PQCC44, PLASTIC, LCC-44	Pipeline Register, 10-Bit, CMOS, PQCC44, PLASTIC, LCC-44	Pipeline Register, 10-Bit, CMOS, PQCC44, PLASTIC, LCC-44	Pipeline Register, 10-Bit, CMOS, PQCC44, PLASTIC, LCC-44	Pipeline Register, 10-Bit, CMOS, PQCC44, PLASTIC, LCC-44	Pipeline Register, 10-Bit, CMOS, PQCC44, PLASTIC, LCC-44
Parts packaging code	LCC	LCC	LCC	LCC	LCC	LCC	LCC	LCC
package instruction	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,
Contacts	44	44	44	44	44	44	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	25 MHz	50 MHz	66.6666 MHz	66.6666 MHz	25 MHz	40 MHz	32.258 MHz	32.258 MHz
External data bus width	10	10	10	10	10	10	10	10
JESD-30 code	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44
length	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm
low power mode	NO	NO	NO	NO	NO	NO	NO	NO
Number of terminals	44	44	44	44	44	44	44	44
Maximum operating temperature	85 °C	85 °C	85 °C	70 °C	70 °C	85 °C	85 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-	-40 °C	-40 °C	-
Output data bus width	10	10	10	10	10	10	10	10
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.572 mm	4.572 mm	4.572 mm	4.572 mm	4.572 mm	4.572 mm	4.572 mm	4.572 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER
Maker	LOGIC Devices	-	LOGIC Devices	LOGIC Devices	LOGIC Devices	LOGIC Devices	LOGIC Devices	LOGIC Devices
ECCN code	-	3A001.A.3	3A001.A.3	3A001.A.3	-	3A991.A.2	3A991.A.2	3A991.A.2
