MP7545BLN datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MP7545BLN

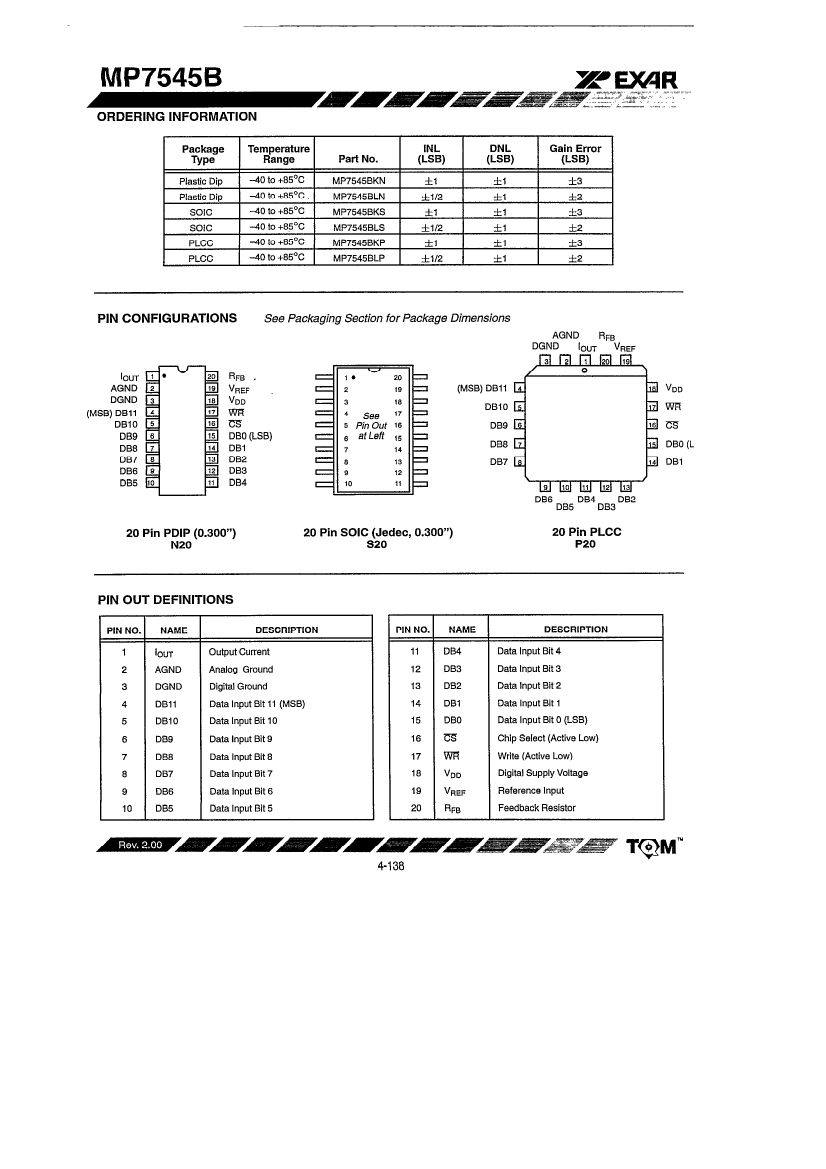

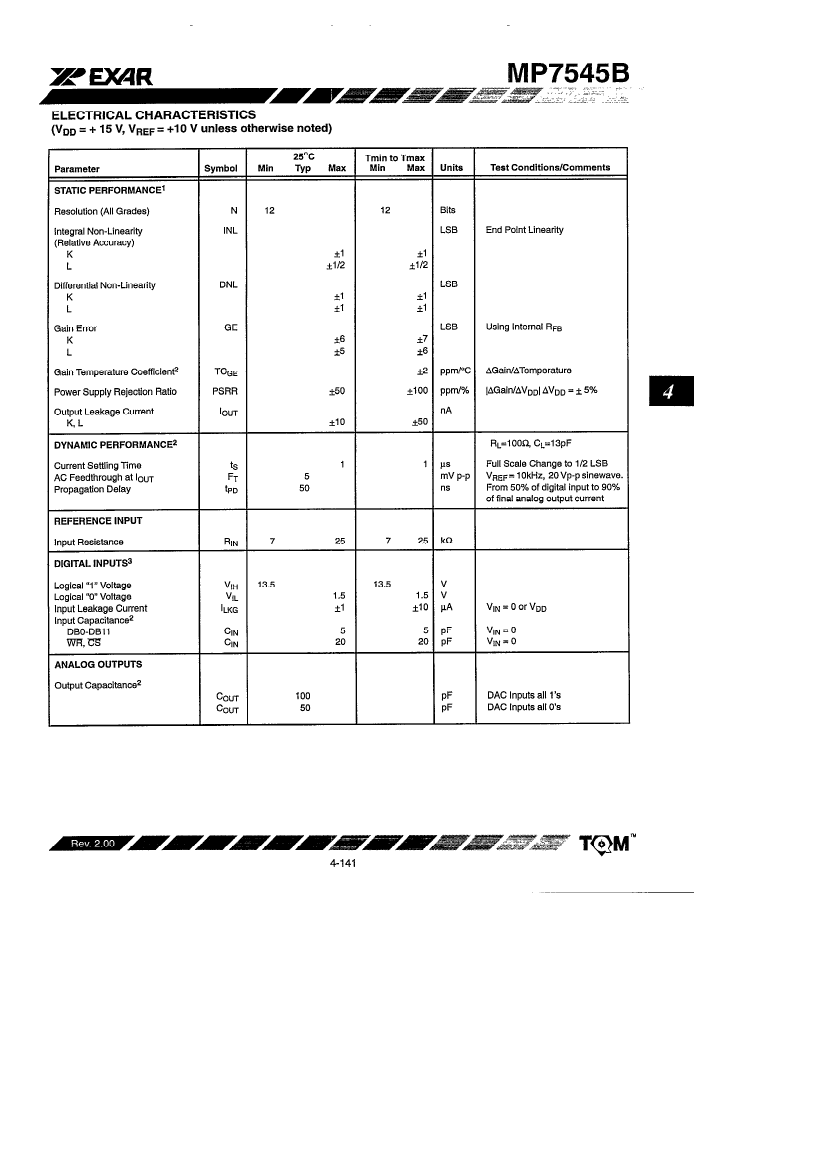

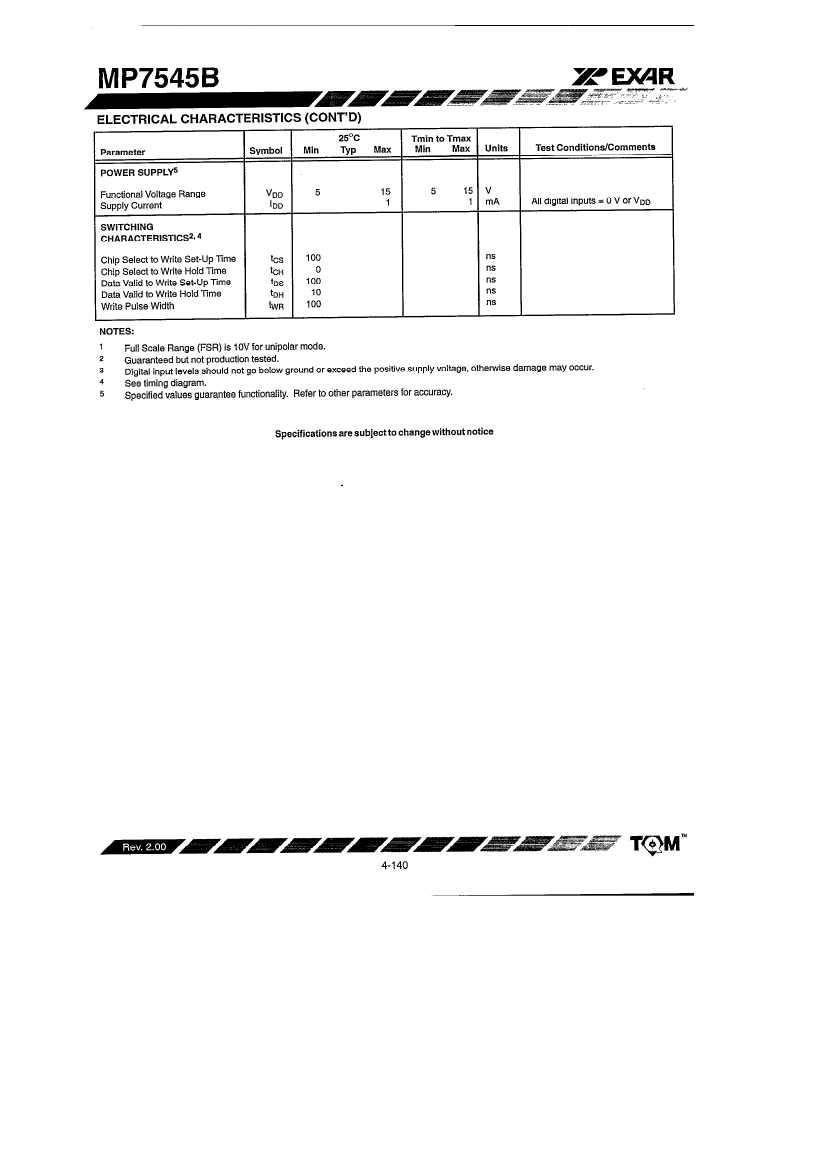

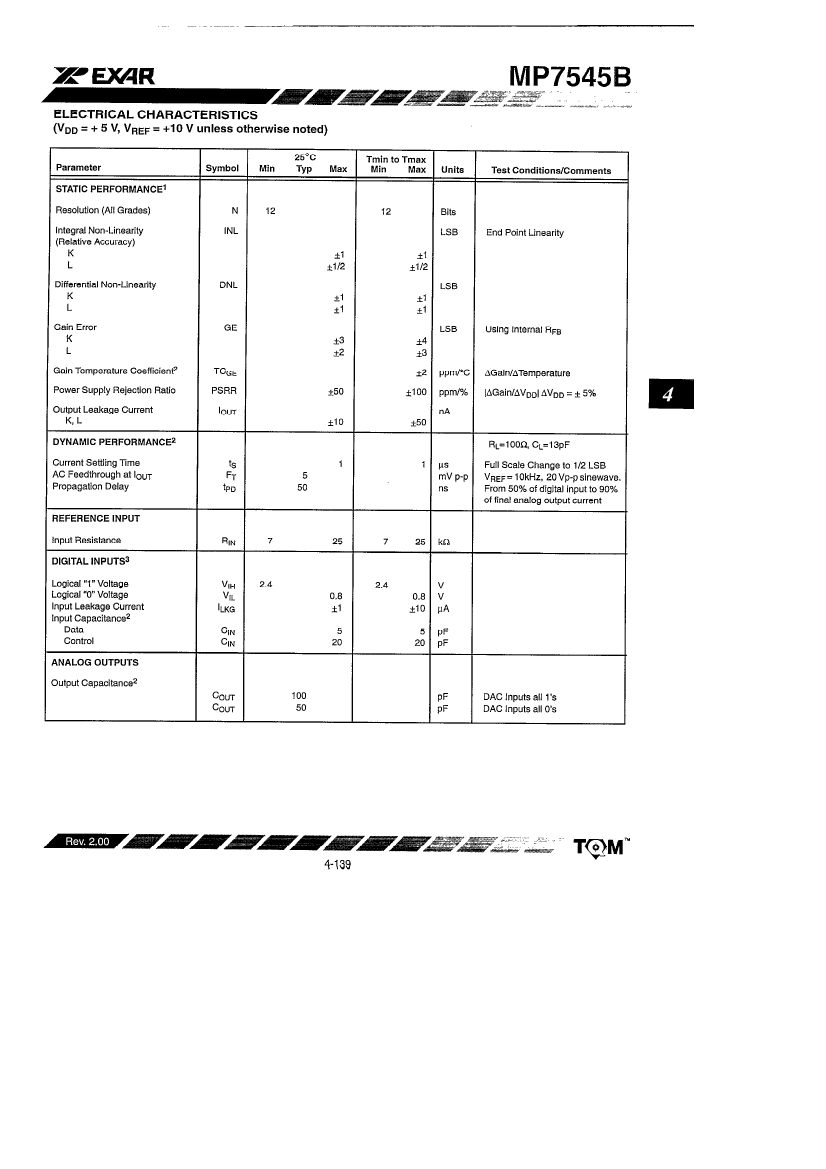

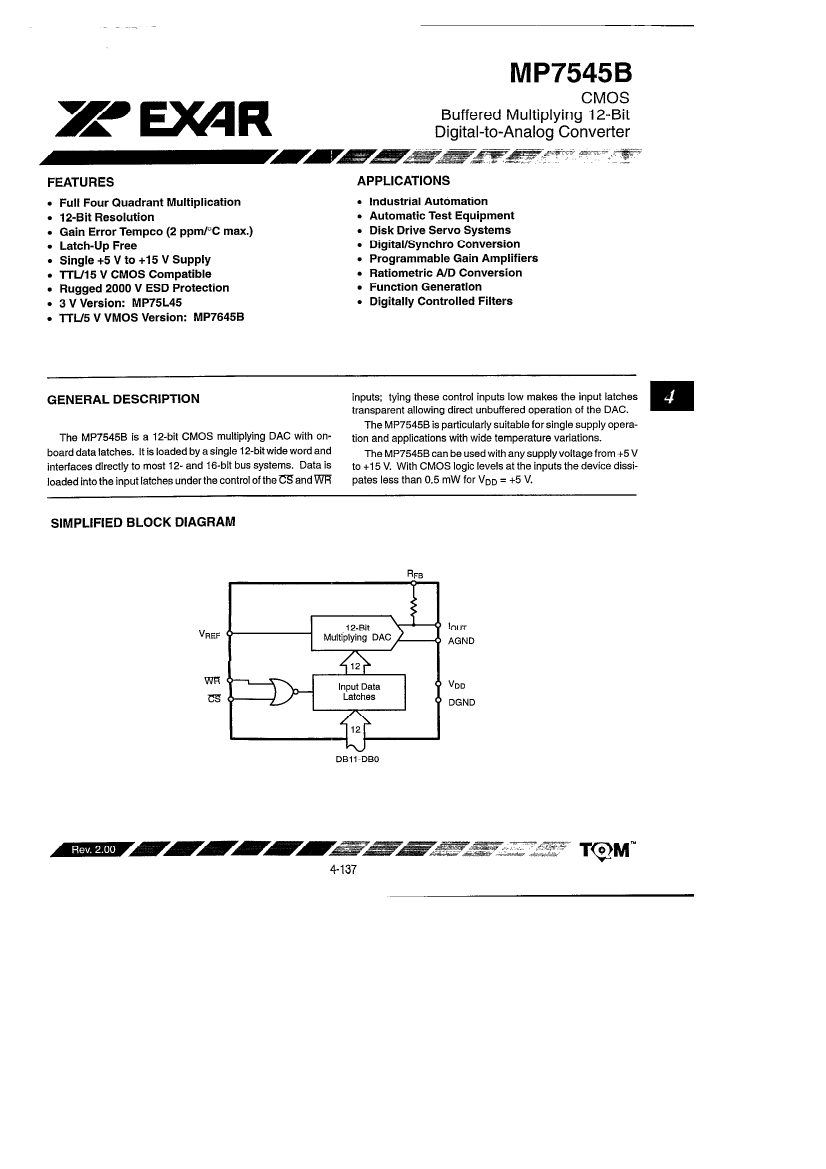

Preview

MP7545BLN: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time, PDIP20, 0.300 INCH, PLASTIC, DIP-20; CategoryAnalog mixed-signal IC converter; File Size980KB，8 Pages; ManufacturerExar

Download Datasheet Parametric Compare View All

MP7545BLN Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time, PDIP20, 0.300 INCH, PLASTIC, DIP-20

MP7545BLN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Exar
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
length	25.21 mm
Maximum linear error (EL)	0.0122%
Number of digits	12
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
Certification status	Not Qualified
Maximum seat height	5.33 mm
Maximum stabilization time	1 µs
Nominal settling time (tstl)	1 µs
Maximum slew rate	1 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

MP7545BLN Related Products

	MP7545BLN	MP7545BKP
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time, PDIP20, 0.300 INCH, PLASTIC, DIP-20	D/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time, PQCC20, PLASTIC, LCC-20
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	QLCC
package instruction	DIP, DIP20,.3	QCCJ, LDCC20,.4SQ
Contacts	20	20
Reach Compliance Code	unknown	unknown
Maximum analog output voltage	10 V	10 V
Minimum analog output voltage	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-PDIP-T20	S-PQCC-J20
JESD-609 code	e0	e0
length	25.21 mm	8.965 mm
Maximum linear error (EL)	0.0122%	0.0244%
Number of digits	12	12
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ
Encapsulate equivalent code	DIP20,.3	LDCC20,.4SQ
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5/15 V	5/15 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.33 mm	4.57 mm
Maximum stabilization time	1 µs	1 µs
Nominal settling time (tstl)	1 µs	1 µs
Maximum slew rate	1 mA	1 mA
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	8.965 mm
