2112-2B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 2112-2B

2112-2B: DescriptionStandard SRAM, 256X4, 650ns, NMOS, PDIP16; Categorystorage storage; File Size84KB，2 Pages; ManufacturerSignetics

Download Datasheet Parametric Compare View All

2112-2B Overview

Standard SRAM, 256X4, 650ns, NMOS, PDIP16

2112-2B Parametric

Parameter Name	Attribute value
Maker	Signetics
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	650 ns
JESD-30 code	R-PDIP-T16
memory density	1024 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	16
word count	256 words
character code	256
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256X4
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

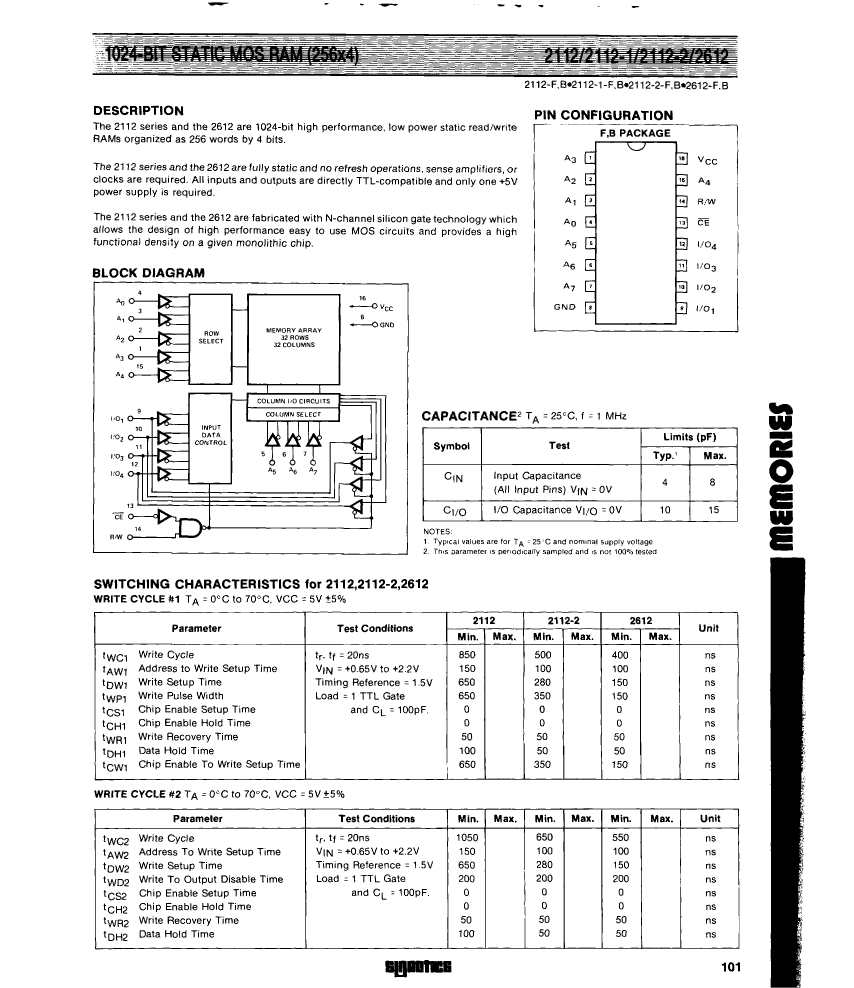

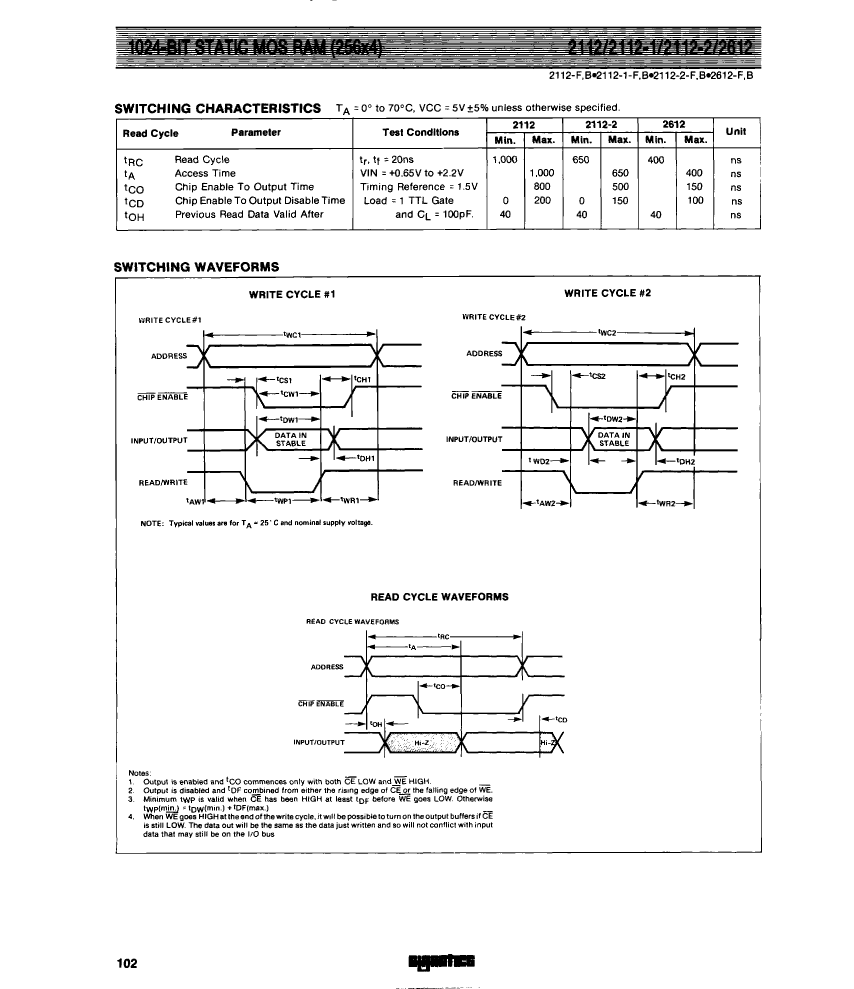

Preview

Download Datasheet

View All

2112-2B Related Products

	2112-2B	2112B	2612B	2612F
Description	Standard SRAM, 256X4, 650ns, NMOS, PDIP16	Standard SRAM, 256X4, 1000ns, NMOS, PDIP16	Standard SRAM, 256X4, 400ns, NMOS, PDIP16	Standard SRAM, 256X4, 400ns, NMOS, CDIP16
Maker	Signetics	Signetics	Signetics	Signetics
Reach Compliance Code	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	650 ns	1000 ns	400 ns	400 ns
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-GDIP-T16
memory density	1024 bit	1024 bit	1024 bit	1024 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	16	16	16	16
word count	256 words	256 words	256 words	256 words
character code	256	256	256	256
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	256X4	256X4	256X4	256X4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	NMOS	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
