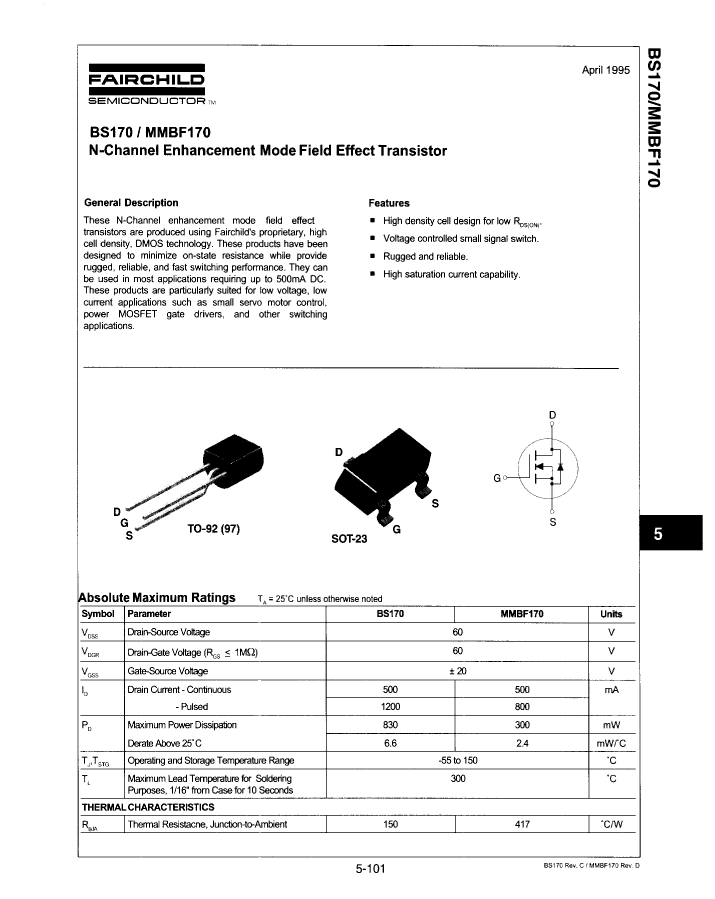

Preview

BS170J16Z: DescriptionSmall Signal Field-Effect Transistor, 0.5A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size210KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

BS170J16Z Overview

Small Signal Field-Effect Transistor, 0.5A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92, 3 PIN

BS170J16Z Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (ID)	0.5 A
Maximum drain-source on-resistance	5 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	10 pF
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON

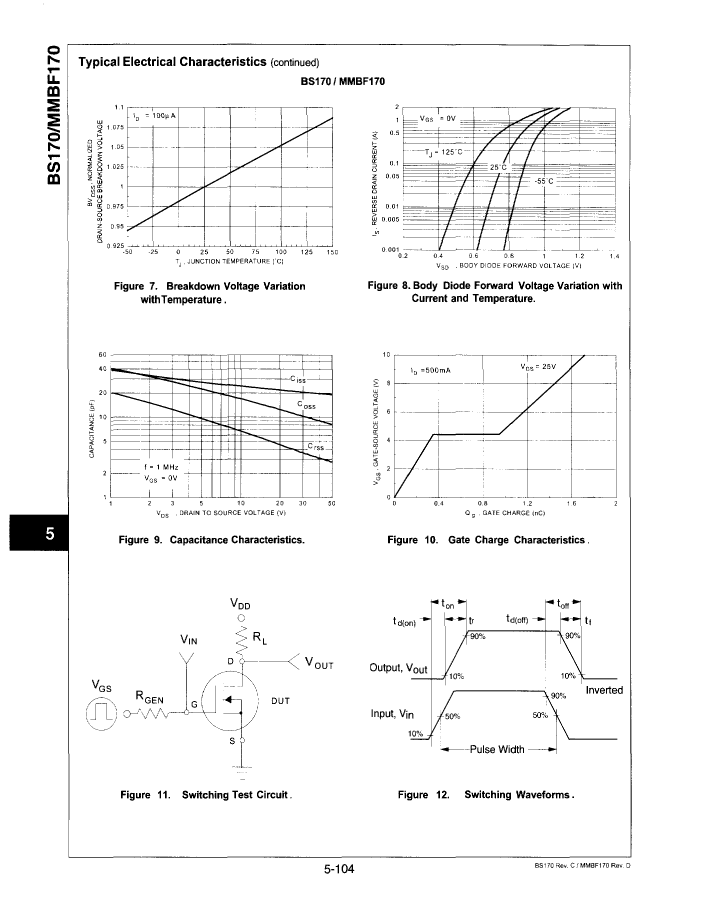

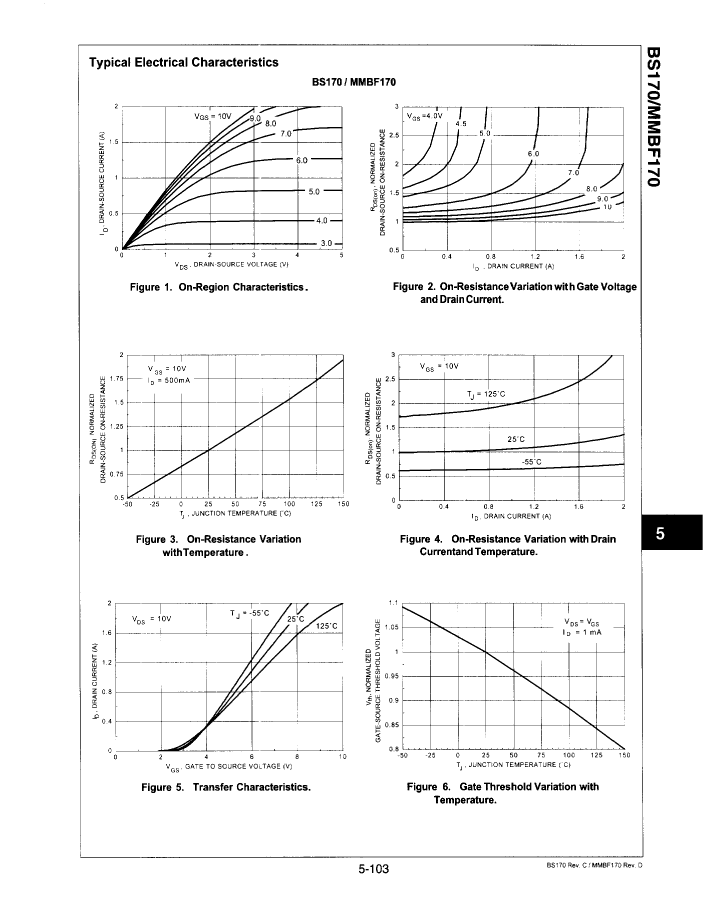

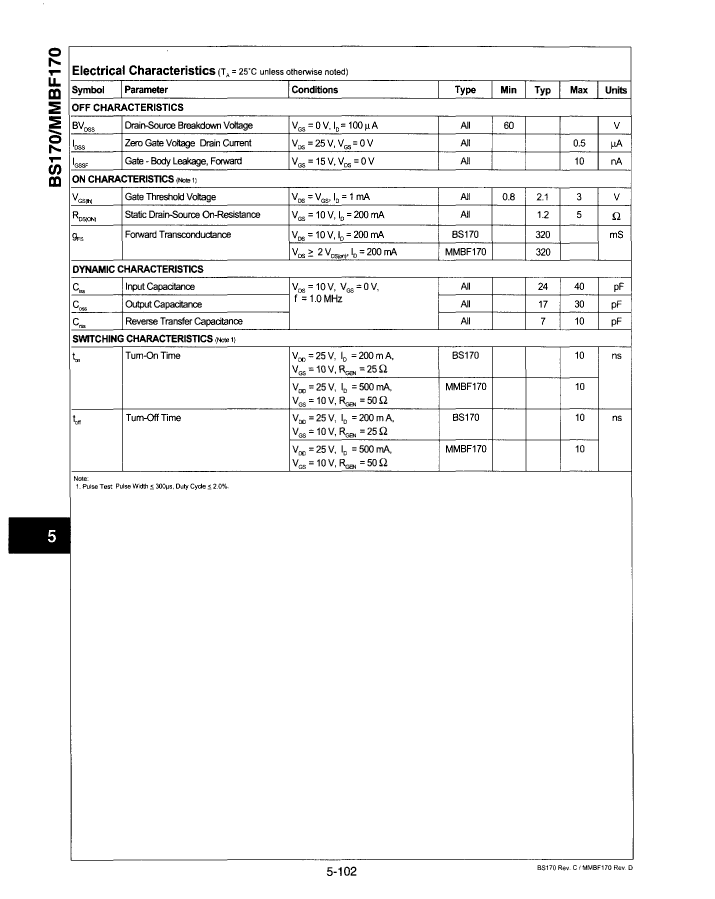

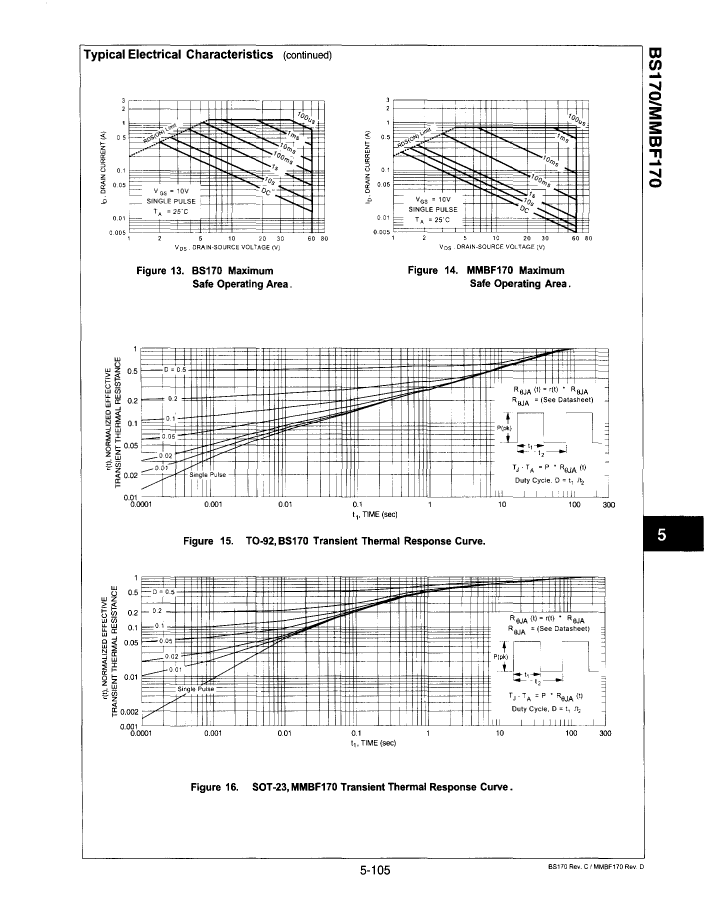

Preview
