BB1110RC13: DescriptionRC Network, Bussed, 1W, 50ohm, 10V, 0.1uF, Surface Mount, 27 Pins, CHIP; CategoryPassive components RC network; File Size508KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

BB1110RC13 Overview

RC Network, Bussed, 1W, 50ohm, 10V, 0.1uF, Surface Mount, 27 Pins, CHIP

BB1110RC13 Parametric

Parameter Name	Attribute value
Maker	TT Electronics plc
package instruction	CHIP
Reach Compliance Code	unknown
capacitance	0.1 µF
Capacitor Negative Tolerance	10%
Capacitor positive tolerance	10%
Capacitor temperature characteristic code	X5R
The first element resistor	50 Ω
length	9 mm
Installation features	SURFACE MOUNT
Network Type	BUSSED
Number of capacitor elements	9
Number of functions	1
Number of RC components	9
Number of resistor elements	9
Number of terminals	27
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH
Rated (DC) voltage (URdc)	10 V
Rated power dissipation(P)	1 W
Rated temperature	70 °C
Resistor tolerance	1%
Resistor temperature coefficient	200 ppm/°C
Resistor/Capacitor Network Type	RC NETWORK
Maximum seat height	2.4 mm
surface mount	YES
technology	METAL GLAZE/THICK FILM
Terminal pitch	1 mm
Terminal shape	BALL
width	3 mm

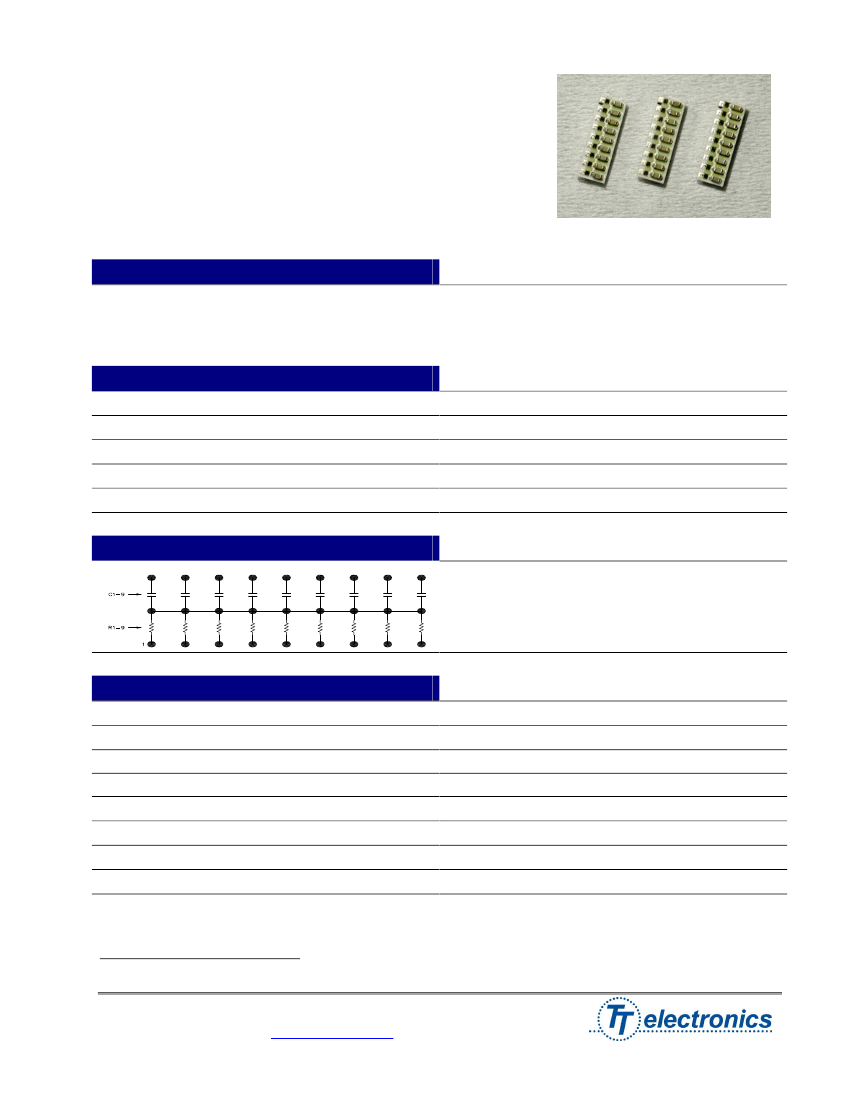

BB1110RC13 Preview

MODEL BB1110RC

Resistor capacitor network

Thick film resistors

Ceramic chip capacitors

DISCRIPTION

Model BB1110RC is designed for terminating high-speed memory buses. Ideally suited for local

decoupling of data line drivers. These specialty networks employ solder balls for surface mount flip

chip attachment. Their unique construction yields extremely low capacitance and inductance

parasitics critical for these high-speed applications.

FEATURES

•

Integrated resistor and capacitor network

High density packaging

High temperature solder balls

Industry standard ball diameter and pitch

Excellent high frequency performance

SCHEMATIC

C1-9 = 0.1uF

R1-9 = 50

ELECTRICAL

1

Resistance Tolerance

Capacitance Tolerance

Capacitor Type

Capacitor Maximum Voltage

TCR

Operating Temperature Range

Maximum Resistor Power

Package Power Rating

±

1%

±

10%

X5R

10 volts

200 ppm/°C

-55°C to +85°C

0.05 watts at 70°C

1.0 watt @ 70°C

1

Specifications subject to change without notice.

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

August 30, 2005

Website:

www.bitechnologies.com

page 1 of 2

BI technologies

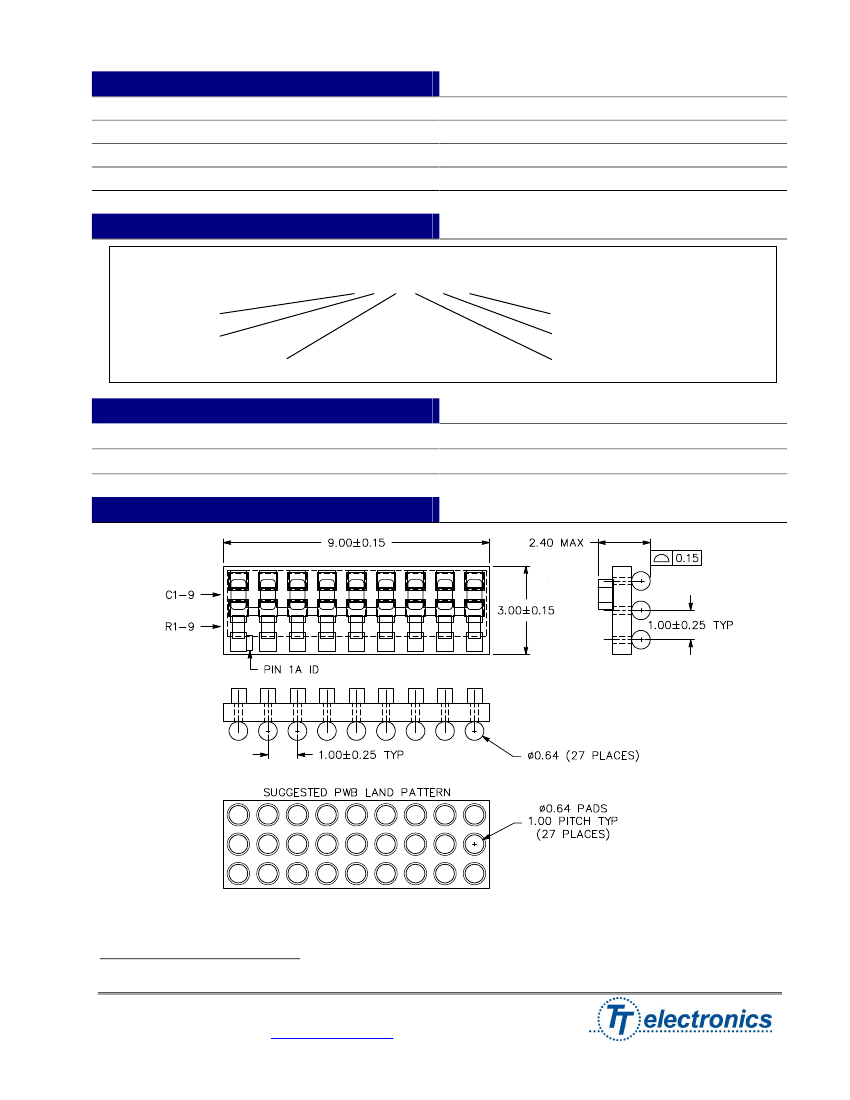

MODEL BB1110RC

MECHANICAL

Solder Ball Finish

Solder Ball Co-planarity

Substrate Material

Resistor Material

SnPb 10/90

0.15 mm

Al

2

O

3

Cermet

ORDERING INFORMATION

2

BB 1 1 10 RC 7

Model Series

Channels: 9

Solder ball Pitch: 1.0 mm

Tape Reel packing

Resistor Capacitor Network

Nominal: 50 ohms / 0.1uf

PACKING INFORMATION

Tape reel suffix (also reel size in inches)

Part count/reel

7

750

13

3000

OUTLINE DRAWING

Units: mm

2

Contact our customer service for custom designs and features.

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

October 7, 2004

Website:

www.bitechnologies.com

page 2 of 2

BI technologies
