BCL453232-1R2K

Description
General Purpose Inductor, 1.2uH, 10%, 1 Element, Ferrite-Core, SMD, 1812, CHIP, 1812
CategoryPassive components    inductor
File Size233KB，2 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Download Datasheet Parametric Compare View All

BCL453232-1R2K Overview

General Purpose Inductor, 1.2uH, 10%, 1 Element, Ferrite-Core, SMD, 1812, CHIP, 1812

BCL453232-1R2K Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTT Electronics plc
package instruction1812
Reach Compliance Codecompliant
ECCN codeEAR99

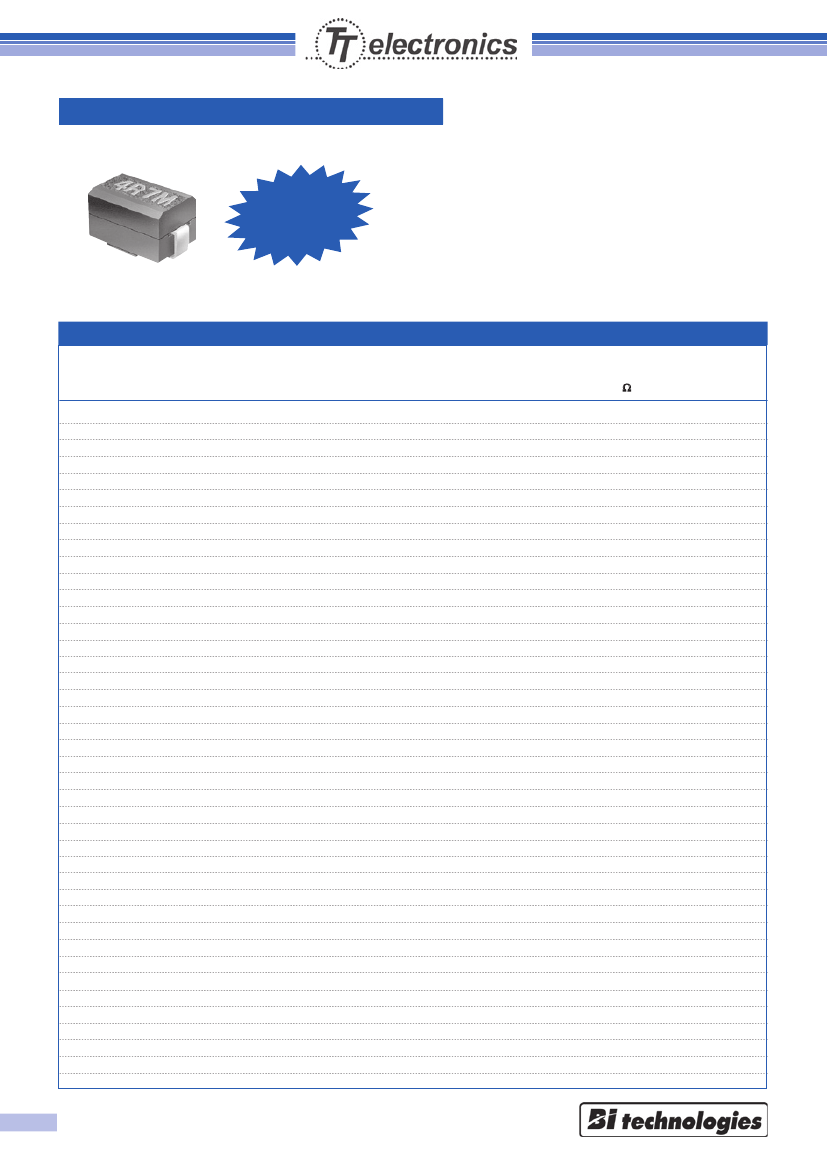

BCL453232-1R2K Preview

Electrical / Environmental
 
1812 Industry Size
Surface Mount Inductors
•
•
•
•
•
•
Inductance Range
0.1µH to 1000µH
Standard Tolerance
±10%(<1.0µH = ±20%)
Operating Temperature Range
-40°C to +105°C
Ambient Temperature, Maximum
80°C
Resistance to Solder Heat
260°C for 10 sec.
Terminal Pull Strength, Minimum
1.0 kg
Ro
p
H
t
S
losr
lian f
Com
‘LF’ M
ode
Specifications
Part
Number
BCL453232-R10M
BCL453232-R12M
BCL453232-R15M
BCL453232-R18M
BCL453232-R22M
BCL453232-R27M
BCL453232-R33M
BCL453232-R39M
BCL453232-R47M
BCL453232-R56M
BCL453232-R68M
BCL453232-R82M
BCL453232-1R0K
BCL453232-1R2K
BCL453232-1R5K

BCL453232-2R2K
BCL453232-2R7K
BCL453232-3R3K
BCL453232-3R9K
BCL453232-4R7K
BCL453232-5R6K
BCL453232-6R8K
BCL453232-8R2K
BCL453232-100K
BCL453232-120K

BCL453232-180K
BCL453232-220K
BCL453232-270K
BCL453232-330K
BCL453232-390K
BCL453232-470K
BCL453232-560K
BCL453232-680K
BCL453232-820K
BCL453232-101K
BCL453232-121K
BCL453232-151K
BCL453232-181K
BCL453232-221K
Inductance
µH
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100
120
150
180
220
Test
Frequency
MHz
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
SRF
MHz Min.
300
280
250
220
200
180
165
150
145
140
135
130
100
80
70
60
55
50
45
40
35
33
27
25
20
18
17
15
13
12
11
10
10
9.0
9.0
8.0
8.0
6.0
5.0
5.0
4.0
DC
Resistance
Ω
Max
0.18
0.20
0.22
0.24
0.25
0.26
0.28
0.30
0.32
0.36
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.75
0.80
0.90
1.00
1.10
1.20
1.40
1.60
2.00
2.50
2.80
3.20
3.60
4.00
4.50
5.00
5.50
6.00
7.00
8.00
8.00
9.00
9.50
10.0
Rated
Current
IDC mA
800
770
730
700
665
635
605
575
545
520
500
475
450
430
410
390
380
370
355
330
315
300
285
270
250
225
200
190
180
170
160
150
140
135
130
120
110
110
105
102
100
Tolerance
M
M
M
M
M
M
M
M
M
M
M
M
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
Q Min.
35
35
35
35
40
40
40
40
40
40
40
40
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
40
40
40
40
40
72
MAGNETIC COMPONENTS SELECTOR GUIDE 2006 EDITION
We reserve the right to change specifications without prior notice.
www.bitechnologies.com
Specifications (Cont’d)
Part
Number
BCL453232-271K
BCL453232-331K
BCL453232-391K
BCL453232-471K
BCL453232-561K
BCL453232-681K
BCL453232-821K
BCL453232-102K
Inductance
µH
270
330
390
470
560
680
820
1,000
Test
Frequency
MHz
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.252
SRF
MHz Min.
4.0
3.5
3.0
3.0
3.0
3.0
2.5
2.5
DC
Resistance
Ω
Max
12.0
14.0
16.0
26.0
30.0
30.0
35.0
40.0
Rated
Current
IDC mA
92
85
80
62
50
50
30
30
Tolerance
K
K
K
K
K
K
K
K
Q Min.
40
40
40
40
30
30
30
30
Outline Dimensions (Inch/mm)
Packaging
Standard:
Embossed Tape & Reel
Reel: Diameter: = 7” (177.8mm)
Capacity: =
500 Units
Ordering Information
BCL 453232
Model Series
330
K
LF
Lead-Free Option
LF = Lead- Free
(No code used for
non lead-free part)
Inductance Code:
First 2 digits are
significant. Last digit
denotes the number of
trailing zeros. For values Inductance Tolerance
J = 5%
below 10µH, ‘R’ denotes
K = 10%
the decimal point
M = 20%
2006 EDITION MAGNETIC COMPONENTS SELECTOR GUIDE
www.bitechnologies.com
We reserve the right to change specifications without prior notice
73
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
