DS2003CJ: DescriptionPower Bipolar Transistor, 0.5A I(C), 7-Element, NPN, Silicon, Ceramic, Metal-Sealed Cofired, 16 Pin, CERAMIC, J16A, DIP-16; CategoryDiscrete semiconductor The transistor; File Size317KB，8 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

DS2003CJ Overview

Power Bipolar Transistor, 0.5A I(C), 7-Element, NPN, Silicon, Ceramic, Metal-Sealed Cofired, 16 Pin, CERAMIC, J16A, DIP-16

DS2003CJ Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	IN-LINE, R-CDIP-T16
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Maximum collector current (IC)	0.5 A
Configuration	7 BANKS, DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
JESD-30 code	R-CDIP-T16
Number of components	7
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	NPN
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON

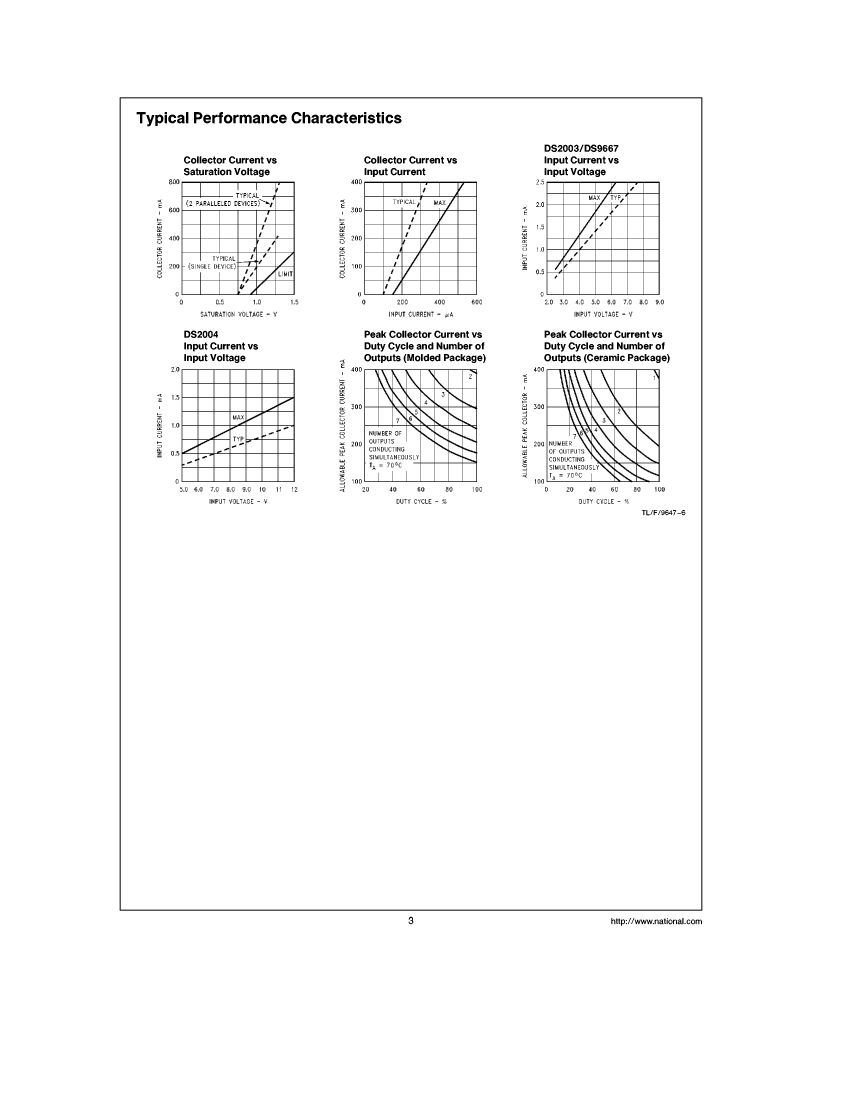

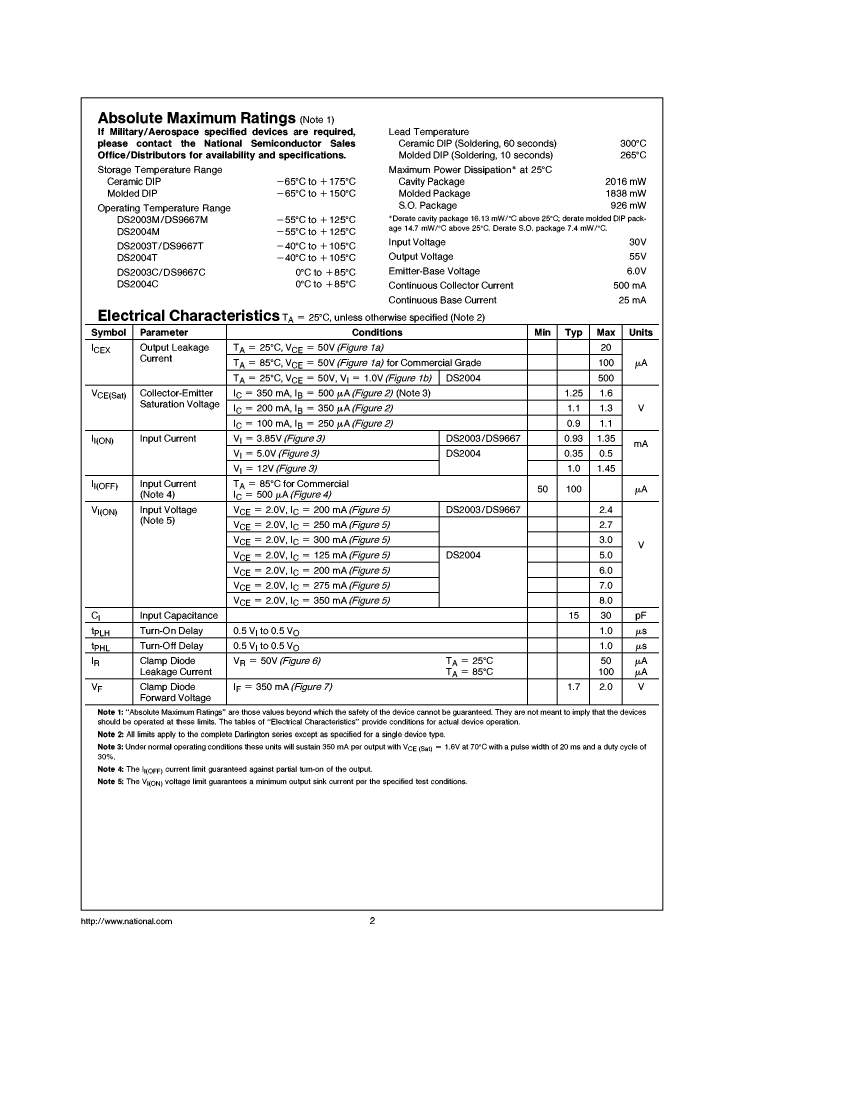

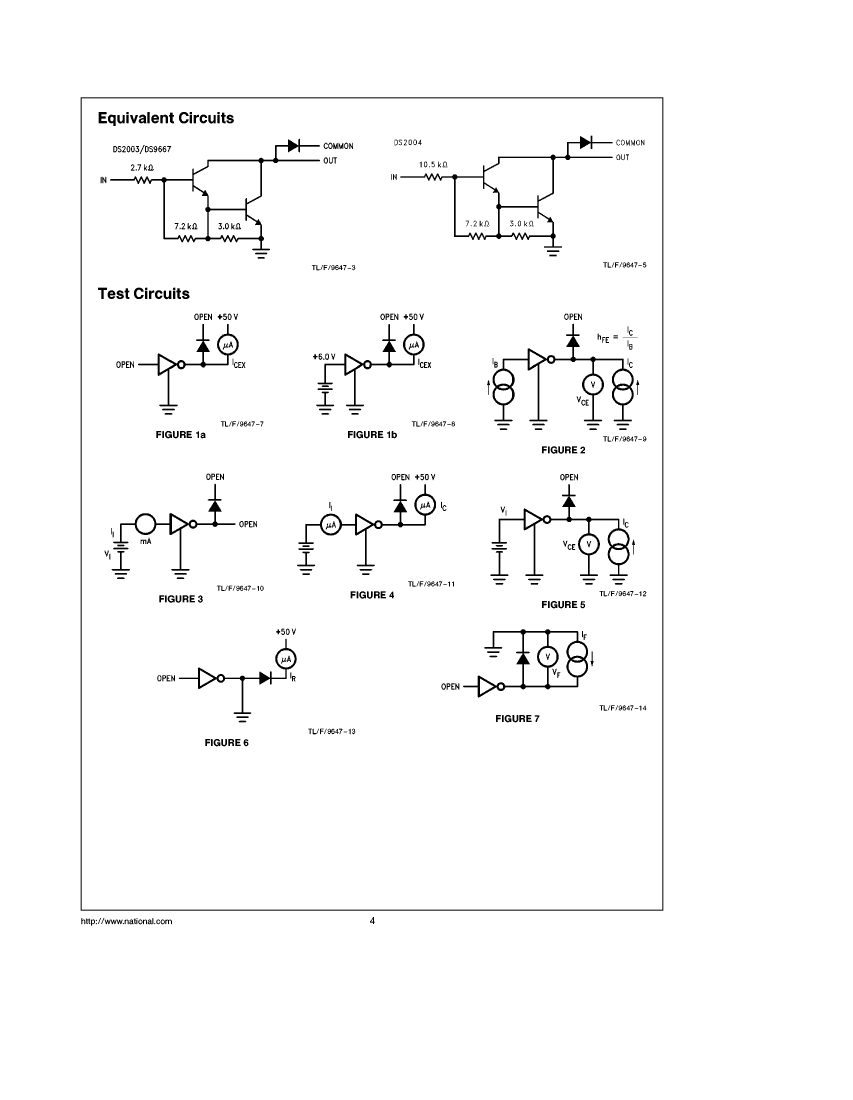

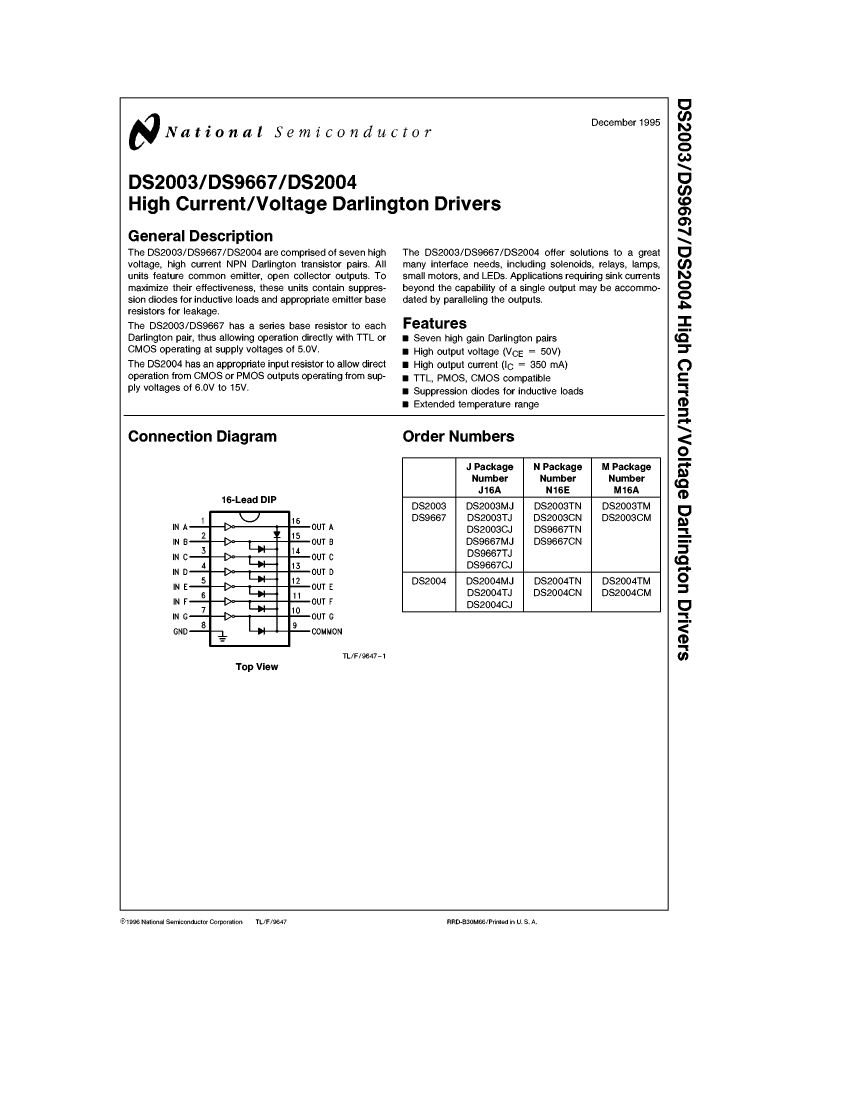

Preview

Download Datasheet

View All

DS2003CJ Related Products

	DS2003CJ	DS2003MJ	DS2003TJ	DS9667CN	DS9667TJ	DS9667CJ	DS9667MJ	DS9667TN
Description	Power Bipolar Transistor, 0.5A I(C), 7-Element, NPN, Silicon, Ceramic, Metal-Sealed Cofired, 16 Pin, CERAMIC, J16A, DIP-16	Power Bipolar Transistor, 0.5A I(C), 7-Element, NPN, Silicon, Ceramic, Metal-Sealed Cofired, 16 Pin, CERAMIC, J16A, DIP-16	Power Bipolar Transistor, 0.5A I(C), 7-Element, NPN, Silicon, Ceramic, Metal-Sealed Cofired, 16 Pin, CERAMIC, J16A, DIP-16	Power Bipolar Transistor, 0.5A I(C), 7-Element, NPN, Silicon, Plastic/Epoxy, 16 Pin, PLASTIC, N16E, DIP-16	Power Bipolar Transistor, 0.5A I(C), 7-Element, NPN, Silicon, Ceramic, Metal-Sealed Cofired, 16 Pin, CERAMIC, J16A, DIP-16	Power Bipolar Transistor, 0.5A I(C), 7-Element, NPN, Silicon, Ceramic, Metal-Sealed Cofired, 16 Pin, CERAMIC, J16A, DIP-16	Power Bipolar Transistor, 0.5A I(C), 7-Element, NPN, Silicon, Ceramic, Metal-Sealed Cofired, 16 Pin, CERAMIC, J16A, DIP-16	Power Bipolar Transistor, 0.5A I(C), 7-Element, NPN, Silicon, Plastic/Epoxy, 16 Pin, PLASTIC, N16E, DIP-16
package instruction	IN-LINE, R-CDIP-T16	IN-LINE, R-CDIP-T16	IN-LINE, R-CDIP-T16	IN-LINE, R-PDIP-T16	IN-LINE, R-CDIP-T16	IN-LINE, R-CDIP-T16	IN-LINE, R-CDIP-T16	IN-LINE, R-PDIP-T16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	Rochester Electronics	-	-	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
Other features	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE	-	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE
Maximum collector current (IC)	0.5 A	0.5 A	-	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Configuration	7 BANKS, DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	7 BANKS, DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	-	7 BANKS, DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	7 BANKS, DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	7 BANKS, DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	7 BANKS, DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	7 BANKS, DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
JESD-30 code	R-CDIP-T16	R-CDIP-T16	-	R-PDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-PDIP-T16
Number of components	7	7	-	7	7	7	7	7
Number of terminals	16	16	-	16	16	16	16	16
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Polarity/channel type	NPN	NPN	-	NPN	NPN	NPN	NPN	NPN
surface mount	NO	NO	-	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	-	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON
