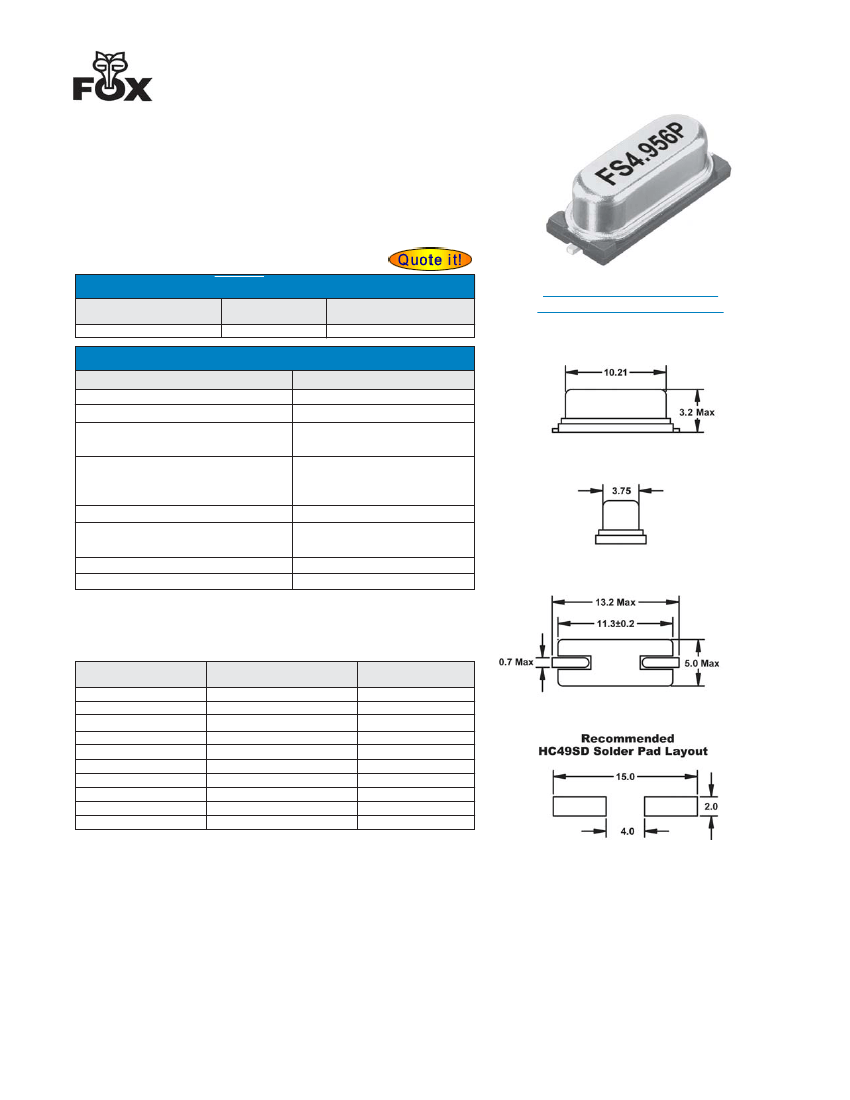

RESISTANCE WELD SMD CRYSTAL
MODEL: HC49SSD
FEATURES
• Stock Standard
• Fundamental to 50 MHz
• Tape and Reel
(1,000 pcs. STD)
OPTIONS
• Tolerances to < 10 PPM
• Stabilities to < 5 PPM
• Temperatures to -40ºC ~ +105ºC
DISCONTINUED
• PART NUMB
Part Number
280-Frequency-xxxxx
Model
Number
HC49SSD
3.200 ~ 70.000
Learn more about:
Part Marking Identification
Tape and Reel Specification
Internet required
• STANDARD SPECIFICATIONS
1
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Over Operating Temp Range
Temperature Range
Operating
(T
OPR
)
Storage
(T
STG
)
Shunt Capacitance
(Co)
Load Capacitance
(C
L
)
2
MAX
(unless otherwise noted)
3.200 ~ 70.000 MHz
±50 PPM
1,2
±50 PPM
1
-20ºC ~ +70ºC
1
-40ºC ~ +85ºC
7pF
10 pF ~ Series
(Customer Specified)
0.5 mW
±5 PPM
Drive Level
Aging per year
1
Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer
Service for specific requirements.
2
Crystal has a ±30ppm tolerance specification for all standard part numbers. These part numbers are
listed in the Fox catalog on the Standard Crystal table.
All specifications subject to change without notice.
Rev.
3/9/05
Frequency Range
(MHz)
3.200 ~ 3.500
3.500+ ~ 4.000
4.000+ ~ 5.000
5.000+ ~ 6.000
6.000+ ~ 7.000
7.000+ ~ 9.000
9.000+ ~ 13.000
13.000+ ~ 20.000
20.000+ ~ 50.000
27.000 ~ 70.000
Operating Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3rd OT
Max ESR
Ω
300
200
150
120
100
80
60
40
30
100
All dimensions are in millimeters.
