218-14.31818MHZ-BBD18010 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 218-14.31818MHZ-BBD18010

218-14.31818MHZ-BBD18010: DescriptionParallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size149KB，1 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

218-14.31818MHZ-BBD18010 Overview

Parallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

218-14.31818MHZ-BBD18010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compli
ECCN code	EAR99
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	14.31818 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L7.5XB5.0XH1.1 (mm)/L0.295XB0.197XH0.043 (inch)
Series resistance	50 Ω
surface mount	YES
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

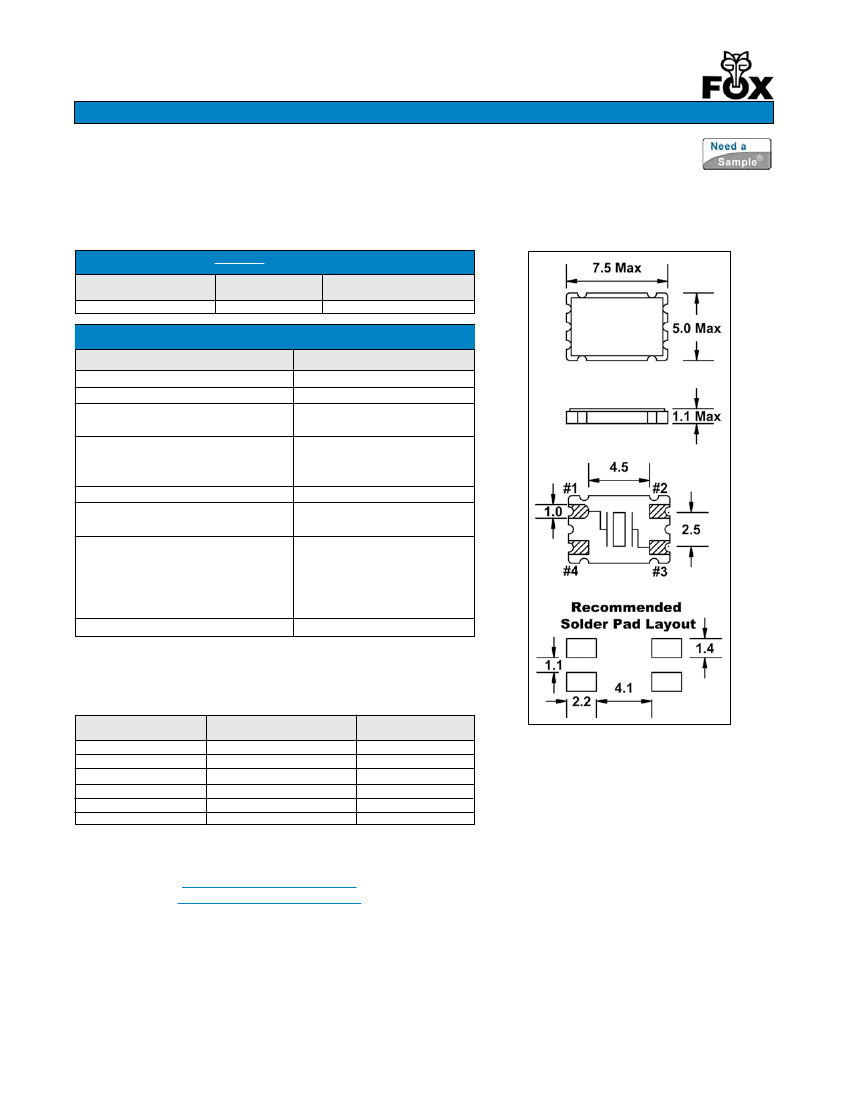

Ceramic Seam Sealed SMD Crystal

Model: FD

RoHS Compliant / Pb Free

FEATURES

•

High Frequency Range

Fundamental to 200 MHz

Inverted Mesa: 50-200 MHz

Tape and Reel (3,000 pcs. STD)

Rev. 1/18/2006

http://www.foxonline.com/need_a_sample.htm

OPTIONS

• Tolerances to 5 PPM

• Stabilities to 3 PPM

• Temperatures to -40ºC ~ +85ºC

• PART NUMBER

Learn More - Internet Required

Part Number

218-Frequency-xxxxx

Model Number

Frequency Range (MHz)

8.000 ~ 200.000

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance

(Co)

Load Capacitance

)

Drive Level

8.000 ~ 160.000 MHz

(Fund to 50MHz, 3rd OT, 5th OT)

50.000 ~ 200 MHz

(Fund Inverted Mesa)

Aging per year

MAX

(unless otherwise noted)

8.000 ~ 200.000 MHz

±50 PPM

-10ºC ~ +60ºC

-40ºC ~ +85ºC

7.0 pF

10 pF ~ Series

(Customer Specified)

0.5 mW

0.1 mW

±5 PPM

Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer Service for

specific requirements.

All specifications subject to change without notice.

Frequency Range

(MHz)

8.000 ~ 9.999

10.000 ~ 15.999

16.000 ~ 50.000

50.000 ~ 200.000

28.000 ~ 150.000

84.000 ~ 160.000

Operating Mode

Fundamental

Fundamental (Inv. Mesa)

3rd OT

5th OT

Max ESR

Ω

All dimensions are in millimeters.

Learn more about:

Part Marking Identification

Tape and Reel Specification

Internet required

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1(239) 693.0099 FAX +1 (239) 693.1554

http://www.foxonline.com

EMEA

United Kingdom Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 FAX +852.2854.4282

218-14.31818MHZ-BBD18010 Related Products

	218-14.31818MHZ-BBD18010	218-24.576MHZ-BBD15010	218-14.7456MHZ-BBD10010	FD-14.31818MHZ-BBD18010Z	FD-16.5888MHZ-BBD18010	FD-14.31818MHZ-BBD18010	FD-14.7456MHZ-DDF18010
Description	Parallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 24.576MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 14.7456MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 16.5888MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 14.7456MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, SMD, 4 PIN	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, SMD, 4 PIN	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compli	compli	compli	compliant	compliant	compliant	compliant
Other features	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Ageing	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	500 µW	500 µW	500 µW	500 µW	500 µW	500 µW	500 µW
frequency stability	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.0025%
frequency tolerance	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	25 ppm
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
load capacitance	18 pF	15 pF	10 pF	18 pF	18 pF	18 pF	18 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	14.31818 MHz	24.576 MHz	14.7456 MHz	14.31818 MHz	16.5888 MHz	14.31818 MHz	14.7456 MHz
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-20 °C
physical size	L7.5XB5.0XH1.1 (mm)/L0.295XB0.197XH0.043 (inch)	L7.5XB5.0XH1.1 (mm)/L0.295XB0.197XH0.043 (inch)	L7.5XB5.0XH1.1 (mm)/L0.295XB0.197XH0.043 (inch)	L7.5XB5.0XH1.1 (mm)/L0.295XB0.197XH0.043 (inch)	L7.5XB5.0XH1.1 (mm)/L0.295XB0.197XH0.043 (inch)	L7.5XB5.0XH1.1 (mm)/L0.295XB0.197XH0.043 (inch)	L7.5XB5.0XH1.1 (mm)/L0.295XB0.197XH0.043 (inch)
Series resistance	50 Ω	40 Ω	50 Ω	50 Ω	40 Ω	50 Ω	50 Ω
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Base Number Matches	1	1	1	1	1	1	-
Maker	-	-	-	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]
