256LF-FREQ6-BBE00010 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 256LF-FREQ6-BBE00010

256LF-FREQ6-BBE00010: DescriptionSeries - Fundamental Quartz Crystal, 9MHz Min, 13MHz Max, ROHS COMPLIANT, PLASTIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size156KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

256LF-FREQ6-BBE00010 Overview

Series - Fundamental Quartz Crystal, 9MHz Min, 13MHz Max, ROHS COMPLIANT, PLASTIC, SMD, 4 PIN

256LF-FREQ6-BBE00010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, PLASTIC, SMD, 4 PIN
Reach Compliance Code	compli
ECCN code	EAR99
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e2
Installation features	SURFACE MOUNT
Maximum operating frequency	13 MHz
Minimum operating frequency	9 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L12.5XB4.6XH3.7 (mm)/L0.492XB0.181XH0.146 (inch)
Series resistance	60 Ω
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)
Base Number Matches	1

Preview

Download Datasheet

View All

Plastic Encased SMD Crystal

Model: FPXLF

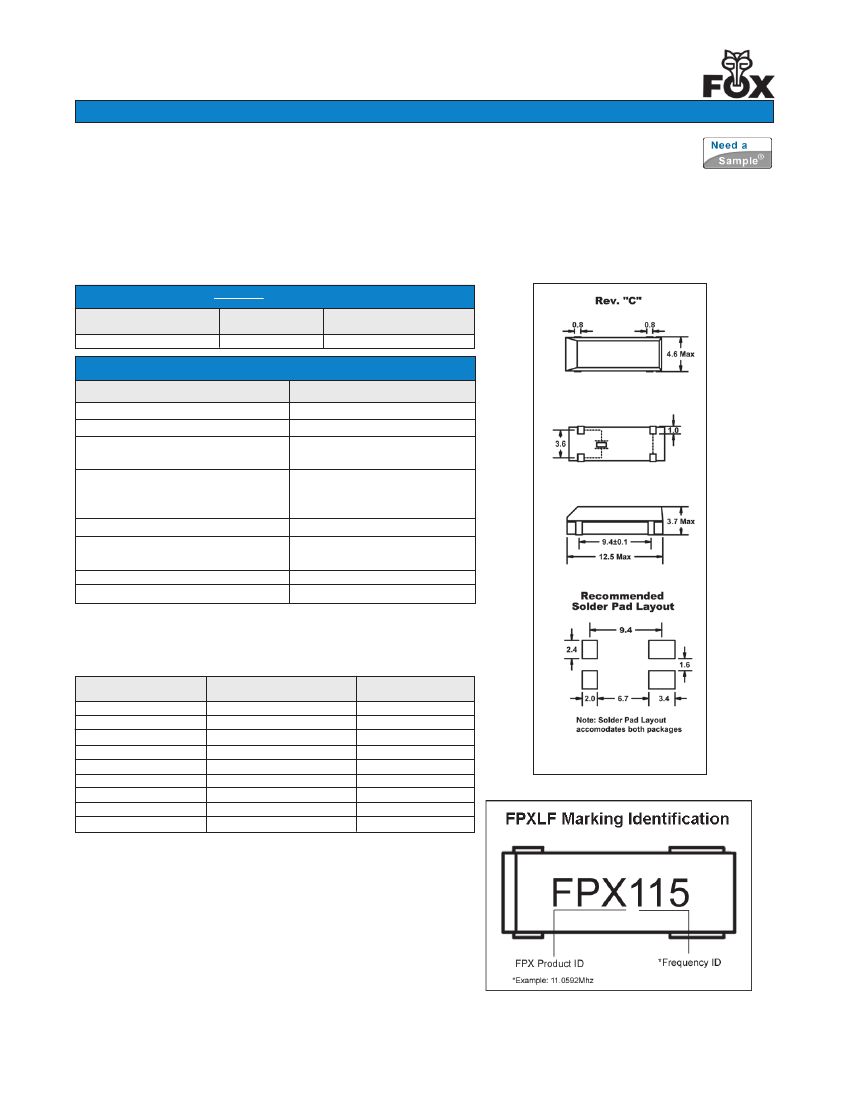

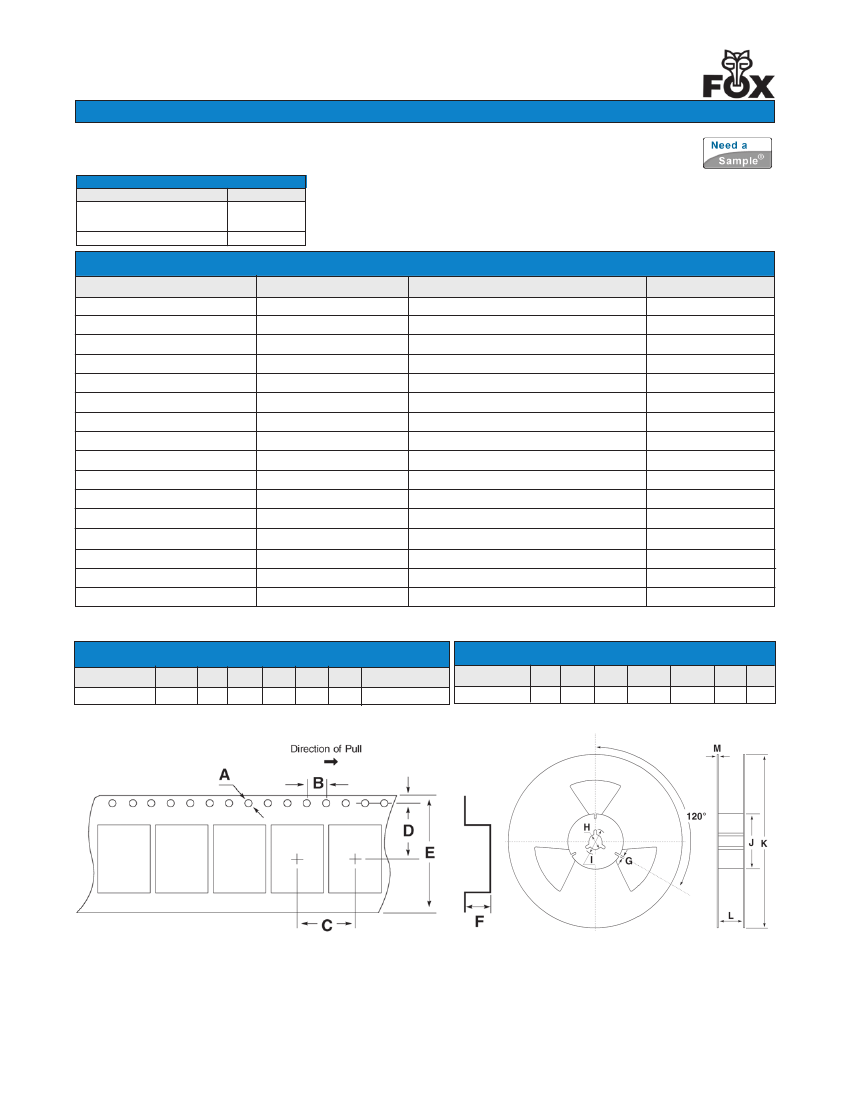

Page 1 of 2

RoHS Compliant

Rev. 3/18/2008

http://www.foxonline.com/need_a_sample.htm

FEATURES

•

OPTIONS

Low Cost

• Tolerances to < 20 PPM

Stocking Standard

• Stabilities to < 20 PPM

Plastic Encapsulated

• Temperatures to -40ºC ~ +85ºC

Tape and Reel (1,000 pcs. STD)

• PART NUMBER

Learn More

- Internet Required

Part Number

256LF-Frequency-xxxxx

Model Number

FPXLF

Frequency Range (MHz)

3.579545 ~ 90.000

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance (Co)

Load Capacitance (C

)

Drive Level

Aging per year

MAX

(unless otherwise noted)

3.579545 ~ 90.000MHz

±50 PPM

-10ºC ~ +70ºC

-55ºC ~ +125ºC

7.0 pF

10 pF ~ Series

(Customer Specified)

0.1 mW

±5 PPM

Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer

Service for specific requirements and availability of Rev "A".

All specifications subject to change without notice.

Frequency Range

(MHz)

Operating Mode

Fundamental

3rd OT

Max ESR

Ω

200

150

120

100

3.579545 ~ 4.000

4.000+ ~ 5.000

5.000+ ~ 6.000

6.000+ ~ 7.000

7.000+ ~ 9.000

9.000+ ~ 13.000

13.000+ ~ 20.000

20.000+ ~ 30.000

30.000+ ~ 90.000

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Taiwan

Tel: +886.2.22073427 Fax +886.2.22073486

Japan

Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
