29FCT52BTDB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 29FCT52BTDB

29FCT52BTDB: DescriptionCDIP-24, Tube; Categorylogic logic; File Size428KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

29FCT52BTDB Overview

CDIP-24, Tube

29FCT52BTDB Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	CDIP
package instruction	DIP, DIP24,.3
Contacts	24
Manufacturer packaging code	SD24
Reach Compliance Code	not_compliant
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; WITH CLOCK ENABLE
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
length	32.004 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.048 A
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Prop。Delay @ Nom-Sup	8 ns
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
Trigger type	POSITIVE EDGE
width	7.62 mm

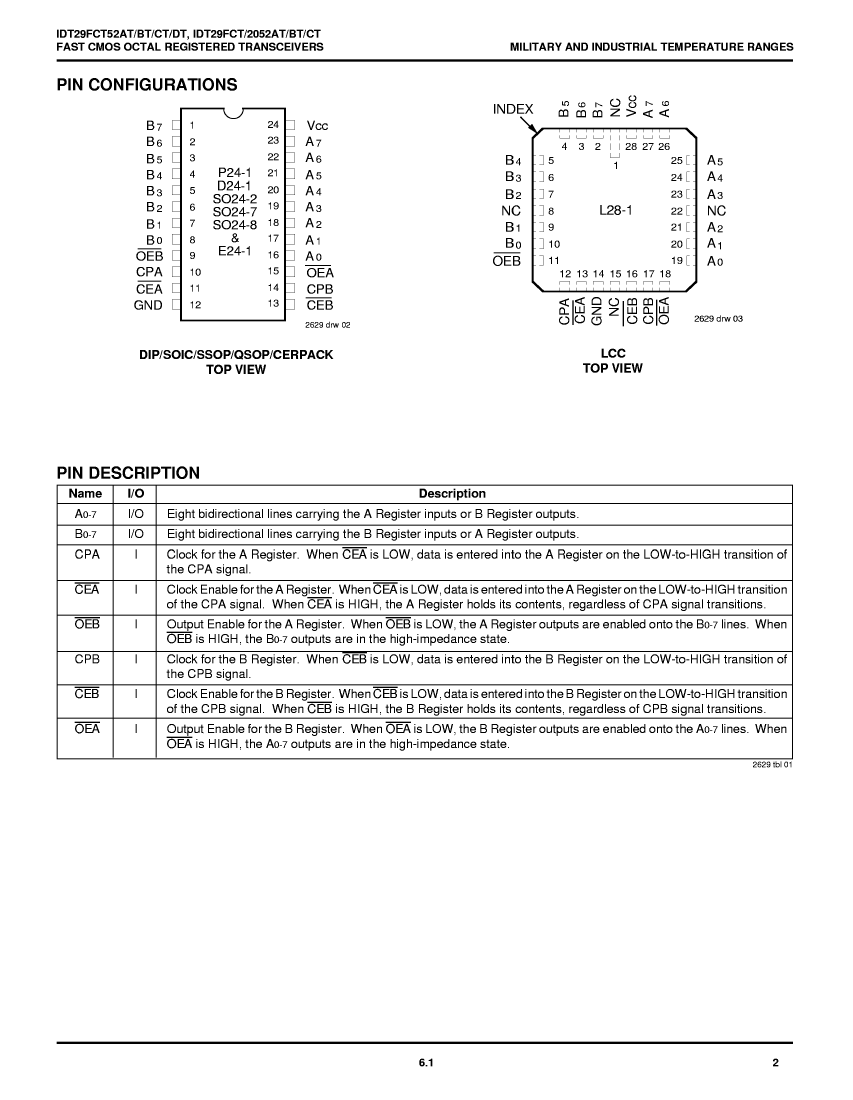

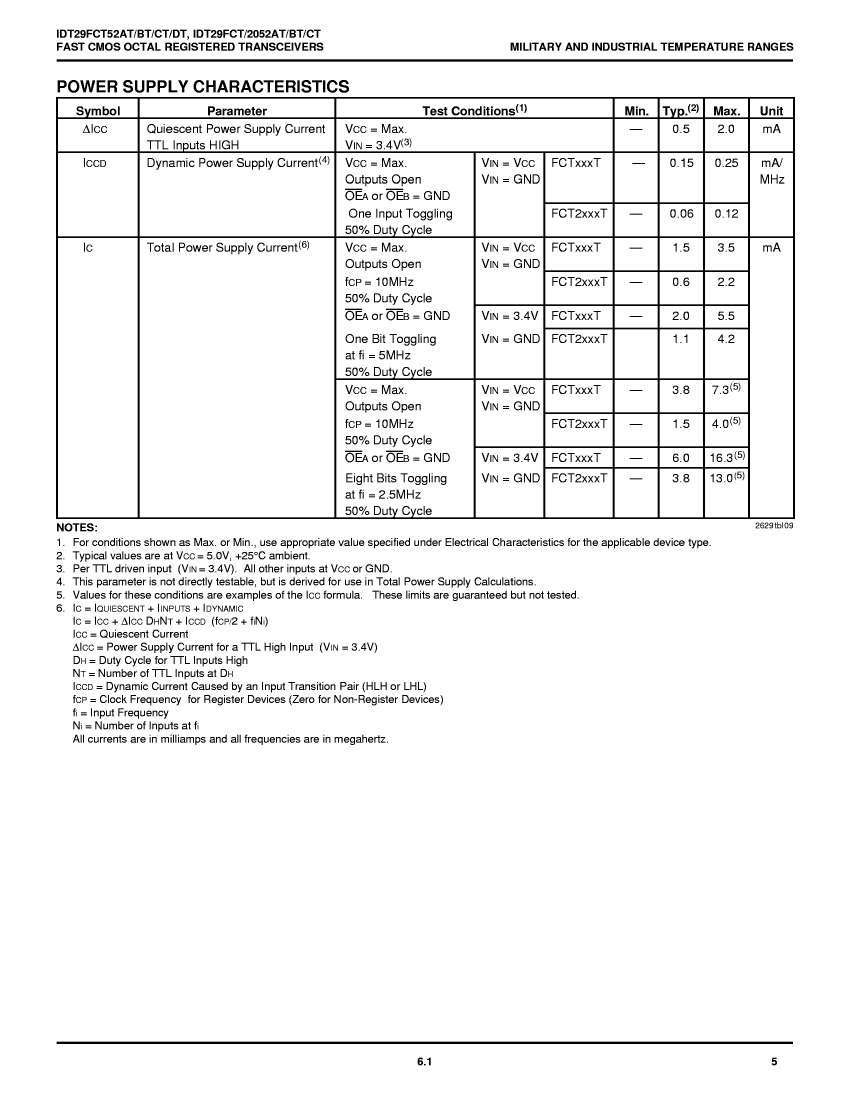

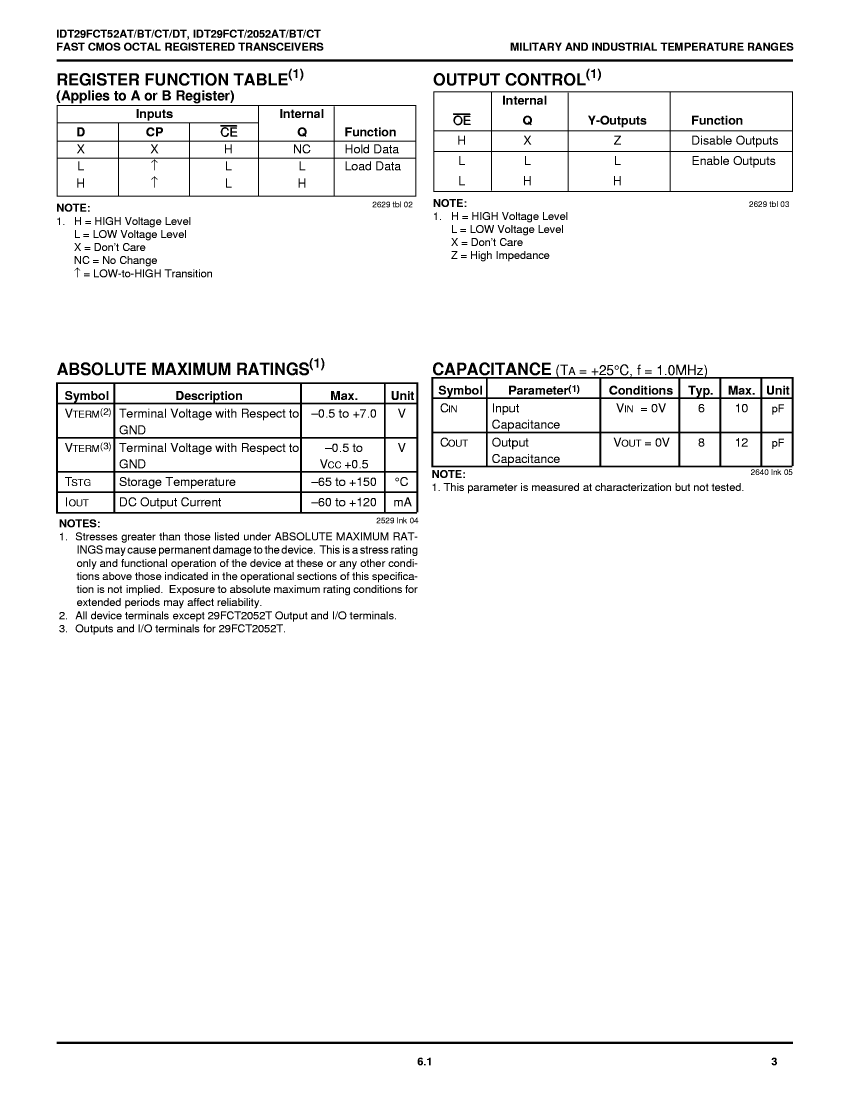

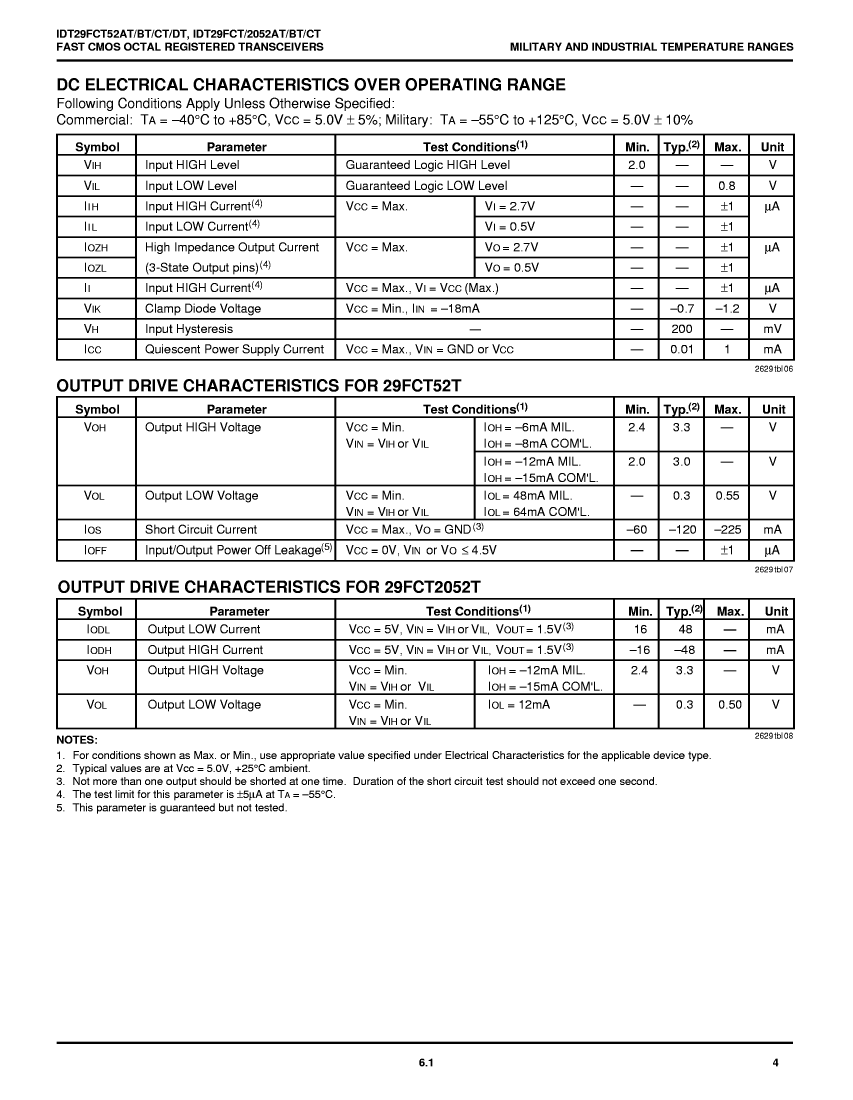

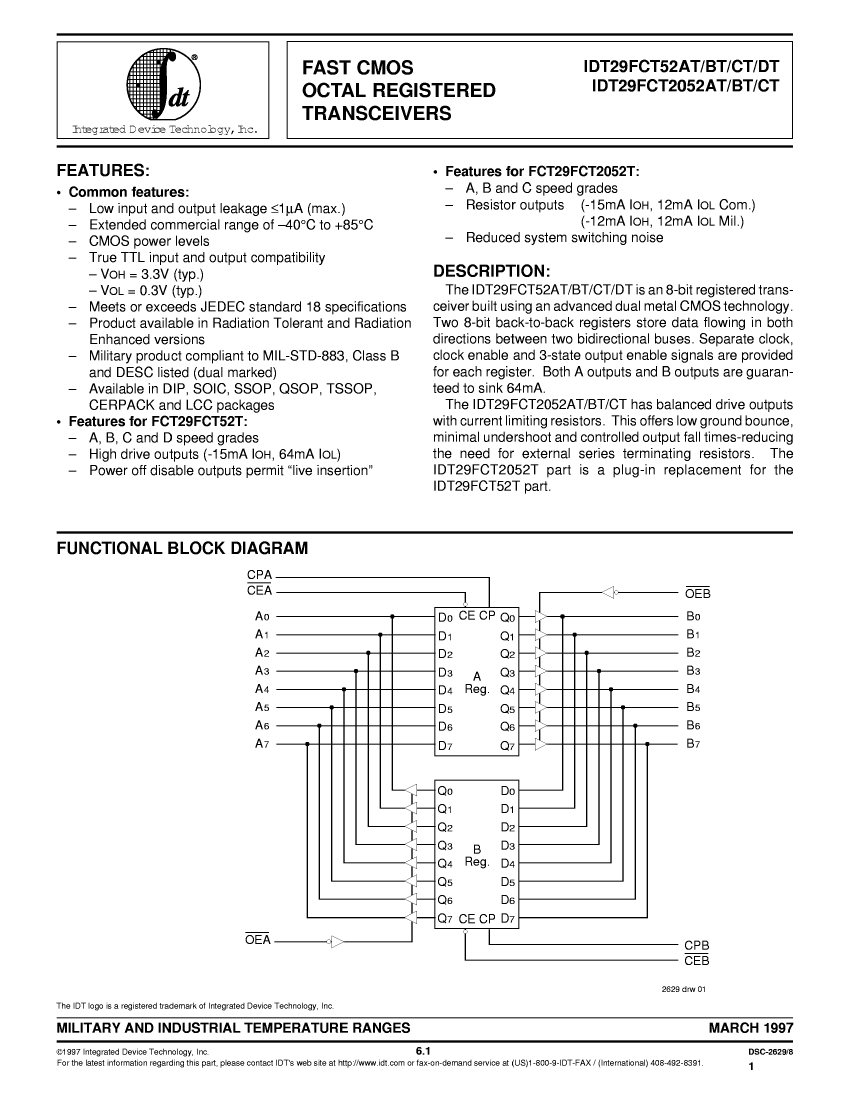

Preview

Download Datasheet

View All

29FCT52BTDB Related Products

	29FCT52BTDB	29FCT2052ATDB	29FCT2052BTDB	29FCT2052CTDB	29FCT52ATLB	29FCT52BTEB	29FCT52CTLB	29FCT52CTEB	29FCT52ATDB
Description	CDIP-24, Tube	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24	LCC-28, Tube	CPACK-24, Tube	LCC-28, Tube	CPACK-24, Tube	CDIP-24, Tube
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	QCCN, LCC28,.45SQ	CERPACK-24	QCCN, LCC28,.45SQ	CERPACK-24	DIP, DIP24,.3
Reach Compliance Code	not_compliant	_compli	_compli	_compli	not_compliant	not_compliant	not_compliant	not_compliant	_compli
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-GDIP-T24	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24	S-CQCC-N28	R-GDFP-F24	S-CQCC-N28	R-GDFP-F24	R-GDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.048 A	0.012 A	0.012 A	0.012 A	0.048 A	0.048 A	0.048 A	0.048 A	0.048 A
Number of digits	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	28	24	28	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC	CERAMIC	CERAMIC	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	QCCN	QFF	QCCN	QFF	DIP
Encapsulate equivalent code	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3	LCC28,.45SQ	FL24,.4	LCC28,.45SQ	FL24,.4	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	FLATPACK	CHIP CARRIER	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	240	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	260	260	260	260	240
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883 Class B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	FLAT	NO LEAD	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
translate	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Brand Name	Integrated Device Technology	-	-	-	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology
Maker	IDT (Integrated Device Technology)	-	-	-	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	CDIP	-	-	-	LCC	CPACK	LCC	CPACK	CDIP
Contacts	24	-	-	-	28	24	28	24	24
Manufacturer packaging code	SD24	-	-	-	LC28	CP24	LC28	CP24	SD24
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; WITH CLOCK ENABLE	-	-	-	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; WITH CLOCK ENABLE	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; WITH CLOCK ENABLE	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; WITH CLOCK ENABLE	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; WITH CLOCK ENABLE	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; WITH CLOCK ENABLE
series	FCT	-	-	-	FCT	FCT	FCT	FCT	FCT
Humidity sensitivity level	1	-	-	-	1	1	1	1	1
Number of ports	2	-	-	-	2	2	2	2	2
Prop。Delay @ Nom-Sup	8 ns	-	-	-	11 ns	8 ns	7.3 ns	7.3 ns	-
propagation delay (tpd)	8 ns	-	-	-	11 ns	8 ns	7.3 ns	7.3 ns	11 ns
Maximum seat height	5.08 mm	-	-	-	2.54 mm	2.286 mm	2.54 mm	2.286 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	-	-	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	-	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
width	7.62 mm	-	-	-	11.4554 mm	9.144 mm	11.4554 mm	9.144 mm	7.62 mm
