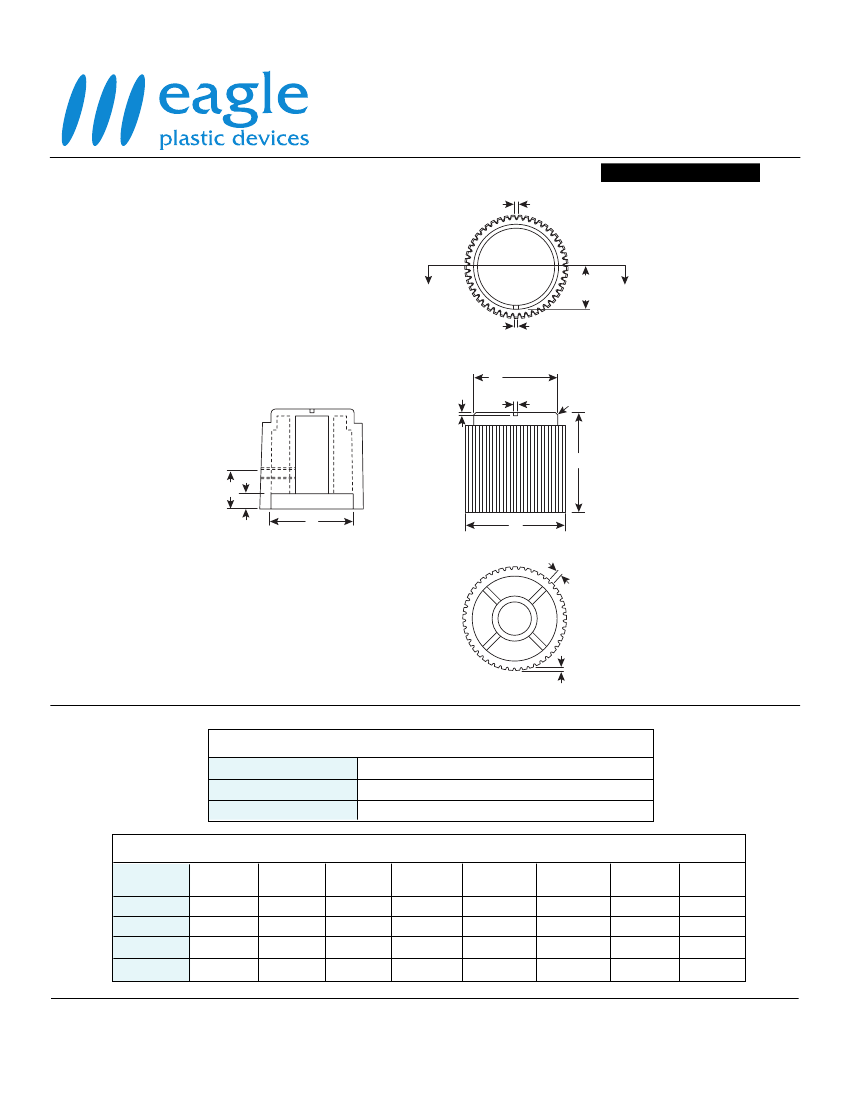

Instrument Control Knobs
450-AE181, 450-AE185, 450-AE186, 450-AE141
Date Last Revised: 6/30/05
.65 (.025)
A
7.43
(.293)
A'
.65 (.025)
A
.70 (.027)
.60
(.023)
.50R (.02R)
B
C
D
E
A'
.80 (.031)
Dimensions: mm (In.)
.70 (.027)
SPECIFICATIONS
Material:
Tolerance:
Shaft Hole:
ABS
±.20mm
T18
DIMENSIONS MM (IN.)
Mouser
Stock No.
450-AE181
450-AE185
450-AE186
450-AE141
A
15 (.59)
15 (.59)
15 (.59)
10.40 (.41)
A’
18.20 (.72)
18.20 (.72)
18.20 (.72)
13.80 (.54)
B
17.40 (.68)
17.40 (.68)
17.40 (.68)
16.50 (.65)
C
16 (.25)
16 (.25)
16 (.25)
14 (.55)
D
3 (.47)
3 (.47)
3 (.39)
---
E
14.70 (.24)
14.70 (.23)
14.70 (.24)
10 (.39)
Body
Bone
Grey
Black
Black
Line
Black
Black
White
White
Available from Mouser Electronics
1-800-346-6873
www.mouser.com
EPD-200221
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
