BM10B-SRSS-G-TB(LF)(SN): DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size262KB，3 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

BM10B-SRSS-G-TB(LF)(SN) Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,

BM10B-SRSS-G-TB(LF)(SN) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	JST
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

SH

CONNECTOR

11

10

9

8

7

6

5

4

3

2

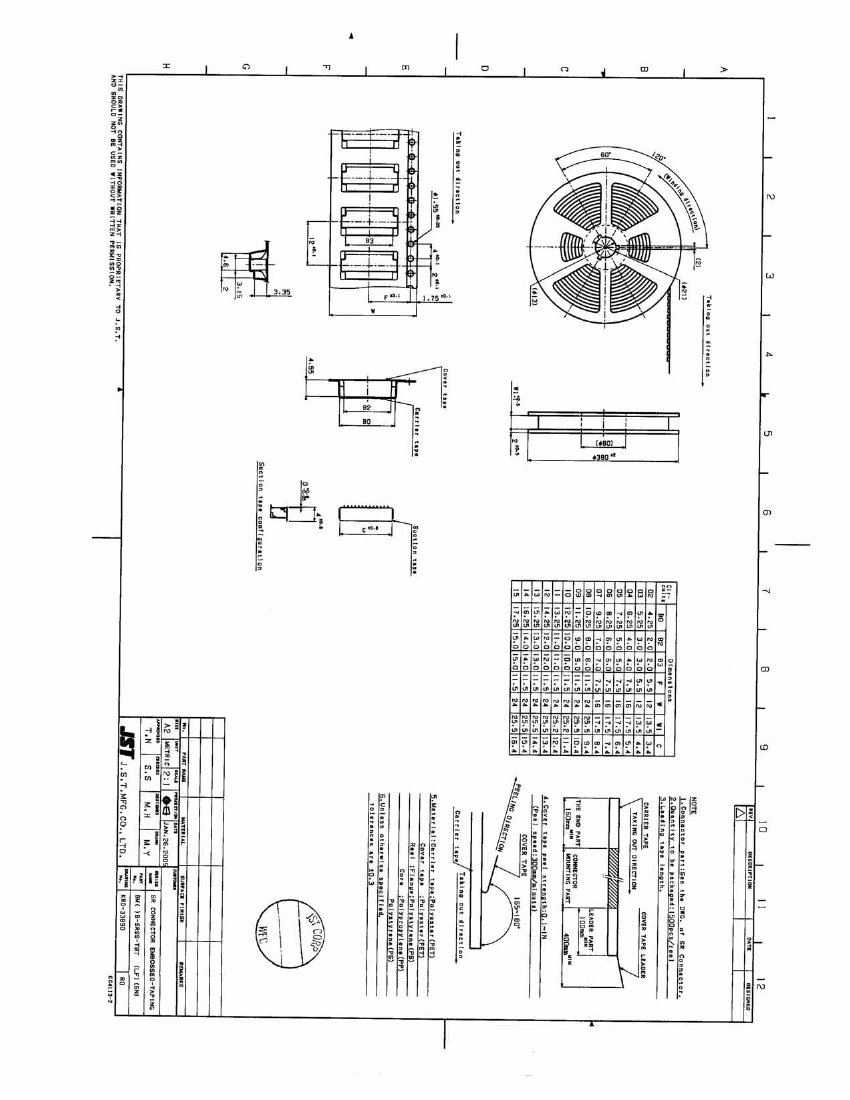

Emboss Tape

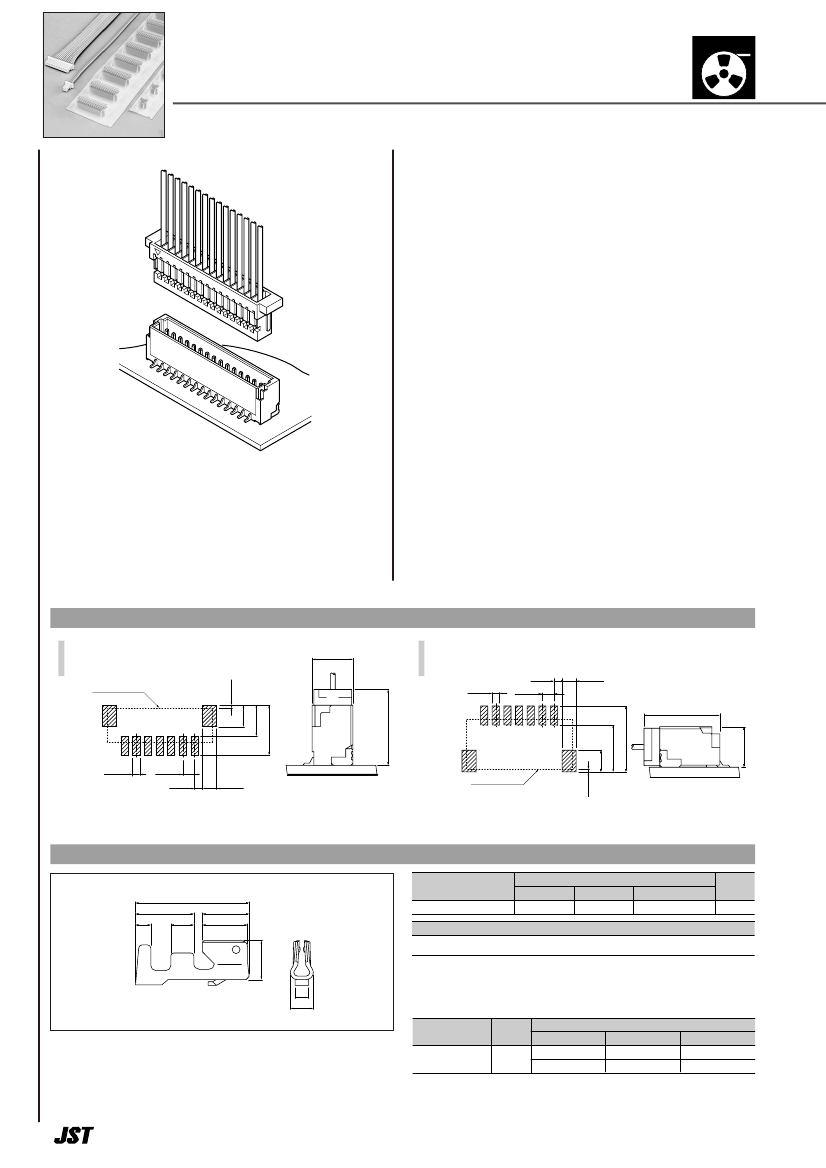

1.0mm pitch/Disconnectable Crimp style connectors

Specifications –––––––––––––––––––

• Current rating: 1.0A AC, DC (AWG #28)

• Voltage rating: 50V AC, DC

• Temperature range:

-

25˚C to

+

85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/20m

Ω

max.

After environmental testing/40m

Ω

max.

• Insulation resistance:

100M

Ω

min.

• Withstanding voltage: 500V AC/minute

• Applicable wire: Conductor size/AWG #32 to #28

Insulation O.D./0.4 to 0.8mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

14

13

±0.1

The world's first 1.0mm pitch crimp style

connector.

• Compact, low profile design

• Compatible with the SR insulation

displacement connectors

• Housing lances

PC board layout (viewed from component side) and Assembly layout

Top entry type

Header outline

0.2

±0.1

2.9

2.65

±0.1

1.8

4.2

±0.1

6.3

4.0

±0.1

5.55

±0.1

0.6

±0.05

1.0

±0.05

0.7

±0.1

1.2

±0.1

0.2

±0.1

Header outline

Note: 1. Tolerances are non-cumulative:

±

0.05mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

Contact

Model No.

3.9

2.0

0.5

0.8

1.6

1.55

mm

2

Applicable wire

Insulation O.D. (mm)

AWG#

32∼28

0.4∼0.8

1.8

±0.1

Q'ty /

reel

23,000

SSH-003T-P0.2-H

0.032∼0.08

Material and Finish

Phosphor bronze, tin-plated (reflow treatment)

1.35

RoHS compliance

Note: Contact JST for gold-plated products.

0.45

0.8

Contact

Crimping

machine Crimp applicator

MKS-L-10-3

*MKS-SC

Applicator

Dies

Crimp applicator with dies

SSH-003T-P0.2-H

AP-K2N

MK/SSH/L-003-02 APLMK SSH/L003-02

SC/SSH/L-003-02 APLSC SSH/L003-02

Note: *Strip-crimp applicator

Contact JST for applicable wires in case that it is not usable due to wire size.

1

2.95

15

12

Standards ––––––––––––––––––––––

1

Certified LR20812

Side entry type

0

Recognized E60389

0.7

±0.1

0.6

±0.05

1.0

±0.05

1.2

±0.1

6.25

BM10B-SRSS-G-TB(LF)(SN) Related Products

	BM10B-SRSS-G-TB(LF)(SN)	BM09B-SRSS-TBT(LF)(SN)	BM11B-SRSS-TBT(LF)(SN)	BM15B-SRSS-TBT(LF)(SN)	RTL1/4C2191OHMDTU	BM08B-SRSS-TBT	BM07B-SRSS-TBT(LF)(SN)	SM08B-SRSS-G-TB(LF)(SN)	SM09B-SRSS-G-TB(LF)(SN)
Description	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Fixed Resistor, Metal Film, 0.25W, 191ohm, 0.5% +/-Tol, -50,50ppm/Cel,	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	8 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT	9 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	conform to	-	-
Maker	JST	JST	JST	JST	-	JST	JST	JST	JST
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	-	TIN OVER COPPER	TIN OVER COPPER	GOLD FLASH (4)	GOLD FLASH (4)
Contact completed and terminated	Tin (Sn)	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	-	TIN OVER COPPER	TIN OVER COPPER	GOLD FLASH (4)	GOLD FLASH (4)
Contact point gender	MALE	MALE	MALE	MALE	-	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	-	COPPER ALLOY	-	-
DIN compliance	NO	NO	NO	NO	-	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	-	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	-	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	-	e3	e3	e4	e4
MIL compliance	NO	NO	NO	NO	-	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	-	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	-	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	-	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	10	9	11	15	-	8	7	8	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	-	94V-0	94V-0	94V-0	94V-0
package instruction	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Other features	-	LOW PROFILE; TOP ENTRY	LOW PROFILE; TOP ENTRY	LOW PROFILE; TOP ENTRY	-	LOW PROFILE, TOP ENTRY	LOW PROFILE; TOP ENTRY	SIDE ENTRY	SIDE ENTRY
Manufacturer's serial number	-	SR	SR	SR	-	SR	SR	SR	SR
