CC69L-2024-01-T-HP datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> CC69L-2024-01-T-HP

Preview

CC69L-2024-01-T-HP: DescriptionWire Terminal,; CategoryThe connector Connector bracket; File Size88KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CC69L-2024-01-T-HP Overview

Wire Terminal,

CC69L-2024-01-T-HP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
Other features	CONTACT FINISH: TIN
Assembly name	CONTACT
Maximum number of cable entries	0.072 inch
Minimum cable entry	0.053 inch
Connector bracket type	CONNECTOR ACCESSORY
Contact point gender	FEMALE
Contact style	SQ PIN-SKT
DIN compliance	NO
designed usage	POWER
IEC compliance	NO
MIL compliance	NO
Material	COPPER ALLOY
Installation method	STRAIGHT
Terminal length	0.17 inch
Terminal type	CRIMP
Maximum wire diameter	20 AWG
Minimum wire diameter	24 AWG

Preview

Download Datasheet

View All

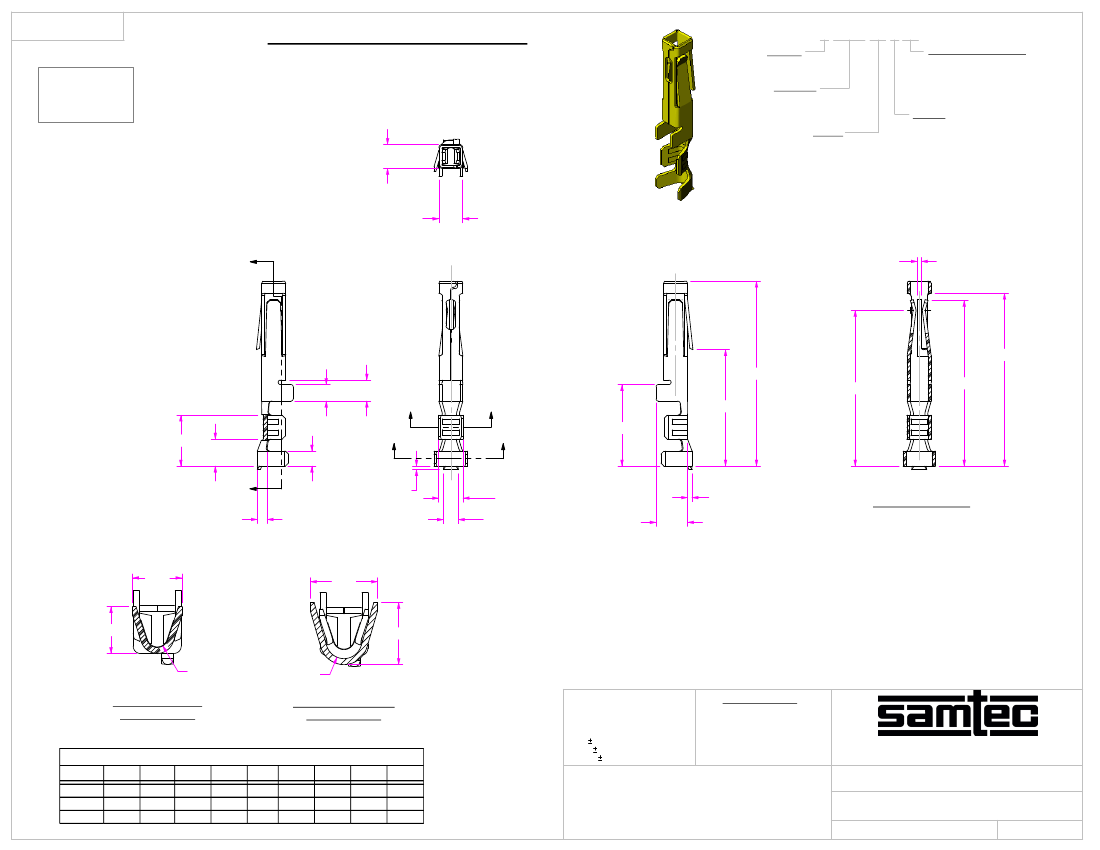

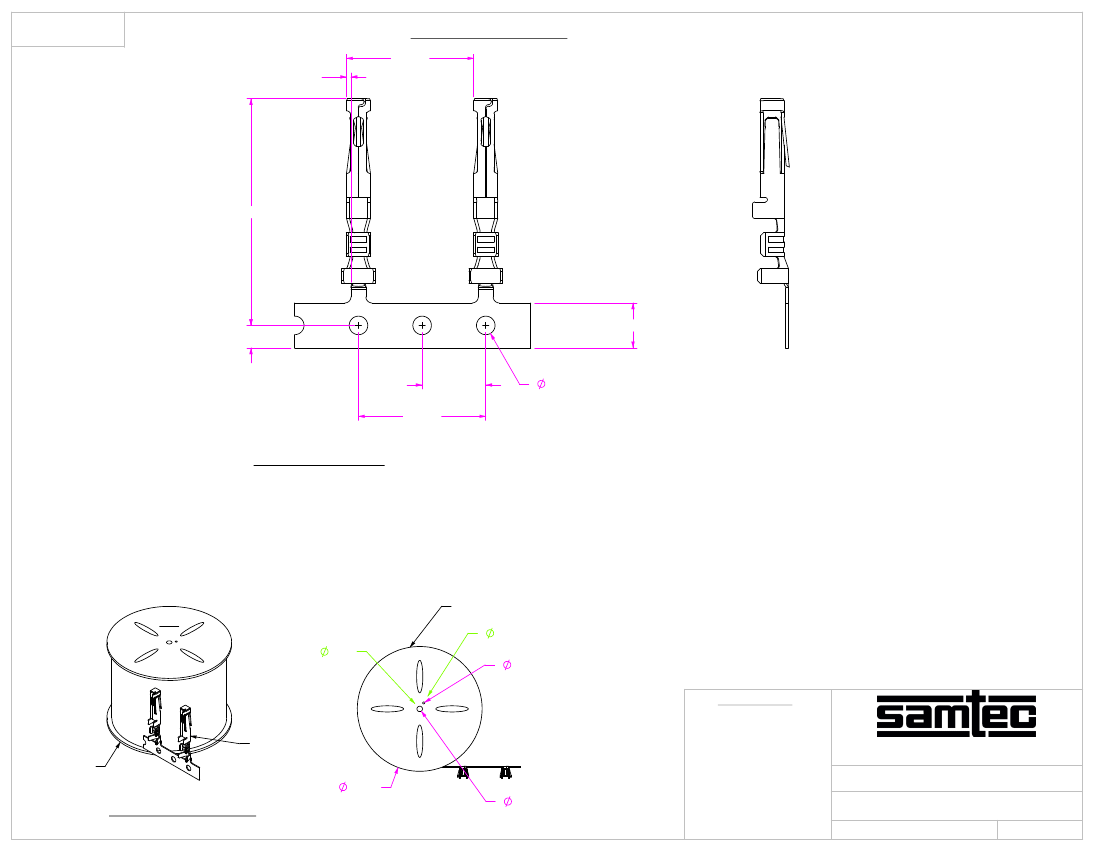

REVISION R

ALL DIMENSIONS ARE REFERENCE

(SEE XC-169-XX-XX-X-XX FOR CONTROLLING PRINT)

CC69X-XXXX-01-X-XX

SUPPLIED

-L: LOOSE

-R: REEL

LEAD STYLE

-2024 (20-24 AWG)

-1620 (16-20 AWG)

** -2426 (24-26 AWG)(PTFE)

OPTION

(INSULATION THICKNESS)

-01

MATERIAL SPECIFICATION

-SP: STANDARD POWER (PHOS

BRONZE, 510 SPRING TEMPER

-HP: HIGH POWER (HIGH COPPER

ALLOY 197, EXTRA SPRING TEMPER)

(SEE NOTE 1)

PLATING

-T: TIN

DO NOT

SCALE FROM

THIS PRINT

.080 SQ

(SEE PP-C-169-XX-XX-X FOR PLATING INSTRUCTIONS)

*=NOT TOOLED

**= NOT RELEASED FOR PRODUCTION

.080

"A"

C

L

.014

.577

.617

.055

.070

"L"

"M"

.090

"A"

.033

.050

.012

"L"

"M"

.272

.388

.520

.553

.170

.082

.050

.105

"A" (SEE TABLE 1)

SECTION "A"-"A"

"B"

"E"

"C"

"F"

NOTE:

1. AVAILABLE FOR EXISTING CUSTOMERS ONLY.

DO NOT DESIGN IN AS OF REVISION P.

R "D"

R "G"

SECTION "L"-"L"

SCALE 10 : 1

TABLE 1

STYLE

-2024

-1620

**-2426

"A"

.015

.025

.015

"B"

.082

.110

.082

"C"

.078

.115

.078

"D"

.018

.025

.018

"E"

.112

.184

.080

SECTION "M"-"M"

SCALE 10 : 1

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

ANGLES

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX:

.XXX:

.XXXX:

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Ma il: info @SAMTEC.c o m

c o d e: 55322

DESCRIPTION:

"F"

.104

.168

.067

"G"

.030

.055

.020

"H"

.005

"J"

30

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 3:1

PHOS BRONZE, 510 SPRING TEMPER, TENSILE 95-110 KSI (-SP) or

HIGH COPPER ALLOY C197-2, EXTRA SPRING TEMPER

DWG. NO.

.165 IPBD CONTACT

THICKNESS: .0100

F:\dwg\MISC\Mktg\CC69X-XXXX-01-X-XX-MKT.SLDDRW

CC69X-XXXX-01-X-XX

SHEET

1

OF

2

(**= NOT RELEASED FOR PRODUCTION)

BY:

BRATCHER 10/7/04

CC69L-2024-01-T-HP Related Products

	CC69L-2024-01-T-HP	CC69L-2426-01-T-HP	CC69R-2426-01-T-HP	CC69L-1620-01-T-HP	CC69R-1620-01-T-HP	CC69R-2024-01-T-HP
Description	Wire Terminal,	Wire Terminal	Wire Terminal	Wire Terminal,	Wire Terminal	Wire Terminal
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	CONTACT FINISH: TIN	CONTACT FINISH: TIN	CONTACT FINISH: TIN	CONTACT FINISH: TIN	CONTACT FINISH: TIN	CONTACT FINISH: TIN
Assembly name	CONTACT	CONTACT	CONTACT	CONTACT	CONTACT	CONTACT
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO
designed usage	POWER	POWER	POWER	POWER	POWER	POWER
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Terminal length	0.17 inch	0.17 inch	0.17 inch	0.17 inch	0.17 inch	0.17 inch
Terminal type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Maximum wire diameter	20 AWG	24 AWG	24 AWG	16 AWG	16 AWG	20 AWG
Minimum wire diameter	24 AWG	26 AWG	26 AWG	20 AWG	20 AWG	24 AWG
Is it lead-free?	Lead free	-	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	-	conform to	conform to	conform to
Maximum number of cable entries	0.072 inch	-	-	0.125 inch	0.125 inch	0.072 inch
Minimum cable entry	0.053 inch	-	-	0.065 inch	0.065 inch	0.053 inch
