Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2011
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
821-IF80.0M-30C
80.0 MHz IF SAW Filter 30.18 MHz Bandwidth
Specification Contents
o
o
o
o
o
o
o
Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification
Frequency Response
Smith Chart
VSWR
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
821-IF80.0M-30C
January 2011 Rev A
80.0 MHz IF SAW Filter 30.18 MHz Bandwidth
Mechanical Dimensions
(mm)
Pin Description
A, B, C, D, F, G, H, I Ground
J Input
E Output
Test Circuit
Test Fixture & Values
Input L1 =120 nH
Output L2 = 100 nH
Source/Load Impedance 50
Ω
Product Specification
P. 1
www.oscilent.com
Oscilent Part Number
821-IF80.0M-30C
January 2011 Rev A
80.0 MHz IF SAW Filter 30.18 MHz Bandwidth
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (single ended)
(1)
Load Impedance (single ended)
(1)
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-20
-40
-
-
-
-
Typical
-
-
-
-
50
50
Maximum
70
85
10
10
-
-
Notes: With Matching Network (Ref. Testing Environment Circuit as shown above).
Those impedances could be modified with different impedance values and/or structures, if necessary.
Electrical Specification
Parameters Description
Center Frequency (Fo)
Insertion Loss at Fo
Group Delay Variation (Fo±14.52MHz)
Absolute Delay at Fo
Passband Ripple Variation (Fo±14.52MHz)
Bandwidth at -1dB
Bandwidth at -10dB
Bandwidth at -20dB
Bandwidth at -40dB
Ultimate Rejection
Temperature Coefficient
Unit
MHz
dB
nsec
usec
dB
MHz
MHz
MHz
MHz
dB
ppm/°C
Minimum
-
-
-
-
-
29.90
-
-
-
48
-
Typical
80.0
28.0
26
2.18
0.6
30.18
31.05
31.46
31.87
52
-72
Maximum
-
30.0
50
-
0.95
-
-
-
32.10
-
-
Product Specification
P. 2
www.oscilent.com
Oscilent Part Number
821-IF80.0M-30C
January 2011 Rev A
80.0 MHz IF SAW Filter 30.18 MHz Bandwidth

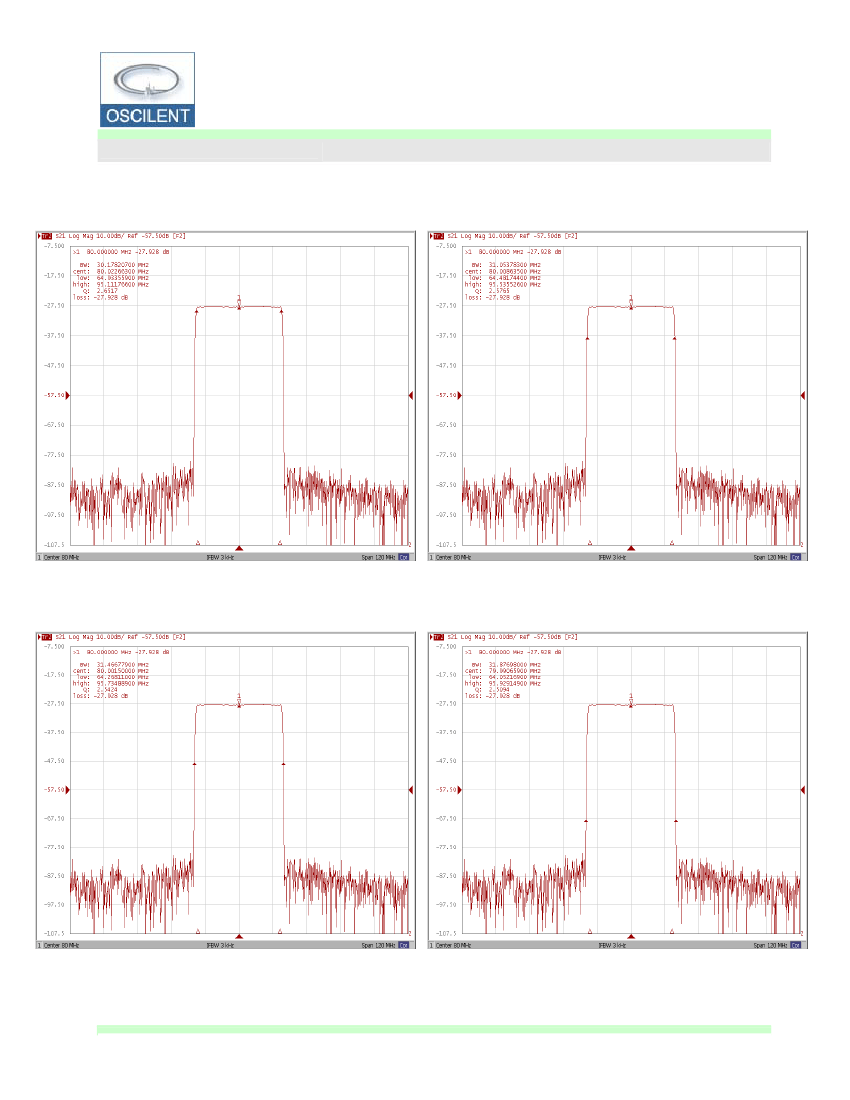

Frequency Response
Bandwidth at –1.0 dB
Bandwidth at –10.0 dB
Bandwidth at –20.0 dB
Bandwidth at –40.0 dB
Product Specification
P. 3
www.oscilent.com
Oscilent Part Number
821-IF80.0M-30C
January 2011 Rev A
80.0 MHz IF SAW Filter 30.18 MHz Bandwidth

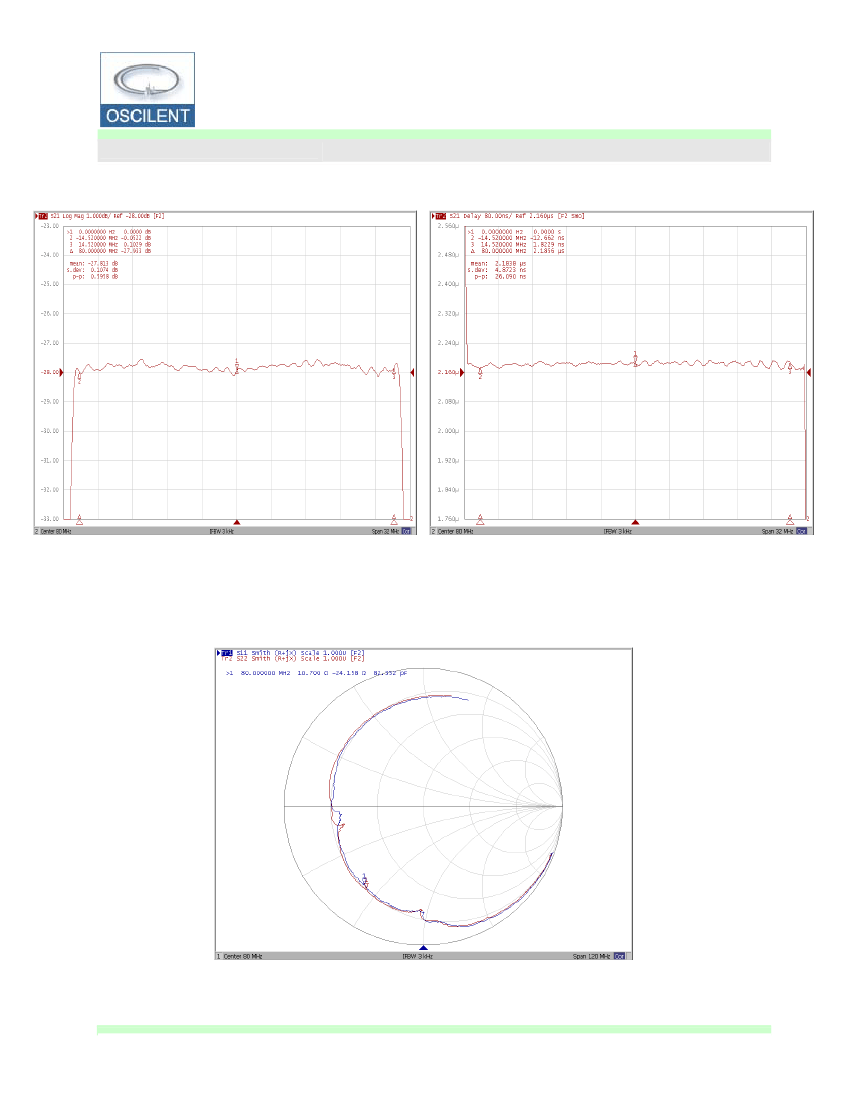

Group Delay Variation Fo±14.52MHz
Ripple Variation Fo±14.52MHz
Smith Chart
Product Specification
P. 4
www.oscilent.com
