K050DPX-010270G datasheet, PDF

Datasheet> All Categories > The connector> The connector> K050DPX-010270G

K050DPX-010270G: DescriptionBoard Stacking Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

K050DPX-010270G Overview

Board Stacking Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug, ROHS COMPLIANT

K050DPX-010270G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.15 inch
subject depth	0.111 inch
body length	0.181 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	100VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	WHITE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	K050DPX
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

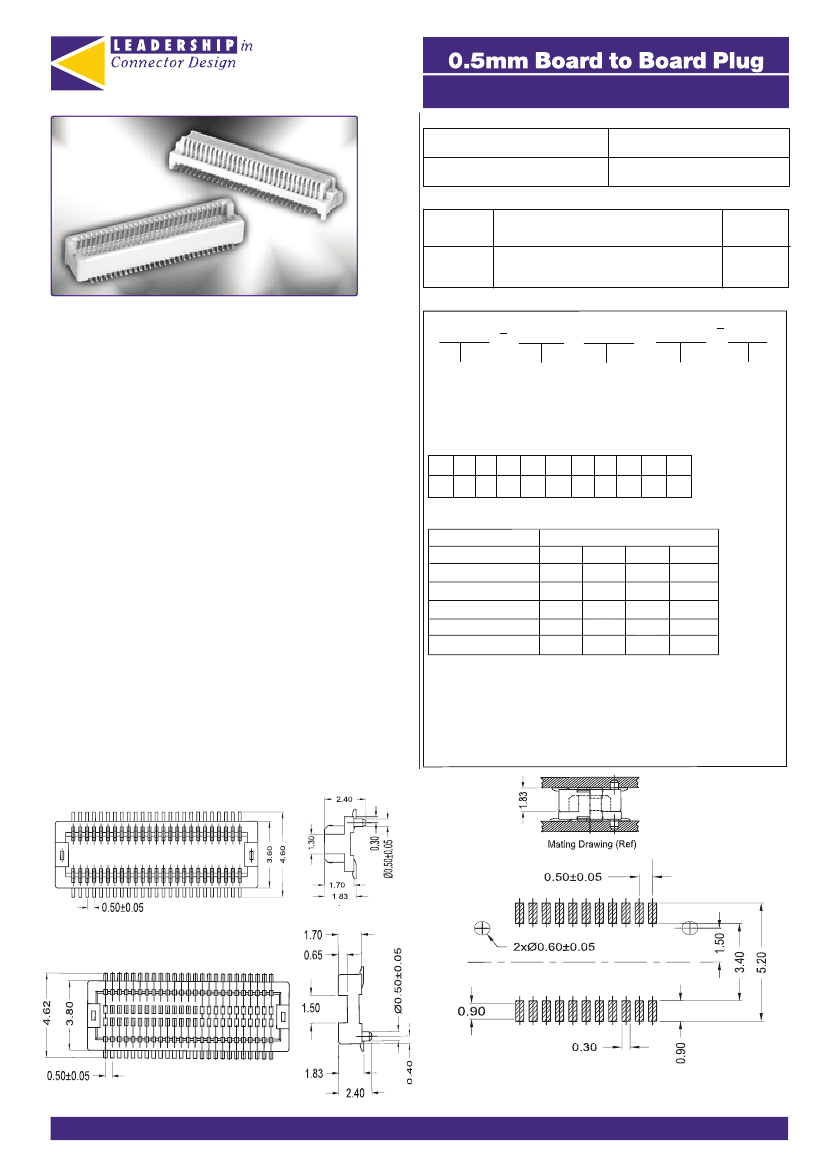

KYCON

K050DPX/DSX Series

Documentation &

Ordering Information

Stock

CofC

RoHS

Sample

RFQ

Mating Kycon Part Number

Plug

Socket

K050DPX-010-170-G

K050DSX-010-170-G

170

Height

Drawing

K050DPX/K050DSX

0.5mm Board to Board

Feature

Part Number Builder

K050DPX

Series

010

No of

Contacts

Plating

Packaging

Option

Series

•

Mating Height as low as 2.5mm - 6.5mm

K050DPX - 0.5mm Plug

•

Allows for more cost-efficient and space-saving solutions

K050DSX - 0.5mm Socket

•

Used in digital cameras,set top boxes,computers,POS Terminals,

Number of Contact

Hand hied Products and more,

•

Surface mount plug and socket

•

Circuit sizes range from 10-60

Performance Specifications

Materials and Finish

Insulator :

High Temp Plastic (UL94V-0)

Contact :

Phosphor Bronze

Plated :

Gold Plated

Mating Height

(mm)

170

K050DPX-XXX-XXX-G

(Plug Height)

K050DSX-XXX-170-G

K050DSX-XXX-220-G

K050DSX-XXX-270-G

K050DSX-XXX-420-G

K050DSX-XXX-470-G

170

2.5

220

3.0

270

3.5

4.0

320

4.5

6.5

Electrical Characteristics

Current Rating :

0.5A

Voltage Rating :

50V AC/DC

Resistance :

30m ohm. max.

Insulation Resistance :

100M ohm.

Withstanding Voltage :

100V AC for one Minute

Operating Temperature Range :

-20ºC to +105ºC

5.0

5.5

6.0

Plating

G - Gold

Blank

- Bulk

Blank

T - Tape and Reel Packaging

Contact Kycon for more options

Packaging Option

K050DSX Series

K050DPX Series

Plug or Socket PCB Layout

2007

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
