THMD12E11B70 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> THMD12E11B70

THMD12E11B70: DescriptionIC 16M X 72 DDR DRAM MODULE, 0.75 ns, DMA184, DIMM-184, Dynamic RAM; Categorystorage storage; File Size945KB，17 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

THMD12E11B70 Overview

IC 16M X 72 DDR DRAM MODULE, 0.75 ns, DMA184, DIMM-184, Dynamic RAM

THMD12E11B70 Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	DIMM
package instruction	DIMM, DIMM184
Contacts	184
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	SINGLE BANK PAGE BURST
Maximum access time	0.75 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	143 MHz
I/O type	COMMON
JESD-30 code	R-XDMA-N184
memory density	1207959552 bit
Memory IC Type	DDR DRAM MODULE
memory width	72
Number of functions	1
Number of ports	1
Number of terminals	184
word count	16777216 words
character code	16000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX72
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM184
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	2.5 V
Certification status	Not Qualified
refresh cycle	8192
self refresh	YES
Maximum supply voltage (Vsup)	2.7 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL

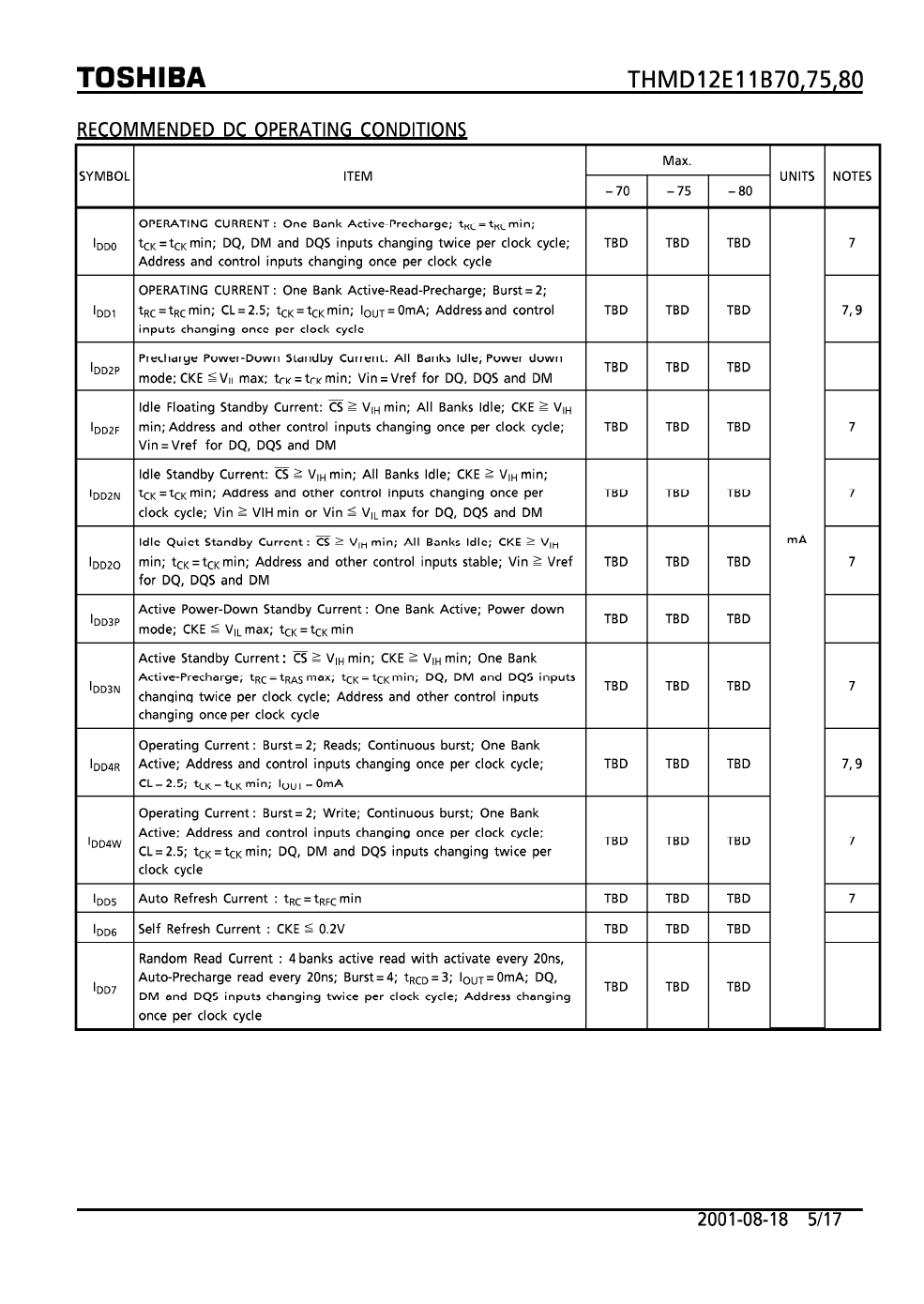

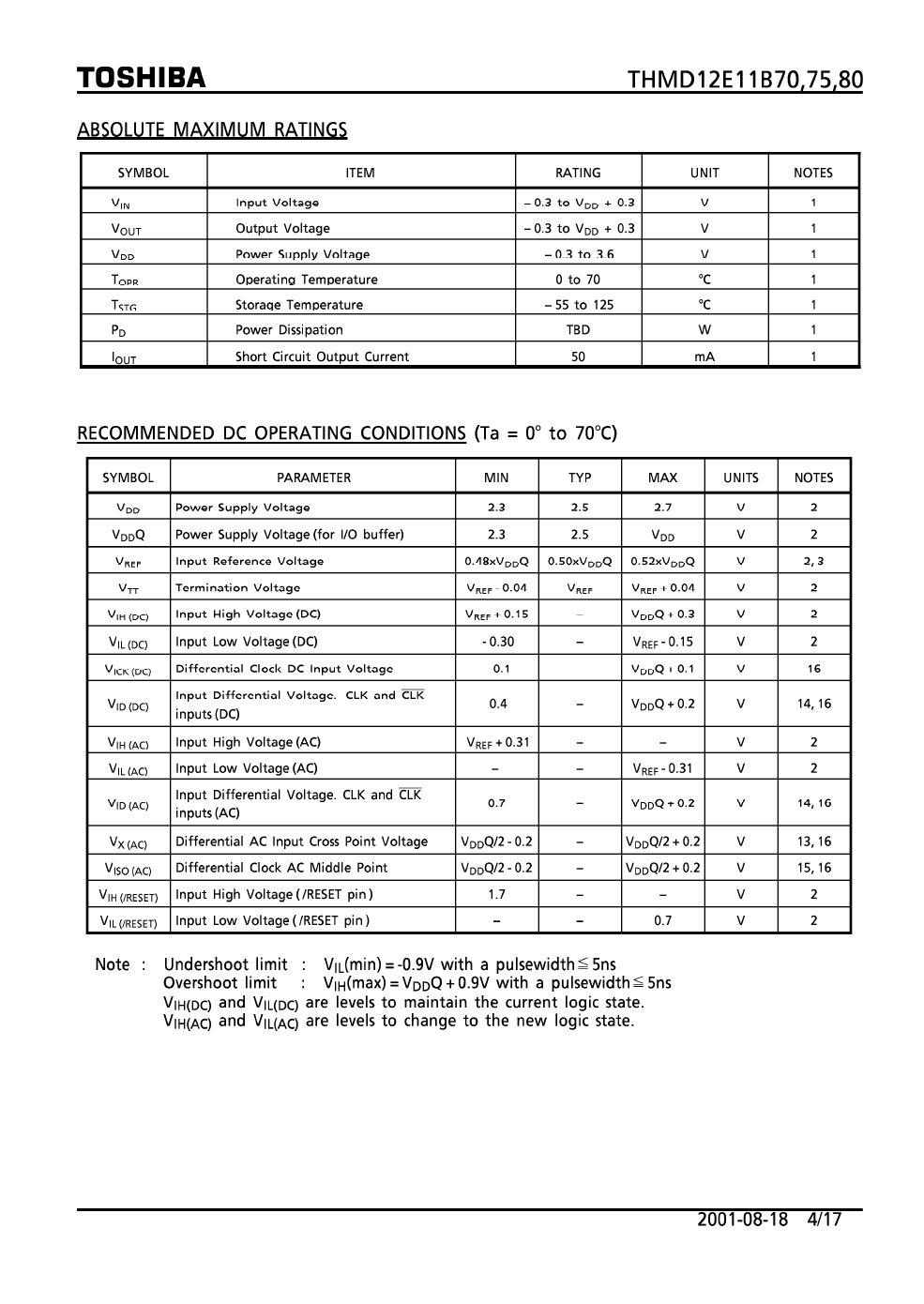

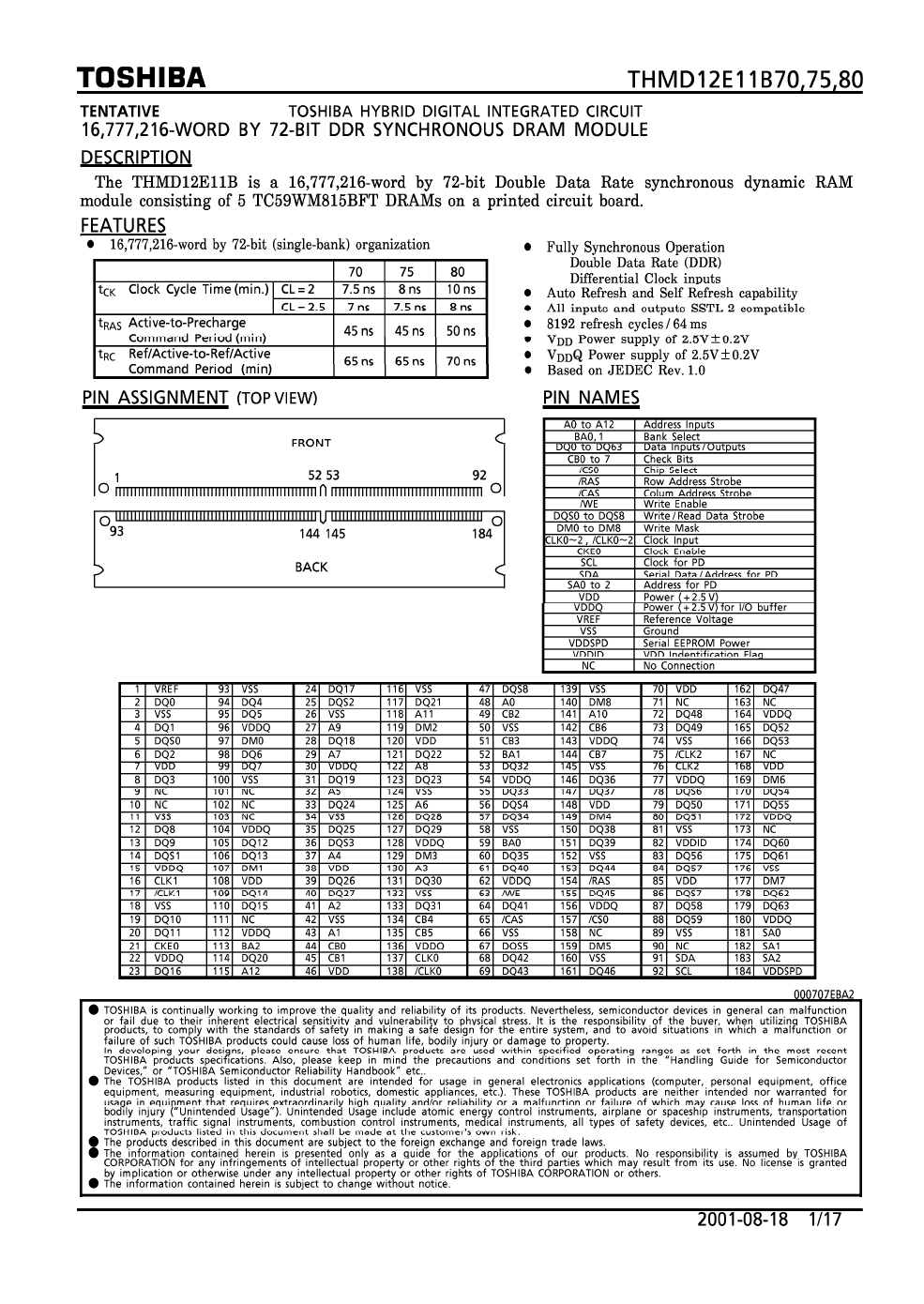

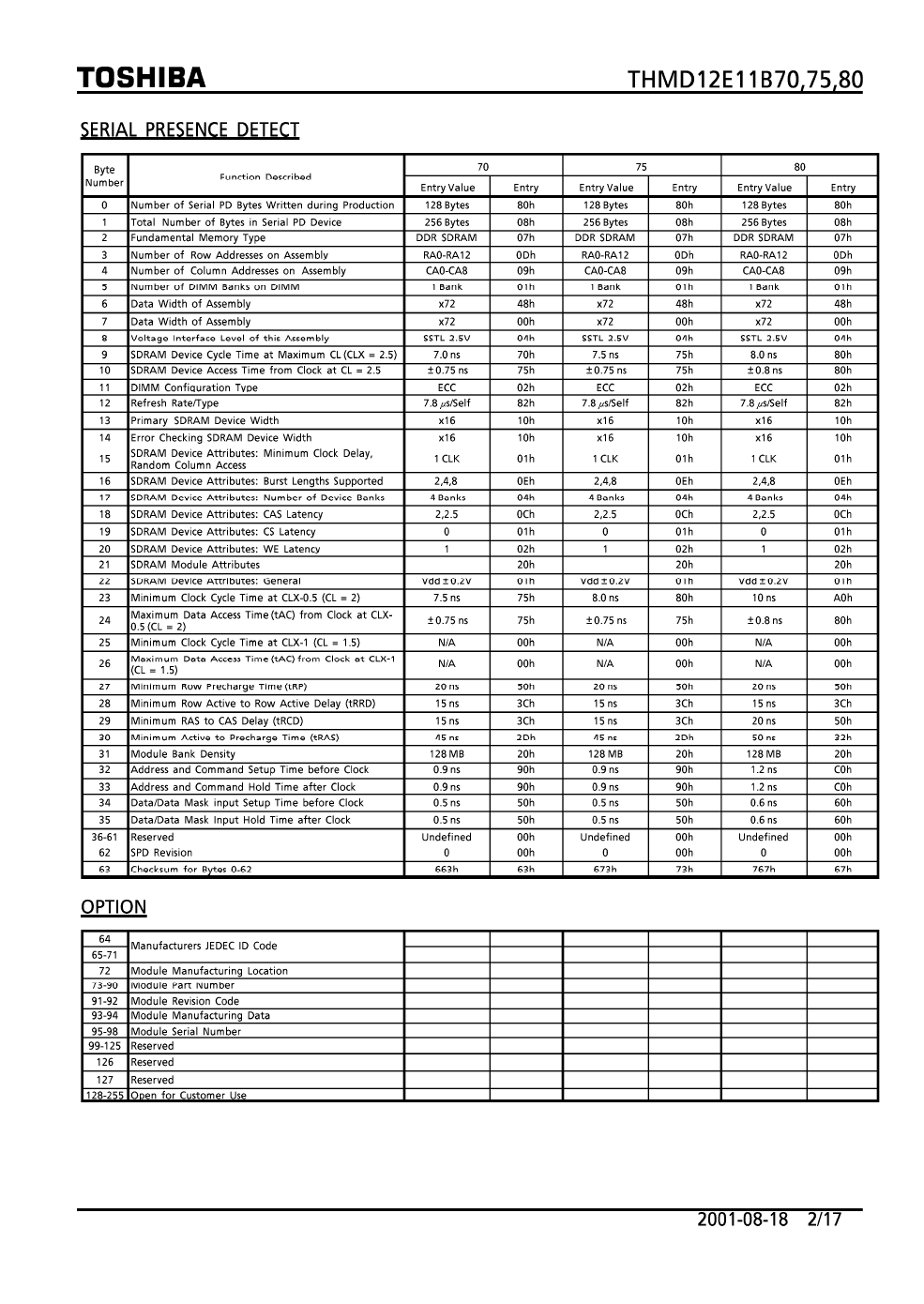

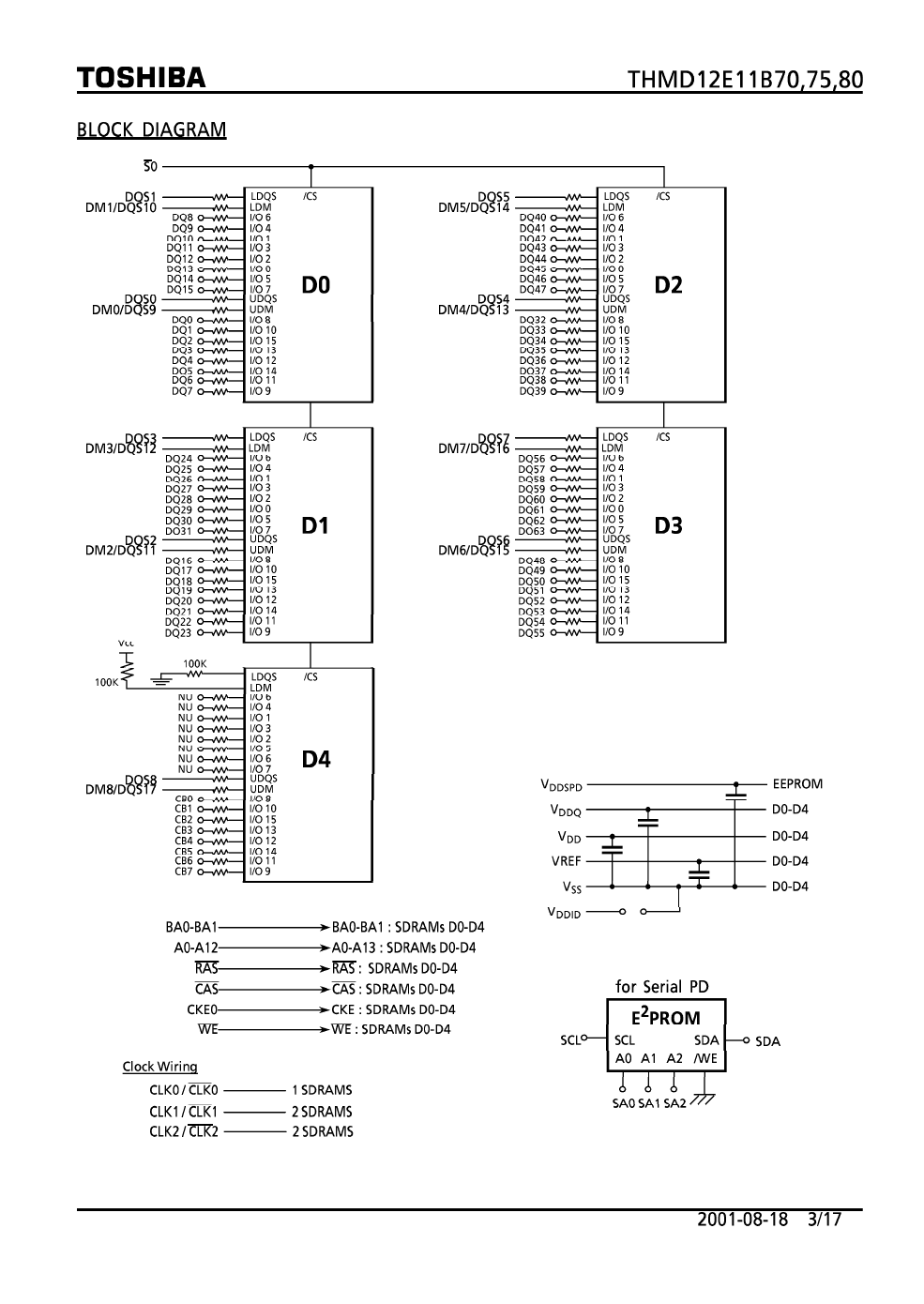

THMD12E11B70 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

THMD12E11B70 Related Products

	THMD12E11B70	THMD12E11B75	THMD12E11B80
Description	IC 16M X 72 DDR DRAM MODULE, 0.75 ns, DMA184, DIMM-184, Dynamic RAM	IC 16M X 72 DDR DRAM MODULE, 0.75 ns, DMA184, DIMM-184, Dynamic RAM	IC 16M X 72 DDR DRAM MODULE, 0.8 ns, DMA184, DIMM-184, Dynamic RAM
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	DIMM	DIMM	DIMM
package instruction	DIMM, DIMM184	DIMM, DIMM184	DIMM, DIMM184
Contacts	184	184	184
Reach Compliance Code	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99
access mode	SINGLE BANK PAGE BURST	SINGLE BANK PAGE BURST	SINGLE BANK PAGE BURST
Maximum access time	0.75 ns	0.75 ns	0.8 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	143 MHz	133 MHz	125 MHz
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N184	R-XDMA-N184	R-XDMA-N184
memory density	1207959552 bit	1207959552 bit	1207959552 bi
Memory IC Type	DDR DRAM MODULE	DDR DRAM MODULE	DDR DRAM MODULE
memory width	72	72	72
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	184	184	184
word count	16777216 words	16777216 words	16777216 words
character code	16000000	16000000	16000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	16MX72	16MX72	16MX72
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM184	DIMM184	DIMM184
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	2.5 V	2.5 V	2.5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
refresh cycle	8192	8192	8192
self refresh	YES	YES	YES
Maximum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V	2.3 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V	2.5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
