LYAR0JM471: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 6.3V, 20% +Tol, 20% -Tol, 470uF; CategoryPassive components capacitor; File Size192KB，2 Pages; ManufacturerLuminous Town Electric Co., Ltd.

Download Datasheet Parametric Compare View All

LYAR0JM471 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 6.3V, 20% +Tol, 20% -Tol, 470uF

LYAR0JM471 Parametric

Parameter Name	Attribute value
Maker	Luminous Town Electric Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	8 mm
dielectric materials	ALUMINUM
length	11.5 mm
Manufacturer's serial number	LYA(6.3V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
series	LYA(6.3V)
Terminal pitch	3.5 mm

LYAR0JM471 Preview

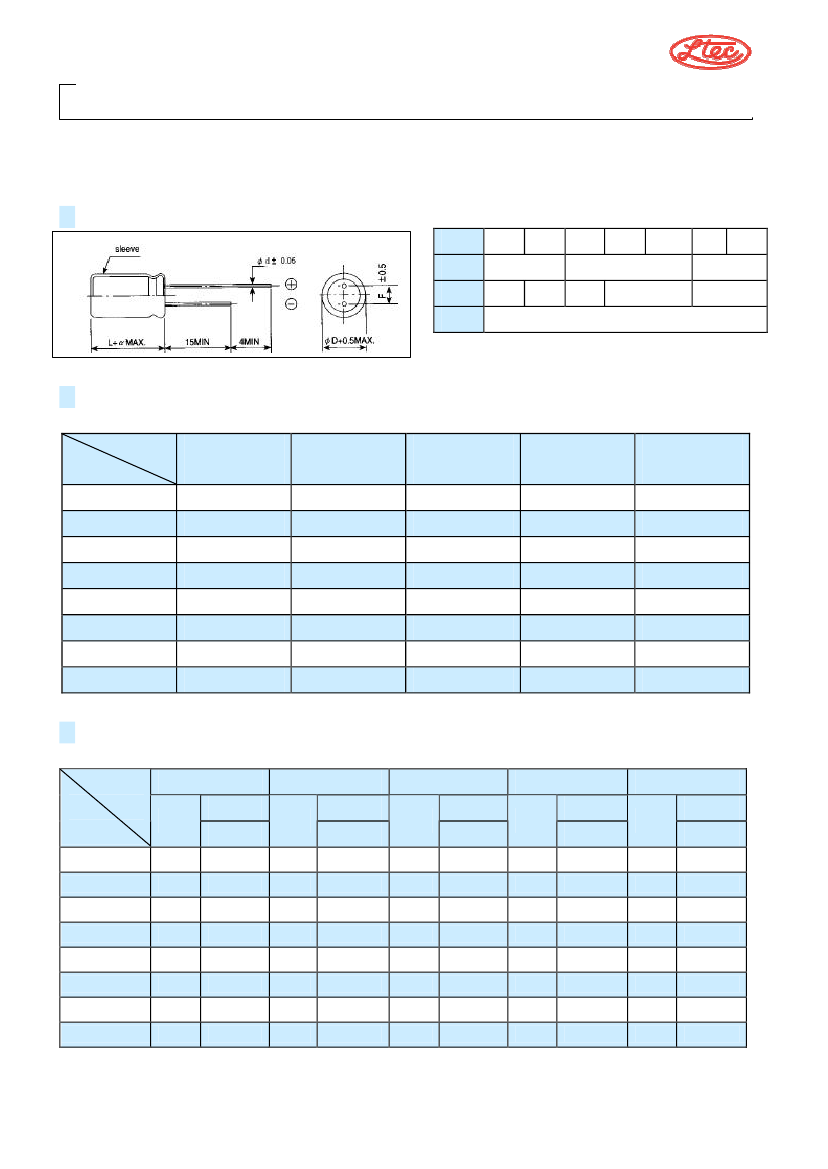

ALUMINUM ELECTROLYTIC CAPACITORS

LYA

LYB

Goback

series

■FEATURES

l

S.SUPER ULTRA LOW IMPEDANCE.

LOW IMPEDANCE

LYA

■SPECIFICATIONS

Item

Operating Temperature

Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

-40℃~+105℃

6.3~35 W.V.

±20%

(20℃,120Hz)

1=0.01CV or 3uA whichever is greater.(After 2minutes)1=Leakage

Leakage Current (MAX)

Current(uA) C= Nominal Capacitance(uA) V= Rated

When nominal capacitance is over 1000uF, tanδ shall be added 0.02 to the listed

value with increase of every 1000uF

Dissipation Factor

(tanδ)

Rated voltage (V)

Tan

δ

(MAX)

0.15

6.3

2

6.3

0.13

10

2

10

0.12

16

2

16

0.10

25

2

25

0.10

35

MAX

(20℃,

120HZ)

Low Temperature

Stability Impedance

Ratio (MAX)

Measurement frequency:120Hz

2

120HZ

MAX

Rated Voltage(V)

Z(-40℃)/Z(+20℃)

After life test at conditions stated in the table below, the capacitors shall meet the following

requirement.

CapacitanceChange within ±25% of the initialvalue

Load Life

Dissipation Factor

Leakage Current

Shelf Life

Standard

Not more than 200% of the

specified value.

Case Dia

φ6.3

Life Time(hrs)

1000

2000

Not more than the specifiedvalue.

φ8,φ10

After leaving capacitors under no load of 105℃ for 500 hours and applying voltage according

to JIS C-5102 4-3, they meet the specified value for load life characteristics listed above.

JIS C 5141

■MULTIPLIER

FOR RIPPLE CURRENT

Frequency coefficient

FREQUENCY

Cap(Uf)

Temperature coefficient

10K

100K≦

Temperature

Coefficient

40℃

55℃

65℃

75℃

85℃ 105℃

120

1K

120-330

390-1000

1200-6800

0.47

0.55

0.65

0.75

0.85

0.90

0.95

0.98

1.00

2.41

2.12

2.00

1.70

1.00

LYA-0401

ALUMINUM ELECTROLYTIC CAPACITORS

LYA

series

S.SUPER ULTRA LOW IMPEDANCE.

■DIMENSIONS

(mm)

ψD

ψd

F

α

5

2.0

6.3

0.5

2.5

3.5

L≦16:α=1.5

8

10

0.6

5.0

12.5

16

18

0.8

7.5

L≧20:α=2.0

■STANDARD

SIZES

SIZEφDxL(mm)

WV(V.DC)

Cap(uF)

47

100

220

330

470

680

1000

1500

6.3

(OJ)

10

(1A)

16

(1C)

6.3X11

25

(1E)

6.3X11

10X12.5

10X16

10X20

35

(1V)

6.3X11

8X11.5

10X16

10X20

6.3X11

8X11.5

10X12.5

10X16

10X20

8X11.5

10X12.5

10X20

8X11.5

10X12.5

10X16

10X20

■MAXIMUM

PERMISSIBLE RIPPLE CURRENT,IMPEDANCE

Ripple Current(Ma.m.s./105℃,100kHz),Impedance(ΩMAX/100kHz)

WV(V.DC)

6.3(OJ)

Ripple

Impedance

20℃

10(1A)

Ripple

Impedance

20℃

16(1C)

Ripple

Impedance

20℃

25(1E)

Ripple

Impedance

20℃

35(1V)

Ripple

Impedance

20℃

Cap(uF)

47

100

220

330

470

680

1000

1500

630

810

900

1180

1600

1850

0.080

0.045

0.044

0.038

0.024

0.020

810

900

1180

1600

1850

0.045

0.044

0.038

0.024

0.020

900

1180

1600

1850

0.08

0.044

0.033

0.027

0.020

630

1180

1600

1850

0.080

0.033

0.027

0.020

900

1600

1850

0.090

0.050

0.027

0.020

LYA-0401

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
