6.3YXH4700MEFCCC12.5X30 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 6.3YXH4700MEFCCC12.5X30

6.3YXH4700MEFCCC12.5X30: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 4700uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size223KB，3 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

6.3YXH4700MEFCCC12.5X30 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 4700uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

6.3YXH4700MEFCCC12.5X30 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	4700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	12.5 mm
dielectric materials	ALUMINUM (WET)
leakage current	0.2961 mA
length	30 mm
Manufacturer's serial number	YXH
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	1855 mA
series	YXH
surface mount	NO
Delta tangent	0.3
Terminal pitch	5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

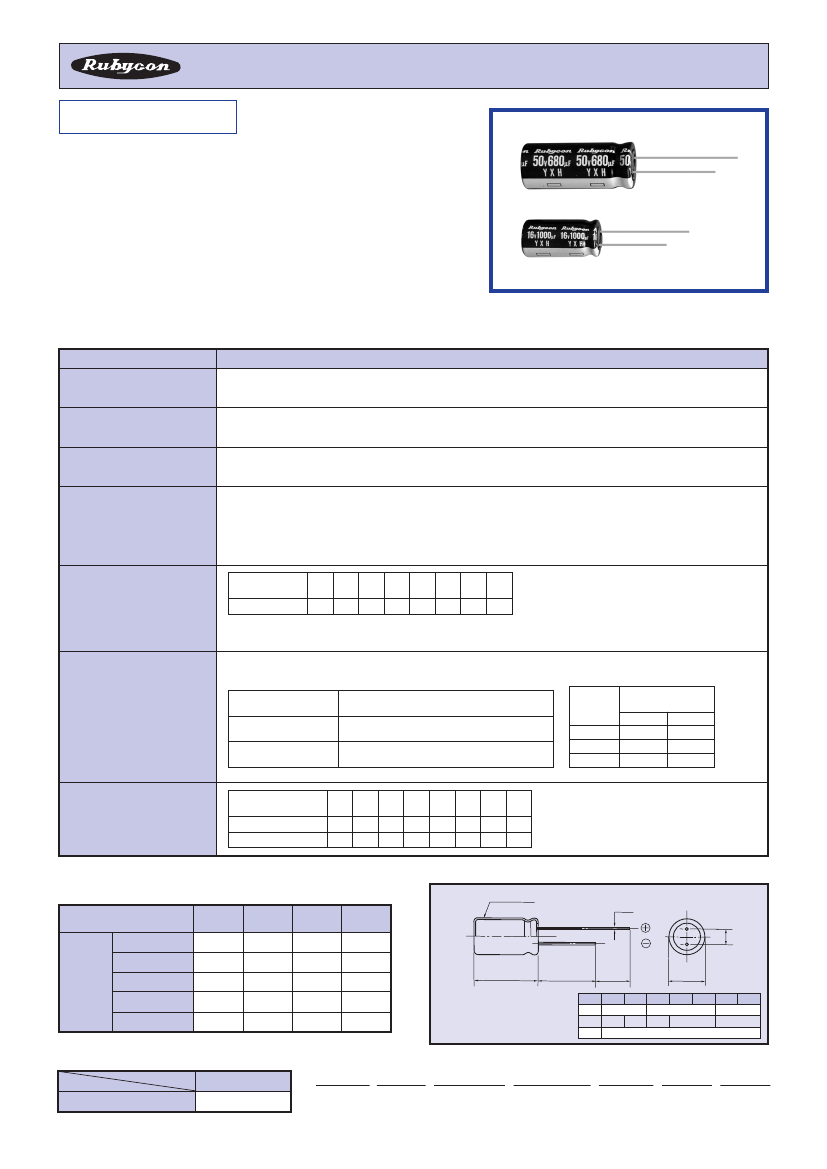

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

YXH

SERIES

105℃ High ripple current. Long Life.

◆FEATURES

・

Prescribe Impedance value at 100 kHz.

・

Load Life : 105℃ 4000∼10000 hours.

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−40∼＋105℃

6.3∼100V.DC

±20％

（20℃，

120Hz）

Rated Voltage Range

Capacitance Tolerance

I＝0.01CV

or 3μA whichever is greater. (After 2 minutes)

Leakage Current(MAX)

I＝

Leakage Current

(μA) C＝

Capacitance

(μF) V＝

Rated Voltage

(V)

Rated Voltage

6.3 10 16 25 35 50 63 100

(V)

tanδ

0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

（20℃，

120Hz）

(tanδ)

Dissipation Factor(MAX)

When capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After life test with rated ripple current at conditions stated in the table below at 105℃, the capacitors shall meet the following requirements.

Life Time

(hrs)

6.3∼10WV 16∼100WV

φD≦6.3

4000

5000

φD＝8,10 6000

7000

φD≧12.5 8000

10000

Case Size

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Within ±25％ of the initial value.

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

6.3

(V)

（−25℃）（20℃） 4

（−40℃）（20℃） 8

63 100

（120Hz）

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency Coeﬃcient

Frequency

◆DIMENSIONS

SLEEVE

（PET）

（mm）

±0.5

φD＋0.5MAX

φd

（Hz）

6.8∼33μF

39∼270μF

330∼680μF

820∼1800μF

2200∼18000μF

120

0.42

0.50

0.55

0.60

0.70

0.73

0.77

0.80

0.85

10k

0.90

0.92

0.94

0.96

0.98

100k≦

1.00

L＋

αMAX

15MIN

4MIN

Coeﬃcient

φD

φd

6.3

0.5

2.0 2.5

3.5

10 12.5

0.6

5.0

0.8

7.5

L≦16 : α=1.5 L≧20 : α=2.0

◆OPTION

Code

PET Sleeve

◆PART NUMBER

□□□

Rated Voltage

YXH

Series

□□□□□

Capacitance

Ｍ

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

Ｅ

ＦC
