GVZ102M035 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> GVZ102M035

GVZ102M035: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 1000uF; CategoryPassive components capacitor; File Size130KB，2 Pages; ManufacturerGemmy Electronics Co., Ltd.

Download Datasheet Parametric View All

GVZ102M035 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 1000uF

GVZ102M035 Parametric

Parameter Name	Attribute value
Maker	Gemmy Electronics Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	1000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	13 mm
dielectric materials	ALUMINUM
length	25 mm
Manufacturer's serial number	GVZ(35V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
series	GVZ(35V)
Terminal pitch	5 mm

Preview

Download Datasheet

View All

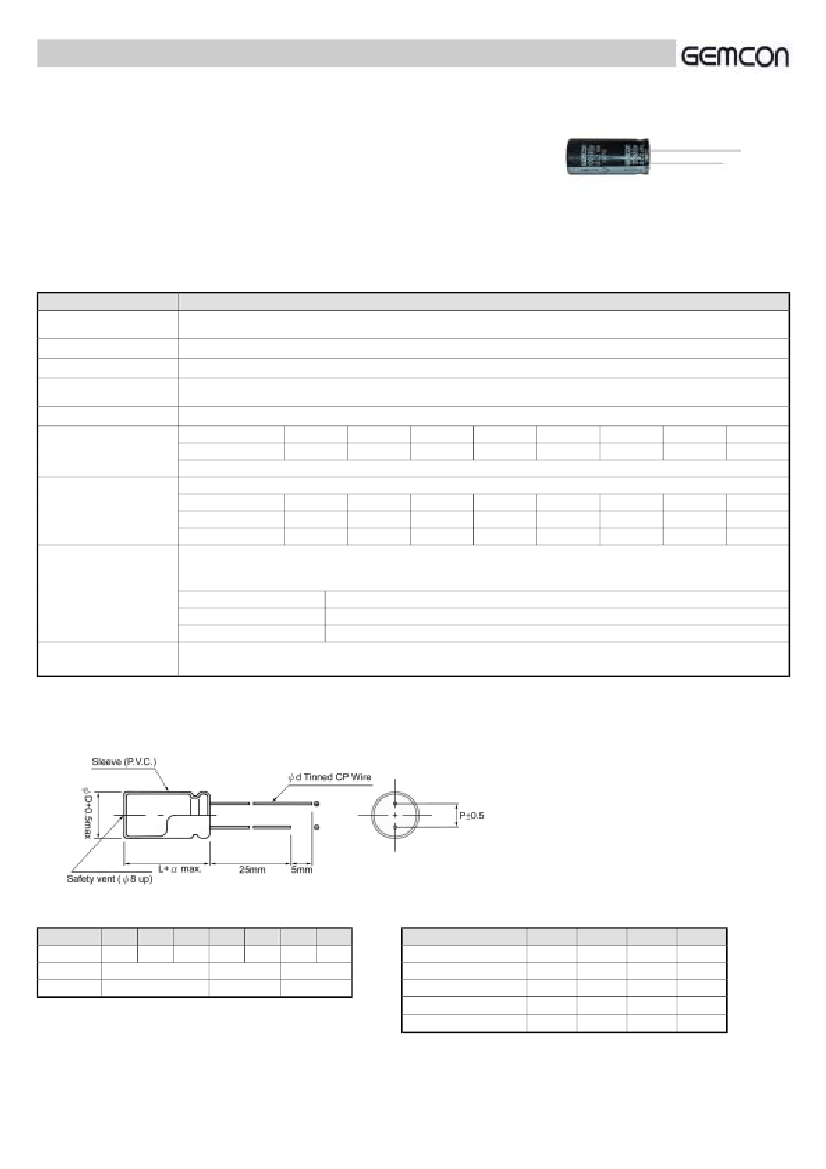

ALUMINUM ELECTROLYTIC CAPACITOR

GVZ

105°C

½阻抗高漣波品

Low Impedance, High Ripple Current

具½阻抗值及耐高漣波電流特性,適於電源供應器及高頻迴路應用

產品½½保証

3,000∼6,000

小時/105°C

With low impedance and high ripple current,

suitable for used in SMPS or high frequency circuit application.

Life guaranteed 3,000∼6,000 hours at 105°C

Specifications

Item

Operating Temperature

range

½用溫度範圍

Rated Voltage

額定電壓

Capacitance Range

容量範圍

Capacitance Tolerance

靜電容量容許差

Leakage Current

洩漏電流

Dissipation Factor

散逸因素

(120Hz, 20°C)

Temperature

Characteristics

溫度特性

(120Hz)

Rated voltage (V)

Tan

(max.)

6.3

0.22

0.19

Performance Characteristics

-40 + 105°C

6.3V

∼

100V

∼

10,000

µF

±20%

(120Hz, 20°C)

≤

0.01CV or 3

µA,

whichever is greater after 2 minutes application of rated voltage.

0.16

0.14

0.12

0.10

0.09

100

0.08

For capacitance of more than 1,000µF, add 0.02 for every increase of 1,000µF.

Impedance Ratio / Stability at Low Temperature

Rated voltage (V)

Z (-25°C) / Z (20°C)

6.3

100

Load Life

高溫負荷特性

Z (-40°C) / Z (20°C)

After a certain hour application of rated voltage and ripple current at 105°C, capacitor shall meet the characteristics

requirements mentioned below.

∼

: 3,000 hours

: 4,000 hours

: 5,000 hours

≥

: 6,000 hours

Capacitance change

Tan

Leakage current

Within

±20%

of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

擱½½½

After leaving capacitors under no load at 105°C for 1,000 hours and applying voltage according to JIS C5102 4-3, capacitor

shall meet the specified value as load life characteristics listed above.

Dimension

•

Frequency coefficient of allowable ripple current

2.0

6.3

2.5

0.5

1.5

3.5

5.0

0.6

2.0

5.0

7.5

0.8

2.0

7.5

Cap(µF) \ Frequency

∼

220

330

∼

680

820

∼

1800

2200

∼

10000

120Hz

0.42

0.50

0.55

0.60

0.70

1KHz

0.70

0.73

0.77

0.80

0.85

10KHz

0.90

0.92

0.94

0.96

0.98

∼100KHz

1.00
