BYG23MF3G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYG23MF3G

BYG23MF3G: DescriptionRectifier Diode, 1 Phase, 1 Element, 1.5A, 1000V V(RRM), Silicon, DO-214AC, GREEN, PLASTIC, FOLDED SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size377KB，4 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BYG23MF3G Overview

Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1000V V(RRM), Silicon, DO-214AC, GREEN, PLASTIC, FOLDED SMA, 2 PIN

BYG23MF3G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	R-PDSO-C2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse current	1 µA
Maximum reverse recovery time	0.065 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

BYG23MF3G Preview

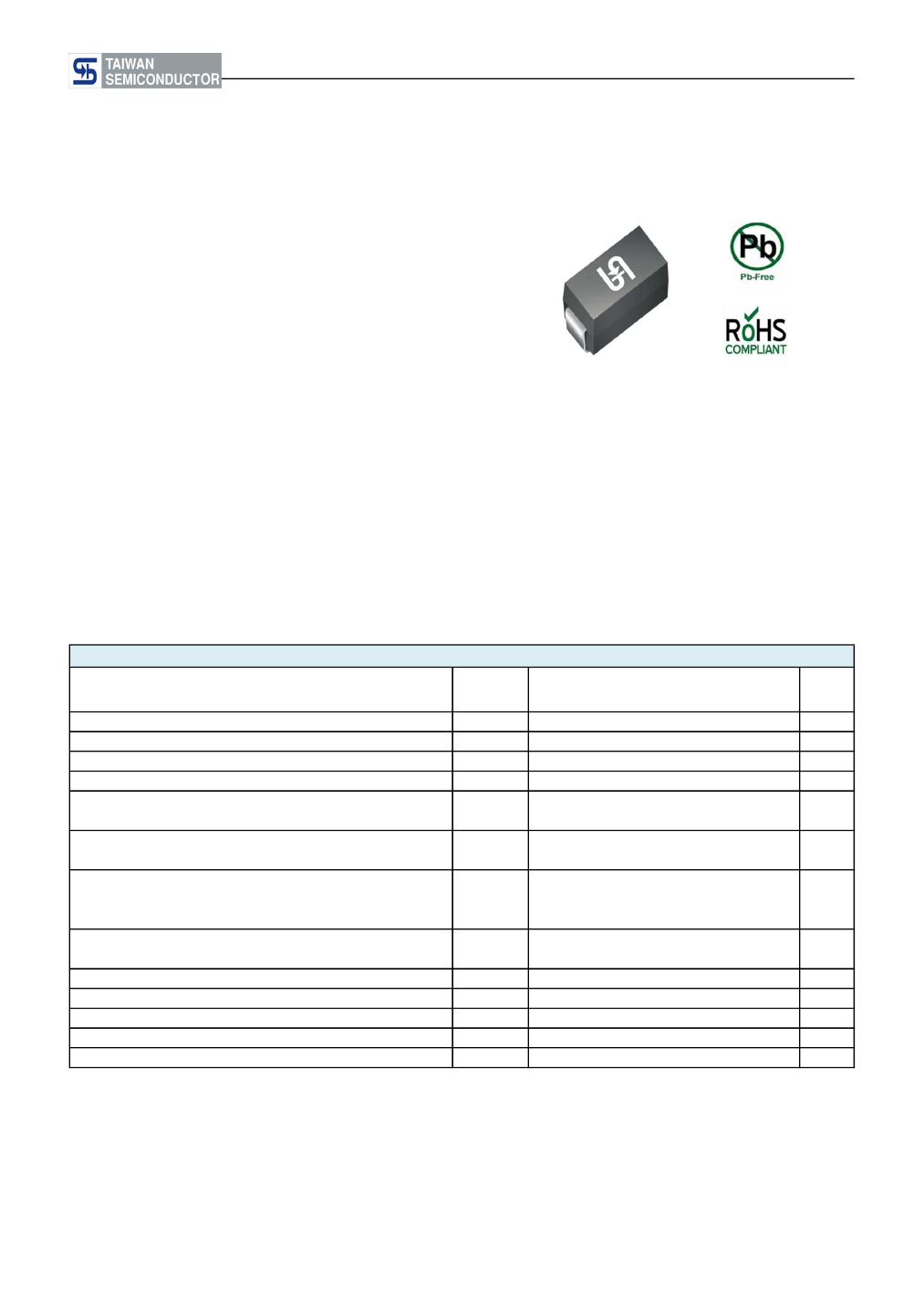

BYG23M

Taiwan Semiconductor

CREAT BY ART

FEATURES

- Glass passivated junction chip.

- Ideal for automated placement

- Fast switching for high efficiency

- High surge current capability

- Moisture sensitivity level: level 1, per J-STD-020

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21 definition

- AEC-Q101 available

High Efficient Surface Mount Rectifiers

TYPICAL APPLICATION

The superior avalanche capability of BYG23M is specially

suited for free-wheeling, clamping, snubbering,

demagnetization in power supplies and other power switching applications.

DO-214AC (SMA)

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound, UL flammability classification rating 94V-0

Base P/N with suffix "G" on packing code - green compound (halogen-free)

Terminal:

Matte tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 2 whisker test

Polarity:

Indicated by cathode band

Weight:

0.064 g (approximately)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS

=25°C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current (@T

=65°C)

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load

Maximum instantaneous forward voltage (Note 1)

@1A

Maximum reverse current @ rated VR

=25°C

=100°C

=125°C

SYMBOL

RRM

RMS

F(AV)

FSM

BYG23M

1000

700

1000

1.5

1.7

RSM

θJA

STG

- 55 to +150

UNIT

μA

Pulse energy in avalanche mode, non repetitive

(Inductive load switch off ) T

=25℃, I

(BR)R

=1.23A

Maximum reverse recovery time (Note 2)

Typical junction capacitance (Note 3)

Typical thermal resistance

Operating junction temperature range

Storage temperature range

Note 1: Pulse Test with PW=300μs, 1% Duty Cycle

Note 2: Reverse Recovery Test Conditions: I

=0.5A, I

=1.0A, I

=0.25A

Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0Volts.

C/W

Document Number: DS_D1411087

Version: B14

BYG23M

Taiwan Semiconductor

ORDERING INFORMATION

PART NO.

PACKING CODE

BYG23M

PACKING CODE

SUFFIX

PACKAGE

(Note 1)

SMA

Folded SMA

Clip SMA

PACKING

1,800 / 7" Plastic reel

7,500 / 13" Paper reel

7,500 / 13" Plastic reel

1,800 / 7" Plastic reel

7,500 / 13" Paper reel

7,500 / 13" Plastic reel

1,800 / 7" Plastic reel

7,500 / 13" Plastic reel

Note 1: Package "SMA" and "Folded SMA" are AEC-Q101 qualified, Clip SMA doesn't.

EXAMPLE

PREFERRED

PART NO.

BYG23M R3

BYG23M R3G

PART NO.

BYG23M

PACKING CODE

SUFFIX

DESCRIPTION

AEC-Q101 qualified

Green compound

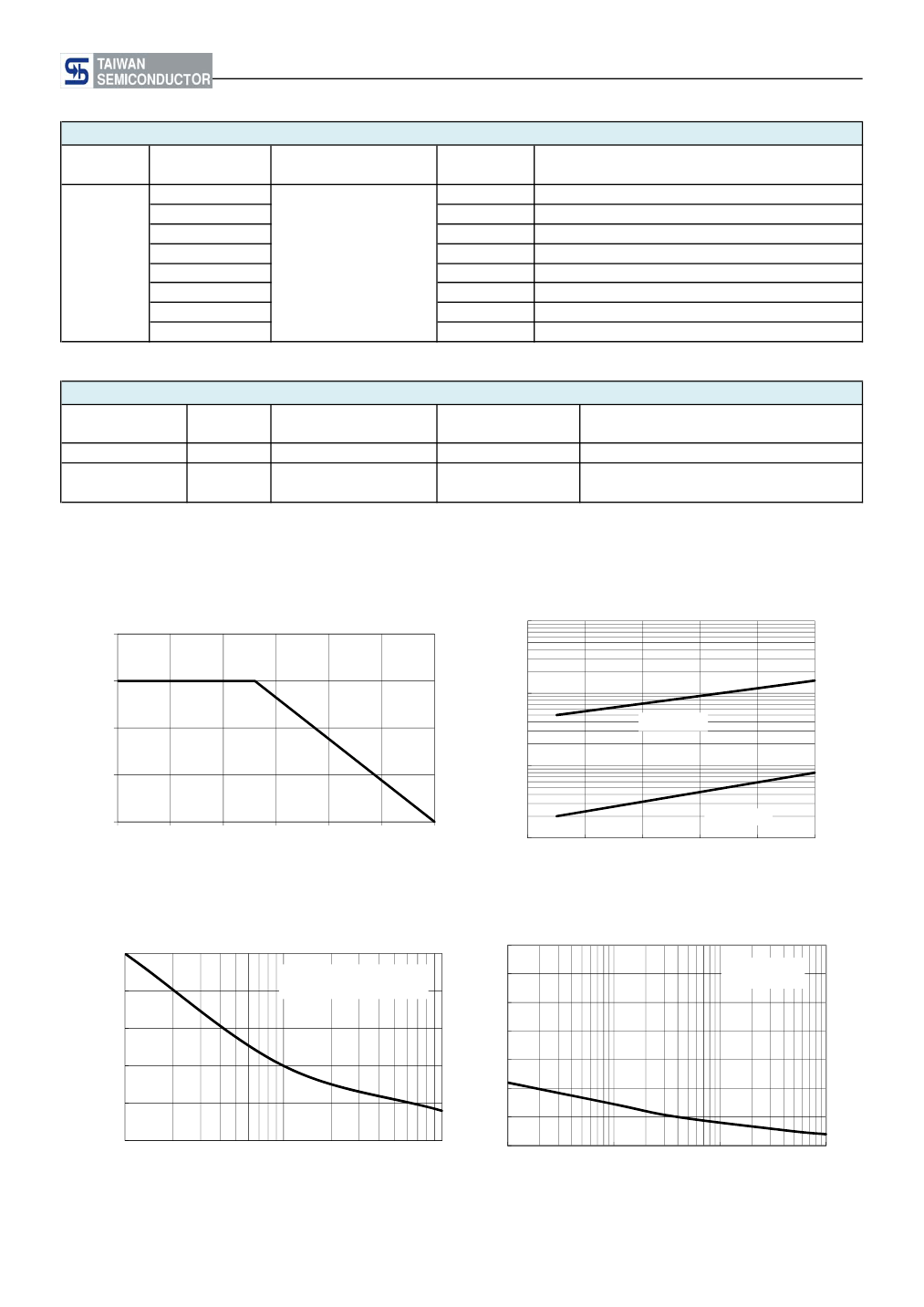

RATINGS AND CHARACTERISTICS CURVES

=25°C unless otherwise noted)

FIG.1 MAXIMUM AVERAGE FORWARD CURRENT

DERATING

INSTANTANEOUS REVERSE CURRENT(μA)

FIG. 2 TYPICAL REVERSE CHARACTERISTICS

100

AVERAGE FORWARD CURRENT (A)

1.5

=125°C

0.5

100

125

150

=25°C

0.1

100

PERCENT OF RATED PEAK REVERSE VOLTAGE (%)

AMBIENT TEMPERATURE (

FIG. 3 MAXIMUM NON-REPETITIVE FORWARD

SURGE CURRENT

PEAK FORWARD SURGE URRENT (A)

100

8.3ms Single Half Sine Wave

JUNCTION CAPACITANCE (pF)

0.1

FIG. 4 TYPICAL JUNCTION CAPACITANCE

f=1.0MHz

Vslg=50mVp-p

100

NUMBER OF CYCLES AT 60 Hz

REVERSE VOLTAGE (V)

Document Number: DS_D1411087

Version: B14

BYG23M

Taiwan Semiconductor

FIG. 5 TYPICAL INSTANTANEOUS

FORWARD CHARACTERISTICS

INSTANTANEOUS FORWARD CURRENT (A)

0.1

0.4 0.6 0.8

1.2 1.4 1.6 1.8

2.2 2.4 2.6 2.8

FORWARD VOLTAGE (V)

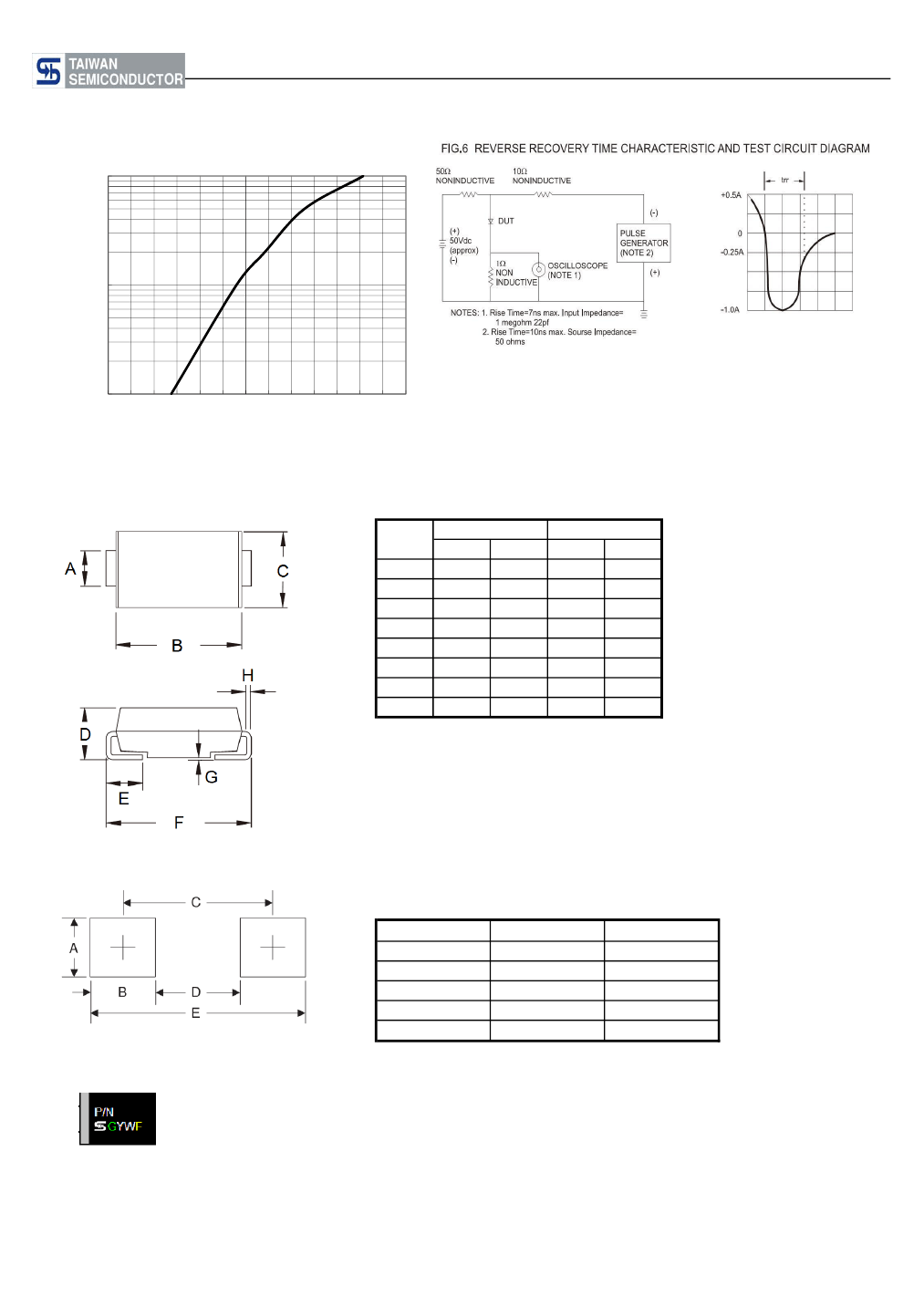

PACKAGE OUTLINE DIMENSIONS

DO-214AC (SMA)

DIM.

Unit (mm)

Min

1.27

4.06

2.29

1.99

0.90

4.95

0.10

0.15

Max

1.58

4.60

2.83

2.50

1.41

5.33

0.20

0.31

Unit (inch)

Min

0.050

0.160

0.090

0.078

0.035

0.195

0.004

0.006

Max

0.062

0.181

0.111

0.098

0.056

0.210

0.008

0.012

SUGGESTED PAD LAYOUT

Symbol

Unit (mm)

1.68

1.52

3.93

2.41

5.45

Unit (inch)

0.066

0.060

0.155

0.095

0.215

MARKING DIAGRAM

P/N =

YW =

Document Number: DS_D1411087

Specific Device Code

Green Compound

Date Code

Factory Code

Version: B14

BYG23M

Taiwan Semiconductor

CREAT BY ART

Notice

Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,

assumes no responsibility or liability for any errors or inaccuracies.

Information contained herein is intended to provide a product description only. No license, express or implied,to

any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of

sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,

relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,

merchantability, or infringement of any patent, copyright, or other intellectual property right.

The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.

Customers using or seling these products for use in such applications do so at their own risk and agree to fully

indemnify TSC for any damages resulting from such improper use or sale.

Document Number: DS_D1411087

Version: B14

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BYG23MF3G Related Products

	BYG23MF3G	BYG23M M2G	BYG23M R3G	BYG23MR2G	BYG23MF2	BYG23MR2	BYG23MM2
Description	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1000V V(RRM), Silicon, DO-214AC, GREEN, PLASTIC, FOLDED SMA, 2 PIN	DIODE GEN PURP 1.5A DO214AC	DIODE GEN PURP 1.5A DO214AC	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1000V V(RRM), Silicon, DO-214AC, GREEN, PLASTIC, SMA, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1000V V(RRM), Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, FOLDED SMA, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1000V V(RRM), Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1000V V(RRM), Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN
Diode type	RECTIFIER DIODE	standard	standard	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Is it Rohs certified?	conform to	-	-	conform to	conform to	conform to	conform to
Maker	Taiwan Semiconductor	-	-	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor
package instruction	R-PDSO-C2	-	-	GREEN, PLASTIC, SMA, 2 PIN	R-PDSO-C2	ROHS COMPLIANT, PLASTIC, SMA, 2 PIN	R-PDSO-C2
Reach Compliance Code	compliant	-	-	compliant	compliant	compliant	compliant
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE	-	-	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE
application	EFFICIENCY	-	-	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	SINGLE	-	-	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	-	-	SILICON	SILICON	SILICON	SILICON
Maximum forward voltage (VF)	1.7 V	-	-	1.7 V	1.7 V	1.7 V	1.7 V
JEDEC-95 code	DO-214AC	-	-	DO-214AC	DO-214AC	DO-214AC	DO-214AC
JESD-30 code	R-PDSO-C2	-	-	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	-	-	e3	e3	e3	e3
Humidity sensitivity level	1	-	-	1	1	1	1
Maximum non-repetitive peak forward current	50 A	-	-	50 A	50 A	50 A	50 A
Number of components	1	-	-	1	1	1	1
Phase	1	-	-	1	1	1	1
Number of terminals	2	-	-	2	2	2	2
Maximum operating temperature	150 °C	-	-	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1.5 A	-	-	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	260	NOT SPECIFIED
Guideline	AEC-Q101	-	-	AEC-Q101	AEC-Q101	AEC-Q101	AEC-Q101
Maximum repetitive peak reverse voltage	1000 V	-	-	1000 V	1000 V	1000 V	1000 V
Maximum reverse current	1 µA	-	-	1 µA	1 µA	1 µA	1 µA
Maximum reverse recovery time	0.065 µs	-	-	0.065 µs	0.065 µs	0.065 µs	0.065 µs
surface mount	YES	-	-	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	-	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	C BEND	-	-	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	-	-	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED
