M820-03-26-19 Overview

Barrier Strip Terminal Block, 30A, 2 Row(s), 1 Deck(s)

M820-03-26-19 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: UL 94V-0, GLASS FILLED PHENOLIC; POLYBUTYLENE TEREPHTHALATE
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	2
Number of channels	26
Rated current	30 A
Rated voltage	250 V
safety certificate	UL; VDE; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

Barrier Terminal Strips

Single / Dual / Closed Side / Stacked - M81 and M82 Series

SPECIFICATIONS:

Material:

TB Series Insulator: Polybutylene Terephthalate (PBT), glass

reinforced thermoplastic, Rated UL 94V-0

TD Series Insulator: Glass filled phenolic, Rated UL 94V-0

Terminals: Brass, tin plated

Screws: Steel, nickel plated

Hardware: Brass, tin plated

Electrical:

Operating voltage: 250 VAC max

Insulation resistance: 5000 MΩ min @ 1000 VDC between

adjacent contacts (75°F and 50% R.H.)

Dielectric withstanding voltage: 1000 VAC min RMS (sea level)

Current rating:

M810-01/02: 10 AMPS

M810-03/04/05/06/07: 15 AMPS

M820-01: 10 AMPS

M820-02: 20 AMPS

M820-03: 30 AMPS

Mechanical:

Wire Range:

M810-01/02: 22 - 18 AWG

M810-03/05: 18 - 14 AWG

M810-04: 22 - 16 AWG

M810-06/07: 22 - 14 AWG

PART NUMBER LEGEND

M810-XX-XX-XX-XX

HARDWARE OPTIONS

01-19, S1, S2

TERMINAL TYPE

1 = Straight PCB Tail

2 = Closed Side Entry PCB Tail

3 = Right Angle PCB Tail

4 = Cliptite Terminal

5 = Turrett Terminal

6 = Wire Wrap Terminal

END CONFIGURATION

0 = Barrier

1 = Mounting Ear

NUMBER OF POSITIONS

2 through 30

STYLE

01 = 250" Centerline Barrier Block

02 = .250" Closed Side Barrier Block

03 = .325" Centerline Barrier Block (Offset Tails)

04 = .325" Centerline Barrier Block (Centered Tails)

05 = .325" Closed Side Barrier Block

06 = .375" Centerline Barrier Block

07 = .375" Closed Side Barrier Block

08 = .325" Centerline Stacked Block

PART NUMBER LEGEND

Environmental:

Operating temperature: -65°C to + 125°C

APPROVALS AND CERTIFICATIONS:

Select parts recognized under the component program

of Underwriters Laboratories, Inc. No. E163941

Certified by Canadian Standards Association No. LR700747

Verband Deutscher Elektrotechniker (VDE)

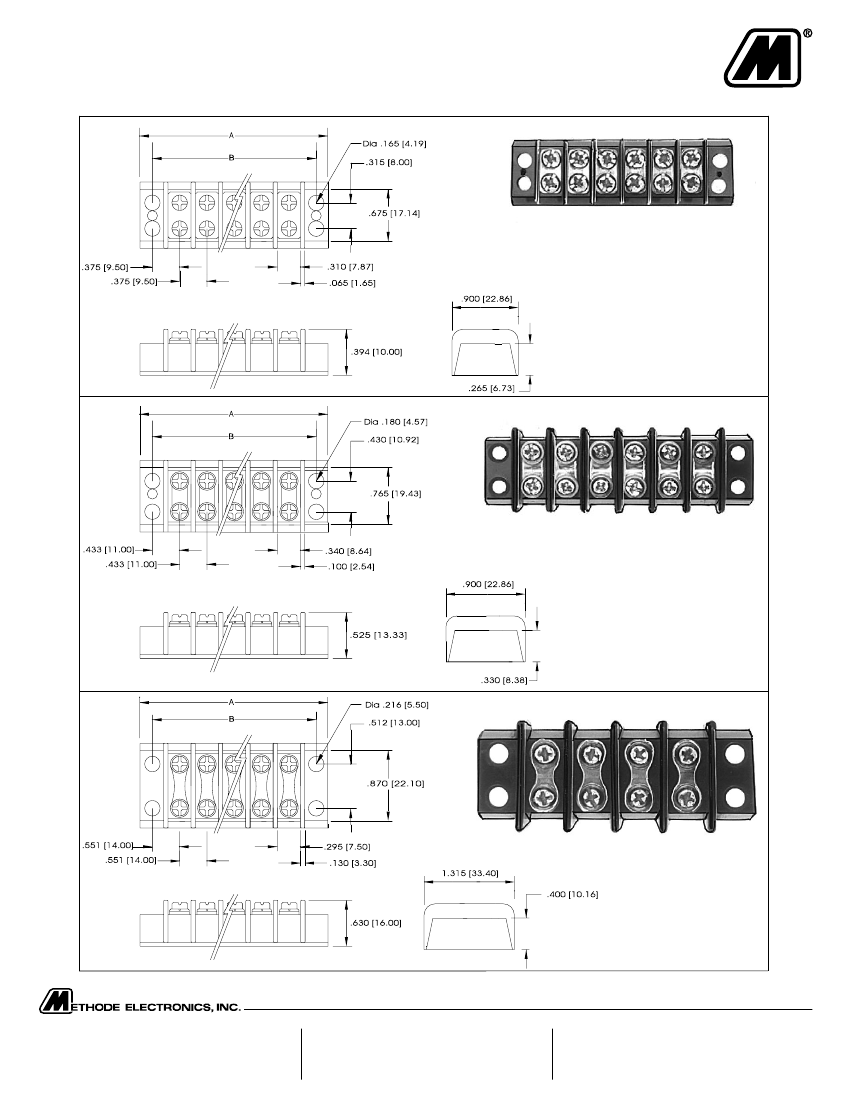

M820-XX-XX-XX

HARDWARE OPTIONS

01 through 19

NUMBER OF POSITIONS

2 through 56

STYLE

01 = .375" Centerline Dual Row

02 = .433" Centerline Dual Row

03 = .551" Centerline Dual Row

North and South America:

Methode Electronics, Inc. Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404

Email: info@methode.com • Web: www.methode.com/connector/index.html

Europe:

Methode Electronics Ireland, Ltd.

Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland

+353 (0) 61 401222 • Fax: +353 (0) 61 401942

Email: info@methode.ie • Web: ireland.methode.com/main.html

Far East:

Methode Electronics Far East, Pte. Ltd.

1 Tuas Lane, Jurong Town • Singapore 638610

65-68615444 • Fax: 65-68614777

Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html
