LM4892IBP

Description
1W, 1 CHANNEL, AUDIO AMPLIFIER, PBGA8, MICRO, SMD-8
CategoryAnalog mixed-signal IC    Consumption circuit
File Size2MB,23 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric Compare View All

LM4892IBP Overview

1W, 1 CHANNEL, AUDIO AMPLIFIER, PBGA8, MICRO, SMD-8

LM4892IBP Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
MakerRochester Electronics
Parts packaging codeBGA
package instructionMICRO, SMD-8
Contacts8
Reach Compliance Codeunknown
Nominal bandwidth80 kHz
Commercial integrated circuit typesAUDIO AMPLIFIER
harmonic distortion2%
JESD-30 codeS-PBGA-B8
JESD-609 codee0
length1.361 mm
Humidity sensitivity level1
Number of channels1
Number of functions1
Number of terminals8
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Nominal output power1 W
Package body materialPLASTIC/EPOXY
encapsulated codeVFBGA
Package shapeSQUARE
Package formGRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)260
Certification statusCOMMERCIAL
Maximum seat height0.95 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2.2 V
surface mountYES
Temperature levelINDUSTRIAL
Terminal surfaceTIN LEAD
Terminal formBALL
Terminal pitch0.5 mm
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
width1.361 mm

LM4892IBP Preview

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu
o
a
r xmu ai s
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
LM4892 1 Watt Audio Power Amplifier with Headphone Sense
October 2002
LM4892
1 Watt Audio Power Amplifier with Headphone Sense
General Description
The LM4892 is an audio power amplifier primarily designed
for demanding applications in mobile phones and other por-
table communication device applications. It is capable of
delivering 1 watt of continuous average power to an 8Ω BTL
load with less than 1% distortion (THD+N) from a 5V
DC
power supply. Switching between bridged speaker mode and
headphone (single-ended) mode is accomplished using the
headphone sense pin.
Boomer audio power amplifiers are designed specifically to
provide high quality output power with a minimal amount of
external components. The LM4892 does not require output
coupling capacitors or bootstrap capacitors, and therefore is
ideally suited for mobile phone and other low voltage appli-
cations where minimal power consumption is a primary re-
quirement.
The LM4892 features a low-power consumption shutdown
mode, which is achieved by driving the shutdown pin with
logic low. Additionally, the LM4892 features an internal ther-
mal shutdown protection mechanism.
The LM4892 contains advanced pop & click circuitry which
eliminates noise which would otherwise occur during turn-on
and turn-off transitions.
The LM4892 is unity-gain stable and can be configured by
external gain-setting resistors.
Key Specifications
j
PSRR at 217Hz, V
DD
= 5V, 8Ω Load
62dB (typ)
1.0W (typ)
400mW (typ)
0.1µA (typ)
j
Power Output at 5.0V & 1% THD
j
Power Output at 3.3V & 1% THD
j
Shutdown Current
Features
n
Available in space-saving packages: LLP, micro SMD,
MSOP, and SOIC
n
Ultra low current shutdown mode
n
BTL output can drive capacitive loads up to 500pF
n
Improved pop & click circuitry eliminates noise during
turn-on and turn-off transitions
n
2.2 - 5.5V operation
n
No output coupling capacitors, snubber networks or
bootstrap capacitors required
n
Thermal shutdown protection
n
Unity-gain stable
n
External gain configuration capability
n
Headphone amplifier mode
Applications
n
Mobile Phones
n
PDAs
n
Portable electronic devices
Typical Application

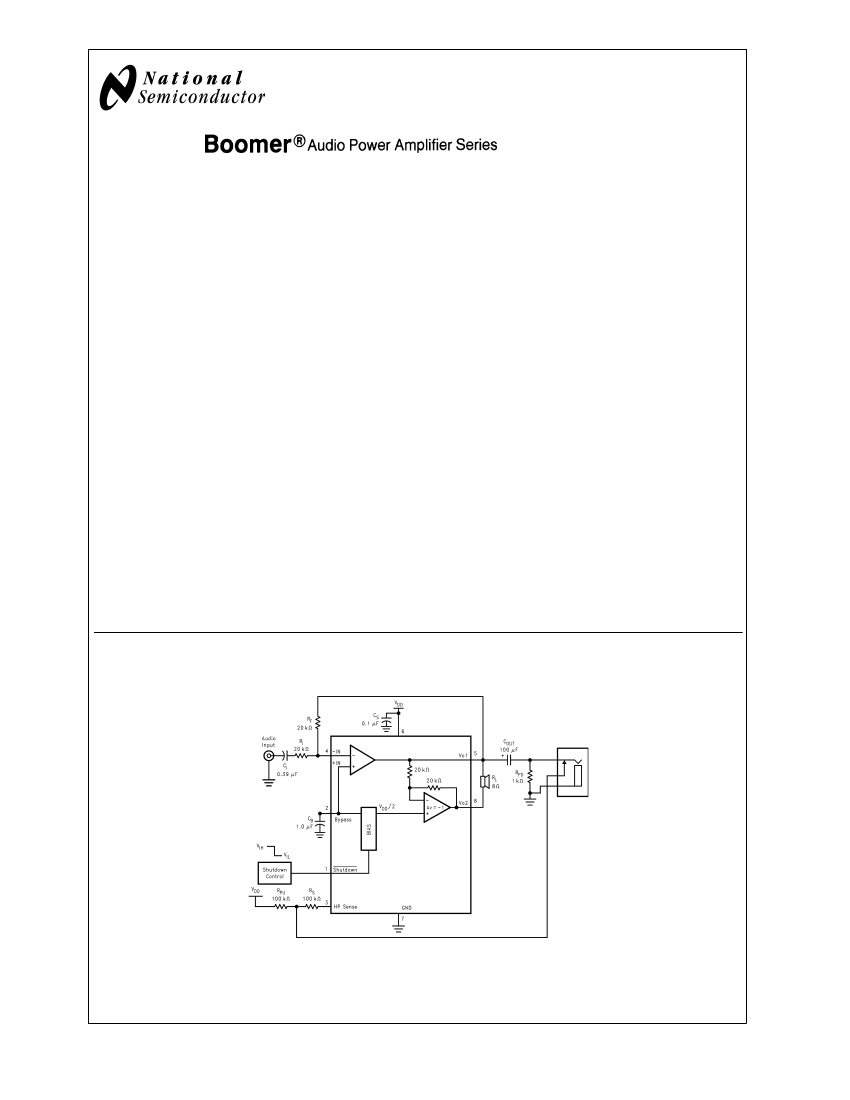

20012701
FIGURE 1. Typical Audio Amplifier Application Circuit (Pin #’s apply to M & MM packages)
Boomer
®
is a registered trademark of National Semiconductor Corporation.
© 2002 National Semiconductor Corporation
DS200127
www.national.com
LM4892

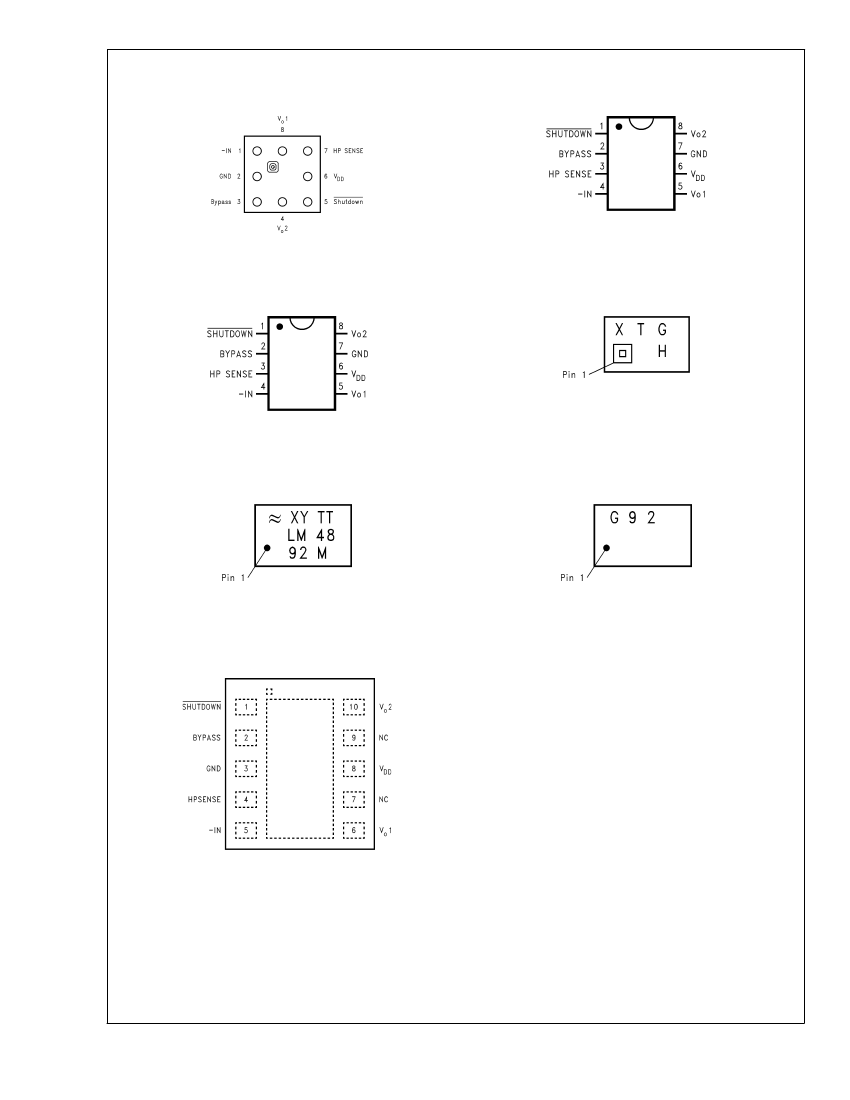

Connection Diagrams
8 Bump micro SMD
Small Outline (SO) Package
20012735
20012723
Top View
Order Number LM4892IBP, LM4892IBPX
See NS Package Number BPA08DDB
Mini Small Outline (MSOP) Package
Top View
Order Number LM4892M
See NS Package Number M08A
micro SMD Marking
20012770
20012736
Top View
Order Number LM4892MM
See NS Package Number MUA08A
SO Marking
Top View
X - Date Code
T - Die Traceability
G - Boomer Family
H - LM4892IBP
MSOP Marking
20012772
20012771
Top View
XY - Date Code
TT - Die Traceability
Bottom 2 lines - Part Number
LLP Package
Top View
G - Boomer Family
92 - LM4892MM
20012789
Top View
Order Number LM4892LD
See NS Package Number LDA10B
www.national.com
2
LM4892
Absolute Maximum Ratings
(Note 2)
θ
JC
(MSOP)
θ
JA
(MSOP)
θ
JA
(LLP)
Soldering Information
See AN-1112 ’microSMD Wafers Level Chip Scale
Package’.
See AN-1187 ’Leadless Leadframe Package (LLP)’.
56˚C/W
190˚C/W
220˚C/W (Note 9)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage
Storage Temperature
Input Voltage
Power Dissipation (Note 3)
ESD Susceptibility (Note 4)
ESD Susceptibility (Note 5)
Junction Temperature
Thermal Resistance
θ
JC
(SOP)
θ
JA
(SOP)
θ
JA
(micro SMD)
35˚C/W
150˚C/W
220˚C/W
6.0V
−65˚C to +150˚C
−0.3V to V
DD
+0.3V
Internally Limited
2500V
250V
150˚C
Operating Ratings
Temperature Range
T
MIN
T
A
T
MAX
Supply Voltage
−40˚C
T
A
85˚C
2.2V
V
DD
5.5V
Electrical Characteristics V
DD
= 5V
The following specifications apply for V
DD
(Notes 1, 2)
= 5V, A
V
= 2, and 8Ω load unless otherwise specified. Limits apply for T
A
= 25˚C.
LM4892
Units
(Limits)
mA (max)
mA (max)
µA (max)
1
90
4
0.8
P
o
= 0.4 W
rms
; f = 1kHz 10Hz
BW
80kHz
V
ripple
= 200mV sine p-p
0.1
62 (f =
217Hz) 66 (f
= 1kHz)
W
mW
V (min)
V (max)
%
Symbol
Parameter
Conditions
V
IN
= 0V, I
o
= 0A, HP sense = 0V
V
IN
= 0V, I
o
= 0A, HP sense = 5V
Vshutdown = GND (Note 8)
THD = 2% (max), f = 1kHz,
R
L
= 8Ω, HP Sense
<
0.8V
THD = 1% (max), f = 1kHz,
R
L
= 32Ω, HP Sense
>
4V
0.1
Typical
(Note 6)
4
2.5
Limit
(Note 7)
10
I
DD
I
SD
Quiescent Power Supply Current
Shutdown Current
P
o
Output Power
V
IH
V
IL
THD+N
PSSR
HP Sense high input voltage
HP Sense low input voltage
Total Harmonic Distortion+Noise
Power Supply Rejection Ratio
dB
Electrical Characteristics V
DD
= 3.3V
The following specifications apply for V
DD
(Notes 1, 2)
= 3.3V, A
V
= 2, and 8Ω load unless otherwise specified. Limits apply for T
A
= 25˚C.
LM4892
Units
(Limits)
mA (max)
mA (max)
µA (max)
W
mW
2.6
0.8
P
o
= 0.15 W
rms
; f = 1kHz 10Hz
BW
80kHz
3
Symbol
Parameter
Conditions
V
IN
= 0V, I
o
= 0A, HP sense = 0V
V
IN
= 0V, I
o
= 0A, HP sense = 3.3V
Vshutdown = GND (Note 8)
THD = 1% (max), f = 1kHz,
R
L
= 8Ω, HP Sense
<
0.8V
THD = 1% (max), f = 1kHz,
R
L
= 32Ω, HP Sense
>
3V
Typical
(Note 6)
3.5
2.0
0.1
0.4
35
Limit
(Note 7)
I
DD
I
SD
Quiescent Power Supply Current
Shutdown Current
P
o
Output Power
V
IH
V
IL
THD+N
HP Sense high input voltage
HP Sense low input voltage
Total Harmonic Distortion+Noise
0.1
V (min)
V (max)
%
www.national.com
LM4892
Electrical Characteristics V
DD
= 3.3V
(Notes 1, 2)
The following specifications apply for V
DD
= 3.3V, A
V
= 2, and 8Ω load unless otherwise specified. Limits apply for T
A
=
25˚C. (Continued)
LM4892
Symbol
PSSR
Parameter
Power Supply Rejection Ratio
Conditions
V
ripple
= 200mV sine p-p
Typical
(Note 6)
60(f = 217Hz)
62 (f = 1kHz)
Limit
(Note 7)
Units
(Limits)
dB
Electrical Characteristics V
DD
= 2.6V
(Notes 1, 2)
The following specifications apply for V
DD
= 2.6V, A
V
= 2, and 8Ω load unless otherwise specified. Limits apply for T
A
= 25˚C.
LM4892
Symbol
Parameter
Conditions
V
IN
= 0V, I
o
= 0A, HP sense = 0V
V
IN
= 0V, I
o
= 0A, HP sense = 2.6V
Vshutdown = GND (Note 8)
THD = 1% (max), f = 1kHz,
R
L
= 8Ω, HP Sense
<
0.8V
P
o
Output Power
THD = 1% (max), f = 1kHz,
R
L
= 4Ω, HP Sense
<
0.8V
THD = 1% (max), f = 1kHz, R
L
=
32Ω, HP Sense
>
2.5V
V
IH
V
IL
THD+N
PSSR
HP Sense high input voltage
HP Sense low input voltage
Total Harmonic Distortion+Noise
Power Supply Rejection Ratio
P
o
= 0.1 W
rms
; f = 1kHz 10Hz
BW
80kHz
V
ripple
= 200mV sine p-p
0.1
44(f = 217Hz)
44 (f = 1kHz)
Typical
(Note 6)
I
DD
I
SD
Quiescent Power Supply Current
Shutdown Current
2.6
1.5
0.1
0.25
0.28
20
2.0
0.8
Limit
(Note 7)
Units
(Limits)
mA (max)
mA (max)
µA (max)
W
W
mW
V (min)
V (max)
%
dB
Note 1:
All voltages are measured with respect to the ground pin, unless otherwise specified.
Note 2:
Absolute Maximum Ratings
indicate limits beyond which damage to the device may occur.
Operating Ratings
indicate conditions for which the device is
functional, but do not guarantee specific performance limits.
Electrical Characteristics
state DC and AC electrical specifications under particular test conditions which
guarantee specific performance limits. This assumes that the device is within the Operating Ratings. Specifications are not guaranteed for parameters where no limit
is given, however, the typical value is a good indication of device performance.
Note 3:
The maximum power dissipation must be derated at elevated temperatures and is dictated by T
JMAX
,
θ
JA
, and the ambient temperature T
A
. The maximum
allowable power dissipation is P
DMAX
= (T
JMAX
–T
A
)/θ
JA
or the number given in Absolute Maximum Ratings, whichever is lower. For the LM4892, see power derating
currents for additional information.
Note 4:
Human body model, 100pF discharged through a 1.5kΩ resistor.
Note 5:
Machine Model, 220pF–240pF discharged through all pins.
Note 6:
Typicals are measured at 25˚C and represent the parametric norm.
Note 7:
Datasheet min/max specification limits are guaranteed by design, test, or statistical analysis.
Note 8:
For micro SMD only, shutdown current is measured in a Normal Room Environment. Exposure to direct sunlight will increase I
SD
by a maximum of 2µA.
Note 9:
The Exposed-DAP of the LDA10B package should be electrically connected to GND or an electrically isolated copper area. The LM4892LD demo board
(views featured in the
Application Information
section) has the Exposed-DAP connected to GND with a PCB area of 353mils x 86.7mils (8.97mm x 2.20mm) on
the copper top layer and 714.7mils x 368mils (18.15mm x 9.35mm) on the copper bottom layer.
External Components Description
(Figure
1)
Components
1.
2.
R
i
C
i
Functional Description
Inverting input resistance which sets the closed-loop gain in conjunction with R
f
. This resistor also forms a
high pass filter with C
i
at f
C
= 1/(2π R
i
C
i
).
Input coupling capacitor which blocks the DC voltage at the amplifiers input terminals. Also creates a
highpass filter with R
i
at f
c
= 1/(2π R
i
C
i
). Refer to the section,
Proper Selection of External Components,
for an explanation of how to determine the value of C
i
.
Feedback resistance which sets the closed-loop gain in conjunction with R
i
.
3.
R
f
www.national.com
4

LM4892IBP Related Products

LM4892IBP LM4892IBPX
Description 1W, 1 CHANNEL, AUDIO AMPLIFIER, PBGA8, MICRO, SMD-8 1W, 1 CHANNEL, AUDIO AMPLIFIER, PBGA8, MICRO, SMD-8
Is it lead-free? Contains lead Contains lead
Maker Rochester Electronics Rochester Electronics
Parts packaging code BGA BGA
package instruction MICRO, SMD-8 MICRO, SMD-8
Contacts 8 8
Reach Compliance Code unknown unknown
Nominal bandwidth 80 kHz 80 kHz
Commercial integrated circuit types AUDIO AMPLIFIER AUDIO AMPLIFIER
harmonic distortion 2% 2%
JESD-30 code S-PBGA-B8 S-PBGA-B8
JESD-609 code e0 e0
length 1.361 mm 1.361 mm
Humidity sensitivity level 1 1
Number of channels 1 1
Number of functions 1 1
Number of terminals 8 8
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Nominal output power 1 W 1 W
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code VFBGA VFBGA
Package shape SQUARE SQUARE
Package form GRID ARRAY, VERY THIN PROFILE, FINE PITCH GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius) 260 260
Certification status COMMERCIAL COMMERCIAL
Maximum seat height 0.95 mm 0.95 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V
Minimum supply voltage (Vsup) 2.2 V 2.2 V
surface mount YES YES
Temperature level INDUSTRIAL INDUSTRIAL
Terminal surface TIN LEAD TIN LEAD
Terminal form BALL BALL
Terminal pitch 0.5 mm 0.5 mm
Terminal location BOTTOM BOTTOM
Maximum time at peak reflow temperature NOT SPECIFIED 40
width 1.361 mm 1.361 mm
What does your girlfriend (wife) think of your playing games?
Dear forum friends, do you have the habit of playing games every day? How long do you usually play games? Do you think there are any benefits to playing games? What does your girlfriend (wife) think o...
maylove Talking
Where can I report?
Where can I report?...
qxz119 Talking
Use SensorTag+MSP430 to collect environmental parameters, and LabVIEW host computer displays
[align=center][b][size=5]Use SensorTag+MSP430 to collect environmental parameters, and display them on the host computer using LabVIEW[/size][/b][/align] Use MSP430MCU to collect environmental paramet...
在路上的旁观者 Wireless Connectivity
One egg a day
...
Irenewei Embedded System
Selecting Voltage Detectors, Supervisors, and Reset ICs for System Safety
[align=left][color=#000]Reprinted from: deyisupport[/color][/align][font=normal 宋体, Arial, Helvetica, sans-serif][color=#000000][size=12px]Selecting Voltage Detectors, Supervisors, and Reset ICs for S...
okhxyyo Analogue and Mixed Signal
STM32F407 PWM output pulse number
How to implement accurate PWM output pulse count on TIM1 of STM32F407...
霹雳火 stm32/stm8

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 2301  414  448  912  2280  47  9  10  19  46
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
