B40C80PBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B40C80PBF

B40C80PBF: DescriptionRectifier Diode, 1 Phase, 2 Element, 40A, 800V V(RRM), Silicon, POWER MODULE-3; CategoryDiscrete semiconductor diode; File Size164KB，6 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

B40C80PBF Overview

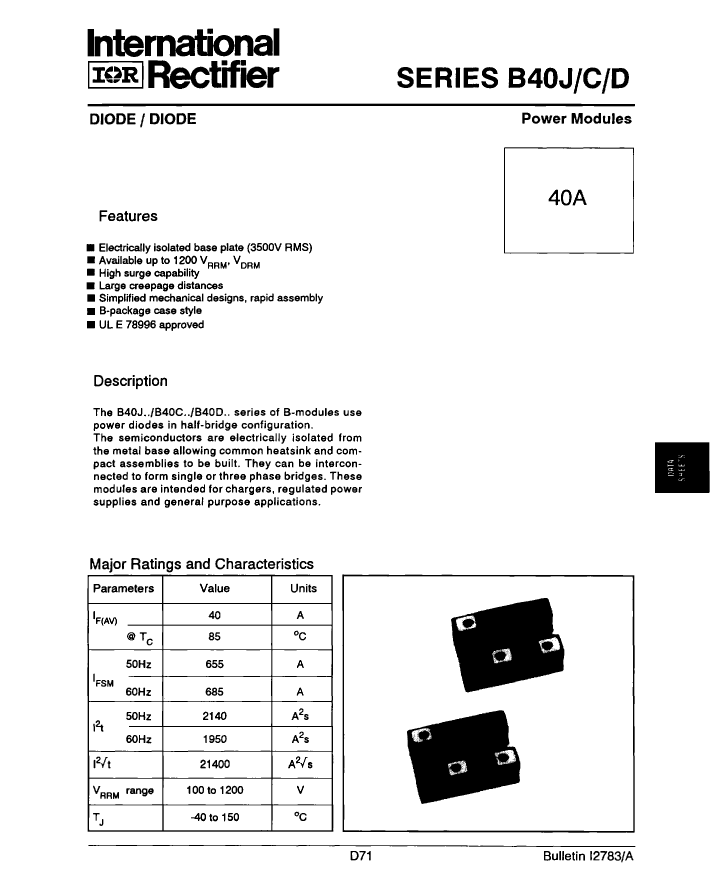

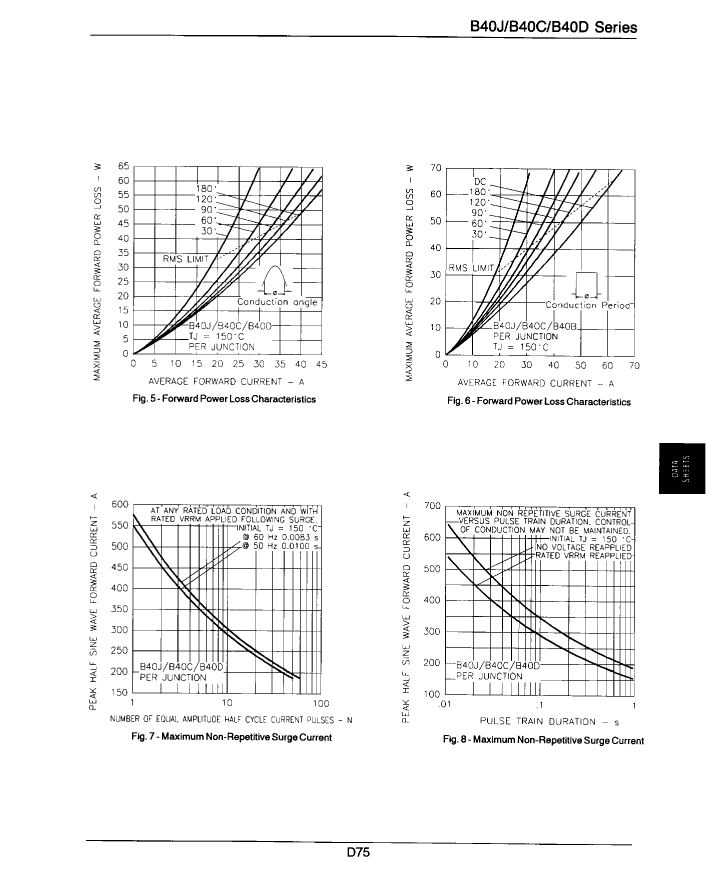

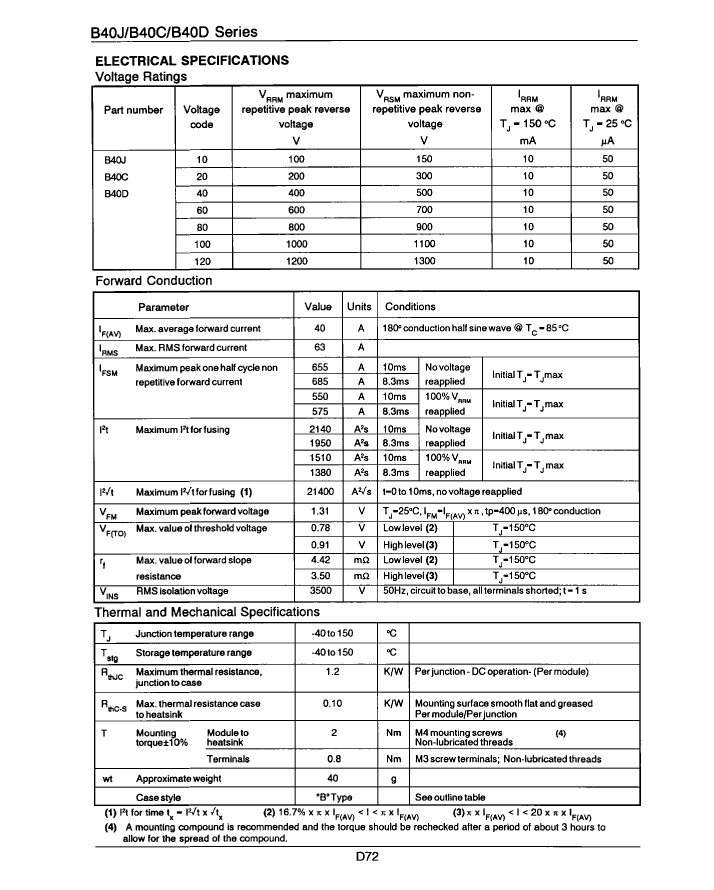

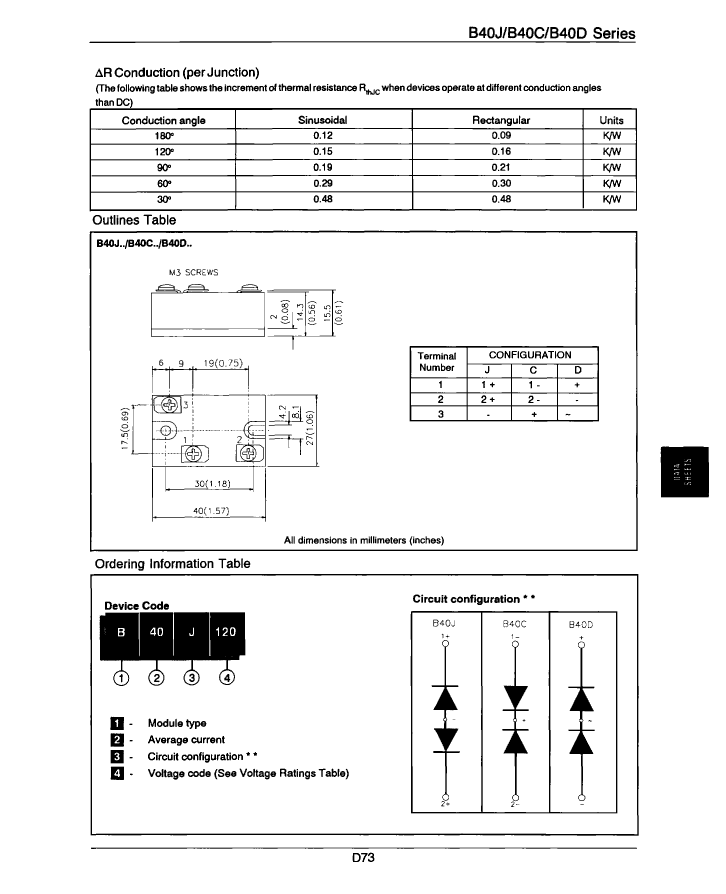

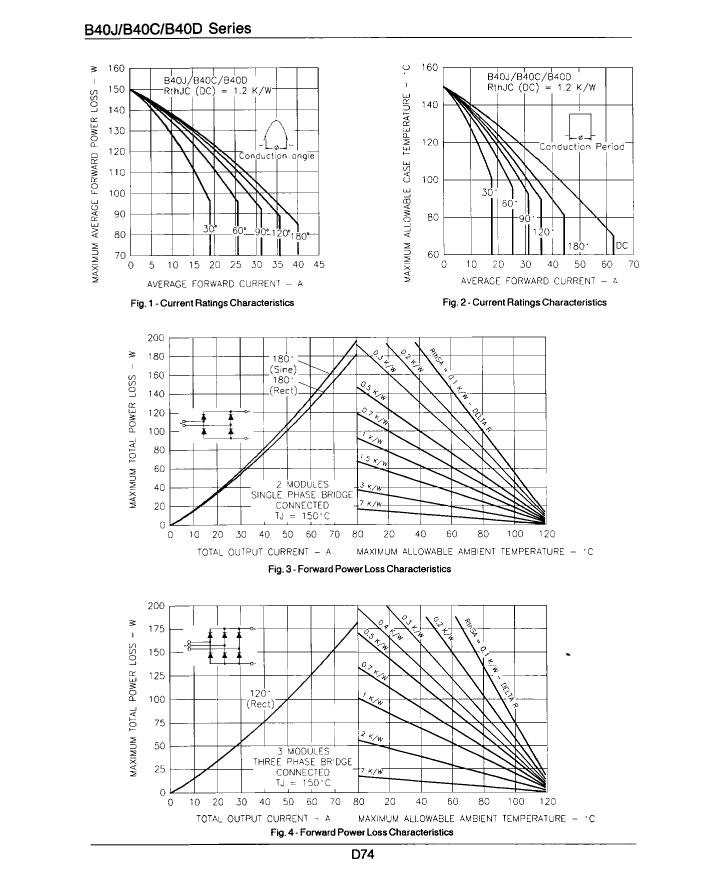

Rectifier Diode, 1 Phase, 2 Element, 40A, 800V V(RRM), Silicon, POWER MODULE-3

B40C80PBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
Parts packaging code	MODULE
package instruction	R-PUFM-X3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
application	POWER
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.31 V
JESD-30 code	R-PUFM-X3
Maximum non-repetitive peak forward current	685 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	40 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	50 µA
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

B40C80PBF Related Products

	B40C80PBF	B40C120PBF	B40C60PBF	B40C100PBF	B40C20PBF	B40C40PBF	B40C10PBF
Description	Rectifier Diode, 1 Phase, 2 Element, 40A, 800V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 1200V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 600V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 1000V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 200V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 400V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 100V V(RRM), Silicon, POWER MODULE-3
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
application	POWER	POWER	POWER	POWER	POWER	POWER	POWER
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.31 V	1.31 V	1.31 V	1.31 V	1.31 V	1.31 V	1.31 V
JESD-30 code	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3
Maximum non-repetitive peak forward current	685 A	685 A	685 A	685 A	685 A	685 A	685 A
Number of components	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	40 A	40 A	40 A	40 A	40 A	40 A	40 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	1200 V	600 V	1000 V	200 V	400 V	100 V
Maximum reverse current	50 µA	50 µA	50 µA	50 µA	50 µA	50 µA	50 µA
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	40	40	40	40	40	40	40
Base Number Matches	-	1	1	1	1	1	-
