GD74LS27 datasheet, PDF - EEWORLD Datasheet

GD74LS27: DescriptionNOR Gate, LS Series, 3-Func, 3-Input, TTL, PDIP14,; Categorylogic logic; File Size48KB，2 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric Compare View All

GD74LS27 Overview

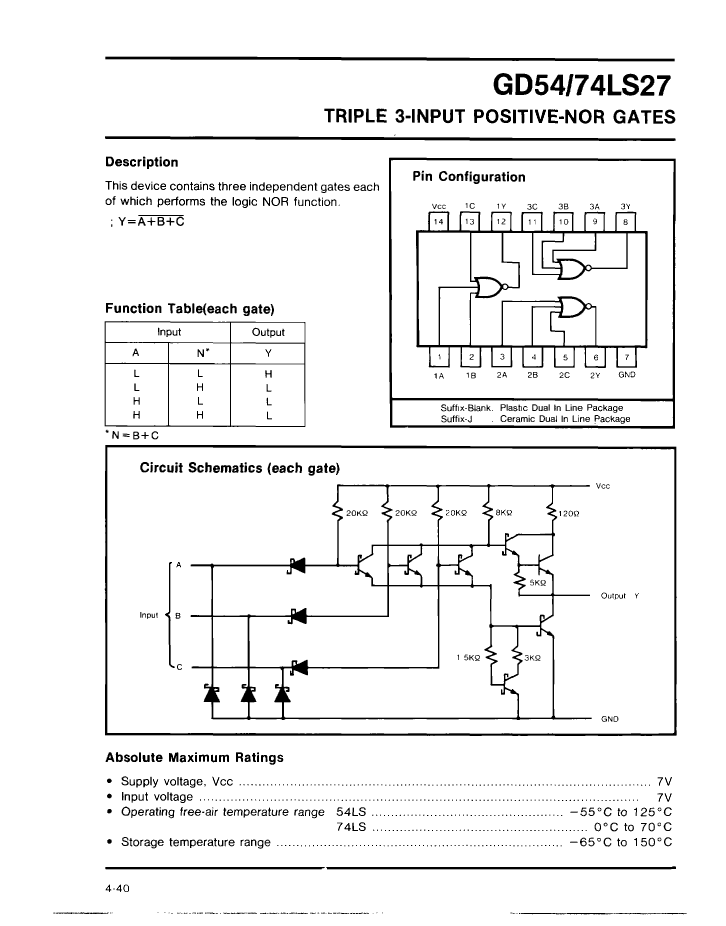

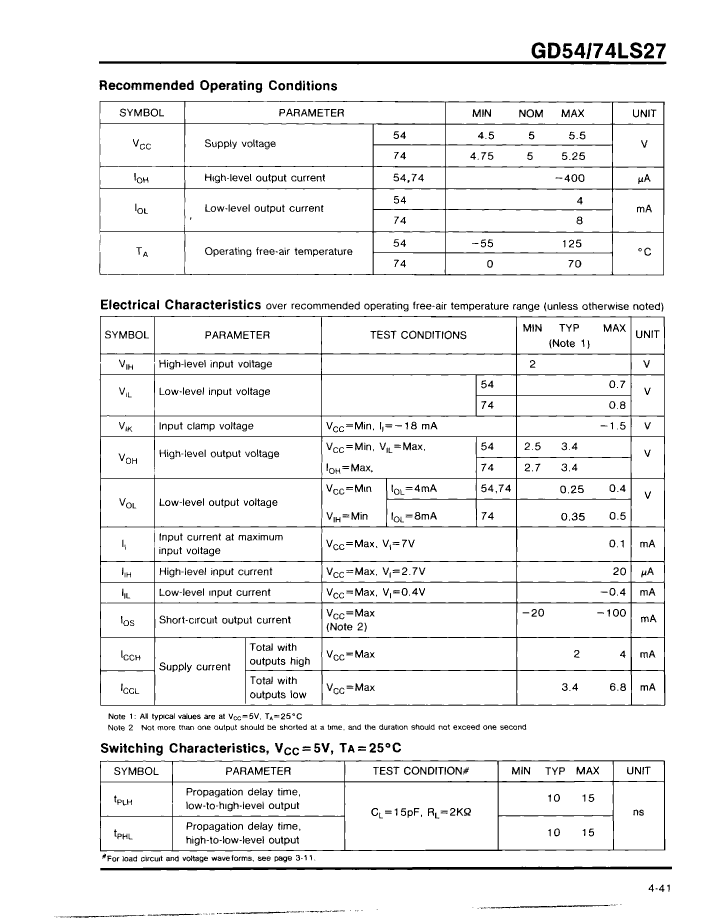

NOR Gate, LS Series, 3-Func, 3-Input, TTL, PDIP14,

Parameter Name	Attribute value
Maker	Goldstar Electron Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T14
Load capacitance (CL)	15 pF
Logic integrated circuit type	NOR GATE
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	6.8 mA
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	GD74LS27	SLVU2.8-4_V01	GD54LS27J	GD74LS27J
Description	NOR Gate, LS Series, 3-Func, 3-Input, TTL, PDIP14,	Ultra Low Capacitance Bi-Directional TVS Diode Array	NOR Gate, LS Series, 3-Func, 3-Input, TTL, CDIP14,	NOR Gate, LS Series, 3-Func, 3-Input, TTL, CDIP14,
Reach Compliance Code	unknown	-	unknown	unknown
series	LS	-	LS	LS
JESD-30 code	R-PDIP-T14	-	R-CDIP-T14	R-CDIP-T14
Load capacitance (CL)	15 pF	-	15 pF	15 pF
Logic integrated circuit type	NOR GATE	-	NOR GATE	NOR GATE
Number of functions	3	-	3	3
Number of entries	3	-	3	3
Number of terminals	14	-	14	14
Maximum operating temperature	70 °C	-	125 °C	70 °C
Package body material	PLASTIC/EPOXY	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	IN-LINE	IN-LINE
Maximum supply current (ICC)	6.8 mA	-	6.8 mA	6.8 mA
propagation delay (tpd)	15 ns	-	15 ns	15 ns
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	-	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	-	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V
surface mount	NO	-	NO	NO
technology	TTL	-	TTL	TTL
Temperature level	COMMERCIAL	-	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	-	DUAL	DUAL
