DIP-1998-02-4701-G

Description
Array/Network Resistor, Isolated, 0.1W, 4700ohm, 2% +/-Tol, -50,50ppm/Cel, 8025
CategoryPassive components    The resistor
File Size65KB,2 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Environmental Compliance
Download Datasheet Parametric View All

DIP-1998-02-4701-G Overview

Array/Network Resistor, Isolated, 0.1W, 4700ohm, 2% +/-Tol, -50,50ppm/Cel, 8025

DIP-1998-02-4701-G Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTT Electronics plc
Reach Compliance Codecompliant
ECCN codeEAR99
structureEpoxy Encapsulated
JESD-609 codee4
Lead length3.43 mm
lead spacing2.54 mm
Manufacturer's serial number1998(GTOL)
Network TypeIsolated
Number of terminals16
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package height2.032 mm
Package length20.32 mm
Package formDIP
Package width6.35 mm
method of packingMagazine
Rated power dissipation(P)0.1 W
GuidelineMIL-PRF-83401
resistance4700 Ω
Resistor typeARRAY/NETWORK RESISTOR
series1998 (G TOL)
size code8025
Temperature Coefficient-50,50 ppm/°C
Terminal surfaceGold (Au)
Tolerance2%

DIP-1998-02-4701-G Preview

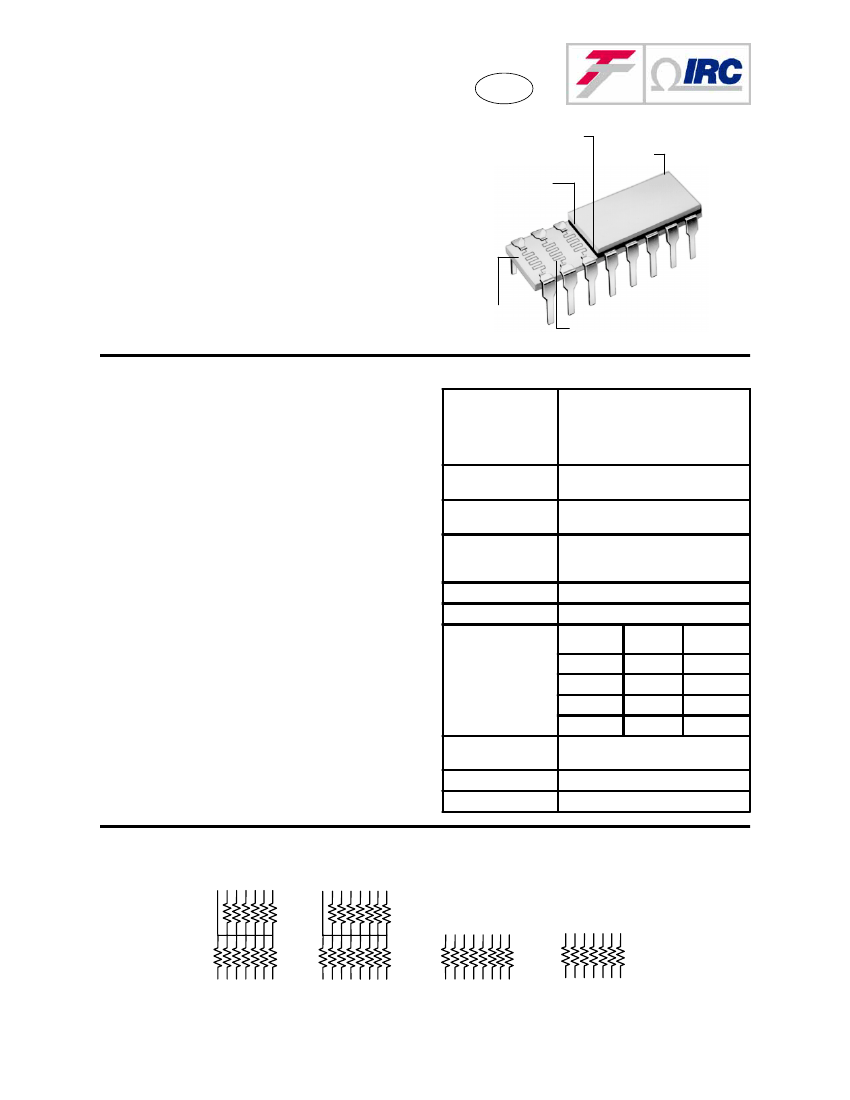

TANFILM
®
DIP RESISTOR
NETWORK
ISO-9001
Registered
1900
SERIES
MIL qualified to MIL-PRF-83401/01 & /02
and MIL-PRF-83401/13 & /14
MIL spec qualified to 0.1% tolerance, ±0.02% available
MIL spec qualified to ±50 ppm/°C, ±10 ppm/°C available
Superior TCR tracking to ±2 ppm/°C
Ratios available to ±0.01%
Special mechanical and electrical configurations
Self passivation layer
and
coating system provides
ceramic lid
Lid and ceramic
substrate totally
filled
Alumina
ceramic
substrate
Sputtered tantalum nitride resistance
TaNFilm
®
resistor networks are designed for use
in applications requiring a high degree of reliabil-
ity, stability, tight tolerance, close TCR tracking,
and low noise. Our continuous feed, high vacuum
sputtering process insures uniform properties
from network to network. Precise state-of-the-
art laser trimming enables us to easily zero in
the tightest ratios. Gold-plated nickel copper
leads are thermal pulse bonded to large-area gold
pads on the ceramic substrate assuring the most
reliable termination and long-term stability. Pas-
sivated tantalum nitride resistor material offers
performance far superior to military specifica-
tions and excellent environment protection.
The versatile nature of our photo-etch process
makes it readily adaptable to meet special cus-
tomer requirements. Custom circuit designs and
special mechanical configurations can be easily
achieved with a modest set up charge. Full mili-
tary screening is also available with all units.
SPECIFICATIONS
Mil Qualified
Resistance Ranges
(S)
Schematic A: 50 to 100K
Schematic B: 50 to 100K
Higher and lower resistance
values available
0.1, 0.25, 0.5, 1, 2
(0.02 available)
±10, ±15, ±25, ±50, ±100, ±300
±5 ppm/°C, except Models 1987 and
1998 below 500S ( ±20 ppm/°C)
±2 ppm/°C available
-55°C to +150°C
Less than -30 db
Model
Power Rating @
70°C (watts)
1987
1998
1989
1999
Lead Material
Resistor
0.1
0.1
0.2
0.2
Network
1.3
1.5
1.4
1.6
Standard Resistance
Tolerance (±%)
Temperature
Coefficient (ppm/°C)
TCR Tracking
Temperature Range
Noise Level
Gold Plated Copper
(Solder tin available)
99.6% pure alumina ceramic
Ceramic sandwich epoxy encapsulant
Custom Circuits and special testing available.
Contact factory for any special features required.
Substrate Material
Construction
STANDARD CIRCUITS
"
&
$
'
$
'
"
&
4


%
4


&
4


&
4


%
Model 1987
RZ010, RZ130
Schematic B
Model 1998
RZ020, RZ140
Schematic B
Model 1999
RZ020, RZ140
Schematic A
Model 1989
RZ010, RZ130
Schematic A
ADVANCED FILM DIVISION
4222 South Staples Street
Corpus Christi, Texas 78411
Tel: 512-992-7900
Fax: 512-992-3377
www.irctt.com
ISO-9001
Registered
1900 SERIES ENVIRONMENTAL TESTING
Test Per MIL-PRF-83401
Thermal Shock and Power Conditioning
Low Temperature Operation
Short Term Overload
Terminal Strength
Resistance to Solder Heat
Moisture Resistance
Shock
Vibration
Life
High Temperature Exposure
Low Temperature Storage
25°C Double Load
MIL-PRF-83401 Limits ()R%)
)
M
0.7
0.5
0.5
0.25
0.25
0.5
0.25
0.25
2.0
1.0
0.5
2.0
K
0.7
0.25
0.25
0.25
0.25
0.5
0.25
0.25
0.5
0.5
0.25
0.5
H
0.5
0.1
0.1
0.1
0.1
0.4
0.25
0.25
0.5
0.2
0.1
0.5
TaNFilm Test Data ()R%)
)
Max
Typical
0.1
0.02
0.1
0.02
0.05
0.02
0.1
0.02
0.1
0.02
0.1
0.02
0.1
0.02
0.1
0.02
0.1
0.02
0.1
0.02
0.1
0.02
0.05
0.02

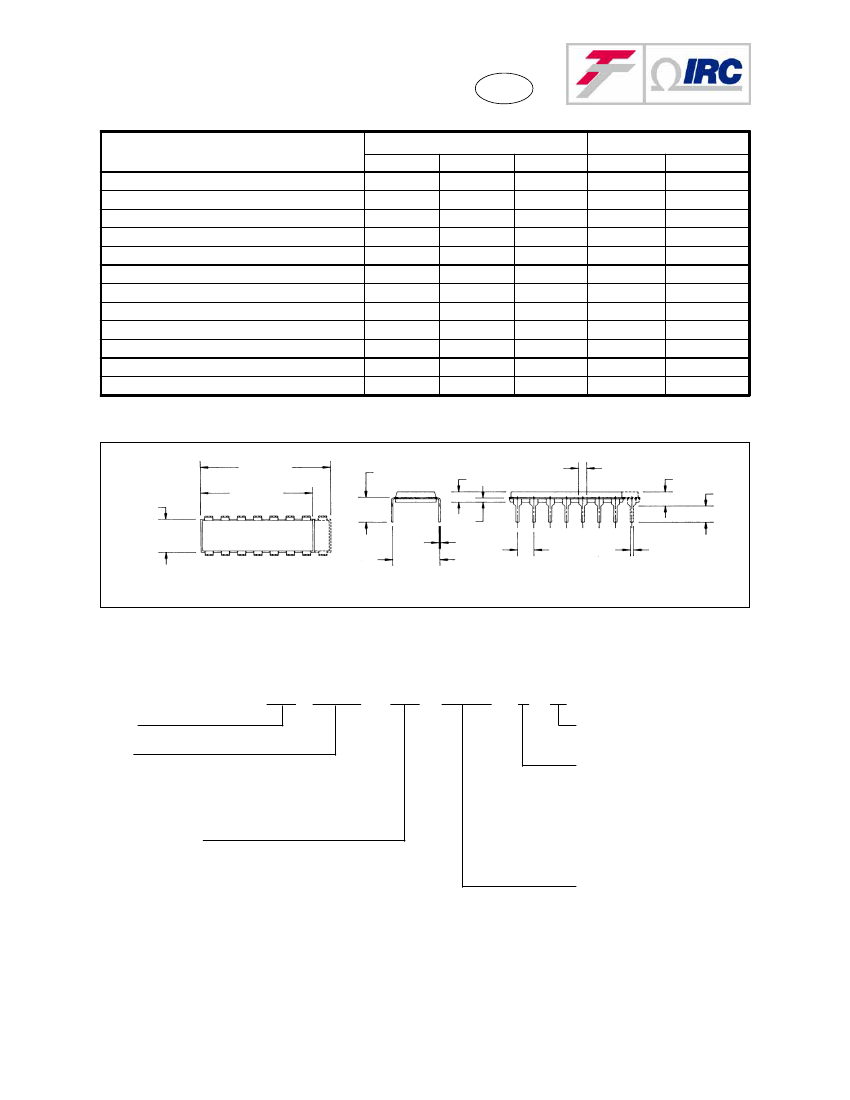

DIMENSIONS
(Inches)
0.800±.020
0.700±.020
0.250±.010
.025
0.105
±.02
0.205
.050±.001
0.08 max.
0.135
-.010
0.100±.005 Typ.
0.300
.020±.001 Typ.
HOW TO ORDER
Sample Part No
Family
Model
1989=MIL-PRF-83401/01 & /13, 14 Pin, Schematic A
1987=MIL-PRF-83401/01 & /13, 14 Pin, Schematic B
1999=MIL-PRF-83401/02 & /14, 16 Pin, Schematic A
1998=MIL-PRF-83401/02 & /14, 16 Pin, Schematic B
TCR Code (ppm/°C)
Code
Classification
01
Commercial Grade
02
Commercial Grade
03
Commercial Grade
04
MIL-PRF-83401M
05
MIL-PRF-83401K
06
MIL-PRF-83401H
07
MIL-Screened
DIP - 1 9 9 9* - 0 6 - 1 0 0 1 - B - X
Ratio Tolerance to R
1
(if specified)
Absolute Tolerance
Standard MIL tolerance code
Absolute/Ratio Tolerance Code
A=±0.05%; B=±0.1%; C=±0.25%;
D=±0.5%; F=±1.0%;G=±2.0%;
Q=±0.02%; T=0.01%
TCR (ppm/°C)
±100
±50
±25
±300
±100
±50
±25
Resistance
Standard MIL resistance code.
Example: 1001 = 1000 ohms
*
For High Rel styles RZ130 and RZ140
add “HR” after the model number.
ADVANCED FILM DIVISION
4222 South Staples Street
Corpus Christi, Texas 78411
Tel: 512-992-7900
Fax: 512-992-3377
www.irctt.com
