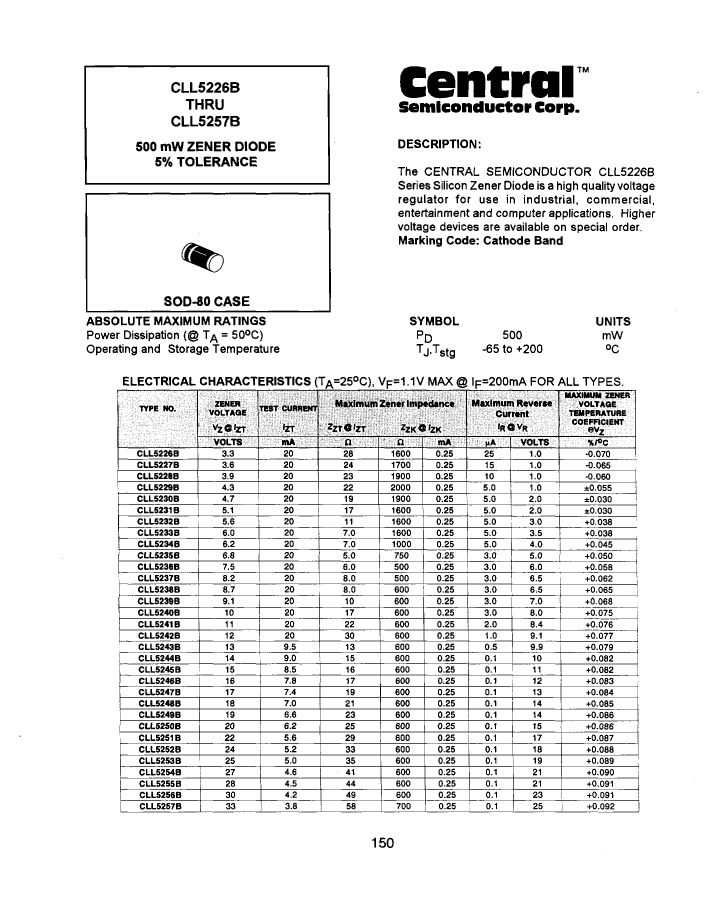

CLL5248BTR datasheet, PDF - EEWORLD Datasheet

CLL5248BTR: DescriptionZener Diode, 18V V(Z), 5%, 0.5W, Silicon, Unidirectional,; CategoryDiscrete semiconductor diode; File Size69KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

CLL5248BTR Overview

Zener Diode, 18V V(Z), 5%, 0.5W, Silicon, Unidirectional,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	O-LELF-R2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	INDUSTRY STANDARD
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	21 Ω
JESD-30 code	O-LELF-R2
JESD-609 code	e0
Maximum knee impedance	600 Ω
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	18 V
Maximum reverse current	0.1 µA
surface mount	YES
technology	ZENER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Voltage temperatureCoeff-Max	15.3 mV/°C
Maximum voltage tolerance	5%
Working test current	7 mA
