821-IF140.0M-15A datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> 821-IF140.0M-15A

821-IF140.0M-15A: Description140.0 MHz IF SAW Filter 15.90 MHz Bandwidth; CategoryAnalog mixed-signal IC filter; File Size436KB，6 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com; Environmental Compliance

Download Datasheet Parametric View All

821-IF140.0M-15A Overview

140.0 MHz IF SAW Filter 15.90 MHz Bandwidth

821-IF140.0M-15A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Oscilent
Reach Compliance Code	compli
Is Samacsys	N
Center frequency or cutoff frequency (fo/fc)	140 MHz
filter type	SAW FILTER
high	2 mm
input resistance	50 OHM
Maximum insertion loss	24 dB
Manufacturer's serial number	821-IF140.0M-15A
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output impedance	50 OHM Ω
physical size	L20.0XB9.8XH1.8 (mm)/L0.787XB0.386XH0.071 (inch)
Base Number Matches	1

Preview

Download Datasheet

View All

Oscilent Corporation

PRODUCT SPECIFICATION

REV A January 2011

Oscilent Controlled Document

Ordering Code / Part Number

Product Description

821-IF140.0M-15A

140.0 MHz IF SAW Filter 15.90 MHz Bandwidth

Specification Contents

Mechanical Dimensions

Test Circuit

Maximum Ratings

Electrical Specification

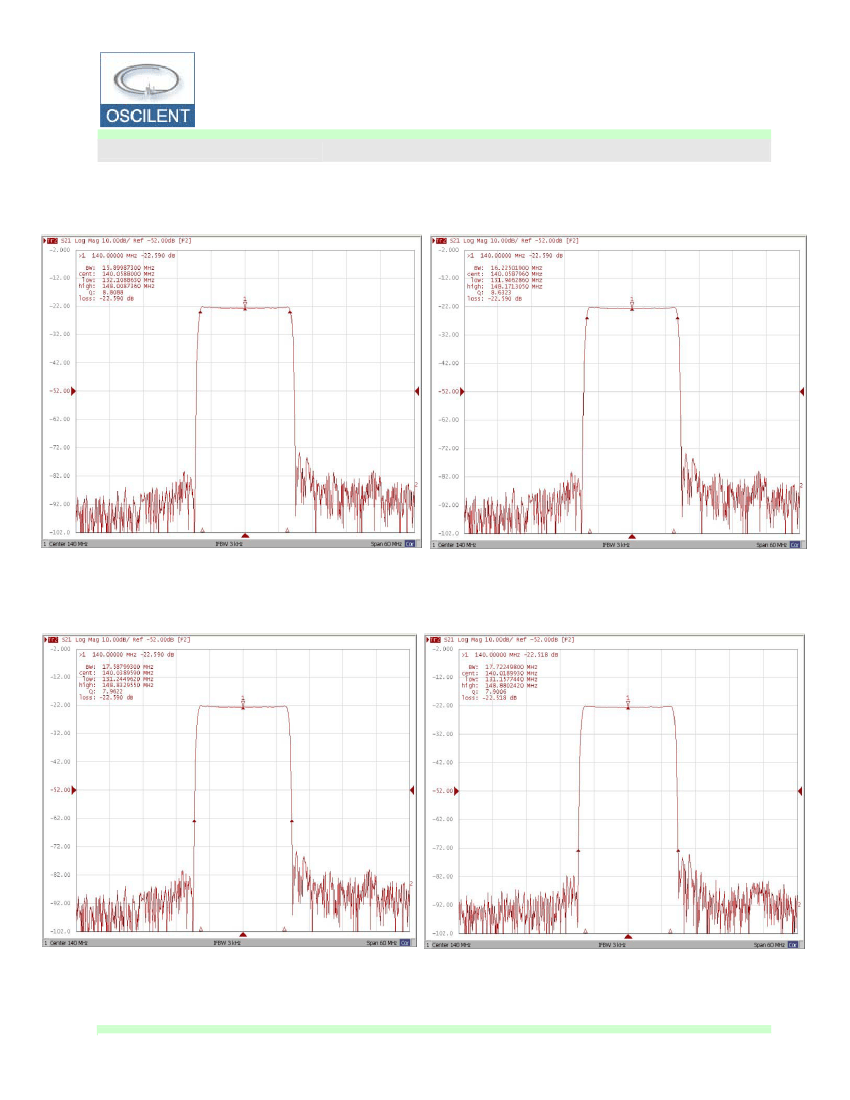

Frequency Response

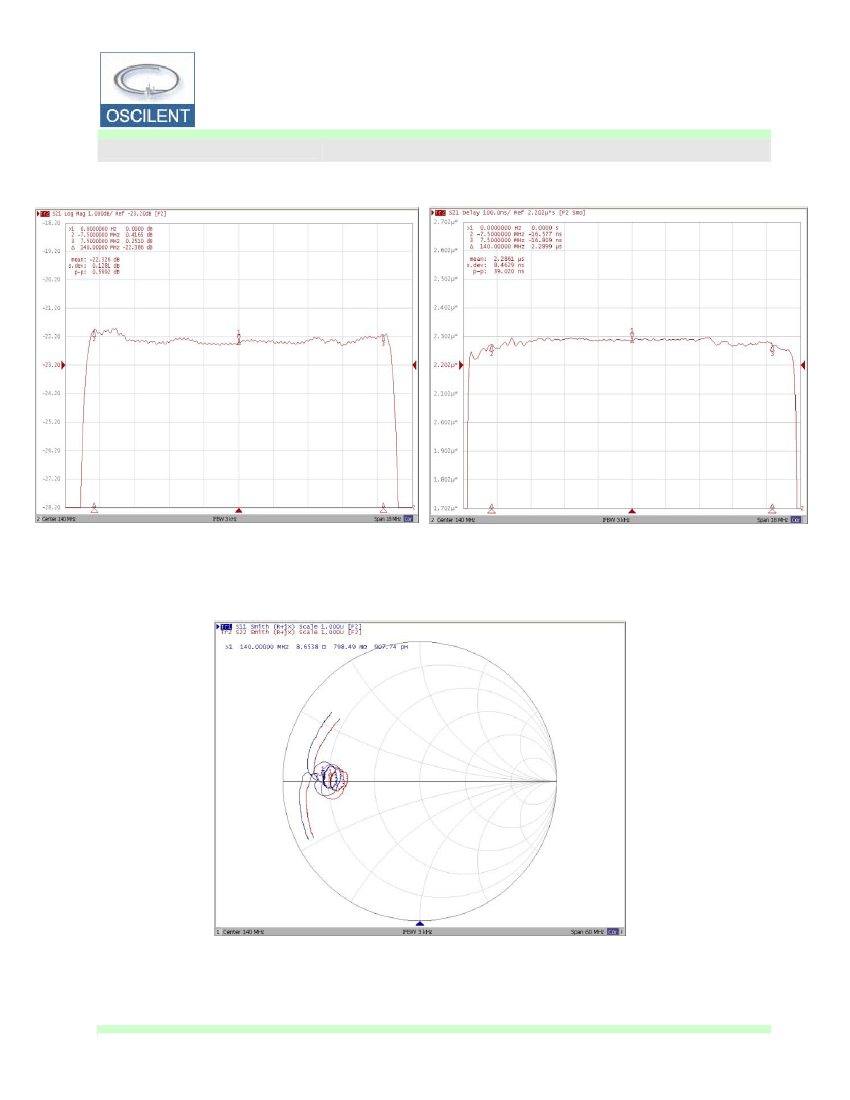

Smith Chart

VSWR

Notes

Electrostatic Sensitive Device (ESD)

Avoid excessive ultrasonic exposure

Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature

This product complies with EU directive 2002/95/EC (RoHS compliance)

Oscilent Corporation

Telephone: 1.949.252.0522

Fax: 1.949.252.0522

Email: sales@oscilent.com

Product Specification

www.oscilent.com
