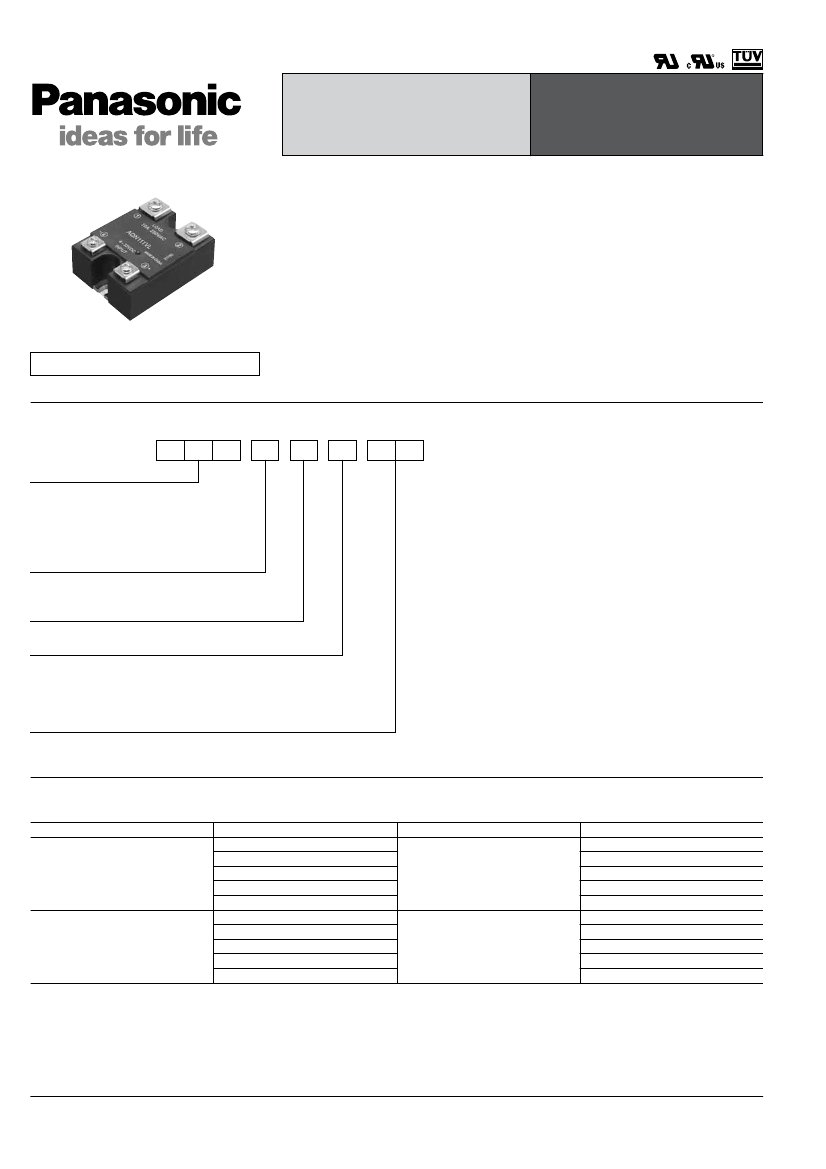

AQ-N
High capacity SSR
up to 40A
with wide variation
AQ-N RELAYS
TYPICAL APPLICATIONS
1. Molding machine (heater control)
2. Temperature controlled bath (heater
control)
3. Printing machines (heater control)
4. Wrapping and packing machine
(heater control)
5. Machine tools (Motor control)
FEATURES
1. Five types available from 10A to 40A
2. Built-in varistor
3. Includes operation LED (red)
4. Dielectric voltage of 4,000V
5. 4 to 32V DC input voltage
6. Both zero-cross and random types
available
Compliance with RoHS Directive
ORDERING INFORMATION
A
AQ-N Solid State Relays
Load current
1: 10 A
2: 15 A
3: 20 A
4: 25 A
6: 40 A
Load voltage
1: 75 to 250 V AC, Zero-cross
2: 75 to 250 V AC, Random
Input voltage
1: 4 to 32 V DC
Function
Nil: None
V: Built-in varistor
L: With LED indication
VL: Built-in varistor and with LED indication
Q
N
TYPES
1. Standard type
Type
Load current
10A
15A
20A
25A
40A
10A
15A
20A
25A
40A
Load voltage
Part No.
AQN111
AQN211
AQN311
AQN411
AQN611
AQN121
AQN221
AQN321
AQN421
AQN621
Zero-cross type
75 to 250V AC
Random type
75 to 250V AC
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
AQ-N
2. With LED indication type
Type
Load current
10A
Zero-cross type
15A
20A
25A
40A
10A
15A
20A
25A
40A
75 to 250V AC
Load voltage
Part No.
AQN111L
AQN211L
AQN311L
AQN411L
AQN611L
AQN121L
AQN221L
AQN321L
AQN421L
AQN621L
Random type
75 to 250V AC
3. With varistor type
Type
Load current
10A
15A
20A
25A
40A
10A
15A
Random type
20A
25A
40A
75 to 250V AC
Load voltage
Part No.
AQN111V
AQN211V
AQN311V
AQN411V
AQN611V
AQN121V
AQN221V
AQN321V
AQN421V
AQN621V
Zero-cross type
75 to 250V AC
4. With varistor and LED indication type
Type
Load current
10A
15A
20A
25A
40A
10A
15A
20A
25A
40A
Load voltage
Part No.
AQN111VL
AQN211VL
AQN311VL
AQN411VL
AQN611VL
AQN121VL
AQN221VL
AQN321VL
AQN421VL
AQN621VL
Zero-cross type
75 to 250V AC
Random type
75 to 250V AC
Standard packing; carton: 2 pcs., case: 100 pcs.
5. Accessories
Type
Standard heat sink (10A, 15A and 20A)
Standard heat sink (25A)
Standard heat sink (40A)
Slim heat sink (45mm wide) (Mountable on a DIN rail)
DIN rail mounting plate
Terminal cover
Part No.
AQP-HS-J10A
AQP-HS-30/40A
AQP-HS-J25A
AQP-HS-SJ20A
AQP-DP
AQP-NPC
Packaged quantity
5 in a carton, 20 in a case
5 in a carton, 20 in a case
No carton, 5 in a case
No carton, 8 in a case
10 in a carton, 100 in a case
2 in a carton, 100 in a case
RATINGS
1. Ratings (Measurement condition: at 20°C
68°F,
Input ripple: 1% or less)
1) Zero-cross type
Type
Item
Part No.
Input voltage
Input current
Drop-out voltage
Max. load current
Load voltage
Frequency
Non-repetitive surge current
Max. “OFF-state” leakage current
Max. “ON-state” voltage drop
Min. load current
10A
AQN111
AQN111L
AQN111V
AQN111VL
15A
AQN211
AQN211L
AQN211V
AQN211VL
20A
AQN311
AQN311L
AQN311V
AQN311VL
4 to 32V
Max. 20mA
Min. 1V
20A
75V to 250V
45Hz to 65Hz
200A
Max. 10mA
1.6V
100mA
25A
AQN411
AQN411L
AQN411V
AQN411VL
40A
AQN611
AQN611L
AQN611V
AQN611VL
*1
*1
25A
40A
*2
Remarks
Input side
10A
15A
Output side
100A
150A
250A
400A
In one cycle at 60Hz *3
at 60Hz
at Max. carrying current
*4
Notes: *1.
*2.
*3.
*4.
Please refer to REFERENCE DATA, “3. Input current vs. input voltage”.
Please refer to REFERENCE DATA, “1. Load current vs. ambient temperature”.
Please refer to REFERENCE DATA, “2. Non-repetitive surge current vs. carrying time”.
When the load current is less than the rated minimum load current, please refer to “Cautions for Use of SSR”.
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
AQ-N
2) Random type
Type
Item
Part No.
Input voltage
Input current
Drop-out voltage
Max. load current
Load voltage
Frequency
Non-repetitive surge current
Max. “OFF-state” leakage current
Max. “ON-state” voltage drop
Min. load current
Notes: *1.
*2.
*3.
*4.
10A
AQN121
AQN121L
AQN121V
AQN121VL
15A
AQN221
AQN221L
AQN221V
AQN221VL
20A
AQN321
AQN321L
AQN321V
AQN321VL
4 to 32V
Max. 20mA
Min. 1V
20A
75V to 250V
45Hz to 65Hz
200A
Max. 10mA
1.6V
100mA
25A
AQN421
AQN421L
AQN421V
AQN421VL
40A
AQN621
AQN621L
AQN621V
AQN621VL
*1
*1
25A
40A
*2
Remarks
Input side
10A
15A
Output side
100A
150A
250A
400A
In one cycle at 60Hz *3
at 60Hz
at Max. carrying current
*4
Please refer to REFERENCE DATA, “3. Input current vs. input voltage”.
Please refer to REFERENCE DATA, “1. Load current vs. ambient temperature”.
Please refer to REFERENCE DATA, “2. Non-repetitive surge current vs. carrying time”.
When the load current is less than the rated minimum load current, please refer to “Cautions for Use of SSR”.
2. Characteristics (Measurement condition: at 20°C
68°F,
Input ripple: 1% or less)
1) Zero-cross type
Type
Part No.
Operate time, max.
Release time, max.
Insulation resistance, min.
Breakdown voltage
Vibration resistance (Functional)
Shock resistance (Functional)
Ambient temperature
Storage temperature
Operational method
10A
AQN111
AQN111L
AQN111V
AQN111VL
15A
AQN211
AQN211L
AQN211V
AQN211VL
20A
AQN311
AQN311L
AQN311V
AQN311VL
25A
AQN411
AQN411L
AQN411V
AQN411VL
40A
AQN611
AQN611L
AQN611V
AQN611VL
Remarks
1/2 cycle of voltage sine wave + 1ms
1/2 cycle of voltage sine wave + 1ms
100MΩ between input and output
4,000 Vrms between input and output; 2,500 Vrms between input, output and case
10 to 55Hz double amplitude of 1.5mm
Min. 980 m/s
2
–20°C to +80°C
–4°F to +176°F*
2
–25°C to +85°C
–13°F to +185°F
Zero-cross (Turn-ON and Turn-OFF)
at 500 V DC
for 1min.
X, Y, Z axes
X, Y, Z axes
Non-condensing at low
temperatures
2) Random type
Type
Part No.
Operate time, max.
Release time, max.
Insulation resistance, min.
Breakdown voltage
Vibration resistance (Functional)
Shock resistance (Functional)
Ambient temperature
Storage temperature
Operational method
10A
AQN121
AQN121L
AQN121V
AQN121VL
15A
AQN221
AQN221L
AQN221V
AQN221VL
20A
AQN321
AQN321L
AQN321V
AQN321VL
25A
AQN421
AQN421L
AQN421V
AQN421VL
40A
AQN621
AQN621L
AQN621V
AQN621VL
Remarks
1ms
1/2 cycle of voltage sine wave + 1ms
100MΩ between input and output
4,000 Vrms between input and output; 2,500 Vrms between input, output and case
10 to 55Hz double amplitude of 1.5mm
Min. 980 m/s
2
–20°C to +80°C
–4°F to +176°F
–25°C to +85°C
–13°F to +185°F
Random Turn-ON, Zero-cross Turn-OFF
at 500 V DC
for 1min.
X, Y, Z axes
X, Y, Z axes
Non-condensing at low
temperatures
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
AQ-N

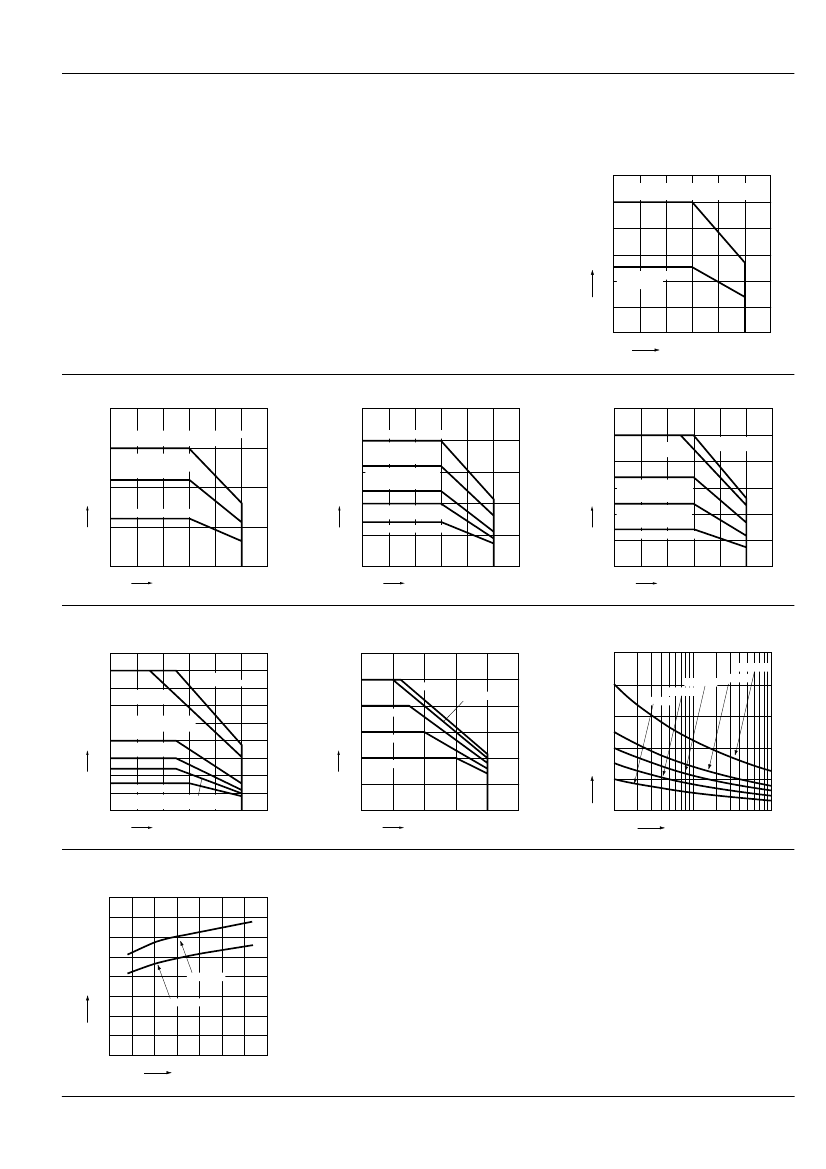

REFERENCE DATA
1. Load current vs. ambient temperature
Use load current within range specified in the figure below.
Tested condition
With external heat sink
1) (1) 10A, 15A, 20A type
Shown with standard heat sink
(AQP801)
(2) Shown with 25A type standard heat sink
(AQP804)
(3) Shown with 40A type standard heat sink
(AQP806)
(4) In the case of the AQP812 slim heat-sink
types, characteristics data are available
for each type. Please refer to (6).
2) If attached to a heat sink, use a heat
conductive compound (Ex. Toshiba silicone
YG6111 or TSK5303) of similar coating to
improve cooling.
Without external heat sink
If the mounting surface is not metallic and a
heat sink is not used, expose the bottom
surface and plate surface to improve heat
dissipation.
(1) 10A type
12
10
Load current, A
8
6
When using as
4 stand-alone
2
0
-20
When using AQP-HS-J10A or a steel
plate of 100×100×t0.8 (mm) or greater
0
20
40
60
80 100
Ambient temperature,
°C
(2) 15A type
20
When using AQP-HS-J10A or a steel plate
of 150×150×t1.6 (mm) or greater
(3) 20A type
25
When using AQP-HS-J10A
When using a steel
plate of 150×150×t1.6
(mm) or greater
15
When using a steel
plate of 100×100×t1.6
(mm) or greater
(4) 25A type
30
25
Load current, A
When using
AQP-HS-J10A
Load current, A
When using a steel
plate of 100×100×t1.6
(mm) or greater
Load current, A
15
20
When using
AQP-HS-30/40A
20
15
plate of 150×150×t1.6
(mm) or greater
When using a steel
10
plate of 100×100×t1.6
(mm) or greater
When using as stand-alone
When using a steel
10
When using as stand-alone
10
When using a steel plate
of 75×75×t1.6 (mm) or greater
When using as stand-alone
5
5
5
0
0
-20
0
20
40
60
80
Ambient temperature,
°C
100
0
-20
0
20
40
60
80
Ambient temperature,
°C
100
-20
0
20
40
60
80
Ambient temperature,
°C
100
(5) 40A type
45
40
Load current, A
35
30
When using
AQP-HS-30/40A
When using
AQP-HS-J25A
(6) Data when mounted on an AQP-HS-SJ20A
slim heat sink
30
2. Non-repetitive surge current vs. carrying
time
500
Non-repetitive surge current, A
40A type
25A type
25
Load current, A
20
15
10
5
0
40 A type
25 A type
20 A type
15 A type
10 A type
400
20A type
15A type
10 A type
25
When using a steel plate
of 150×150×t1.6 (mm)
or greater
20
When using a steel plate of
100×100×t1.6 (mm) or greater
300
200
15
10
5
0
100
When using as stand-alone
When using a steel plate of
75×75×t1.6 (mm) or greater
-20
0
20
40
60
80
Ambient temperature,
°C
100
0
20
40
60
80
Ambient temperature,
°C
100
0
1
10
No. of cycles at 60 Hz
100
3. Input current vs. input voltage
10A, 15A, 20A, 25A, 40A common
16
14
Input current, mA
12
10
8
6
4
2
0
5
10
15
20
25 30
Input voltage, V
35
With LED
Without LED
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
AQ-N

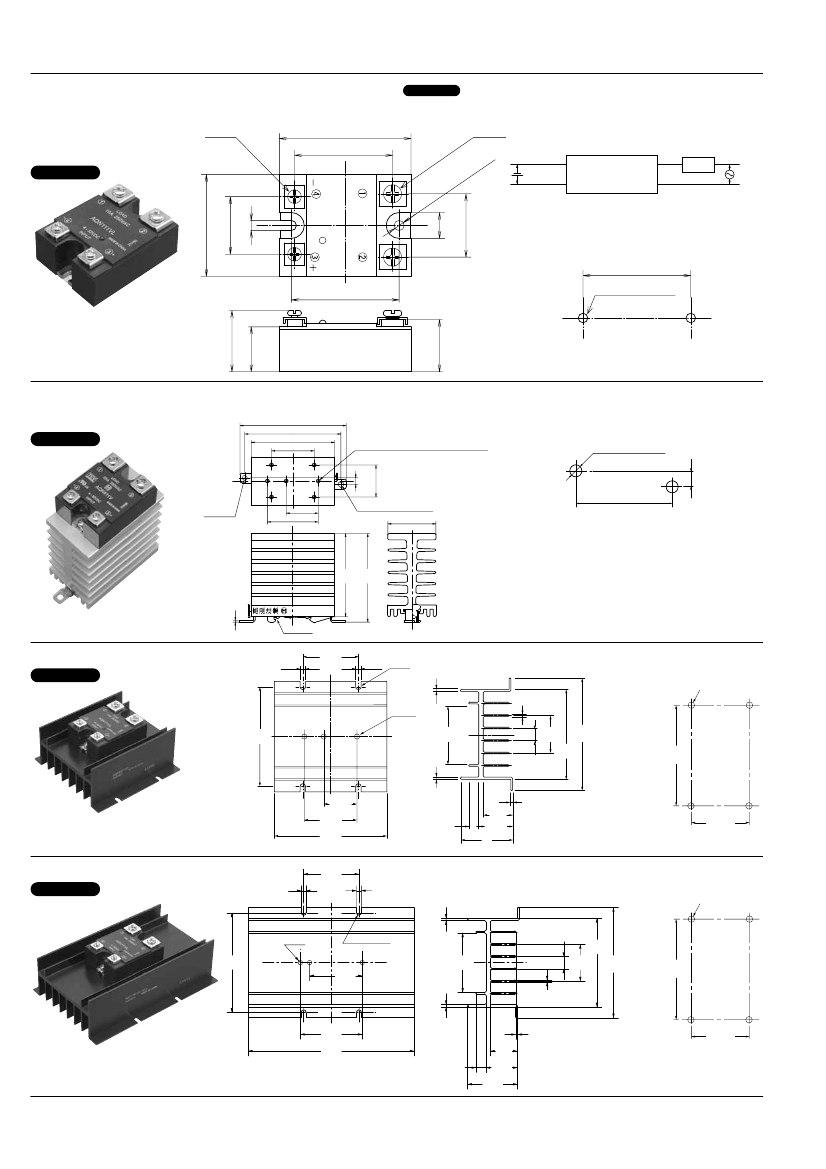

DIMENSIONS
(mm
inch)
* The right figure is the
LED indication type.
The standard type has
the same dimensions.
2-M3
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://panasonic-electric-works.net/ac
External dimensions
58.0
2.283
43.2
1.701
2-M4
Schematic
Input power
source
Load power
source
CAD Data
.
dia
ia.
4.5
77 d
.1
_
+
4
3
1
2
Load
45.0 25.4 4.5
1.772 1.000 .177
11.4
.449
27.9
1.098
Mounting dimensions
47.5
+0.2
−0.1
1.870
+.008
−.004
47.5
1.870
2-4.3 dia. or M4
2-.069 dia. or M4
27.0 max.
1.063 max.
20.0
.787
22.0
.866
ACCESSORIES
AQP-HS-SJ20A Slim Heat Sink
CAD Data
100
90
78
40
3.937
3.543
3.071
1.575
Mounting dimensions
5-M4
(Effective screw depth: 6mm
.236inch)
6
30
.236 1.181
2-4.6 dia. or M4
2-.181 dia. or M4
6
.236
90±0.2
3.543±.008
4.6 dia.
.181 dia.
30
47.6
1.874 1.181
4.6×5.6 elliptical hole
.181×.220
45
1.772
78
83
3.071 3.268
1.6
.063
General tolerance:
±1.0
±.039
Note:
When using on a DIN rail, please install so that the “A” part is on top.
AQP812
70707
“A” part
AQP-HS-J10A Standard Heat Sink
CAD Data
4.4
.173
50
1.969
4.4
.173
R2.2
.087
Mounting dimensions
2
.079
1.5
.059
4-M4 or 4.4 dia.
4-M4 or .173 dia.
3-M4
90
3.543
54
2.126
33.3
1.311
11.1
.437
2
.079
24.5
.965
28.5
9
1.122
.354
45
1.772
100
+0.5
−1.5
3.937
+.020
−.059
90±0.1
3.543±.004
80
3.150
30
1.181
47.6
1.874
100
3.937
1.5
.059
50±0.2
1.969±.008
AQP-HS-30/40A Standard Heat Sink
CAD Data
4.4
.173
50
1.969
4.4
.173
2
.079
11.1
.437
54
2.126
1.5
.059
2
.079
24.5
.965
28.5
1.122
45
1.772
Mounting dimensions
4-M4 or 4.4 dia.
4-M4 or .173 dia.
3-M4
90
3.543
R 2.2
.087
47.6
1.874
80
3.150
33.3
100
+0.5
−1.5
1.311 3.937
+.020
−.059
90±0.1
3.543±.004
56
2.205
150
5.906
1.5
.059
50±0.2
1.969±.008
9
.354
General tolerance:
±0.5
±.020
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
京公网安备 11010802033920号
EEWORLD
