ZXRE125DFTC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ZXRE125DFTC

ZXRE125DFTC: DescriptionTwo Terminal Voltage Reference, 1 Output, 1.22V, PDSO3, SOT-23, 3 PIN; CategoryPower/power management The power supply circuit; File Size105KB，5 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric View All

ZXRE125DFTC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZXRE125DFTC	-	-	View	Buy Now

ZXRE125DFTC Overview

Two Terminal Voltage Reference, 1 Output, 1.22V, PDSO3, SOT-23, 3 PIN

ZXRE125DFTC Parametric

Parameter Name	Attribute value
Maker	Diodes Incorporated
Parts packaging code	SOT-23
package instruction	TSOP,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
length	2.86 mm
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	1.232 V
Minimum output voltage	1.208 V
Nominal output voltage	1.22 V
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.1 mm
surface mount	YES
Maximum voltage temperature coefficient	90 ppm/°C
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Fine-tuning/adjustable output	NO
width	1.3 mm

ZXRE125DFTC Preview

A Product Line of

Diodes Incorporated

ZXRE125

SOT23 MICROPOWER 1.22V VOLTAGE REFERENCE

Description

The ZXRE125 is a bandgap circuit designed to achieve a

precision micropower voltage reference of 1.22 volts. The

device is available in the small outline SOT23 surface mount

package which is ideal for applications where space saving

is important.

SOT23 tolerance is available to 0.5% for precision

applications. Excellent performance is maintained over the

8µA to 20mA operating current range with a typical

temperature coefficient of only 20ppm/°C. The device has

been designed to be highly tolerant of capacitive loads so

maintaining excellent stability.

This device offers a SOT23 pin for pin compatible

replacement of the ZRA124 and ZRA125 series of voltage

references.

Pin Assignments

(Top View)

Pin 1 floating or connected to pin 2

Features

•

High performance 1.220V reference

Small outline SOT23

4μA knee current

20ppm/°C typical temperature coefficient

Unconditionally stable

0.5%, 1%, 2%, and 3% tolerance

Green molding compound (No Br, Sb)

OBSOLETE

(Bottom View)

Pin 3 floating or connected to pin 1

Applications

•

Battery powered equipment

Precision power supplies

Portable instrumentation

Portable communication devices

Data acquisition systems

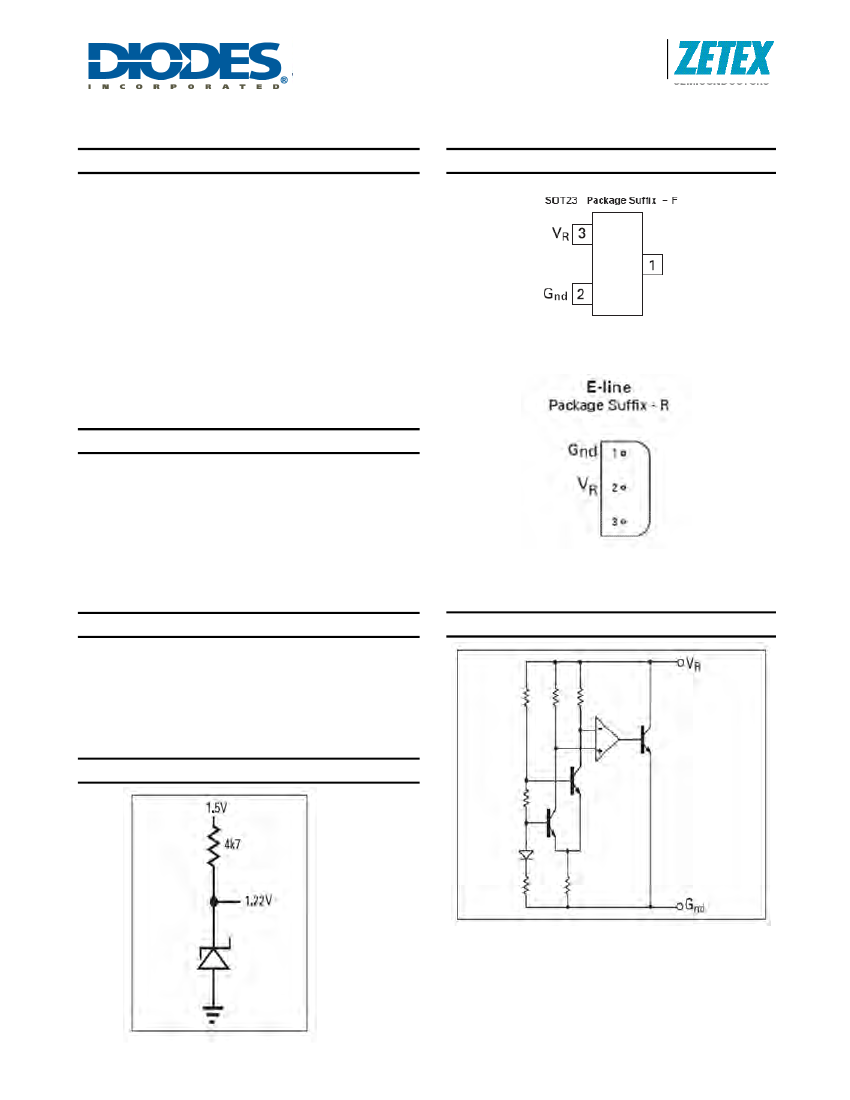

Schematic Diagram

Application Circuit

ZXRE125

Document number: DS32170 Rev. 8 - 2

1 of 5

www.diodes.com

June 2010

A Product Line of

Diodes Incorporated

ZXRE125

Absolute Maximum Ratings

(Voltages to GND Unless Otherwise Stated)

Parameter

Reverse Current

Forward Current

Operating Temperature

Storage Temperature

Power Dissipation (T

AMB

= 25°C)

Symbol

OMP

STG

Rating

-40 to 85

-55 to 125

330

Unit

°C

Electrical Characteristics

Symbol

MIN

(*)

(Test conditions: Tamb = 25°C, unless otherwise specified.)

Parameter

Reverse breakdown voltage

Minimum operating current

Recommended operating current

Average reverse breakdown

voltage temperature coefficient

Reverse Breakdown Change

with Current Voltage

Condition

= 100µA

Min.

1.214

1.208

1.196

1.183

0.008

Typ.

1.220

Max.

1.226

1.232

1.244

1.257

Tol. (%)

C/0.5

(1)

D/1

E/2

F/3

Unit

µA

ppm/°C

R(min)

to I

R(max)

= 30μA to 1mA

= 1mA to 12mA

= 1mA

f = 100Hz

= 0.1I

= 8µA to 100µA

f = 10Hz to 10kHz

ΔV

ΔI

Notes:

Reverse dynamic impedance

Wideband noise voltage

0.2

0.6

Ω

µV(rms)

(*)

R(MAX)

– V

R(MIN)

) x 1000000

x (T

(MAX)

– T

(MIN)

)

Note: V

R(MAX)

- V

(MIN)

is the maximum deviation in reference

voltage measured over the full operating temperature range.

ZXRE125

Document number: DS32170 Rev. 8 - 2

2 of 5

www.diodes.com

June 2010

A Product Line of

Diodes Incorporated

ZXRE125

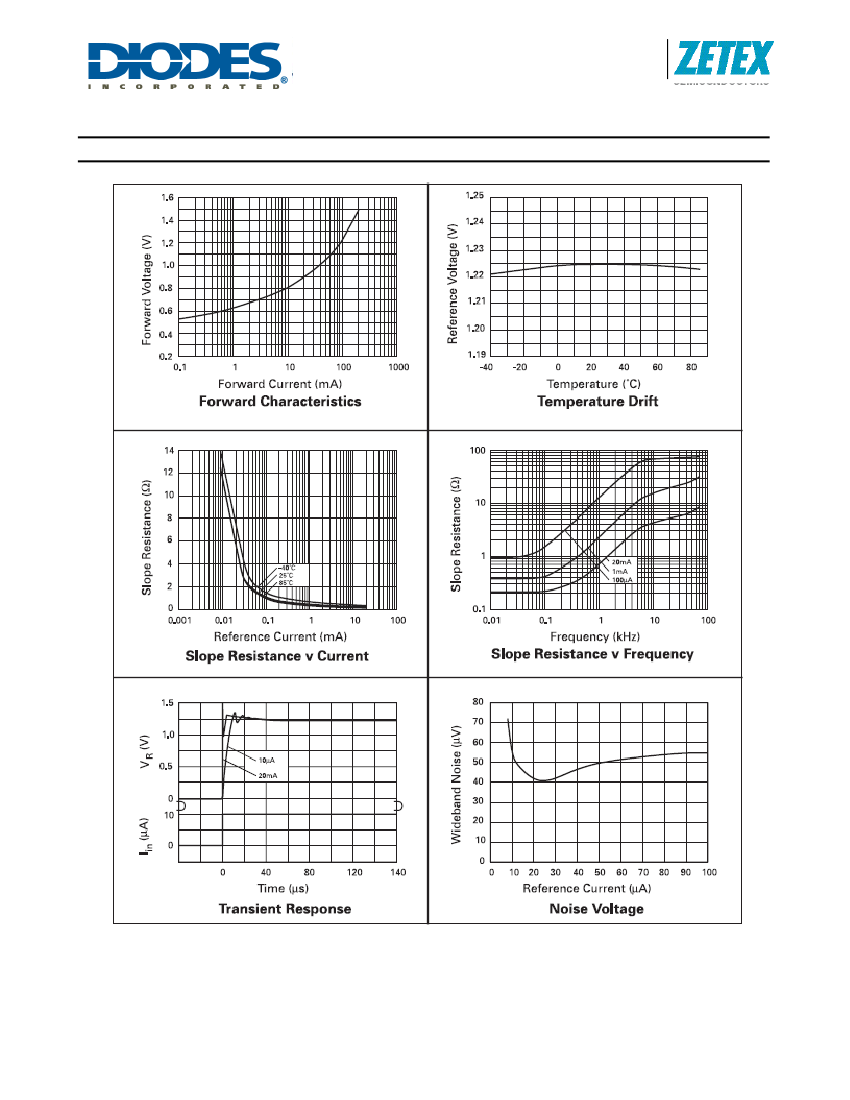

Typical Characteristics

ZXRE125

Document number: DS32170 Rev. 8 - 2

3 of 5

www.diodes.com

June 2010

A Product Line of

Diodes Incorporated

ZXRE125

Ordering Information

(*)

Order Reference

ZXRE125CFTA

ZXRE125DFTA

ZXRE125EFTA

ZXRE125FFTA

Notes:

Tol

(%)

0.5

Device Mark

12J

12H

12G

12F

Grade

Status (*)

Released

Reel Size

(inches)

Quantity

per reel

3000

Tape Width

(mm)

* All ZXRE125 E-line variants are obsolete and no longer available for sale.

Package Outline Dimensions

3 leads

Dim.

Millimeters

Min.

Max.

1.12

0.01

0.10

0.30

0.50

0.085

0.20

2.80

3.04

0.95 NOM

Inches

Min.

Max.

0.044

0.0004

0.004

0.012

0.020

0.003

0.008

0.110

0.120

0.037 NOM

Dim.

Millimeters

Min.

Max.

1.90 NOM

2.10

2.64

1.20

1.40

0.25

0.60

0.45

0.62

Inches

Min.

Max.

0.075 NOM

0.083

0.104

0.047

0.055

0.0098

0.0236

0.018

0.024

Note:

Controlling dimensions are in millimeters. Approximate dimensions are provided in inches

ZXRE125

Document number: DS32170 Rev. 8 - 2

4 of 5

www.diodes.com

June 2010

A Product Line of

Diodes Incorporated

ZXRE125

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall

assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes

Incorporated website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales

channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify

and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of,

directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and

markings noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the

express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause

the failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems,

and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products

and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-

related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and

its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or

systems.

www.diodes.com

ZXRE125

Document number: DS32170 Rev. 8 - 2

5 of 5

www.diodes.com

June 2010
