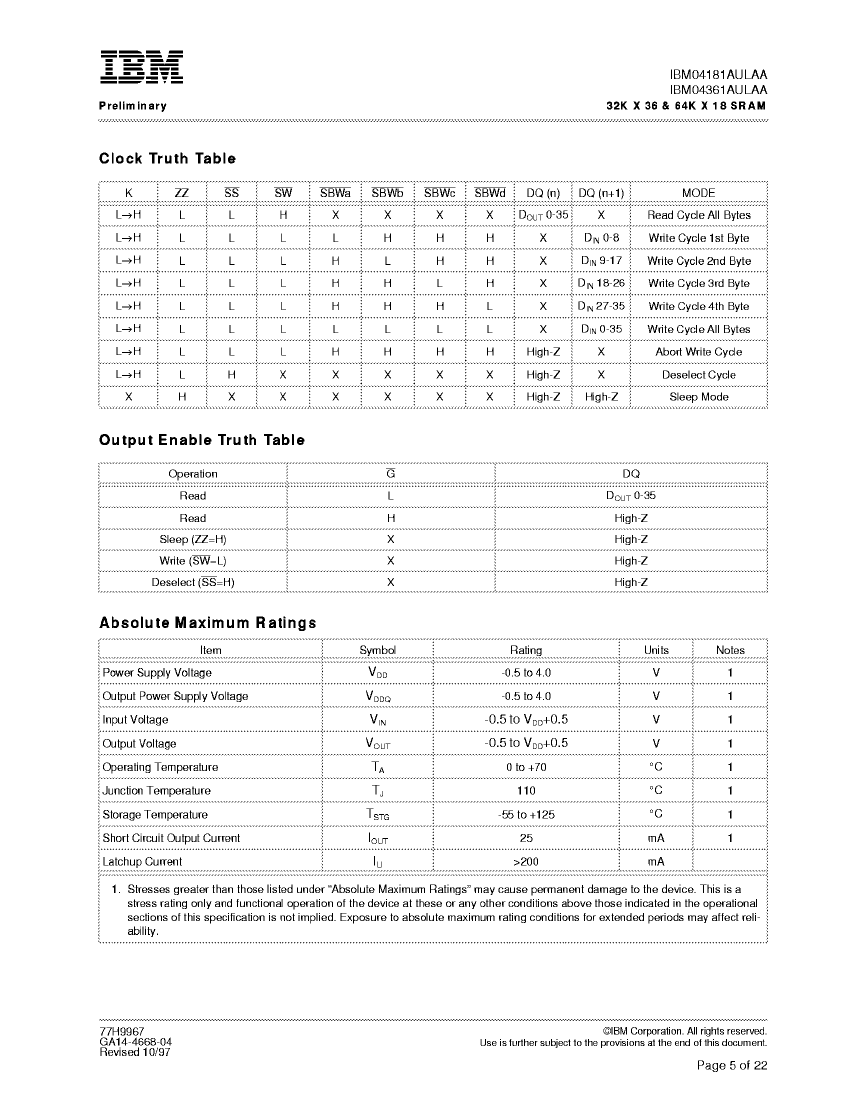

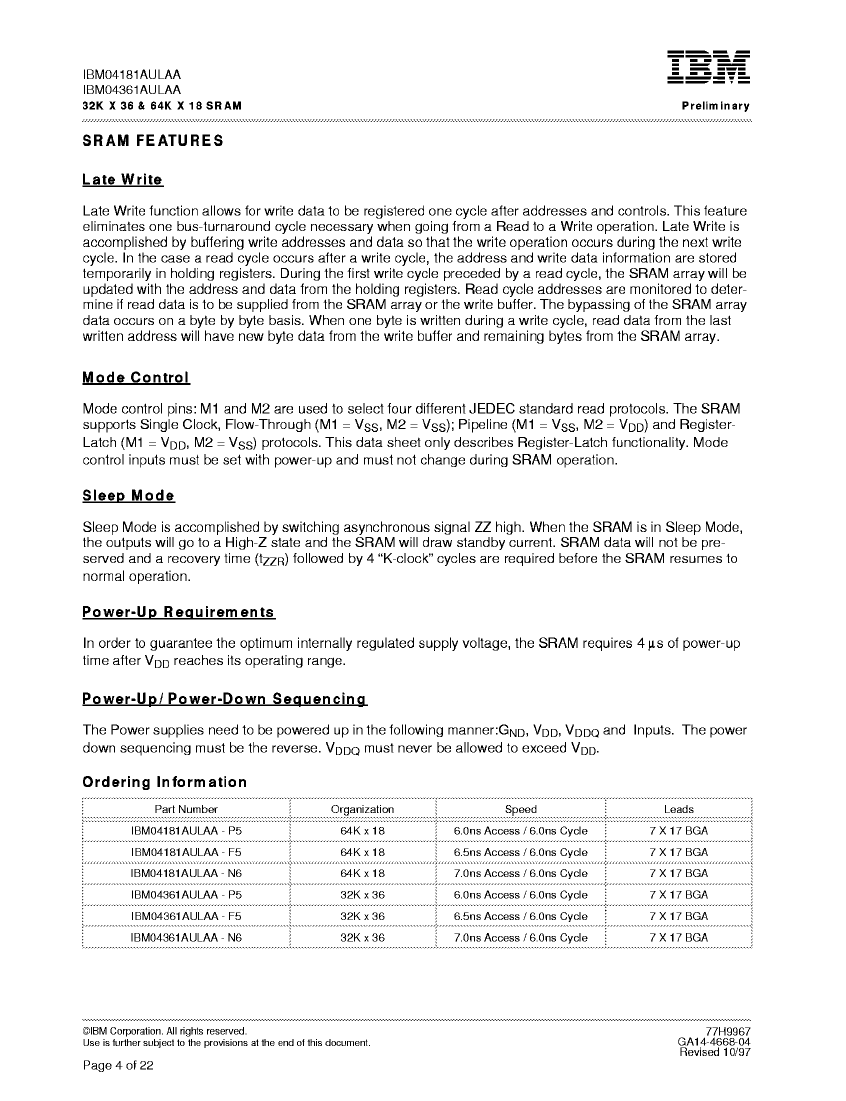

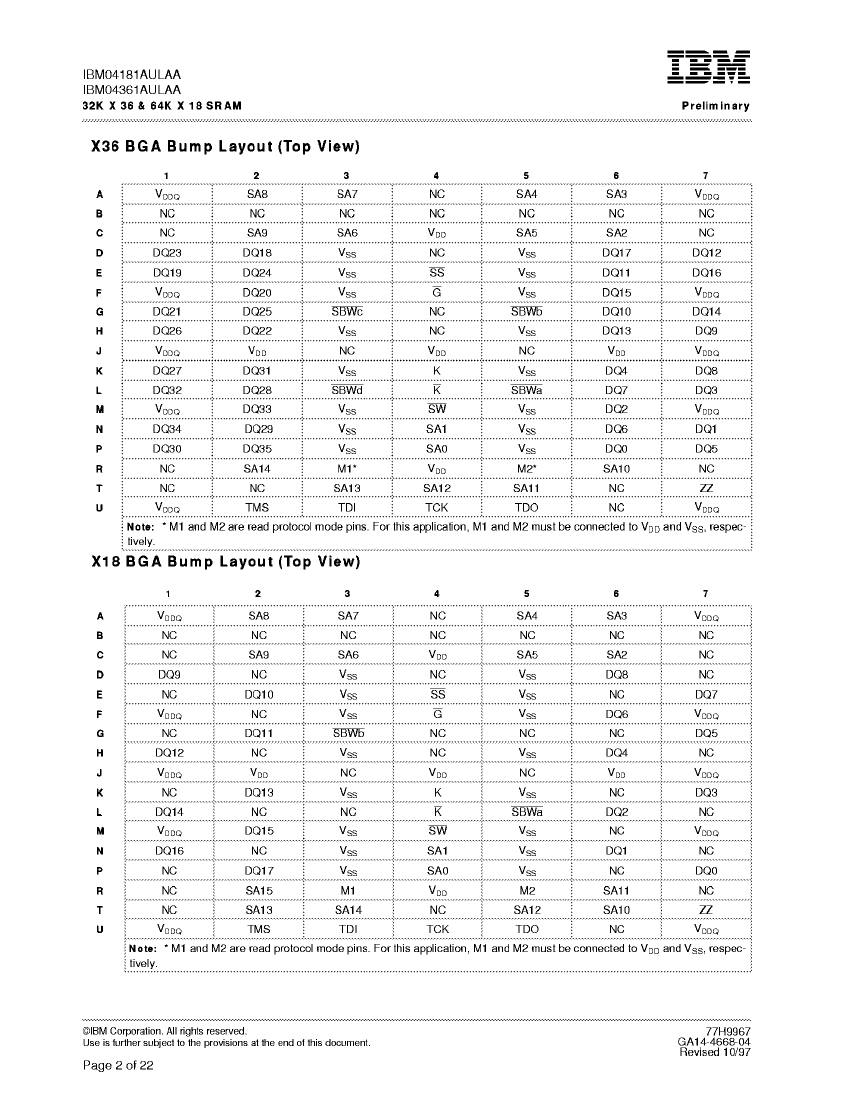

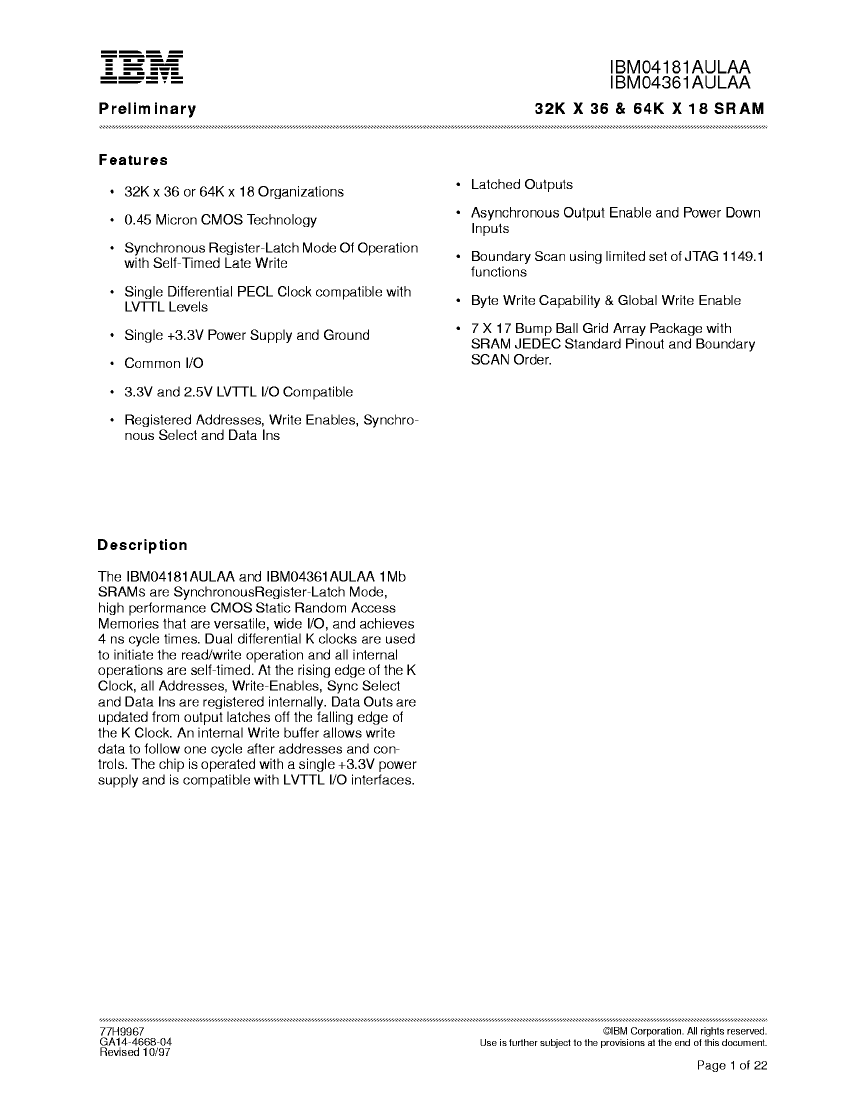

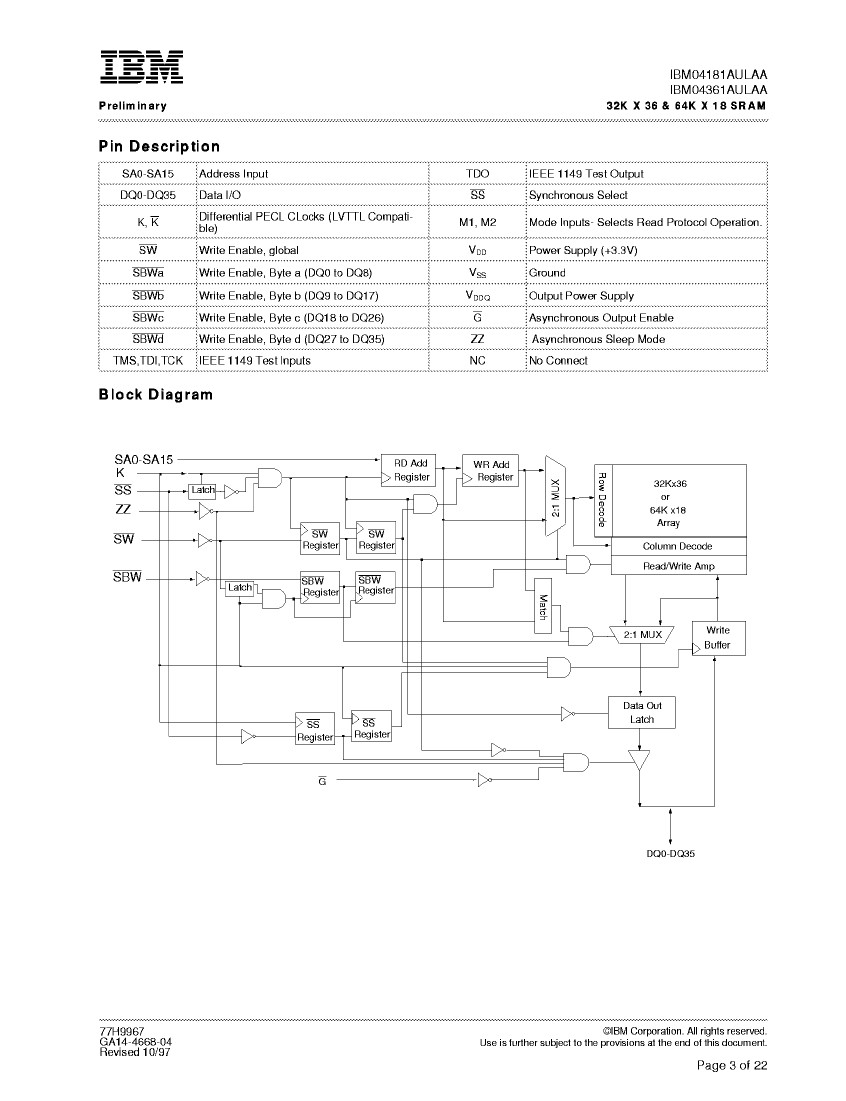

IBM04361AULAA-N6

Description
Standard SRAM, 32KX36, 7ns, CMOS, PBGA119, BGA-119
Categorystorage    storage
File Size784KB，22 Pages
ManufacturerIBM
Websitehttp://www.ibm.com
Download Datasheet Parametric Compare View All

IBM04361AULAA-N6 Overview

Standard SRAM, 32KX36, 7ns, CMOS, PBGA119, BGA-119

IBM04361AULAA-N6 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerIBM
Parts packaging codeBGA
package instructionBGA, BGA119,7X17,50
Contacts119
Reach Compliance Codeunknown
ECCN code3A991.B.2.A
Maximum access time7 ns
I/O typeCOMMON
JESD-30 codeR-PBGA-B119
JESD-609 codee0
length22 mm
memory density1179648 bit
Memory IC TypeSTANDARD SRAM
memory width36
Number of functions1
Number of terminals119
word count32768 words
character code32000
Operating modeSYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize32KX36
Output characteristics3-STATE
Package body materialPLASTIC/EPOXY
encapsulated codeBGA
Encapsulate equivalent codeBGA119,7X17,50
Package shapeRECTANGULAR
Package formGRID ARRAY
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply2.5/3.3,3.3 V
Certification statusNot Qualified
Maximum seat height2.41 mm
Maximum standby current0.025 A
Minimum standby current3.14 V
Maximum slew rate0.475 mA
Maximum supply voltage (Vsup)3.465 V
Minimum supply voltage (Vsup)3.135 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formBALL
Terminal pitch1.27 mm
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
width14 mm

Preview

Download Datasheet
